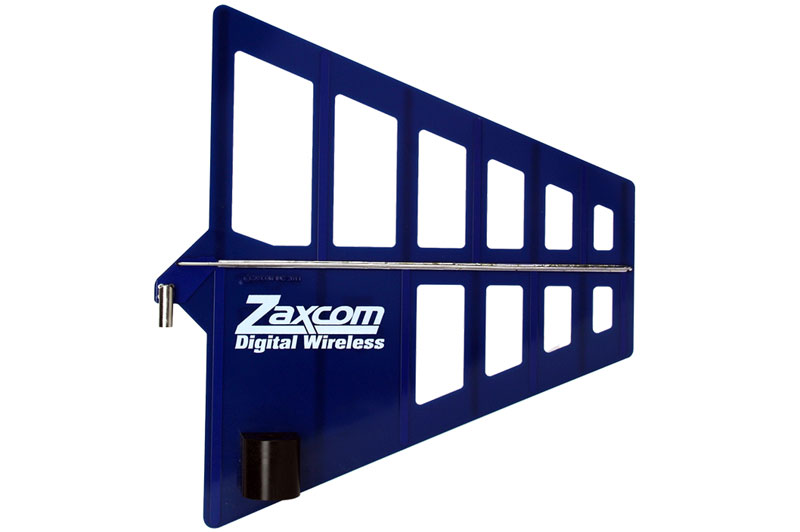

Zaxcom BlueFin High Gain Directional Antenna
- Directional antenna with 8 dB of gain
- Covers 500 to 750 MHz, receive or transmit
- Wind cut-outs for exterior locations
$195.00 USD
Zaxcom BlueFin High Gain Directional Antenna
The Zaxcom BlueFin is a high gain directional antenna with 8 dB of forward gain for receiving or transmitting between 500 and 750 MHz.
It weakens signals arriving more than 45 degrees off its front, which keeps interference away from the receiver. Its low VSWR suits it to transmitting as well. Wind cut-outs make it a good fit for exterior locations.
It suits Zaxcom ENG receivers such as the QRX200 and RX200, mounts on a 5/8 in mic stand thread, and connects through a BNC jack.
Features
- 8 dB forward gain
- Covers 500 to 750 MHz
- For receiving or transmitting, up to 10 W
- 90-degree usable beam width
- Wind cut-outs for exterior use
- 5/8 in stand mount and BNC connector
Specifications
| Antenna | |
|---|---|
| Frequency Range | 500 – 750 MHz |
| Forward Gain | 8 dB |
| Usable Beam Width | 90° |
| Impedance | 50 Ω |
| Maximum Transmitter Power | 10 W |
| Connector | BNC female |
| Size | 1 × 1 ft |
| Weight | 0.6 lb (272 g) |
| Mounting | 5/8 in threaded mic stand mount |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit zaxcom.com. |
