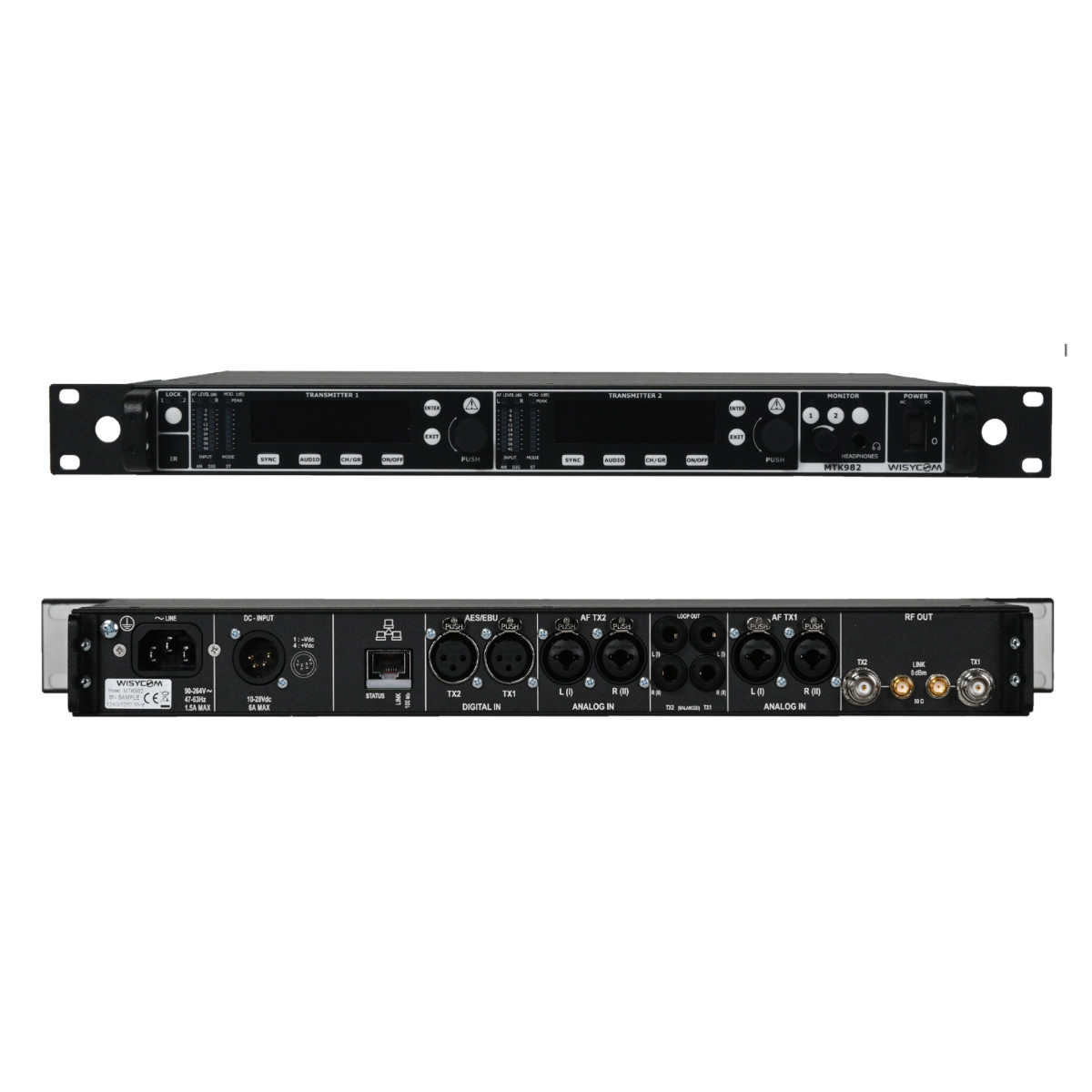

Wisycom MTK982 Wideband IEM / IFB Transmitter
- Dual wideband stereo IEM and IFB transmitter in 1U
- 3-channel IFB mode and up to 2 W output
- Analog and AES3 digital inputs
From $6,570.00 USD
Wisycom MTK982 Wideband IEM / IFB Transmitter
The Wisycom MTK982 puts two wideband stereo IEM and IFB transmitters in one rack unit, with low spurious emissions and several types of RF modulation.
Direct digital synthesis of the signal gives more than 70 dB of stereo separation, and each channel tunes across a 330 MHz window (470 to 663 MHz on the US version). Modulation can be stereo, mono, intercom, or Multi-IFB. The 3-channel IFB mode fits three audio channels into 200 kHz, for up to 60 IFB channels in one 8 MHz TV channel.
Output power runs from 10 mW to 2 W in steps, limited by software where a country requires it, and SWR sensing watches both antenna outputs. A low interference output stage cancels wideband intermodulation.
Inputs take analog audio on XLR and 1/4 in combo jacks or AES3 digital, processed by a 40-bit floating point DSP with multi-companding. You manage the MTK982 over Ethernet. The AC and DC version adds a DC input for a redundant supply and needs the Wisycom AL1265XF power supply.
Features
- Two wideband stereo IEM and IFB transmitters in 1U
- 330 MHz tuning window, 470 to 663 MHz on the US version
- Stereo, mono, intercom, and Multi-IFB modulation
- 3-channel IFB: three audio channels in 200 kHz
- Direct digital synthesis with more than 70 dB stereo separation
- Output power from 10 mW to 2 W
- Analog and AES3 digital inputs
- SWR sensing on the antenna outputs
- Ethernet management
- Optional DC input for redundant power
Available Options
| Power Supply | Part Number | Notes |
|---|---|---|
| AC Power | MTK982-US | 90 to 264 V AC supply |
| AC and DC Power | MTK982-US_DC | Adds a 10 to 28 V DC input for redundant power; needs the AL1265XF |
Specifications
| Radio | |
|---|---|
| Frequency Range | 470 to 663 MHz (US version) |
| Switching Window | 330 MHz |
| Switchable Channels | 2400, in 40 groups of 60, user programmable |
| Frequency Step | 5 kHz |
| RF Power | 10, 20, 30, 50, 75, 100, 150, 200, 250, 400, 500, 750, 1000, 1200, 1500, or 2000 mW (ERP); limited by software where a country requires it |
| Antenna Connectors | 2 x BNC female |
| Master and Slave I/O | 2 x BNC female |
| Impedance | 50 Ω |
| Modulation | FM, stereo multiplex or mono |
| Peak Deviation | ±56 kHz mono wideband, ±35 kHz mono narrowband, ±48 kHz stereo |
| Pilot Tone | 19 kHz |
| Spurious Emissions | Less than 2 nW |
| Audio | |
| Noise Reduction | ENR, ENC, ENS; NONE-d50 (no compander, 50 µs pre-emphasis); NR for Wisycom intercom; dedicated NRS for 3-channel IFB |
| Audio Bandwidth | 20 Hz to 20 kHz mono, 30 Hz to 15 kHz stereo, 150 Hz to 7 kHz 3-channel IFB |
| Audio Inputs | XLR-3 and 1/4 in (6.3 mm) combo jacks, electronically balanced, +18 dBu |
| Digital Input | AES3 on XLR-3M, 32 to 108 kHz |
| Monitor Output | 1/4 in (6.35 mm) jack, balanced, 120 + 120 mW at 24 Ω |
| Control and Power | |
| Control | 10/100 Base-TX Ethernet (RJ45) |
| Display | White OLED, 64 × 256 pixels |
| Power | 90 to 264 V AC, 47 to 63 Hz |
| DC Input (AC and DC version) | 10 to 28 V DC, 6 A max |
| Physical | |
| Operating Temperature | −10 to +55 °C (14 to 131 °F) |
| Dimensions (H x W x D) | 43.8 × 483 × 349 mm (1.7 × 19 × 13.7 in), 19 in 1U with brackets |
| Weight | 4 kg (8.8 lb) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit wisycom.com. |
