Wisycom CSI16T2 Wideband Combiner
- Smart passive combiner for up to 16 transmitters
- 16:1 or 2 × 8:1, 400 to 1300 MHz
- Automatic loss compensation with the MTK982
Unavailable for shipping outside the United States and Canada.
$2,695.00 USD
In Stock
Wisycom CSI16T2 Wideband Combiner
A smart passive wideband combiner, the Wisycom CSI16T2 joins up to 16 transmitters, at up to 2.5 W each, into one or two antenna outputs.

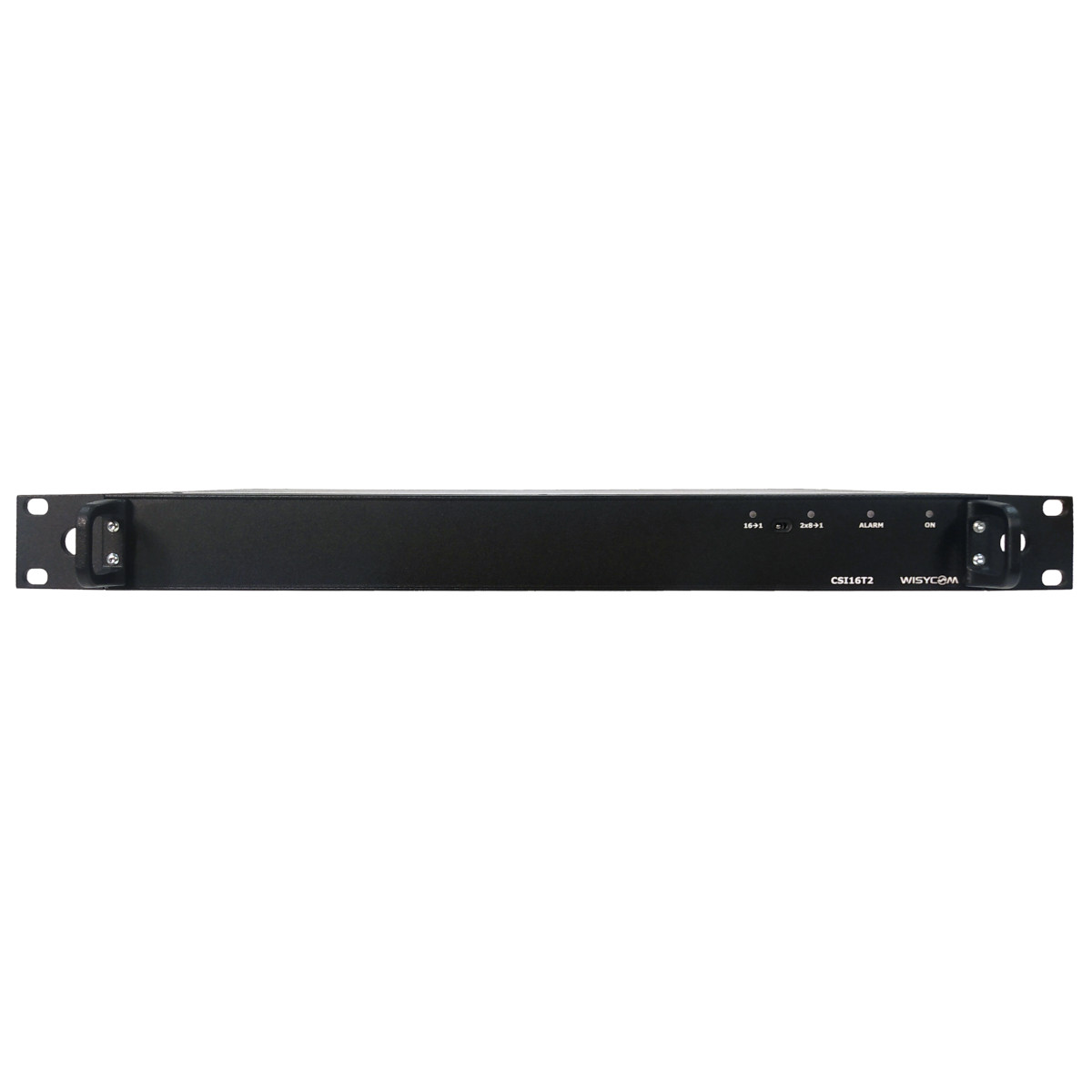

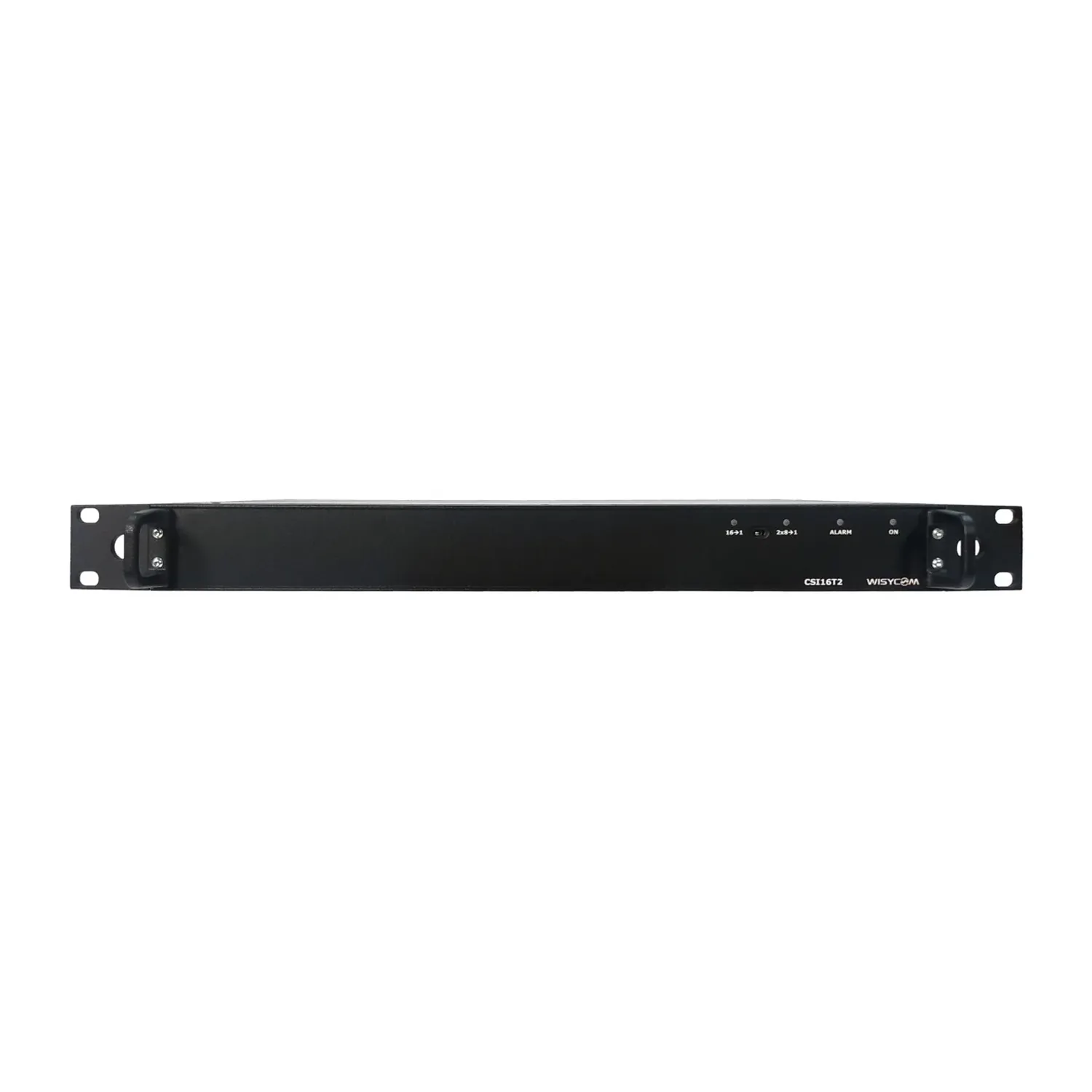

A two-position selector on the front panel sets 16:1 or 2 × 8:1 combining. The combining loss is about 13 dB at 16:1 and about 10 dB at 2 × 8:1, and the frequency range runs from 400 to 1300 MHz.
The combiner talks to Wisycom transmitters through the coax inputs to manage their power. With the MTK982 or MTK952N, the transmitters make up the combiner loss on their side automatically. It runs on 10 to 28 V DC through a 4-pin Hirose connector, and Wisycom’s PSP15V1A2-H supply fits it.
Features
- Passive combiner for up to 16 transmitters
- 16:1 or 2 × 8:1, set on the front panel
- 400 to 1300 MHz
- Up to 2.5 W on each input
- Loss compensated automatically with the MTK982 and MTK952N
- 16 BNC inputs and 3 BNC outputs
- 10 to 28 V DC on a 4-pin Hirose connector

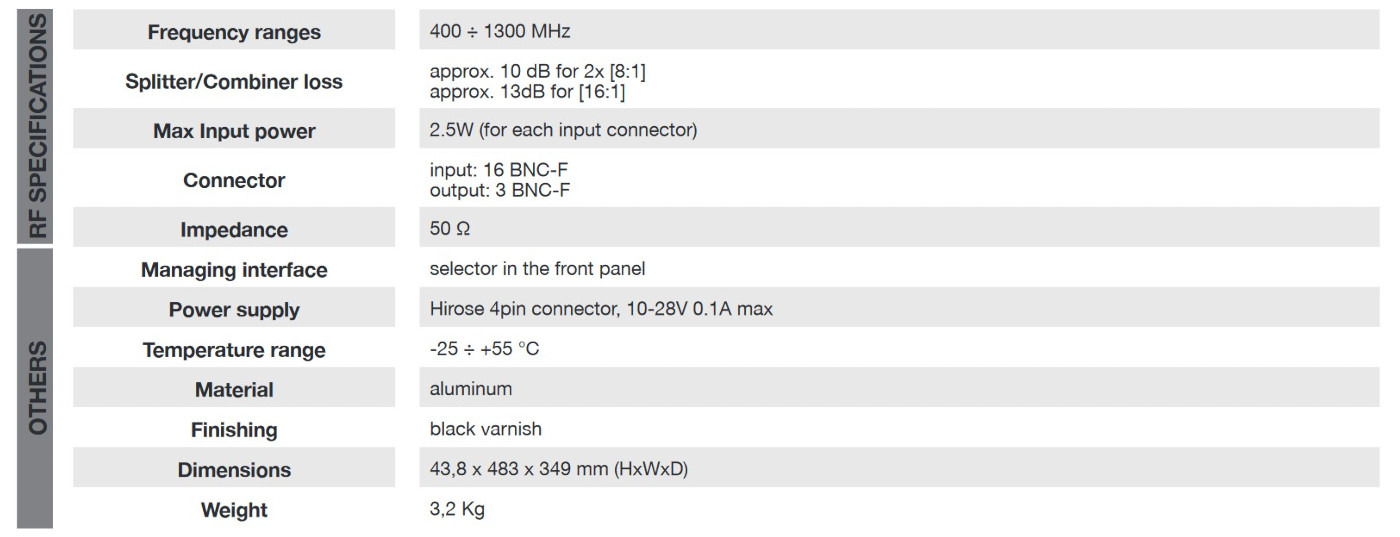

Specifications
| RF | |
|---|---|
| Frequency Range | 400 to 1300 MHz |
| Combining | 16:1 or 2 × 8:1 (front panel selector) |
| Combiner Loss | About 13 dB (16:1), about 10 dB (2 × 8:1) |
| Maximum Input Power | 2.5 W on each input |
| Input Connectors | 16 x BNC female |
| Output Connectors | 3 x BNC female |
| Impedance | 50 Ω |
| Power and Physical | |
| Power | 10 to 28 V DC, 0.1 A max, 4-pin Hirose |
| Operating Temperature | −25 to +55 °C (−13 to 131 °F) |
| Material | Aluminum, black varnish |
| Dimensions (H x W x D) | 43.8 × 483 × 349 mm (1.7 × 19 × 13.7 in) |
| Weight | 3.2 kg (7.05 lb) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit wisycom.com. |
