Sound Devices A10-RACK

2,575.00 USD

Sound Devices A10-RACK — 4 slot, 8 channel, 1RU wireless microphone receiver enclosure, compatible with most unislot and SuperSlot receivers.

Quantity:

SKU: SND.A10RACK Categories: , , , Tags: ,

Description

Sound Devices A10-RACK

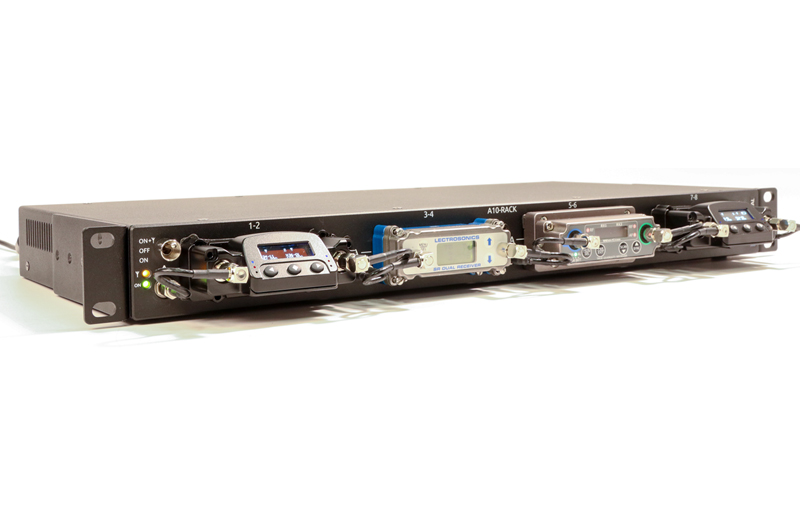

The Sound Devices A10-RACK is a 4 slot, 8 channel, 1RU wireless microphone receiver enclosure, compatible with most unislot and SuperSlotâ„¢ receivers. The A10-RACK accepts up to 4 dual-channel slot-in receivers, providing a total of 8 separate audio feeds. The A10-RACK provides high-quality antenna distribution, power distribution, up to 8 channels of analogue and/or AES digital audio via XLR-M connectors and an 8 channel Dante audio interface.

Key Features:

  • Full Dante audio network integration for up to four Superslot compatible wireless mic receivers (eight audio channels), such as the A20-RX, as well as some models by Wisycom and Lectrosonics.
  • Antenna distribution with bias power for active antennas and pass-through for a second A10-RACK for a total of 16 channels
  • Power distribution via 4-pin XLR-M socket, 10-18VDC
  • Analogue or AES outputs via eight XLR-M sockets on rear panel
  • Each receiver can be set to output analogue or AES individually (if receiver supports it)
  • Each receiver outputs analogue or AES and Dante simultaneously
  • Includes a secondary Ethernet port for Dante redundancy or daisy-chaining a second A10-RACK
  • USB-B port for updating RX firmware via Mic2Wav app
  • 470-694MHz front-end RF filter bandwidth
  • 1RU chassis size with adjustable rack ears to set required depth

Compatible Receivers

The A10-RACK fits slot-in receivers with maximum dimensions of:

  • Slot height: 18mm (0.71 inches)
  • Slot width: 68.3mm (2.69 inches)
  • Width between SMAs: 84.4mm (3.32 inches)

Manuals & Docs

Frequency range 470 - 694MHz (specify at time of order)
Switching bandwidth Up to 100MHz in 25kHz steps
Receiver type True diversity
Tracking filters Digitally controlled front end tracking filters
Scan modes
  • Scan for free channel
  • TV channel scan
Modulation mode Audio Ltd proprietary digital modulation
Frequency stability ±0.002%
Image rejection > 80dB
Audio codec Audio Ltd proprietary
Audio frequency response 40Hz – 20kHz
Total harmonic distortion <0.1% typ.
Analogue audio output voltage + 10dBu max. (balanced)
Audio output attenuator 0dB, -12dB, -24dB, -36dB (selectable)
Digital output AES3 (balanced)
Output adapters
  • 25 pin D-type Superslotâ„¢ Sound Devicesâ„¢
  • Panasonicâ„¢ - analogue
  • Stand-alone adapter with external DC and audio output cables
Menu Audio easy access menu©
Display OLED white on black
Control 3 button navigation
Encryption User settable Audio Ltd proprietary
External supply voltage 6 – 18V DC
Operating temperature range -10°C to +55°C
Weight 180g
Dimensions 124 x 68 x 18mm
Optional accessories
  • Panasonicâ„¢/Ikegamiâ„¢ slot-in adapter
  • Stand-alone adapter with external DC and audio output cables
