Sound Devices Astral ARX2 Digital Wireless Receiver
- Two true-diversity channels in a slot-in receiver
- SpectraBand tuning from 169 to 1525 MHz
- Analog or AES output, with SuperSlot, XLR, and TA3 adapters
$3,450.00 USD
Availability: In Stock
Sound Devices Astral ARX2 Digital Wireless Receiver

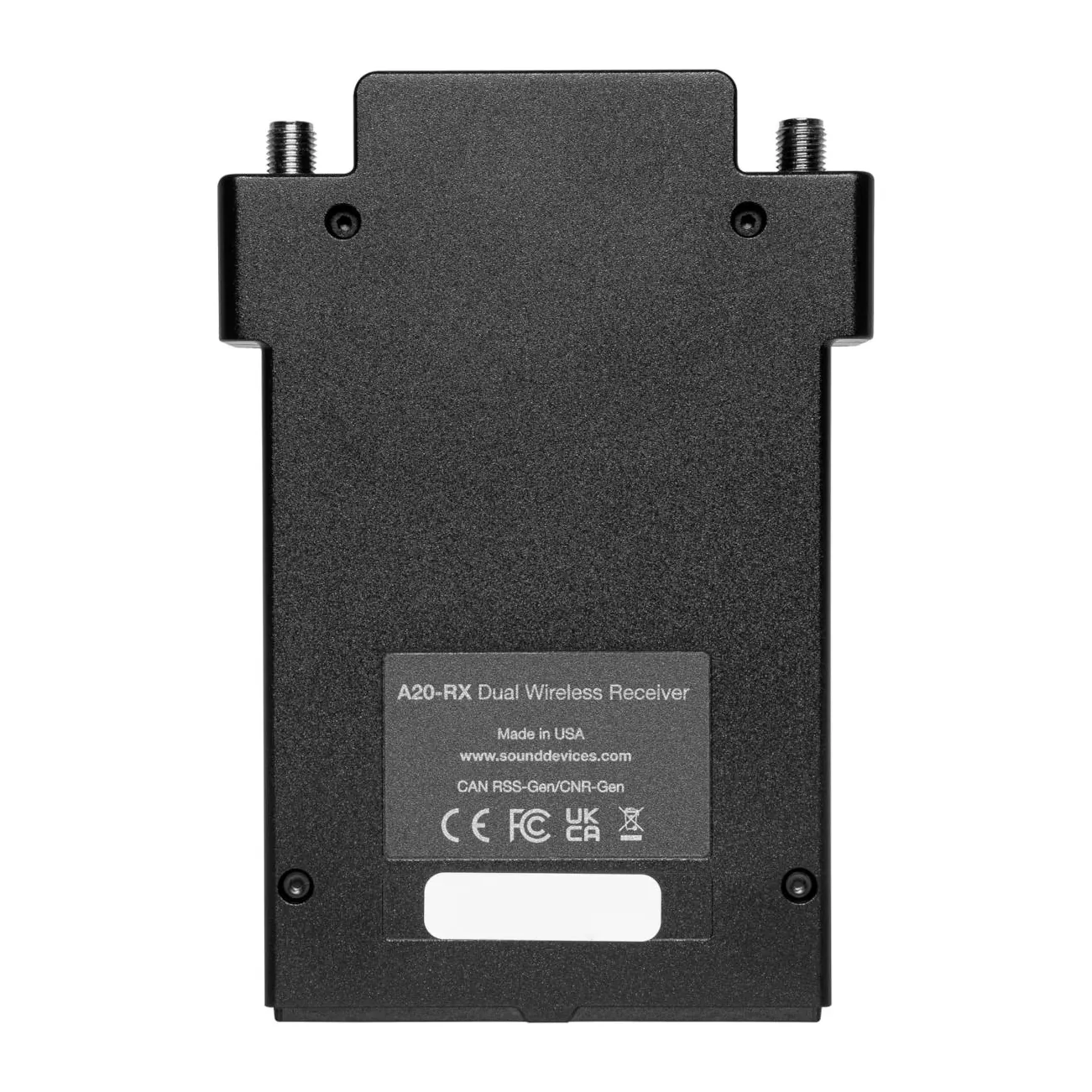

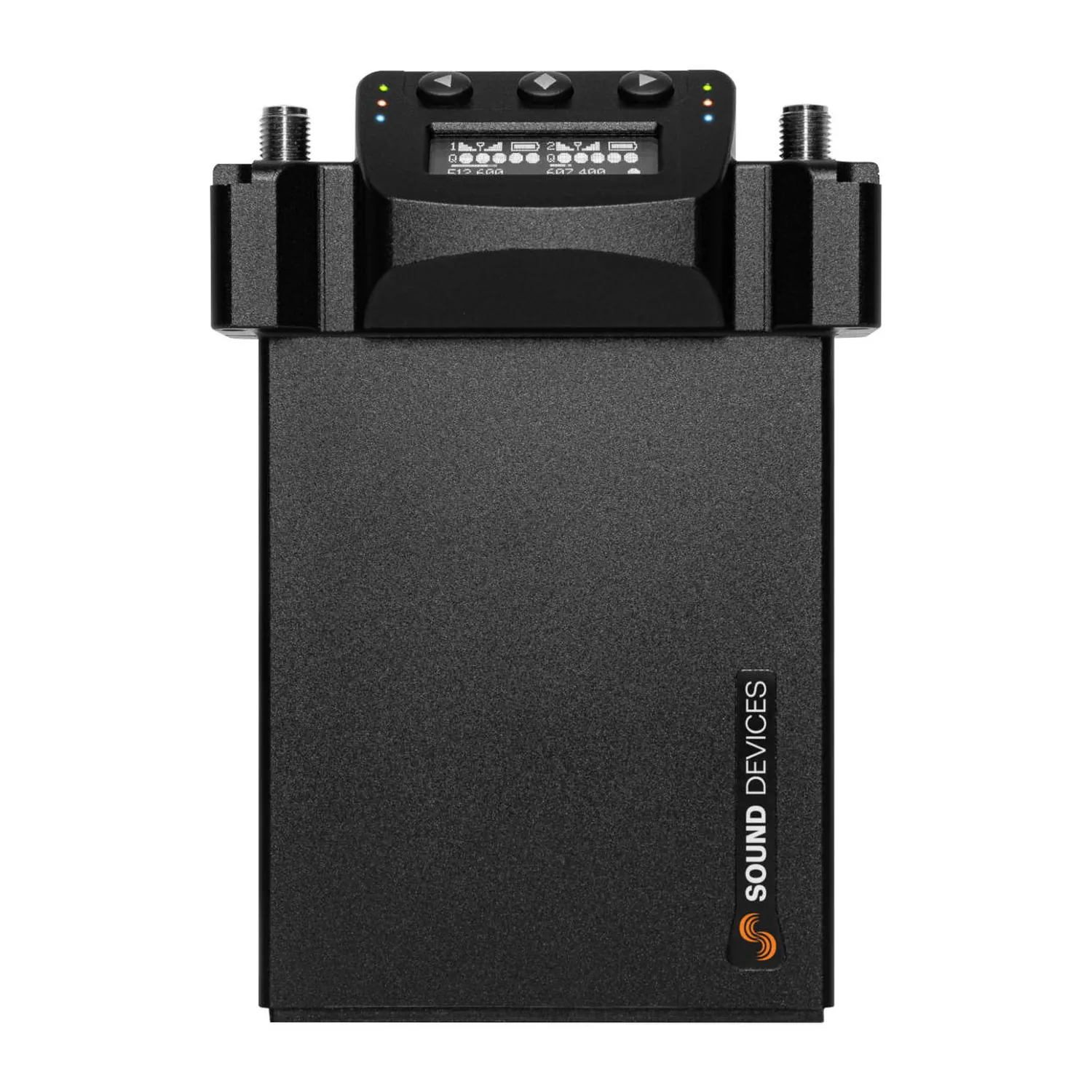

A two-channel, true-diversity digital wireless receiver, the Sound Devices Astral ARX2 slots into an SL-2 on an 8-Series mixer-recorder or works on its own with XLR, TA3, or camera adapters.
It is a complete redesign of the original A10-RX, with four RF receivers in all, two for each channel.
Frequency Bands
SpectraBand tunes from 169 to 1525 MHz. The ARX2 works with Astral Mini and Astral TX transmitters across that range, with the Astral HH from 470 to 1525 MHz, and with every tuning range of the A10-TX. Brick-wall SAW filters reject out-of-band interference, including nearby IFB and camera hop transmitters, without external filters.
Outputs and Adapters

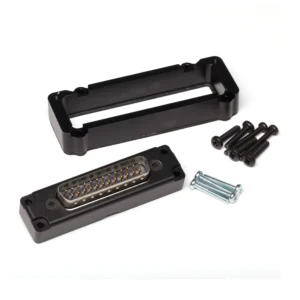

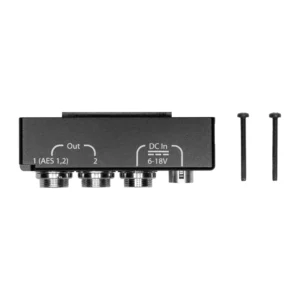

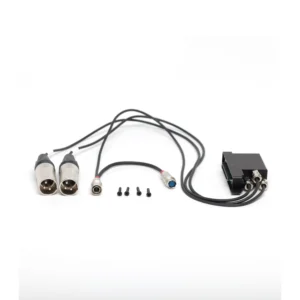

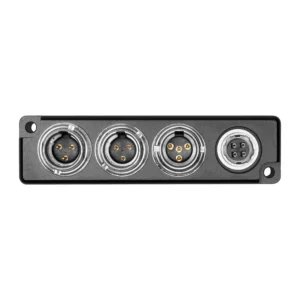

Each channel outputs analog audio at +14, +2, −10, or −22 dBu, or AES digital audio. Backplate adapters give it SuperSlot, XLR, or TA3 connections, the A-RXMON adds a headphone amp, and the A-15PIN fits a Sony camera slot with two AES channels.
GainForward and AutoAssign
With GainForward, Astral transmitter gain is set from an 8-Series trim control through the SL-2, or at the ARX2 for other mixers. AutoAssign scans a band and picks open frequencies for you.
Features
- Two true-diversity channels with four RF receivers
- SpectraBand tuning from 169 to 1525 MHz
- Works with Astral Mini, TX, and HH transmitters and the A10-TX
- Brick-wall SAW filters against out-of-band interference
- Analog line-level or AES digital output
- SuperSlot compatible with the SL-2
- XLR, TA3, A-RXMON, and A-15PIN adapter options
- AutoAssign frequency selection
- Standard (2 ms) or long-range (3.9 ms) modulation
- Powered from 6 to 18 V DC
Specifications
| RF and Audio | |
|---|---|
| RF Tuning | 169 – 1525 MHz, SpectraBand Technology Tunable in 25 kHz steps Available frequencies depend on country of operation |
| Modulation | Proprietary digital RF modulation Standard or Long Range, selectable |
| Latency | Standard: 2 ms Long Range: 3.9 ms Measured at the analog output |
| Audio Frequency Response | 10 Hz – 20 kHz |
| Maximum Output Level | +14, +2, −10, or −22 dBu, menu-selectable, with a 0 dBFS signal at the transmitter input; 130 ohm output impedance |
| Digital Audio Output | AES3 balanced, 110 ohm output impedance; left = channel 1, right = channel 2 |
| General | |

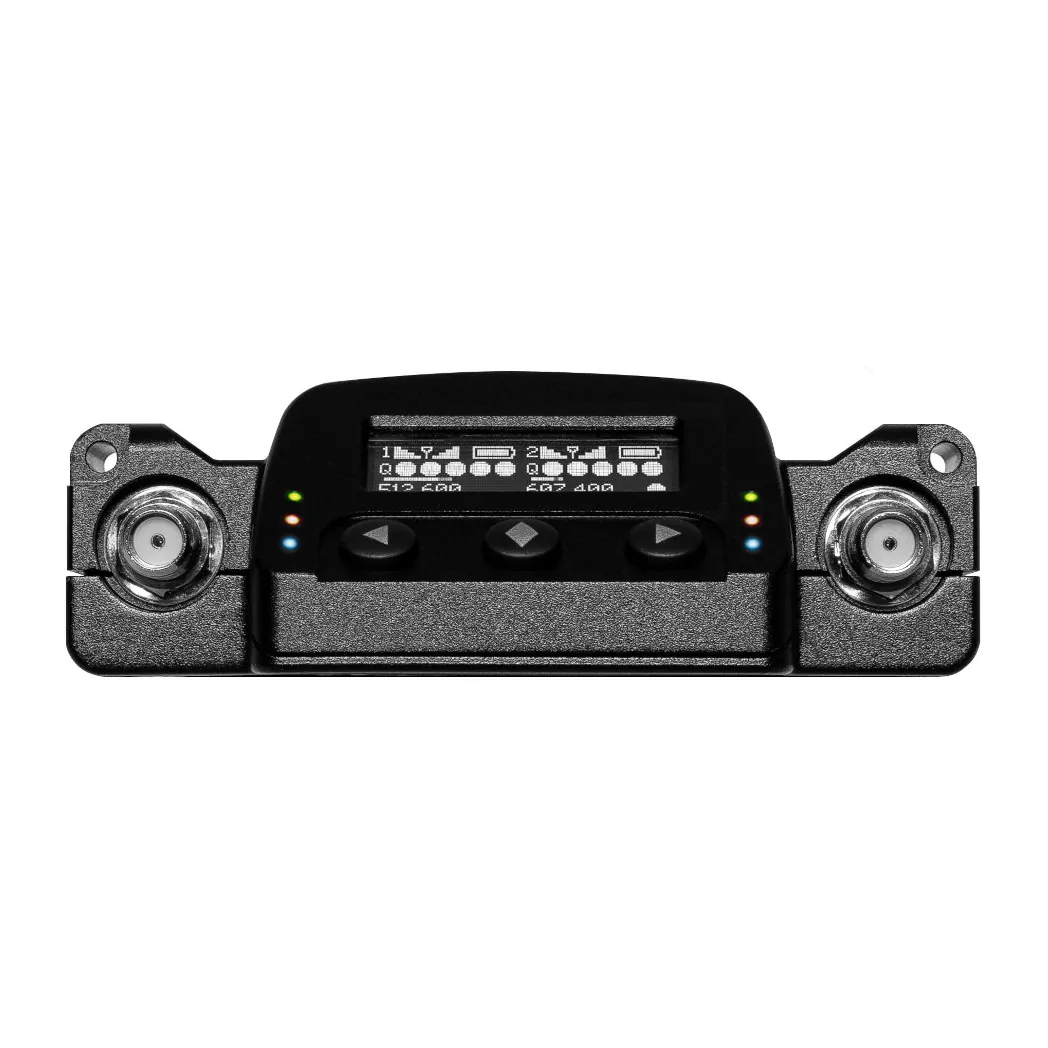

| Menu and Controls | OLED display, 3-button navigation |
| Privacy | User-settable 4-digit PIN |
| Powering | 6 – 18 V DC |
| Operating Temperature | −10 °C to 55 °C 14 °F to 131 °F |
| Dimensions (H × W × D) | 11.37 × 7.85 × 2.66 cm 4.48 × 3.09 × 1.05 in Without backplate accessories |
| Weight | 165 g (5.82 oz), without backplate accessories |
