Zaxcom MicPlexer 2 Antenna Distribution Amplifier
- Antenna distribution for up to four receivers
- 35 MHz filter, preset blocks 20 to 26
- 6 dB of gain on every output
$1,350.00 USD
Zaxcom MicPlexer 2 Antenna Distribution Amplifier
The Zaxcom MicPlexer 2 is an antenna distribution amplifier that feeds up to four single or dual wireless receivers from one pair of antennas, filtering and amplifying the signal on the way.
It works with Zaxcom Digital Recording Wireless and with any UHF wireless system between 512 and 702 MHz. Each antenna output gets 6 dB of gain, which helps make up for loss in long antenna cables. It is the size of a stand-alone Zaxcom receiver and works on its own or in a ZaxPaq housing.

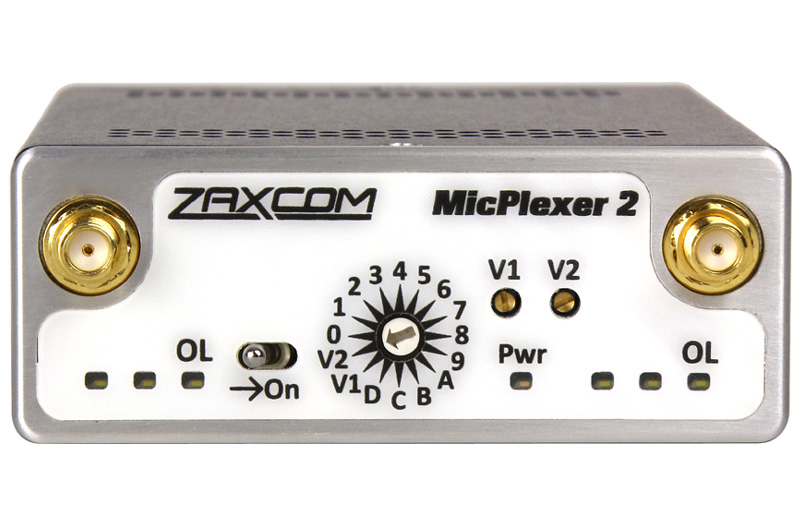

Its 35 MHz filter keeps out walkie-talkies, TV stations, mobile phones, and other unwanted RF. Choose one of seven preset frequency blocks, 20 to 26, or set your own 35 MHz window in one of two user positions. Smart LEDs show when too much RF is overloading the wireless.
Features

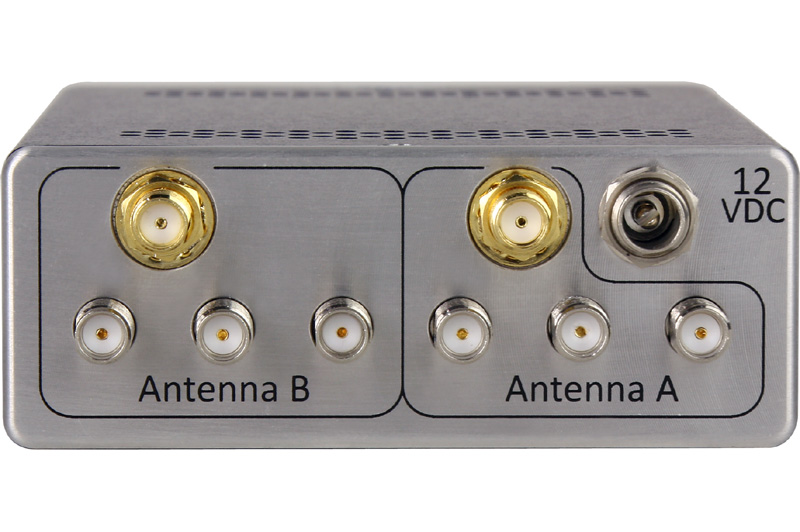

- Feeds up to four single or dual receivers from two antennas
- 35 MHz filter with seven preset blocks and two user windows
- 6 dB of gain on every antenna output
- Overload LEDs
- Works with any UHF wireless from 512 to 702 MHz
- 8 to 18 V DC power
Specifications
| RF | |
|---|---|
| Frequency Tuning Range | 512 – 702 MHz (35 MHz band, user selectable) |
| Tuned Pass Band | 35 MHz |
| Attenuation ±25 MHz | 12.5 dB |
| Attenuation ±50 MHz | 35 dB |
| Attenuation ±75 MHz | 51 dB |
| RF Gain | 6 dB |
| RF Channels | 2 |
| Channel Crosstalk | Less than 40 dB |
| Amplifier Noise Figure | 0.35 dB |
| OIP3 | +37 dB |
| Physical and Power | |
| Power | 8 – 18 V DC at 100 mA |
| Size | 1.25 × 3.25 × 4.75 in |
| Weight | 8 oz |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit zaxcom.com. |
