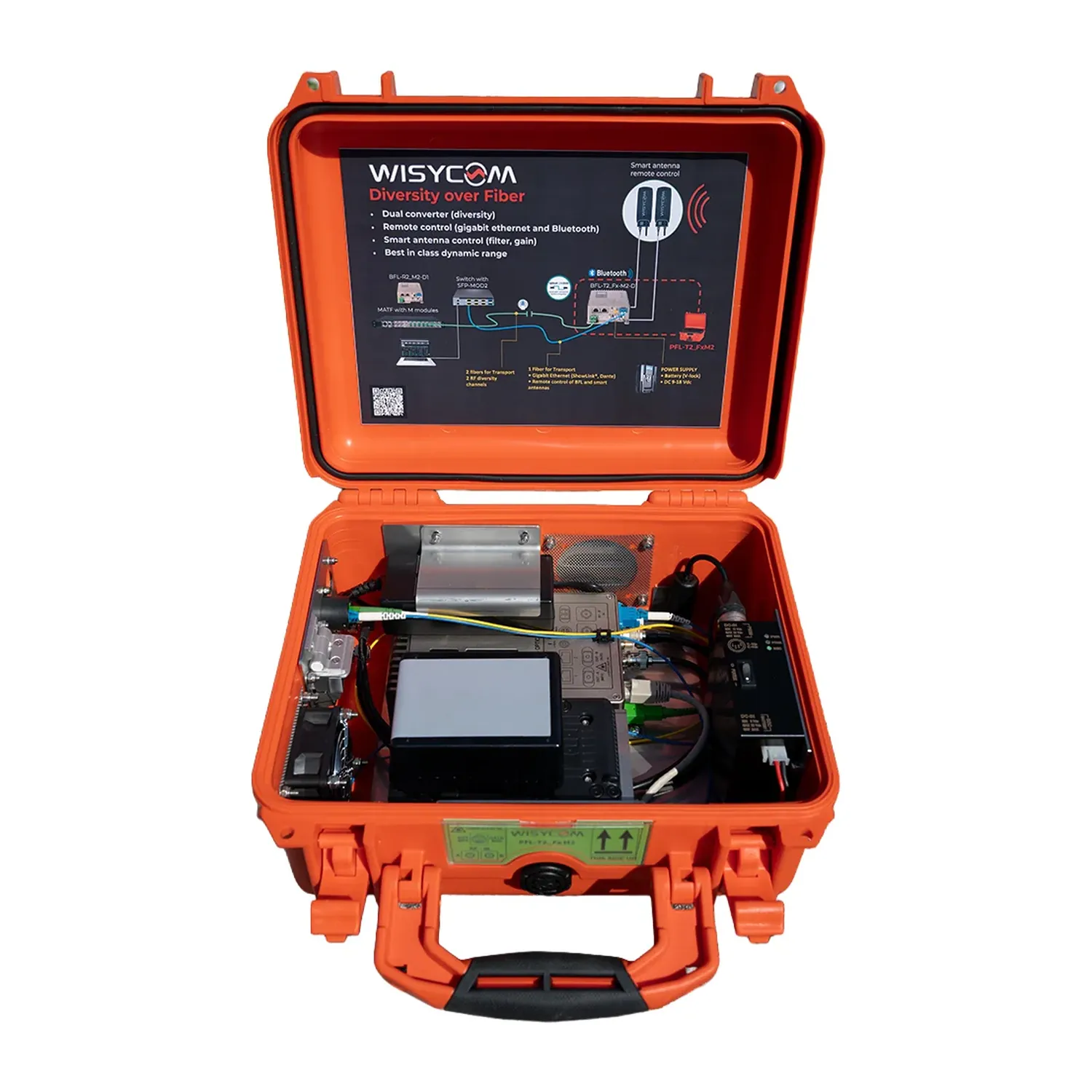

Wisycom PFL-R2

The Wisycom PFL-R2 is the transmitting unit of the Wisycom Portable RF over Fiber Box system, engineered for broadcast, film, and live production environments where RF signals need to travel distances that exceed the practical limits of coaxial cable. The PFL-R2 accepts two RF channels in isofrequency from a local RF source and converts the signals to optical for transport over single-mode fiber. It pairs with the PFL-T2 receiving unit to form a complete RF over fiber link. Fiber transport preserves signal integrity across distances that would cause significant degradation on coax.

The PFL-R2 is powered by a standard V-Lock battery, enabling placement at remote or elevated positions without access to mains power. A DC power input is also included, with battery power available as a backup. Internal thermal management via a temperature-controlled fan keeps the unit operating reliably even in direct sunlight. The OpticalCON Duo connector provides robust external fiber connectivity, and the side-entry internal cable management system simplifies field installation. Together the PFL-R2 and PFL-T2 offer a compact, deployable RF over fiber solution suited to large-scale broadcast productions and complex venue setups.

Features

• Transmits two RF channels in isofrequency over single-mode fiber for long-distance, low-loss signal transport
• Designed for applications where coaxial cable is impractical: large stages, broadcast compounds, and remote antenna positions
• V-Lock battery power enables placement at remote locations without mains power; DC input included with battery backup
• Temperature-controlled internal fan maintains reliable operation in direct sunlight and demanding field conditions
• Robust OpticalCON Duo connector for secure external fiber connection; internal cable management for clean field installs
• Wide dynamic range and low-noise design ensure interference-free RF performance across the full operating bandwidth

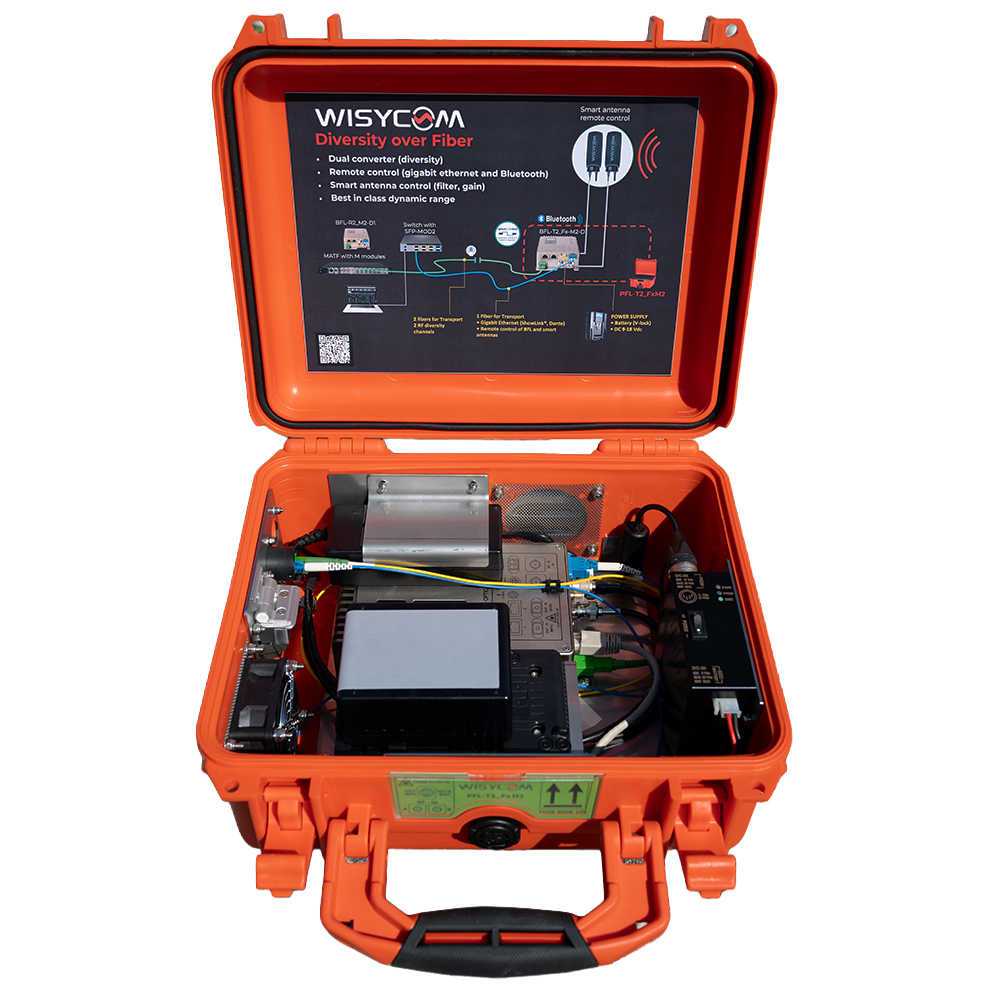

• Pairs with the Wisycom PFL-T2 receiving unit to complete the portable RF over fiber link
• Ideal for IFB and IEM transmit applications at remote locations when combined with active Wisycom antennas
