Wisycom BFLR2 Module
- Double RF over fiber receiver module
- Pairs with the Wisycom BFL-T2 transmitter
- 170 to 1260 MHz, with selectable filters
From $1,638.00 USD
Wisycom BFLR2 Module

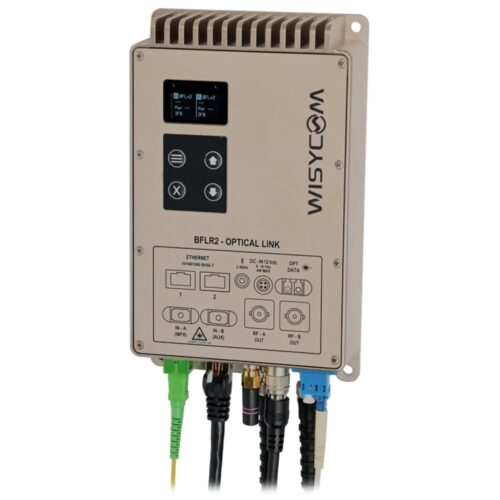

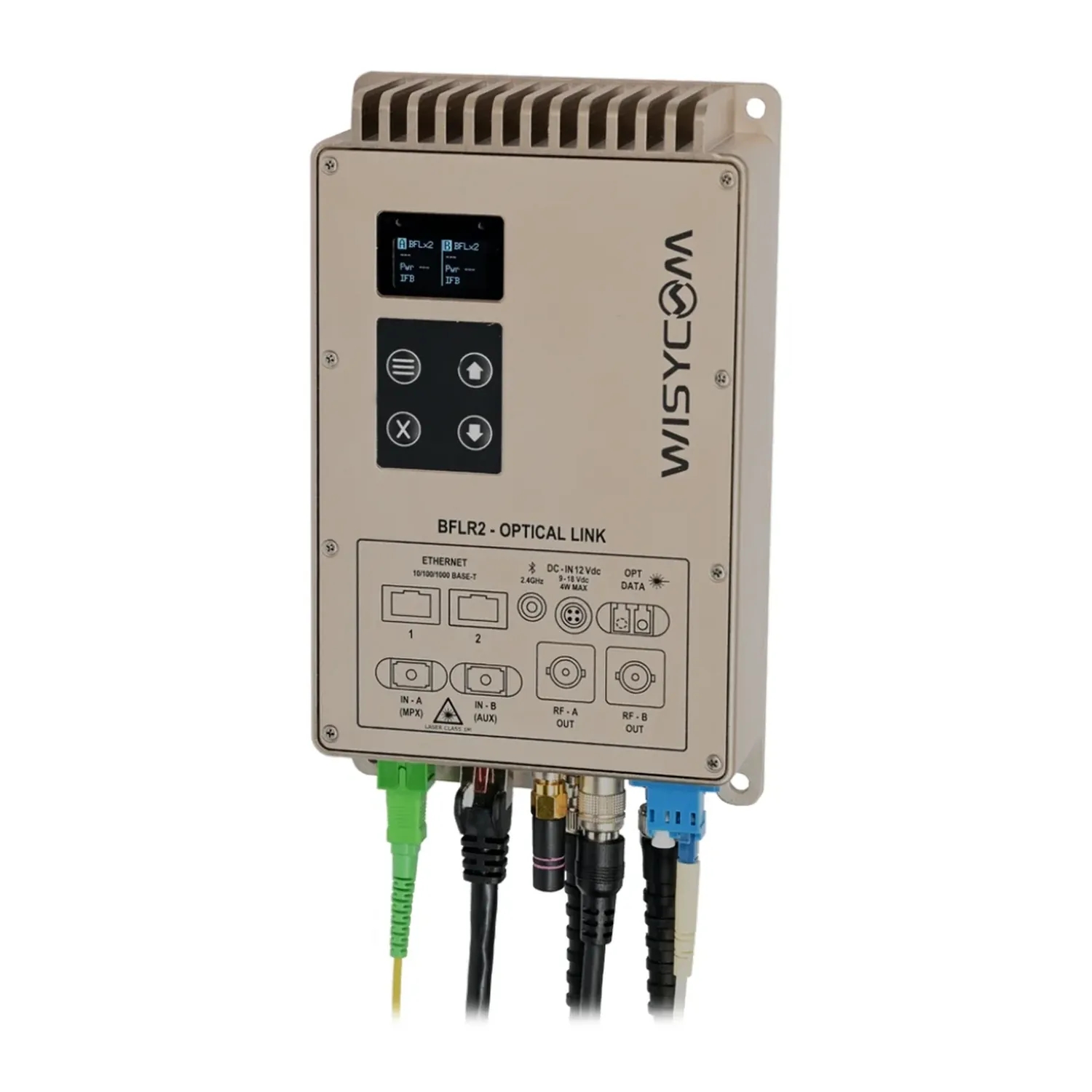

Paired with a BFL-T2 transmitter, the Wisycom BFLR2 module is the receiving end of a double RF over fiber link: two photodiodes turn the light from the fiber back into two RF signals.
Like the transmitter, it works in two modes. In ANT mode it delivers the signal from antennas in a remote area to your receivers. In IFB mode it puts IFB or IEM signals sent over the fiber back on the air, and it supplies 12 V at 200 mA to an external amplifier such as the Wisycom PAW.
The module covers 170 to 1260 MHz with selectable filters. You set it up on a high contrast OLED display with four buttons, or remotely over Ethernet, Bluetooth, and LoRa, and it runs on 9 to 18 V DC. It has an integrated SFP data transceiver and comes with its power supply.
Features
- Two RF over fiber receiving channels
- RF range of 170 to 1260 MHz
- ANT and IFB modes
- 12 V, 200 mA output for an external amplifier
- Ethernet, Bluetooth, and LoRa control
- OLED display and four buttons
- 9 to 18 V DC; power supply included
Available Options
| Multiplexer | Part Number | Notes |
|---|---|---|
| No Multiplexer (M0) | BFL-R2_M0-D1 | Point to point, two RF over fiber links |
| 2:1 Multiplexer (M2) | BFL-R2_M2-D1 | Both channels on one fiber (1510 and 1550 nm) |
What's Included
- BFL-R2 module
- PSP15V1A2-H power supply
Specifications
| Frequency ranges | 170÷1260 MHz |
| RF Connector | BNC (N on request) |
| DC power for external amplifier | +12Vdc, 220 mA max, compatible with Wisycom active amplifier (PAW, LBP/LNP) |
| Tunable Filter | 470 ÷ 758 MHz (UHF), 40MHz of bandwidth, 1 MHz step tuning |
| Fixed Filter | F1 version: 820-832MHz, 733-758MHz, 940-960 MHz (for Europe, USA and UK) F2: version: 806-810MHz, 927-935MHz, 1240-1260MHz (for Japan and Korea) |
| Selectable band pass filter | 17 RF filters selectable:
F1 version F2 version |
| Optical Connector | SC/APC (LC/APC on request) for RFoF, LC/PC for Data (remote control) |
| Input optical power | from -6 dBm to 6 dBm [0.25 mW to 4 mW] |
| Absolute max optical power | 10 mW Do not exceed max input optical power! |
| Wavelength | 1300 to 1650 nm |
| Managing interface | Display menu and 4 buttons, Remote Control thru Wisycom Manager or Wisycom App |
| LEDs | 2 multicolour RGB LEDs to easy indicates BFL status (left for channel A, right for channel B): red: RF/optical overload blue: booster enabled green: link active, no alarm off: link disabled |
| Power supply | 9 ÷ 18 Vdc |
| Power Connector | Hirose 4pin (pin1: GND, pin4: Vdc) |
| Power consumption | 5,4 W typical, +1W with 2 Ethernet active, +1,5 W max for each active antenna booster (LFA) |
| Display | High contrast OLED white display (128 x 64 pixels) |
| Mounting | 4 holes (for M4 screw type) |
| Temperature range | -10 ÷ +50 °C |
| Dimensions | 105 mm(L) x 178 mm(H) x 42 mm(D) |
| Weight | 800 g approx. |
