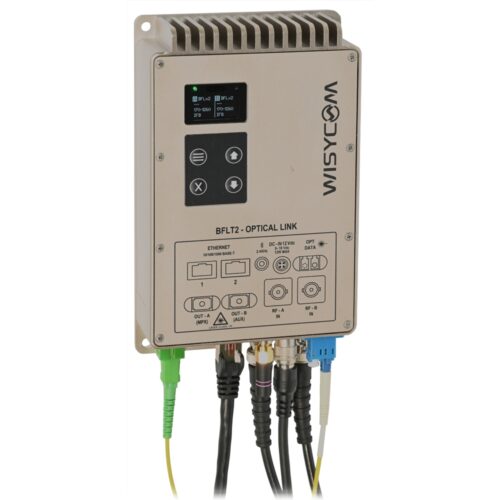

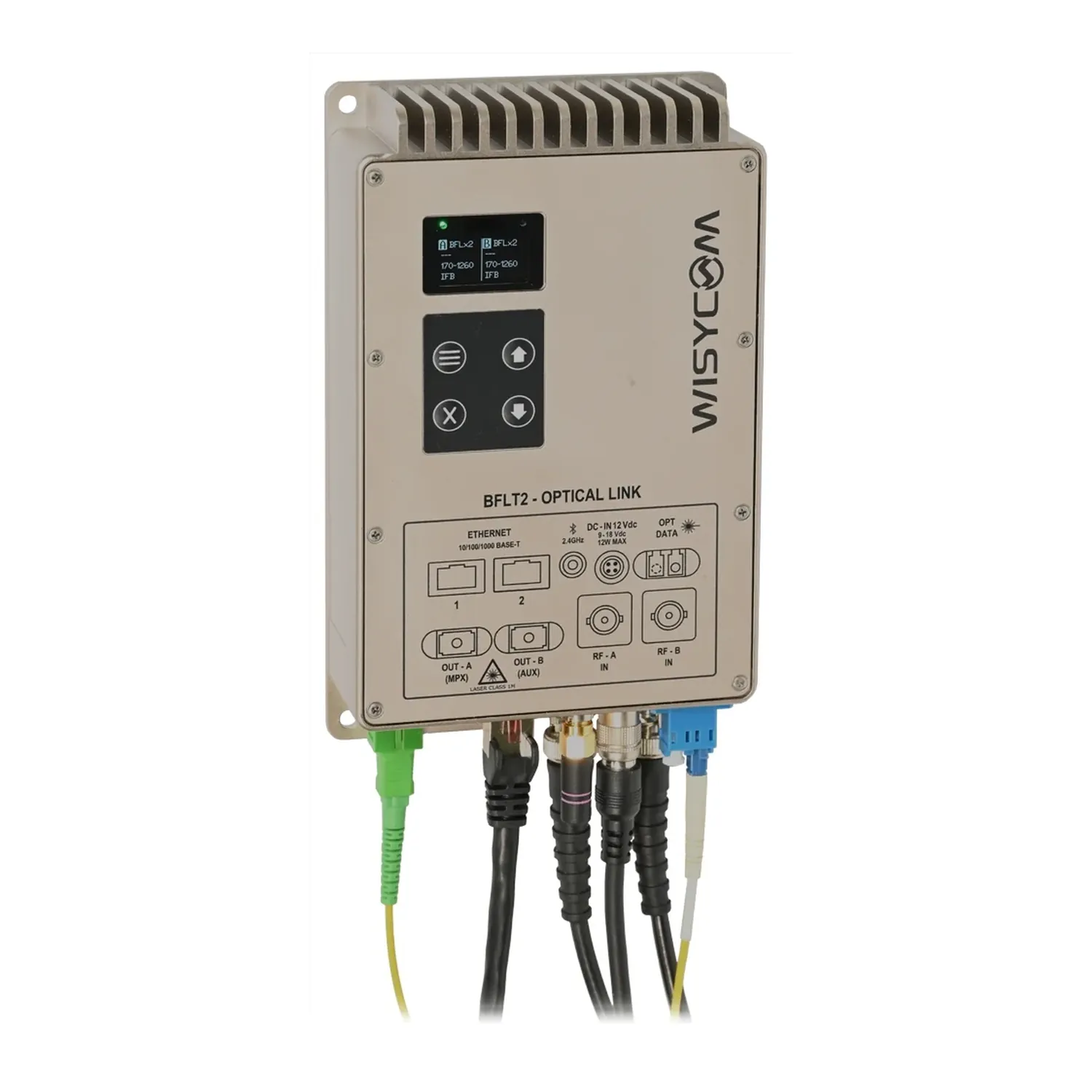

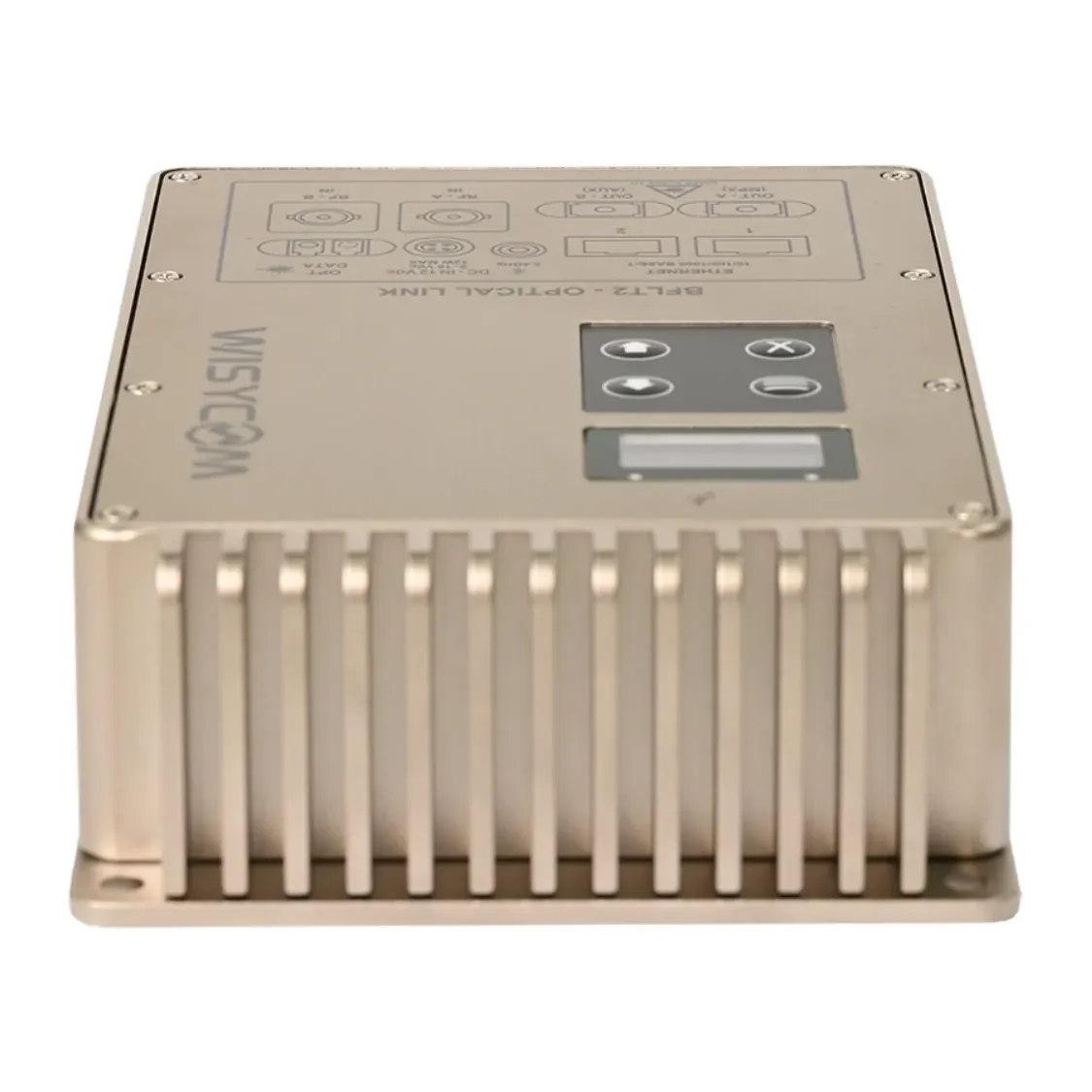

Wisycom BFLT2 Module
From: 2,150.00 USD
Wisycom BFT2 Module — Double RF-over-fiber module that transports sound information using state-of-the-art laser technology
Description
Wisycom BFLT2 Module
Wisycom BFLT2 Module — Double RF-over-fiber module that can transport sound information over several km without losing one dB of its original input signal, using state-of-the-art laser technology. It delivers a Spurious-Free Dynamic Range (SFDR) of 116dB/Hz²/³ while enhancing the system Noise Figure (NF) to 10dB. Equipped with this piece of gear, range will no longer ba a problem.
The BFL-T2 also offers selectable filters and an RF-Band range of 170-1260 MHz. Switching between modes is easy with the BFL-T2’s interface, as well as access through the Wisycom App for flexible configuration and operation.
When switched to IFB Mode the BFL-T2 can power each of its RF outputs with 12V, this allows it to power external amplifiers, such as the Wisycom PAW, to forward information to areas far away from camp. Also it serves as an access point for WisyLink, which makes the BFL-T2 able to connect MTPx and MTHx Symphony Series Transmitters via Bluetooth or LoRa, allowing for full remote control and monitoring of any device.
Features
- Wide RF band: 170-1260 MHz
- Easy configuration thru an high contrast OLED white display and 4 key navigation buttons
- Monitor & control through Ethernet, Bluetooth and LoRa
- Operating voltage range: 9 ÷ 18 Vdc
- 2 RGB LEDs for system status indication
- 6mW optical laser to cover miles away
- Remote control of Wisycom antennas (LFA, ADFA and BFA)
- 20 band pass filters and 40 Mhz tunable filter software selectable to increase RF robustness
- Compatible with expansion board EXP3 (code: BFL-T2_M0-D1)
Specifications
| Frequency ranges | 170÷1260 MHz |

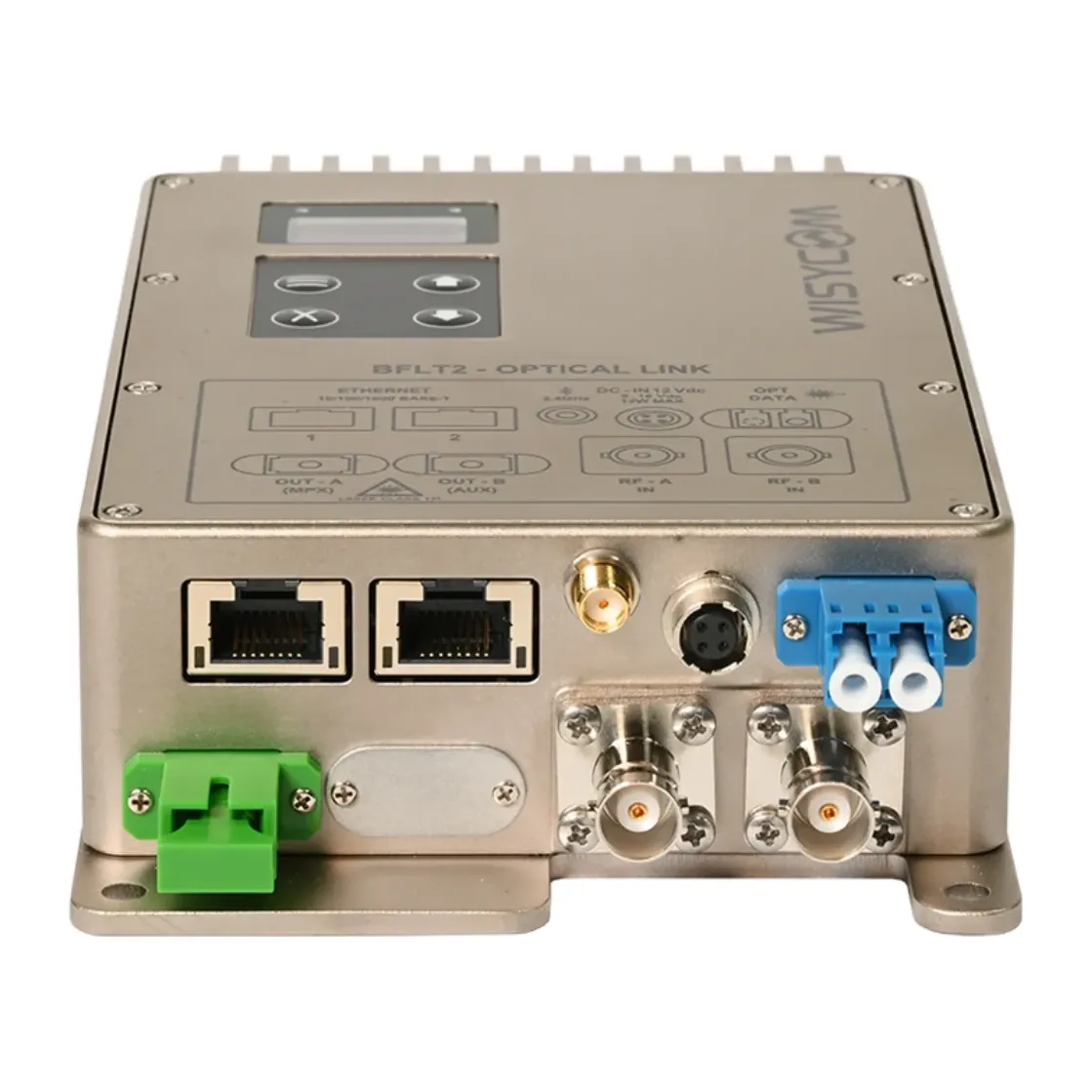

| RF Connector | BNC (N on request) |
| Antenna booster | +12Vdc, 220 mA max, compatible with Wisycom active antennas (LFA, ADFA, BFA, LBNA2) |
| Tunable Filter | 470 ÷ 758 MHz (UHF), 40MHz of bandwidth, 1 MHz step tuning |
| Fixed Filter | F1 version: 820-832MHz, 733-758MHz, 940-960 MHz (for Europe, USA and UK) F2: version: 806-810MHz, 927-935MHz, 1240-1260MHz (for Japan and Korea) |
| Selectable band pass filter | 17 RF filters selectable:
F1 version F2 version |
| Optical Connector | SC/APC (LC/APC on request) for RFoF, LC/PC for Data (remote control) |
| Optical power | 6 mW / 4 mW selectable |
| Wavelength | 1510 nm for Channel A, 1550 nm for Channel B |
| Managing interface | Display menu and 4 buttons, Remote Control thru Wisycom Manager or Wisycom App |
| LEDs | 2 multicolour RGB LEDs to easy indicates BFL status (left for channel A, right for channel B): red: RF/optical overload blue: booster enabled green: link active, no alarm off: link disabled |
| Power supply | 9 ÷ 18 Vdc |
| Power Connector | Hirose 4pin (pin1: GND, pin4: Vdc) |
| Power consumption | 5,4 W typical, +1W with 2 Ethernet active, +1,5 W max for each active antenna booster (LFA) |
| Display | High contrast OLED white display (128 x 64 pixels) |
| Mounting | 4 holes (for M4 screw type) |
| Temperature range | -10 ÷ +50 °C |
| Dimensions | 105 mm(L) x 178 mm(H) x 42 mm(D) |
| Weight | 800 g approx. |
