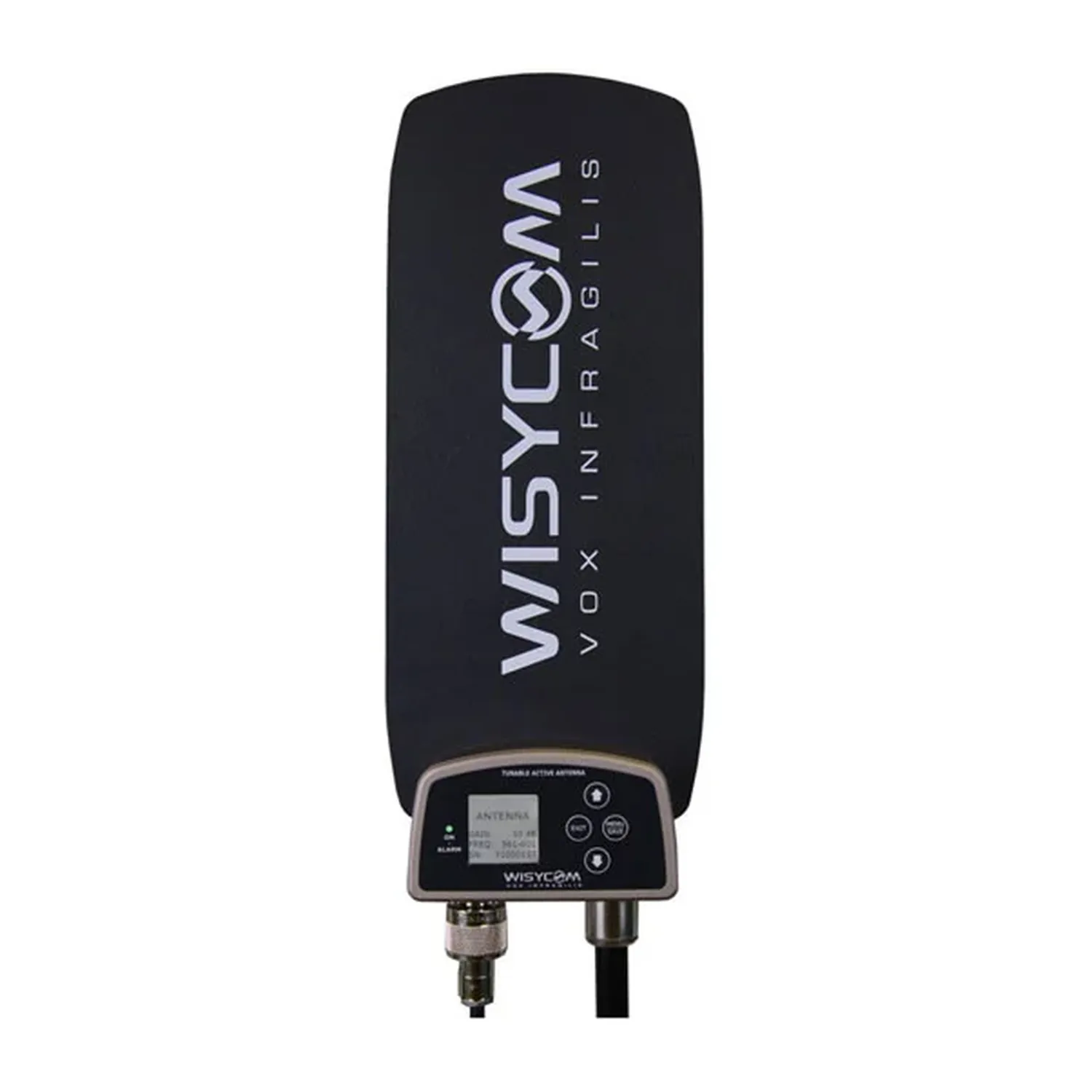

Wisycom ADFA Wideband Omnidirectional Active Antenna

The Wisycom ADFA, a wideband omnidirectional active antenna, covers 430 to 1160 MHz, with remote controlled filters and a low noise amplifier built in.

You set the filters and the gain, from -12 to +27 dB in 1 dB steps, with four buttons and a color TFT display on the antenna. You can also set them remotely over the same coax from a Wisycom MAT244 or MAT288 combiner, SPL2208 or SPL2216 splitter, MRK16 rack, or BFL-T2 fiber module.

This is the F2 version with a BNC connector. It has a 40 MHz tunable filter anywhere from 430 to 730 MHz and a fixed filter for 940 to 960 MHz. Its selectable filters add high pass points at 470, 520, and 550 MHz and low pass points at 617, 663, and 698 MHz. An antenna off setting disables an RF zone. The weather-resistant fiberglass body is sealed with gaskets, and the POUADN soft pouch comes with it.

Features

• Omnidirectional reception from 430 to 1160 MHz
• Low noise amplifier with -12 to +27 dB of gain in 1 dB steps
• 40 MHz tunable filter from 430 to 730 MHz
• Three high pass and three low pass filters, plus a fixed 940 to 960 MHz filter
• Set locally on a color TFT display or remotely over the coax
• Antenna off setting for disabling an RF zone
• Waterproof, with gasket sealing
• BNC connector; POUADN soft pouch included
