Wavenet NESO 2.4

Wavenet NESO 2.4 — Wavenet NESO 2.4 — Digital audio transmission system for professional monitoring applications.

Coming Soon!

SKU: WAVNESO24 Category: Tag:

Description

Wavenet NESO 2.4

Coming Soon!

The Wavenet NESO 2.4 is a digital audio transmission system for monitoring applications used in TV productions, TV sets, theatre, stage management, production technicians, etc. The NESO 2.4 system is made of a radio frequency base station which works on the 2.4GHz ISM band, and a complete range of hearing terminals both inthecanal and behindtheear, all designed with a focus on high-quality audio transmission/reception for professional applications. The system is factory configurable.

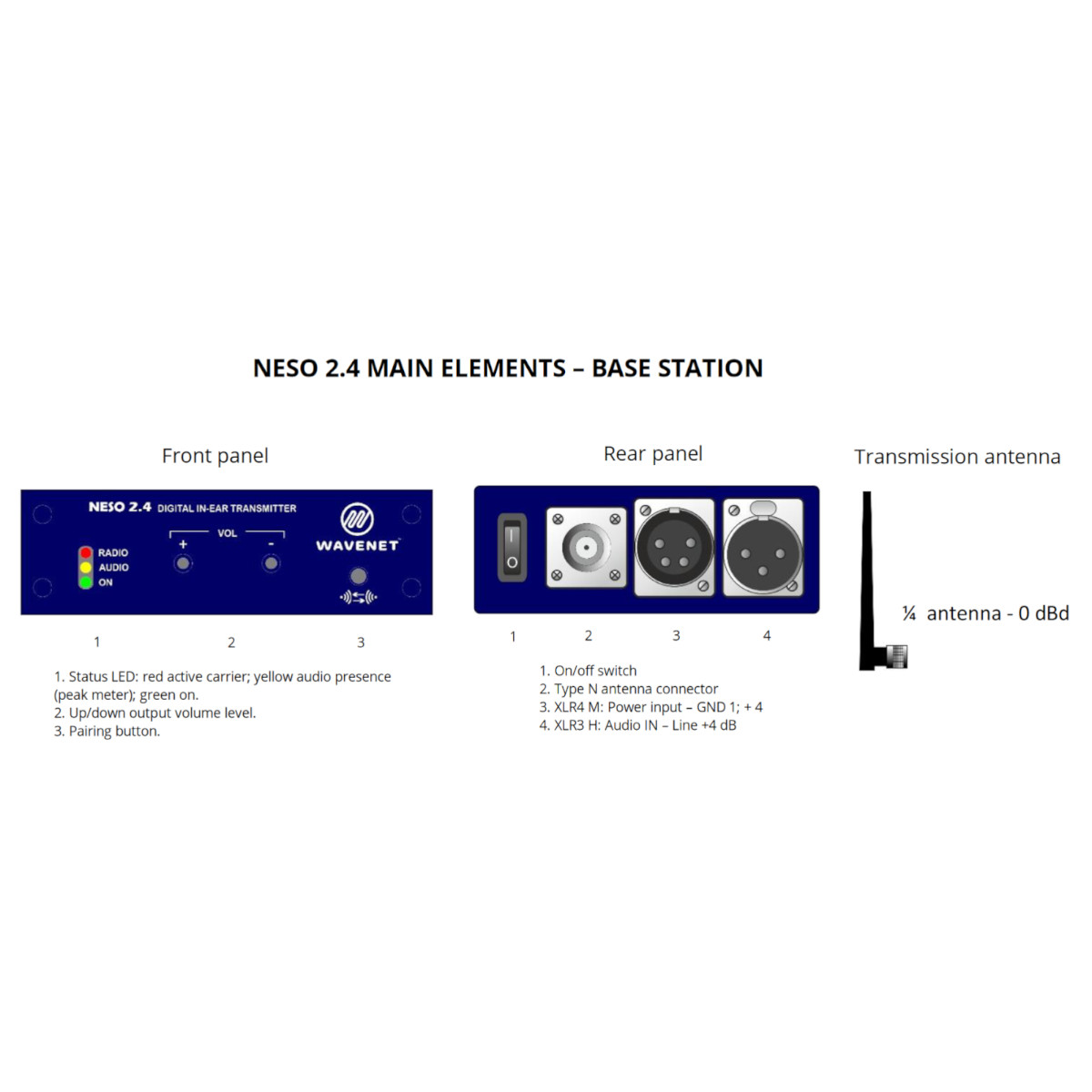

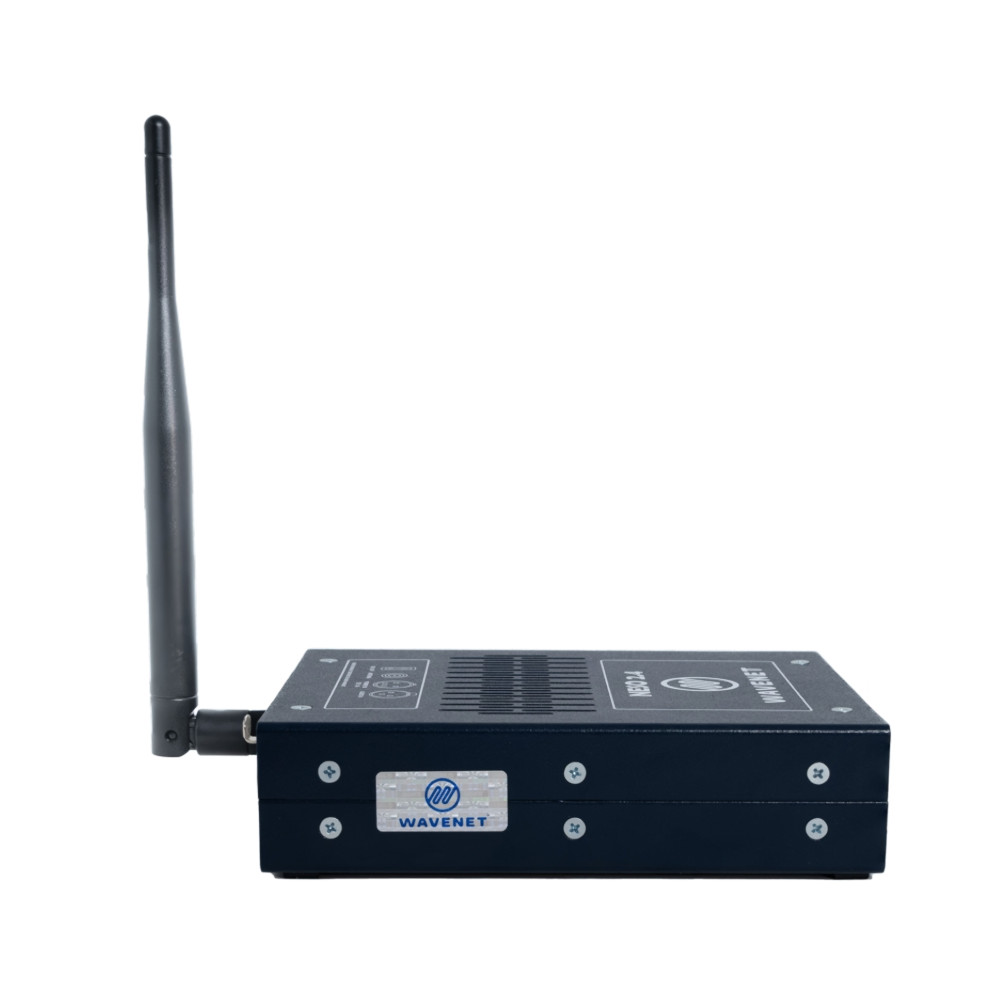

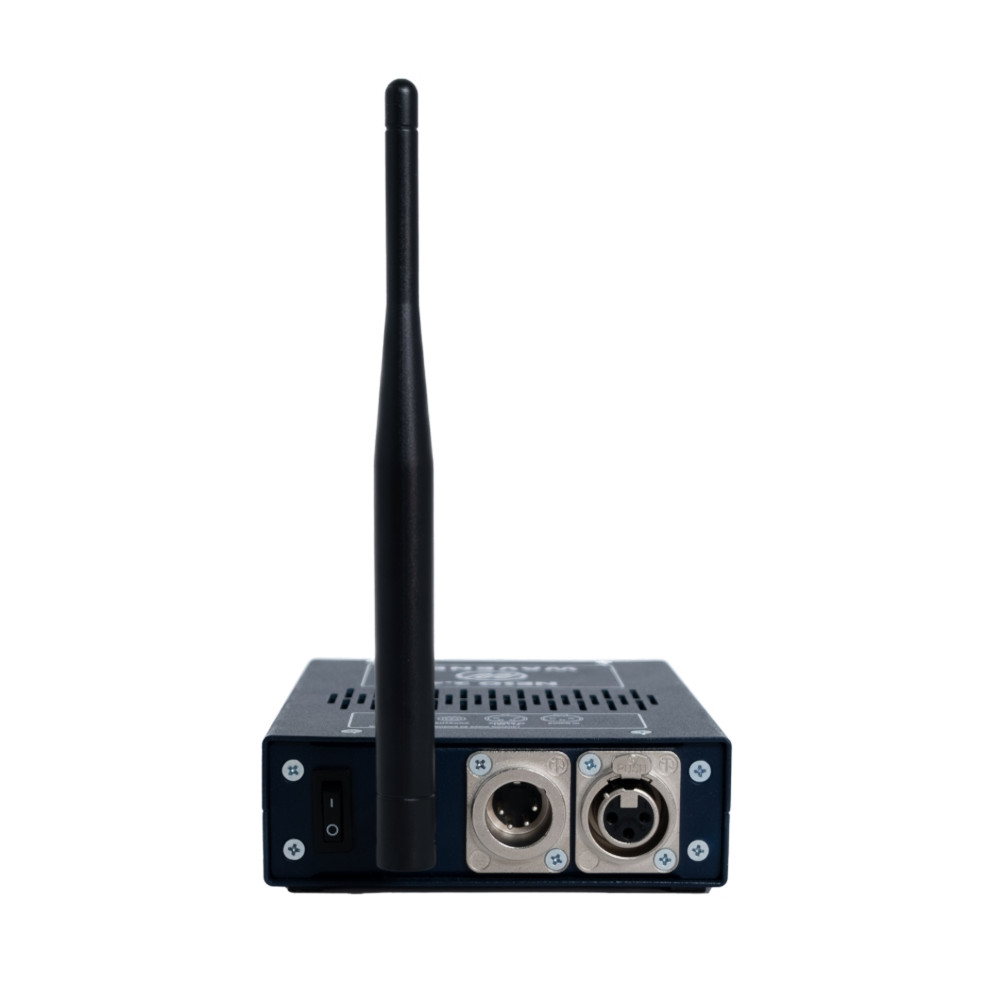

NESO 2.4 BASE STATION
The NESO 2.4 base station is a 2.4 GHz ISM band, with Frequency Hopping technology and GFSK modulation.

NESO 2.4 HEARING TERMINALS
The NESO 2.4 hearing terminals range includes a variety of radio frequency intheear and/or behindtheear terminals, which fit to each user. They are configurable in some of their working parameters. They are long life Zinc/Air batteries (mercury free) powered, or rechargeable battery-powered. All the hearing terminals can be formfitting customized.

NESO 2.4 Main Features / Specifications:

NESO 2.4 BASE STATION

Frequency: Comply with ISM 2.4 GHz (UN 85)
Output power :
+20dBm
Power density (FH):
+20dBm/100 KHz
Audio input level:
Line (+4 dB). Optionally balanced under demand
Audio bandwidth:
50 Hz 10 kHz
Distorsion:
< 0,2%
Estimated range (LOS):
≈80 m (depending on eviroment)
Power:
220V with VAC converter or direct 12V VDC
Dimensions:
155 x 115 x 35 mm
Weight:
300 g
Technical regulation referenced:
EN 300.328

NESO 2.4 HEARING TERMINALS

In-the-Canal Version
Color: Selection
Battery: 10A Zinc/Air
Power consumption: 1.15 mA
RF frequency: 2.4 ISM
Audio bandwidth: 100 Hz – 9,5 kHz
Distorsion: 0.5%
Maximum SPL: 100 dB

Behind-the-Ear Version
Color: Selection
Battery: 312 Zinc/Air
Power consumption: 1.13 mA
RF frequency: 2.4 ISM
Audio Bandwith:100 Hz – 9,5 kHz
Distortion: 0.6%
Maximum SPL: 100 dB
