Sound Devices Scorpio

11,500.00 USD

Sound Devices Scorpio- 32 channel, 36 track mixer-recorder

*PURCHASE WITH YOUR TREW AUDIO CREDIT CARD AND ENJOY 12 MONTHS 0% FINANCING!

Quantity:

SKU: SND.SCORPIO Categories: , , Tag:

Description

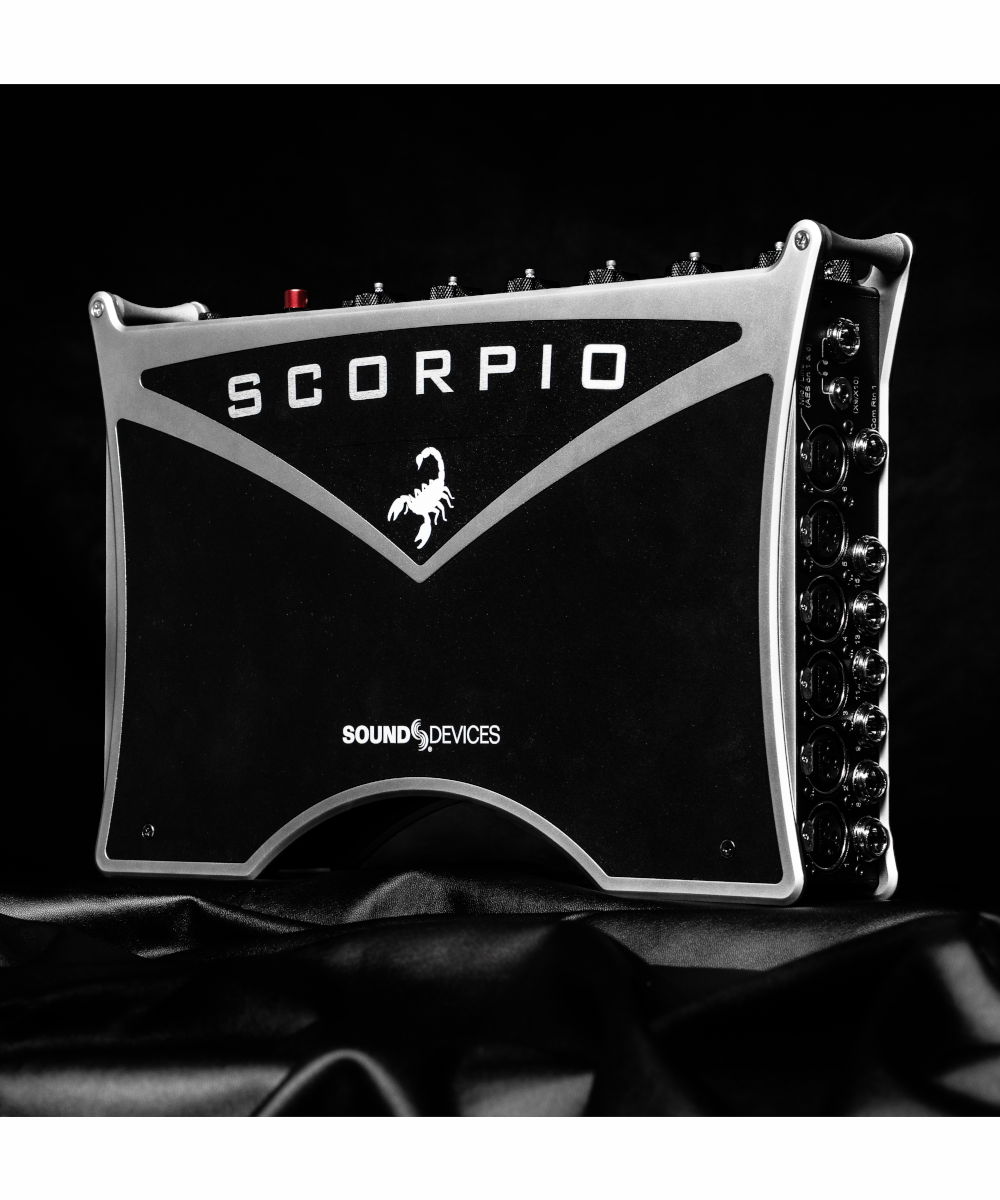

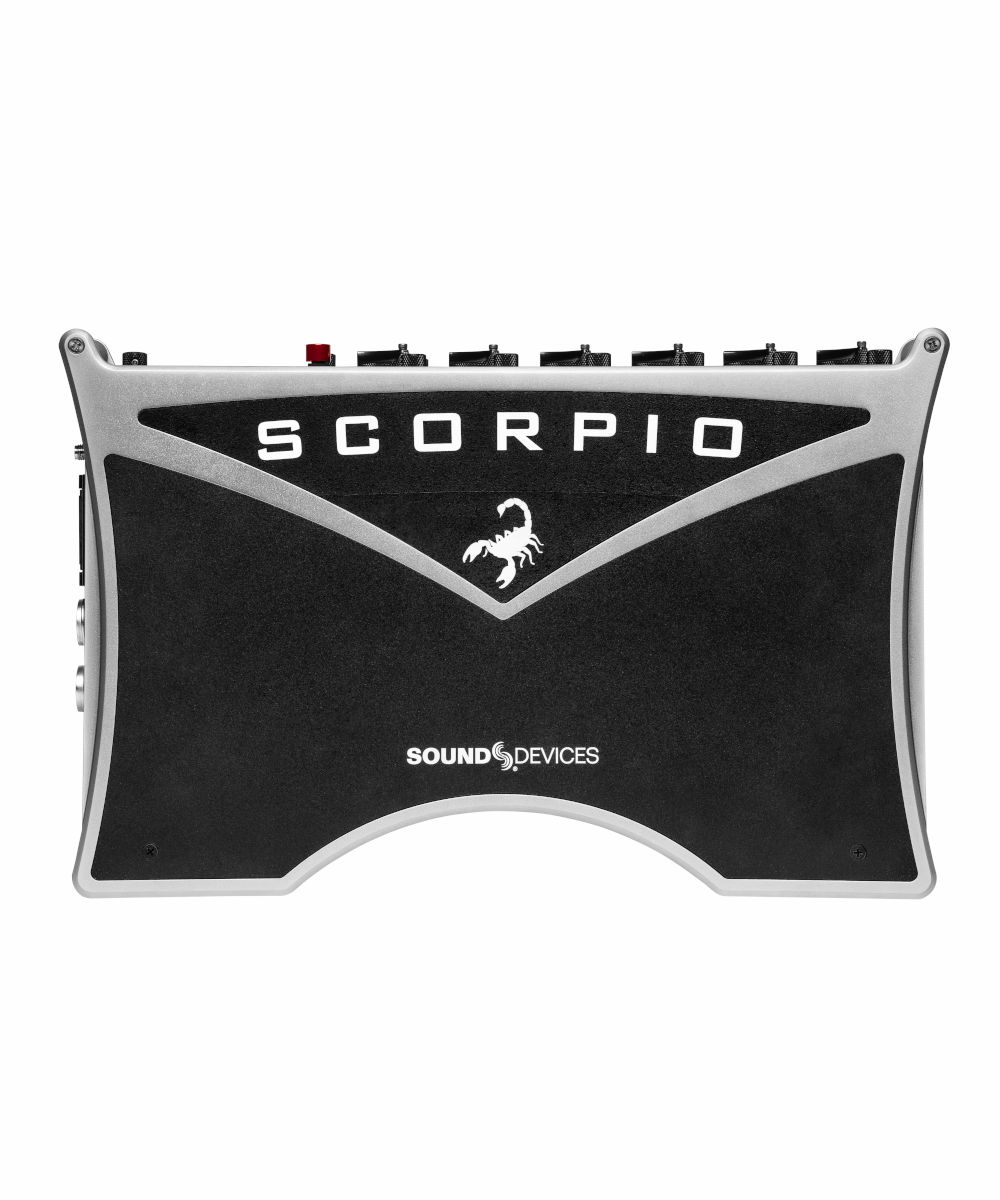

Sound Devices Scorpio

Scorpio is a 32 channel, 36 track mixer-recorder and the most powerful product ever designed by Sound Devices. With 16 mic/line preamplifiers, 32 channels of Dante in and out, AES in and out, 12 analog outputs and multiple headphone outputs, Scorpio is well-suited for any production scenario. Featuring a fully-customizable routing matrix, ultra-low noise preamplifiers, multiple powering options, a premium-quality build (equally useable over-the-shoulder or in a mobile rig), high-powered processing, and an internal SSD with two SD card slots, Scorpio is the ideal tool for a new era of production sound. The SL-2 SuperSlot module mounts easily to the top panel and provides up to eight total channels of wireless audio, 4 per slot.

Key Features:

Dugan Automixing for up to 16 channels

16 ultra low-noise, Scorpio microphone preamplifiers

32 channels, 12 buses, 36 tracks

32 channels of Dante I/O

256 GB internal SSD, 2 SD card slots

USB control surface support via MCU



Check out the Scorpio FAQ HERE

Sound Devices Scorpio

Sound Devices Scorpio

Sound Devices 8-Series Video Playlist

Specifications



Freq. Response 10 Hz to 80 kHz ± 0.5 dB (192 kHz sample rate, re 1 kHz)
-THD + Noise 0.005% max (1 kHz, 22 Hz–22 kHz BW, trim @20, fader @ 0, -10 dBu in)
Equivalent Input Noise -131 dBV (-129 dBu) max (A-weighting, 76 dB gain, 150 ohm source impedance)
Processing Engine
  • Highly extensible, full FPGA-based audio processing, 3 FPGAs
  • Six-way ARM multiprocessor system
  • 64-bit audio processing precision
Audio Over Ethernet Dante, 32 channels in, 32 channels out • AES67 compatible • 1 Gb/s Ethernet, 2 ports, transformer-balanced
Inputs

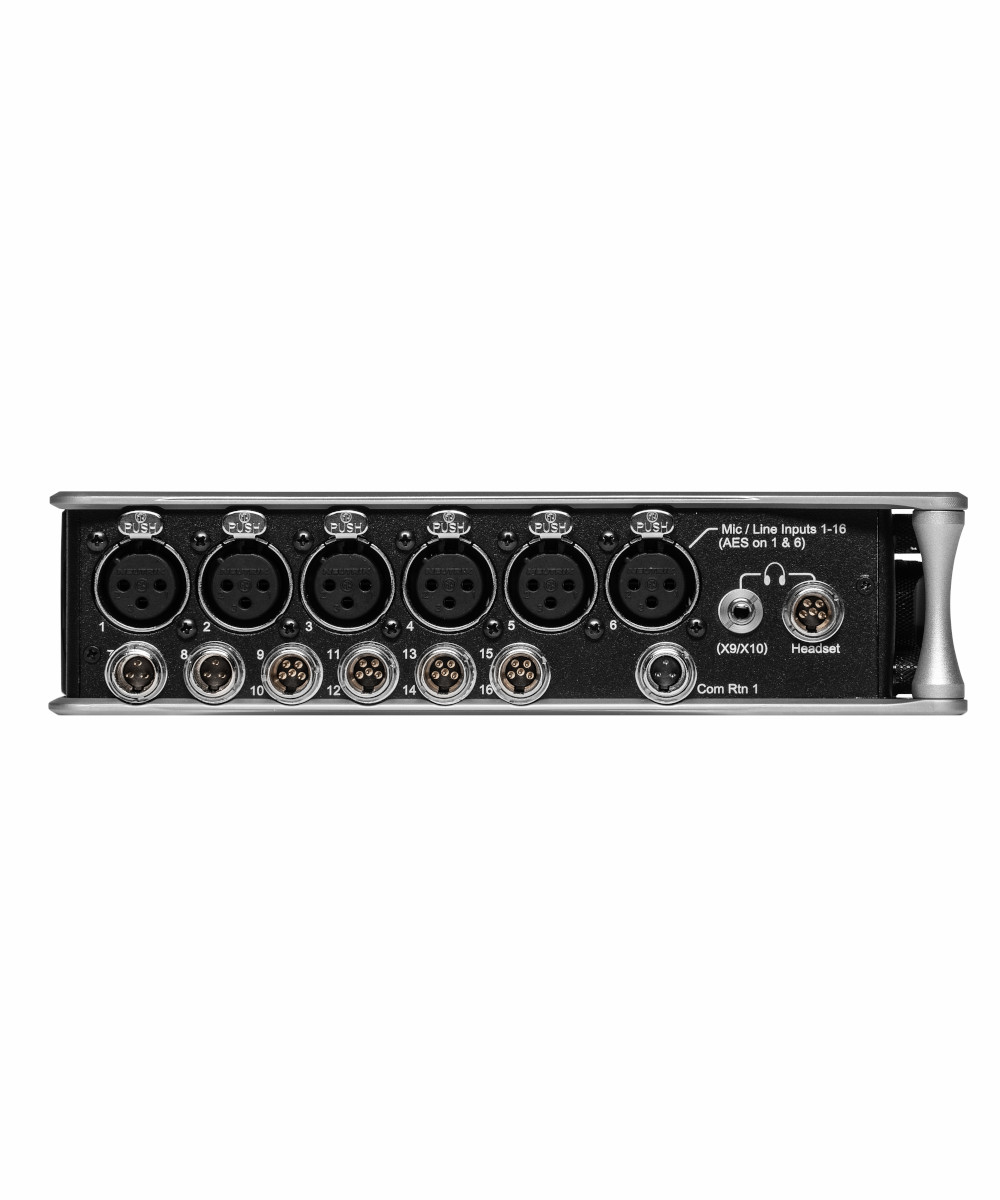

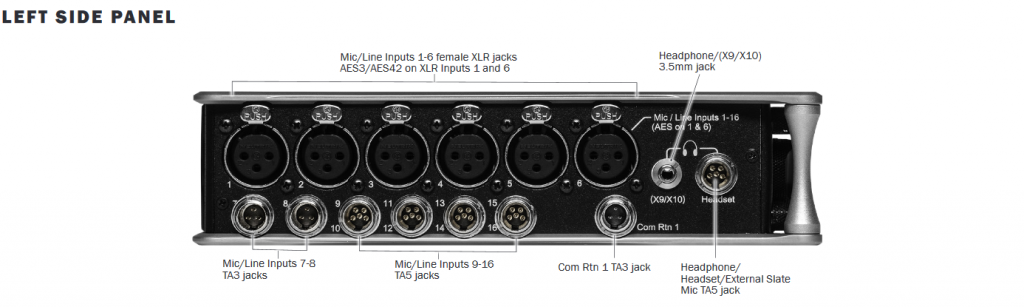

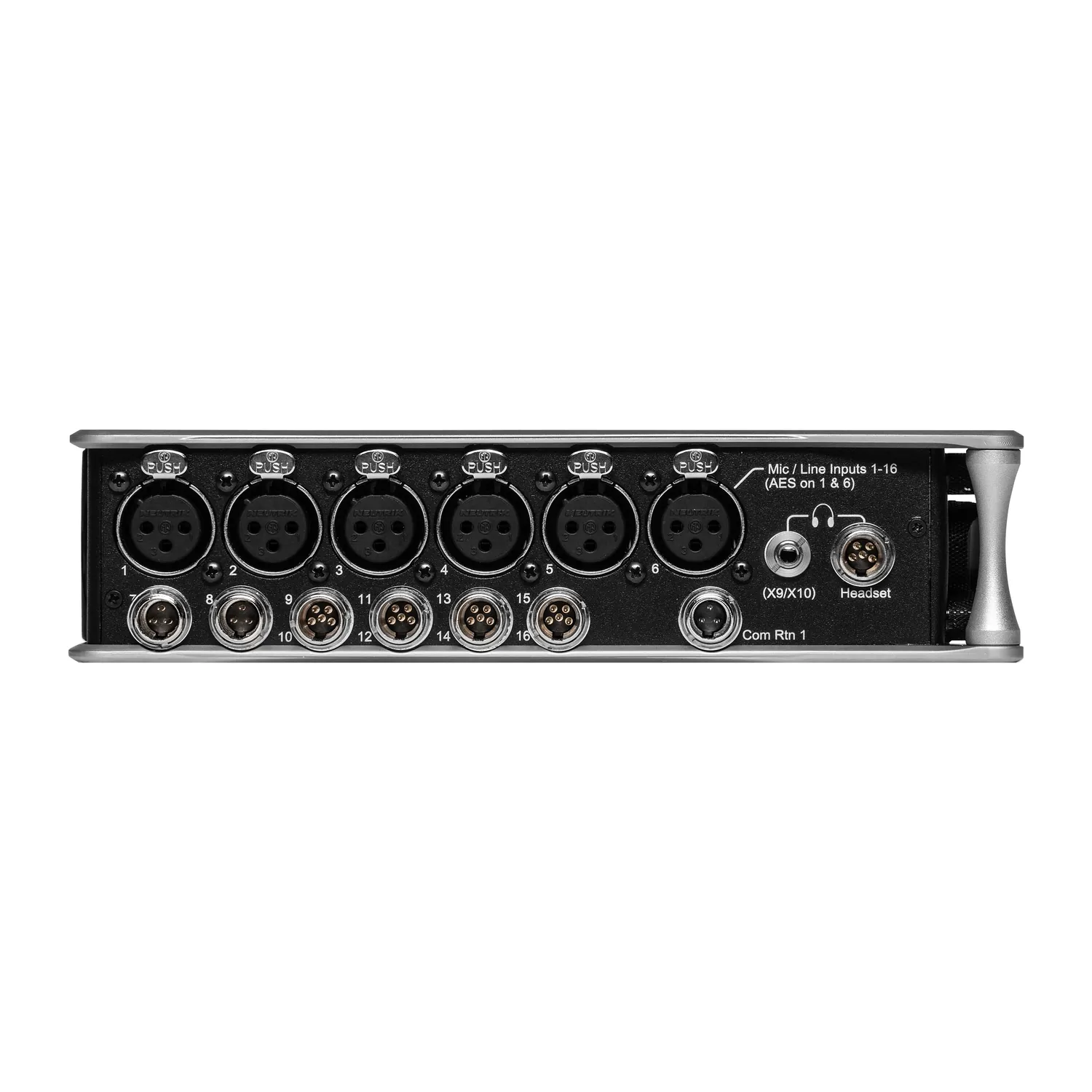

  • Mic/Line inputs: 16 total, all fully featured; 6 on full-size XLR, 2 on TA3, 8 on TA5
  • Mic-level inputs: (XLR, TA3, TA5): Class-A, discrete differential long-tail pair, 4k ohm input impedance
  • Line-level inputs: (XLR, TA3, TA5): active-balanced, 4k ohm input impedance
  • AES3 or AES42 available on XLR inputs 1 and 6
  • AES42: +10 V, 250 mA available, type-1, auto-ASRC
  • Rtn A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance
  • Com Rtn 1,2 (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance
  • External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom
Maximum Input Level
  • Mic: +8 dBu (2.0 Vrms)
  • Line: +28 dBu (19.5 Vrms)
  • Rtn A, B, C: +18 dBu (6.2 Vrms)
  • Com Rtn 1, 2: 24 dBu (12.3 Vrms)
  • External Slate Mic: +12 dBu (3.2 Vrms)
High-Pass Filters
  • Adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital Limiters
  • Limiters available at all channels, buses, headphones, for all sample rates
  • Analog first stage, all subsequent stages digital
  • Attack time: 1 ms
  • Release time: adjustable, 50 ms to 1000 ms
  • Threshold: adjustable, -2 dBFS to -12 dBFS
  • Selectable knee: hard or soft
  • Selectable ratio: inf:1, 20:1 Delay
  • Channel Adjustable 0-50 ms
  • Output Adjustable 0-500 ms Maximum Gain
  • Trim stage (mic input): 76 dB
  • Trim stage (line input): 36 dB
  • Fader stage: 16 dB
  • Bus stage: 16 dB
  • Headphone stage: 20 dB
  • Mic-to-Line: 108 dB
  • Mic-to-Headphone: 112 dB

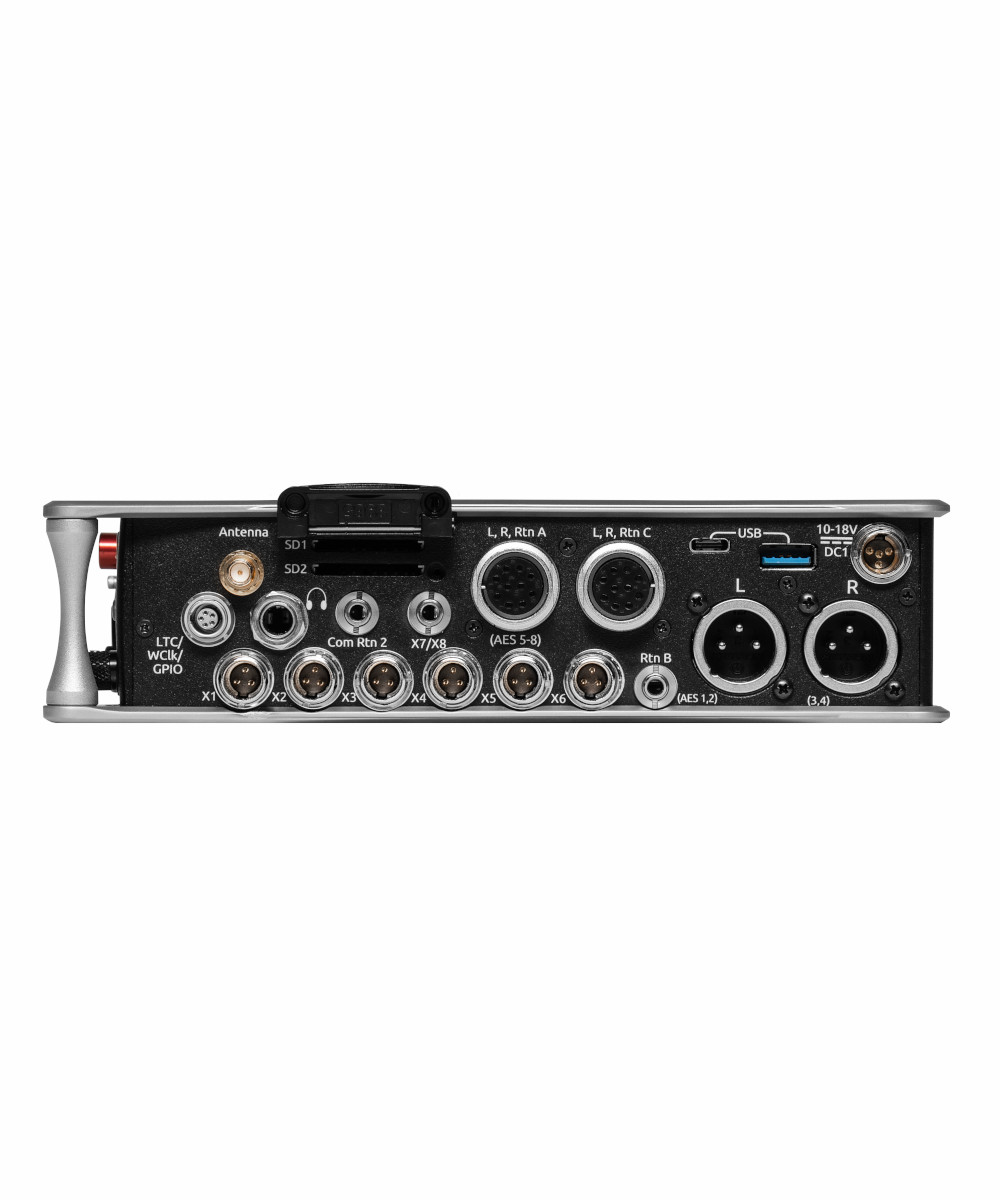

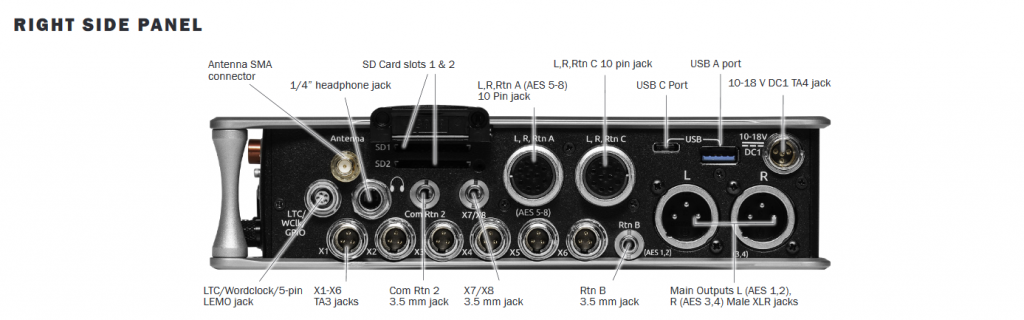

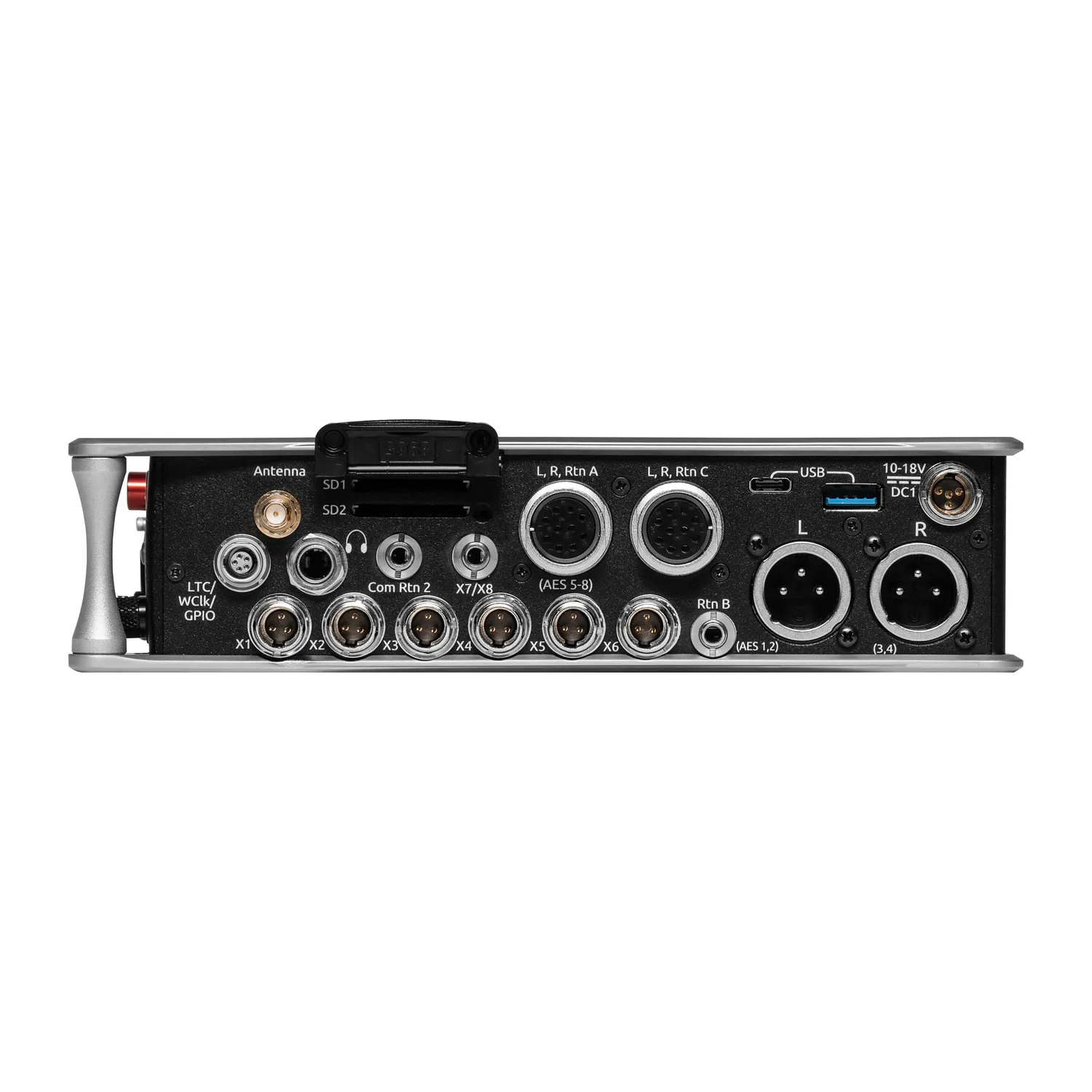

Outputs
  • XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
  • Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
  • TA3 (X1-X6) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
  • 3.5mm (X7, X8): unbalanced, stereo, 1.8k ohms
Headphone Outputs
  • 1⁄4”, 3.5 mm
  • TA5 (along with mic input pins) for single connection to headset + mic
  • High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
  • Compatible with headphones of any impedance
Maximum Output Level (all into 10k load)
  • Line: +20 dBu (7.8 Vrms)
  • “-10”: +6 dBu (1.5 Vrms)
  • Mic: -20 dBu (0.078 Vrms)
  • X7/X8 Out: +6 dBu (1.5 Vrms)
  • Headphone outputs (1⁄4”, TA-5, X9/X10): +14 dBu (4.0 Vrms)
A/D converters
  • 32-bit, 120 dB, A-weighted dynamic range typical
  • Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
Digital Outputs
  • AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)
  • 110 ohm, 2 V p-p, AES and S/PDIF compatible
Recording
  • exFAT formatting
  • 36 tracks (32 iso channels, 4 buses)
  • Broadcast WAV monophonic and polyphonic file format
  • 64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB USB
  • USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards
  • USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices
Wireless Built-in Bluetooth v5.0 BLE (not supported with rev 1.0 release of SD-Remote)
Timecode and Sync
  • Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes.
  • Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
  • Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)
  • Timecode Input: 20k ohm impedance, 0.3 V – 3.0 V p-p (–17 dBu – +3 dBu)
  • Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)
  • Word Clock Input: 10k/75 ohm selectable impedance, 1-5 V p-p input sensitivity
  • Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR
Remote Control
  • USB MIDI Control – 3rd party fader controllers
  • SD-Remote Android app
  • USB Keyboard
  • External Timecode Record Trigger
LCD
  • 320×240, Transflective, excellent sunlight visibility
  • Larger touchscreen display available via USB-connected SD-Remote app
Power
  • External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)

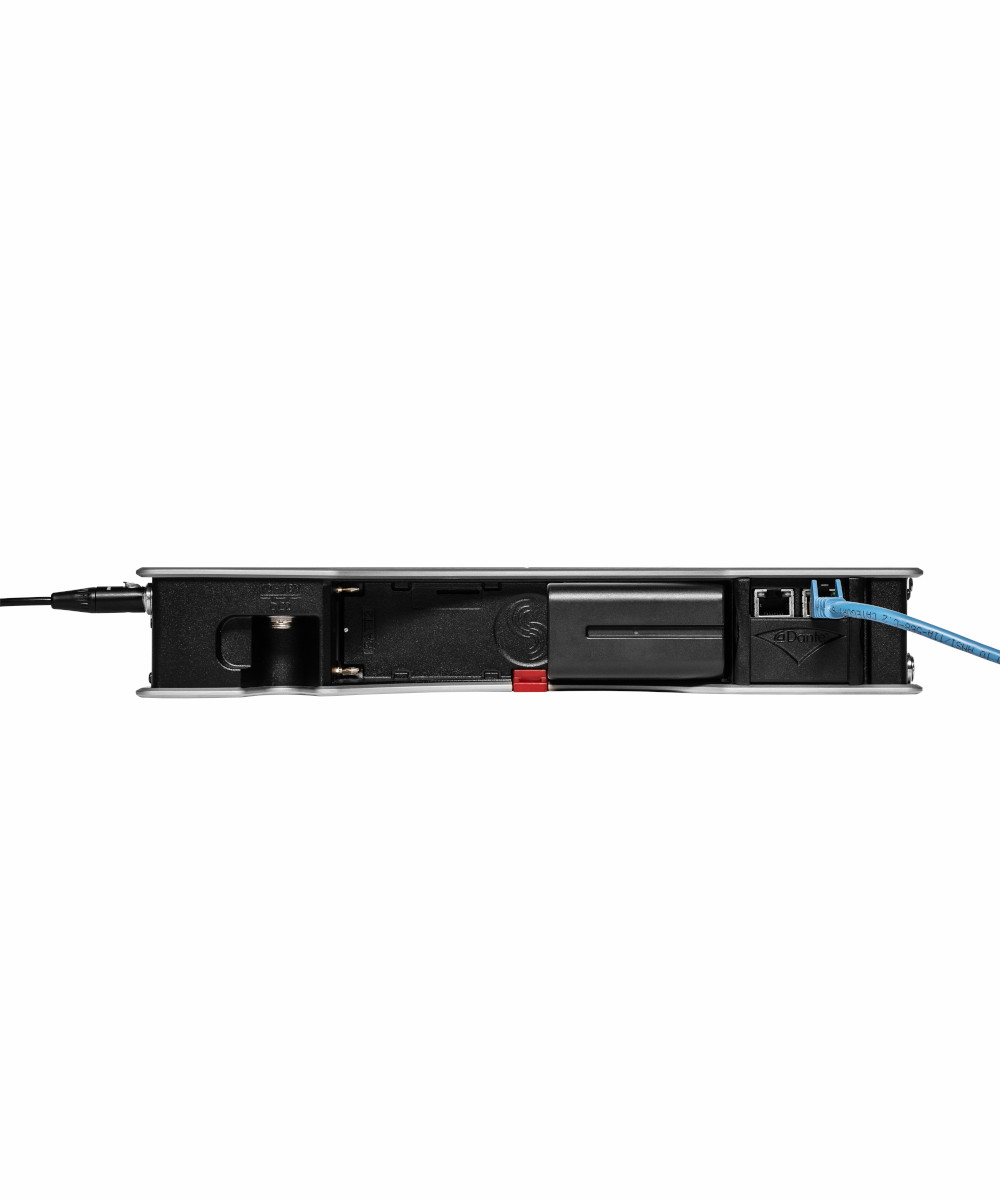

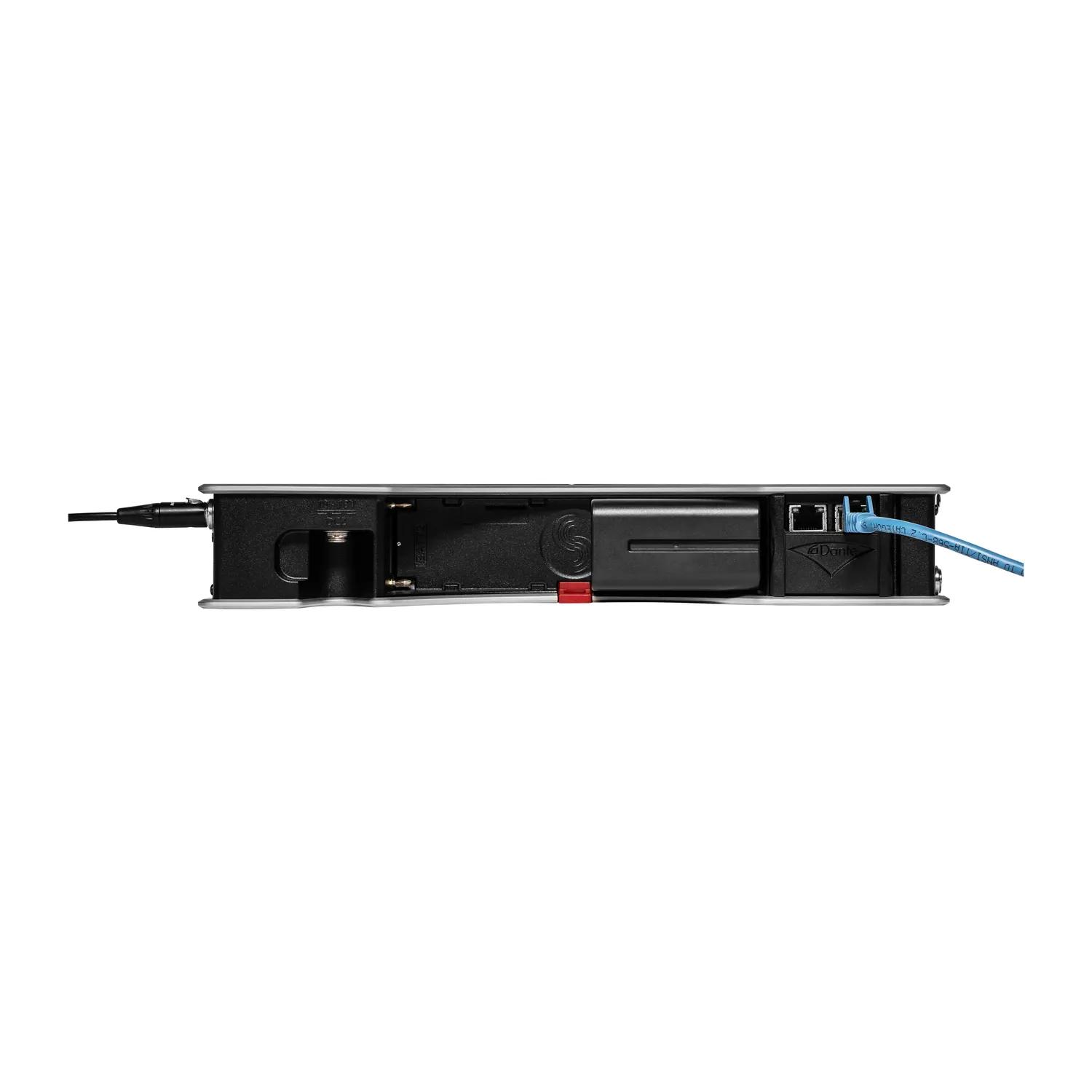

  • Dual rear-mount Sony-style L-mount batteries with chargers
  • Idle Current Draw: 875 mA @ 12 V (10.5 W)
  • Intelligent power-down of unused mic preamps and other internal circuits
Environmental Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing)
Storage: -40° C to 85° C
Dimensions (H x W x D) 5.1 cm x 32 cm x 20.5 cm ( 2 in x 12.6 in x 8.1 in)
Weight 5.8 lbs (2.63 kg) unpackaged, without batteries
