Sound Devices CL-16 Linear Fader Control Surface for 8-Series
- 16 faders and 16 dedicated trims for the 833, 888, and Scorpio
- Panoramic LCD with a waveform view for playback
- Built-in five-port USB hub; runs on 12 V DC
$6,545.00 USD
In Stock
Sound Devices CL-16 Linear Fader Control Surface for 8-Series

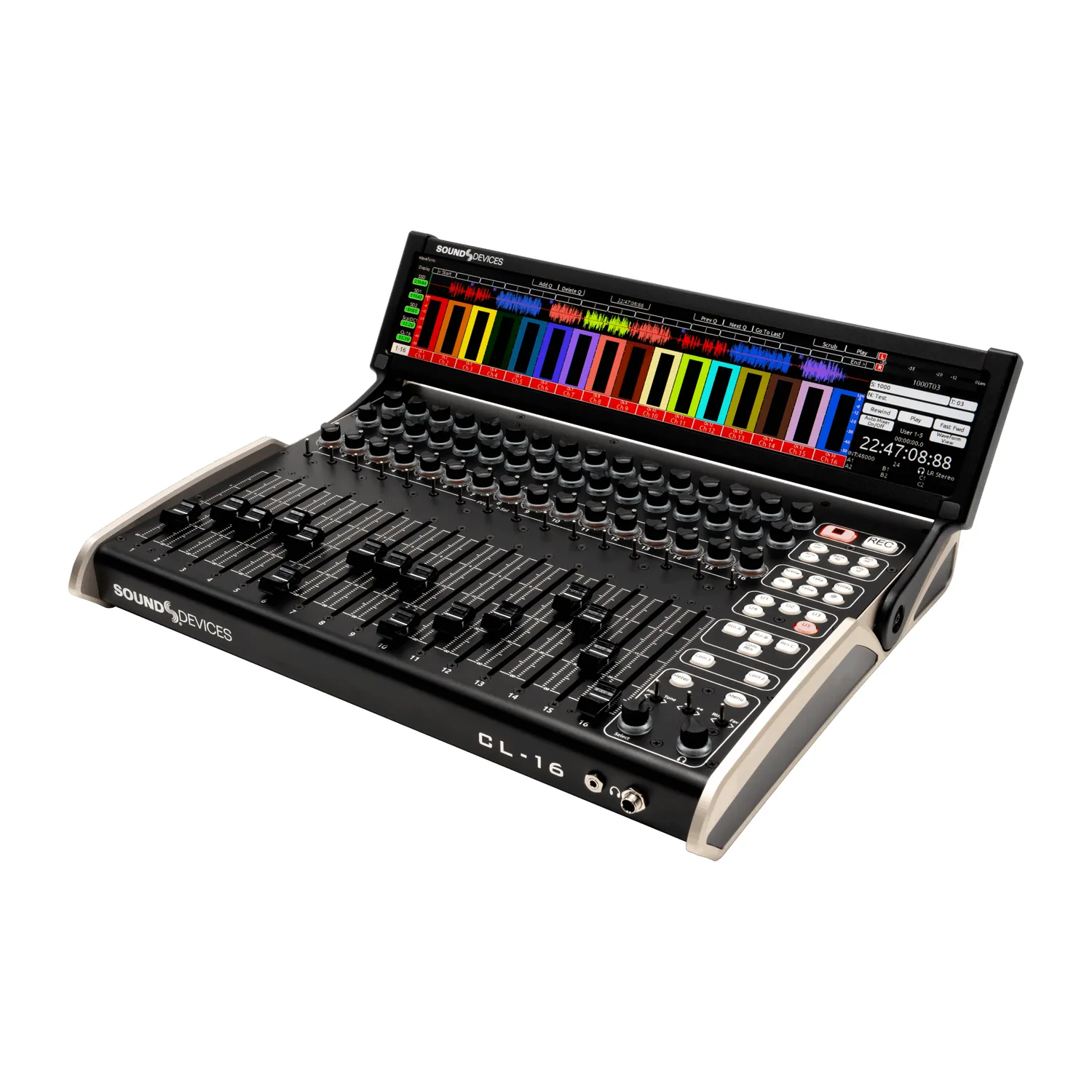

The Sound Devices CL-16 is a linear fader control surface for the 833, 888, and Scorpio that brings 16 faders, 16 trims, and a panoramic LCD to cart mixing.

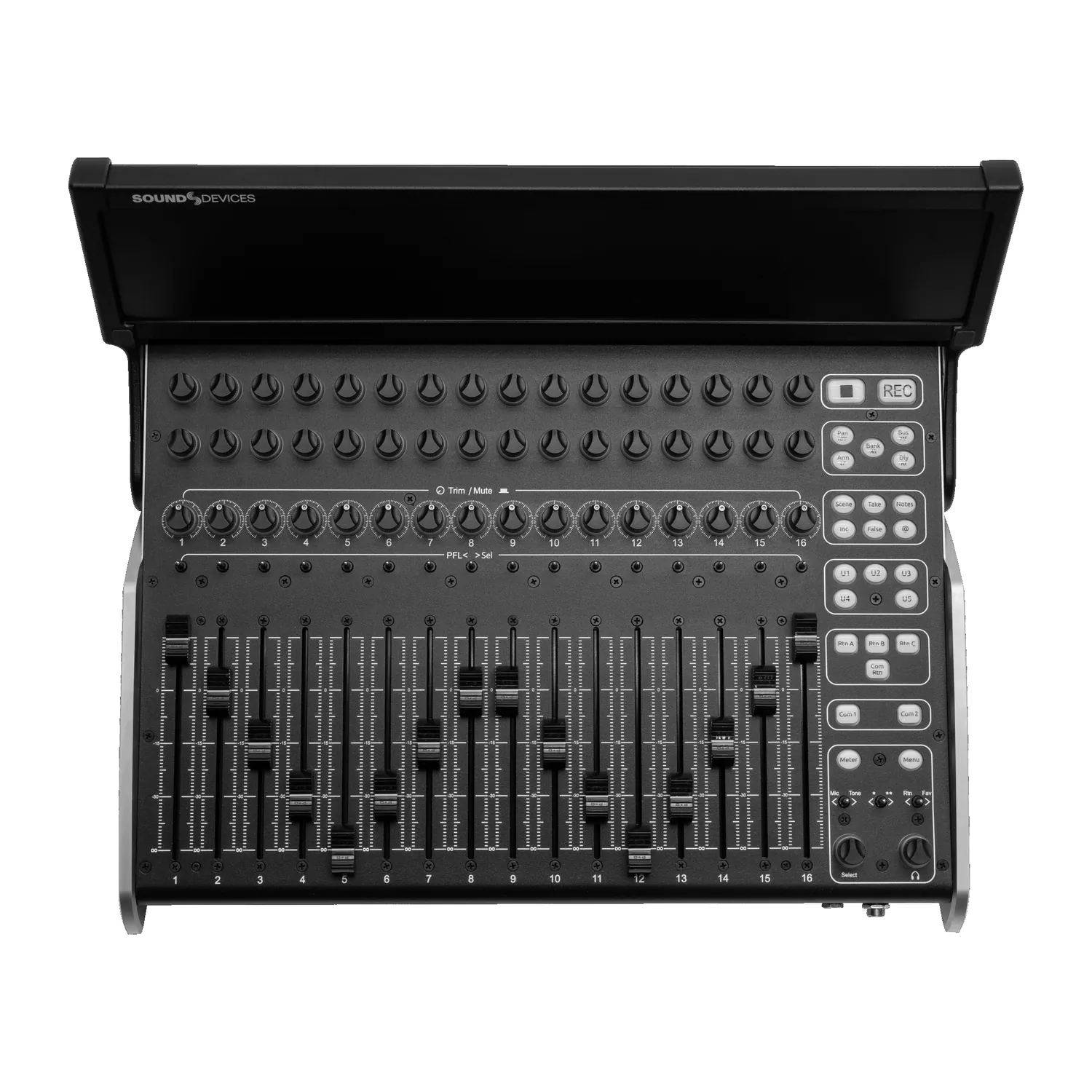

Channels 1 to 16 get dedicated, non-banking controls like an analog console, while 32 multi-function knobs reach EQ, pan, gains for channels 17 to 32, bus levels, and output levels. The unit is 16.3 in wide, fits a cart, and runs on 12 V DC through a 4-pin XLR, with the power supply sold separately.
Waveform View
The ultra-wide, multicolor waveform display lets you jump between takes with Q markers and up to 16 locate points, scrub forward or back, and play or pause from the surface. You can view any combination of mix and ISO tracks, or isolate one track in PFL.
Build and Connections

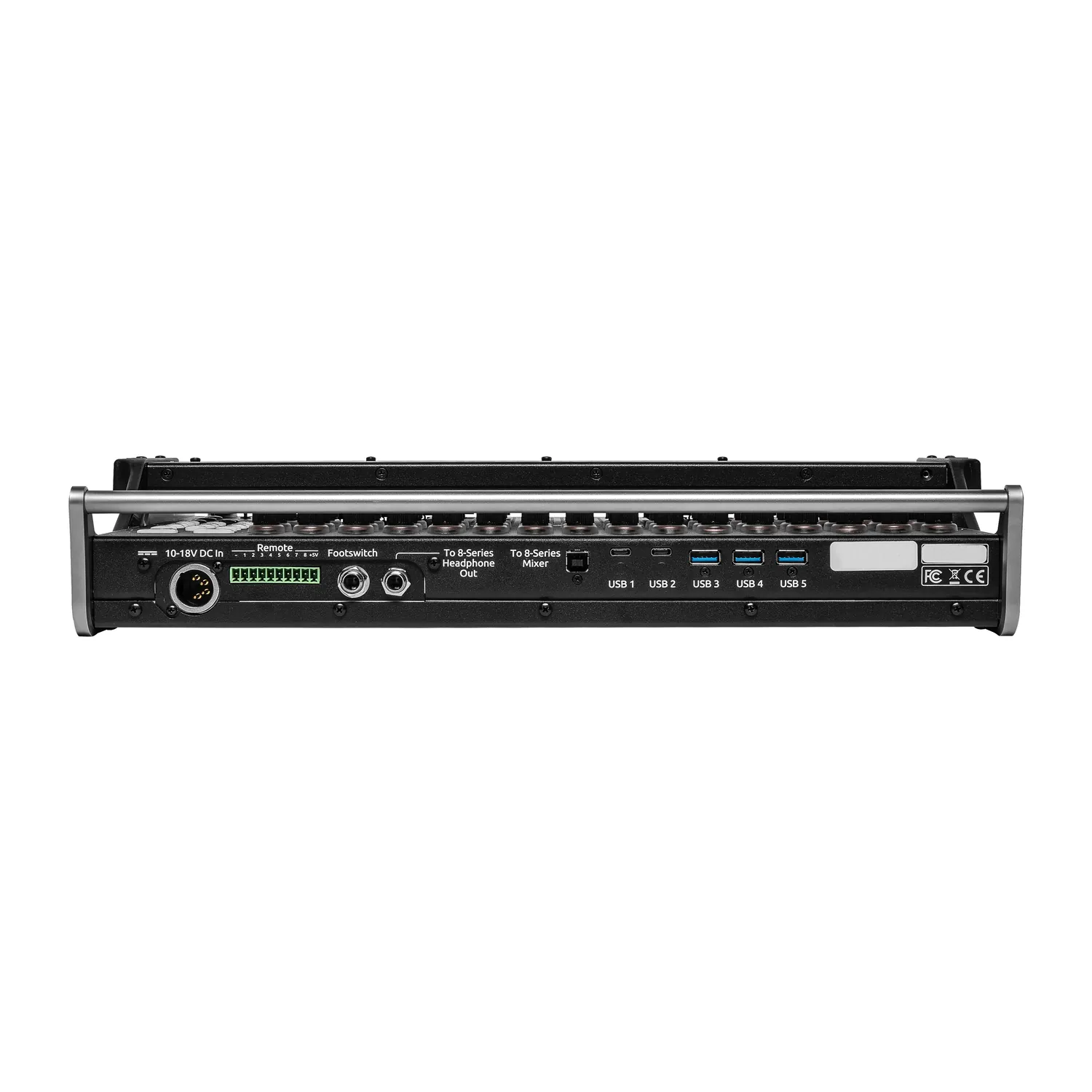

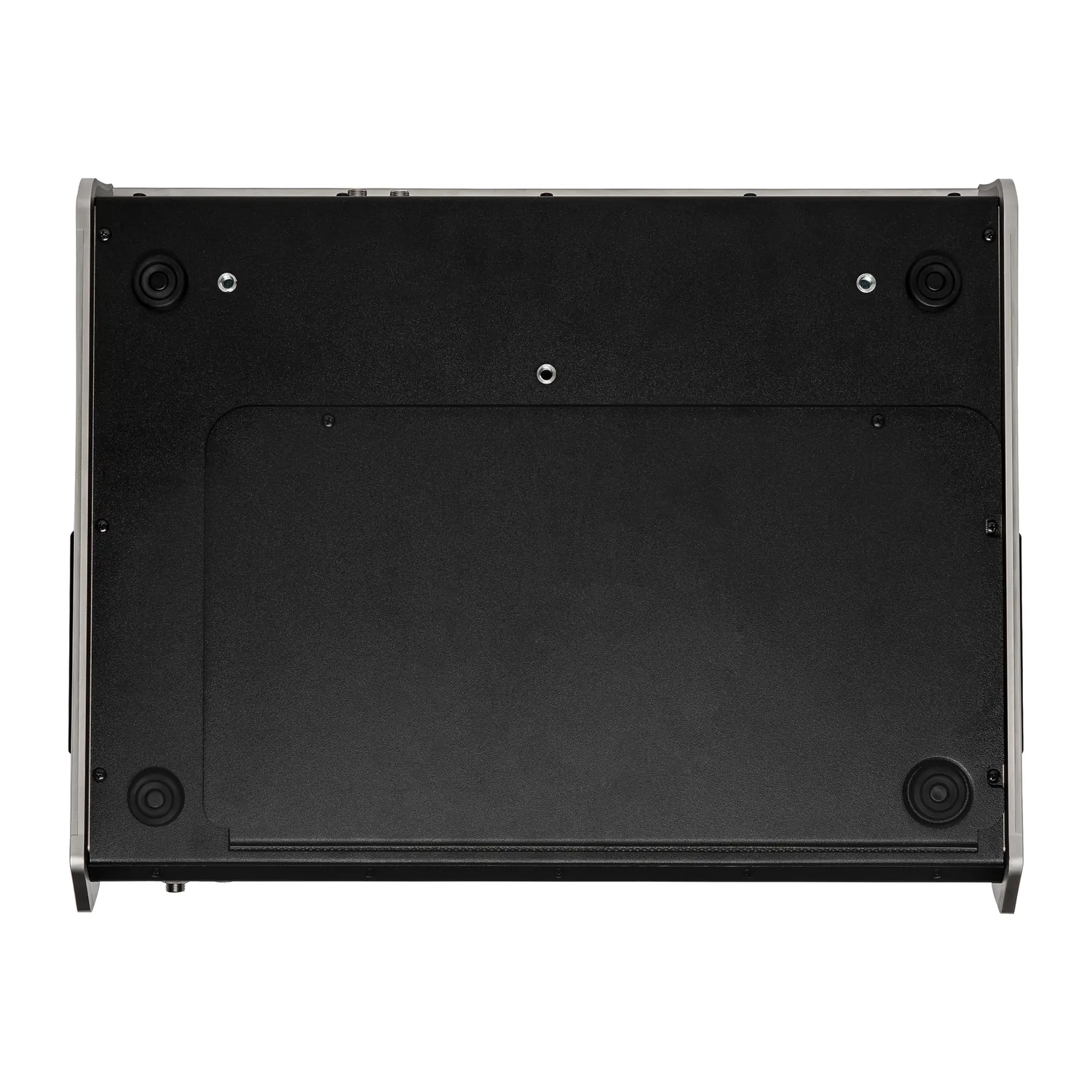

Its 16 Penny & Giles 100 mm faders glide smoothly, and the bottom panel opens for field servicing. A five-port USB hub (two USB-C, three USB-A) connects keyboards, an SD-Remote tablet, and other devices, and the CL-16 connects to the mixer-recorder over USB-B. A 10-pin remote connector wires custom LEDs and switches, and a 1/4 in jack takes a foot pedal.
Awards
In 2021 the CL-16 won the 57th CAS Outstanding Product in Production award and the AMPS Excellence in a Production Audio Product award.
Features
- 16 Penny & Giles 100 mm linear faders
- 16 dedicated rotary trims
- 32 multi-function rotary controls

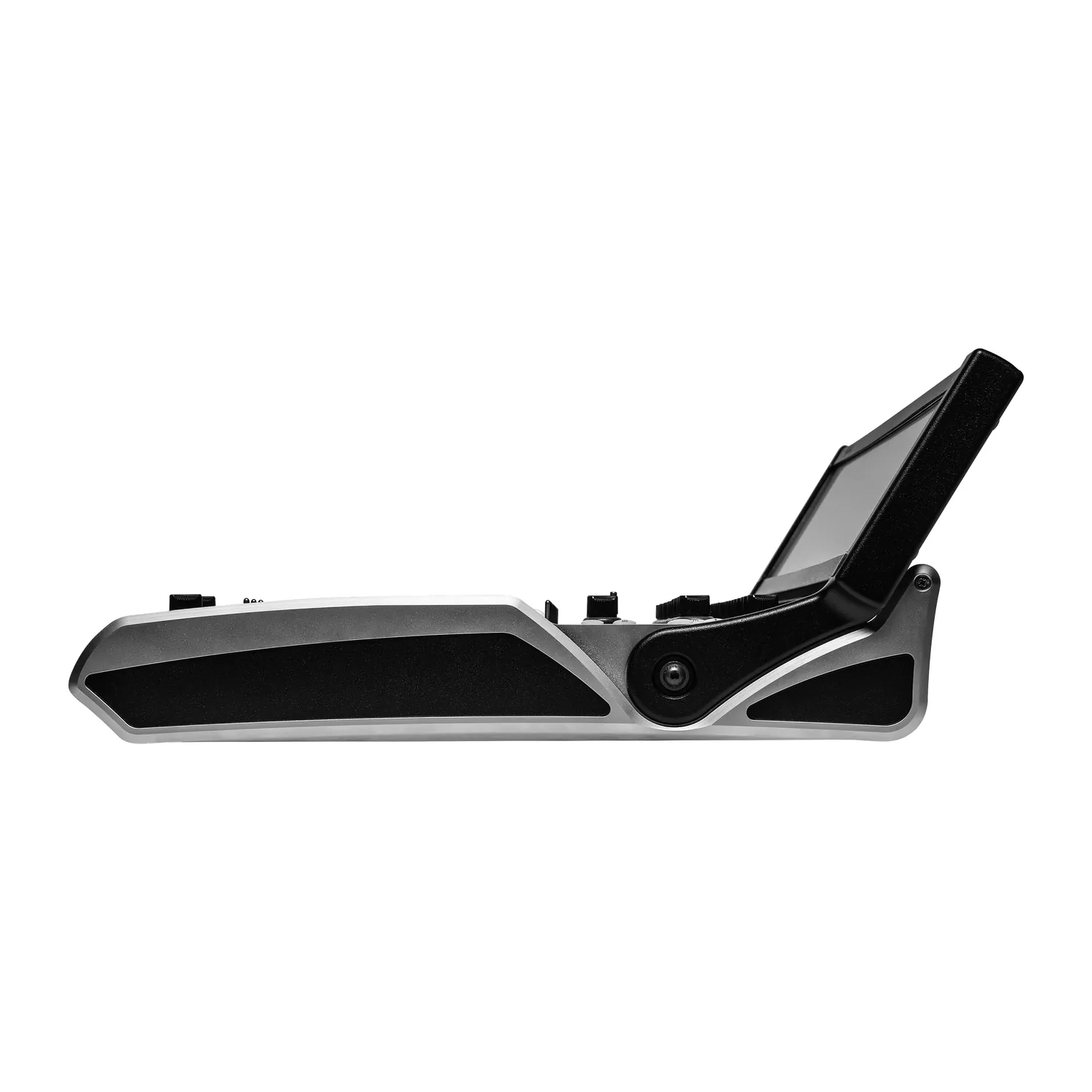

- Large, sunlight-readable LCD that folds down for transport
- Waveform display for navigation and playback
- Silent soft-touch buttons for record, stop, metadata, coms, and returns
- Five user-assignable buttons
- Five-port USB hub (two USB-C, three USB-A)
- 1/4 in and 1/8 in headphone jacks
- 10-pin remote connector and 1/4 in foot pedal input
What's Included
- USB-A to USB-B cable
- 1/4 in to 1/4 in TRS cable
- 10-pin Phoenix screw terminal block
Specifications
| Power | |
|---|---|
| Voltage | 10 – 18 V DC at XLR-4 (pin 4 = +, pin 1 = ground) |
| Current Draw | 560 mA quiescent at 12 V DC in, USB ports open 2.93 A with 5 A total USB load 5.51 A with 10 A total USB load |
| Connections | |
| USB-A Ports | 5 V, 1.5 A each |
| USB-C Ports | 5 V, 3 A each |
| Remote Port Power | 5 V, 1 A on pin 10 |
| Remote Port Input | 60k ohm typical input impedance; Vih 3.5 V min, Vil 1.5 V max |
| Remote Port Output | 100 ohm output impedance; sink current 10 mA |
| Foot Switch | 1k ohm typical input impedance; connect to ground to operate (active low) |
| Physical | |
| Dimensions, Screen Folded Down | 8.01 × 43.52 × 32.91 cm 3.15 × 17.13 × 12.96 in |
| Dimensions, Screen Folded Up | 14.64 × 43.52 × 35.90 cm 5.76 × 17.13 × 14.13 in |
| Weight | 4.71 kg (10.38 lb) |
