Sound Devices A20-QuickDock Receiver Dock for 8-Series
- Docks an Astral ARX16 or ARX8 on an 833, 888, or Scorpio
- Power, audio, and timecode through one multi-pin port
- Quick release with no tools
$810.00 USD
In Stock
Sound Devices A20-QuickDock Receiver Dock for 8-Series

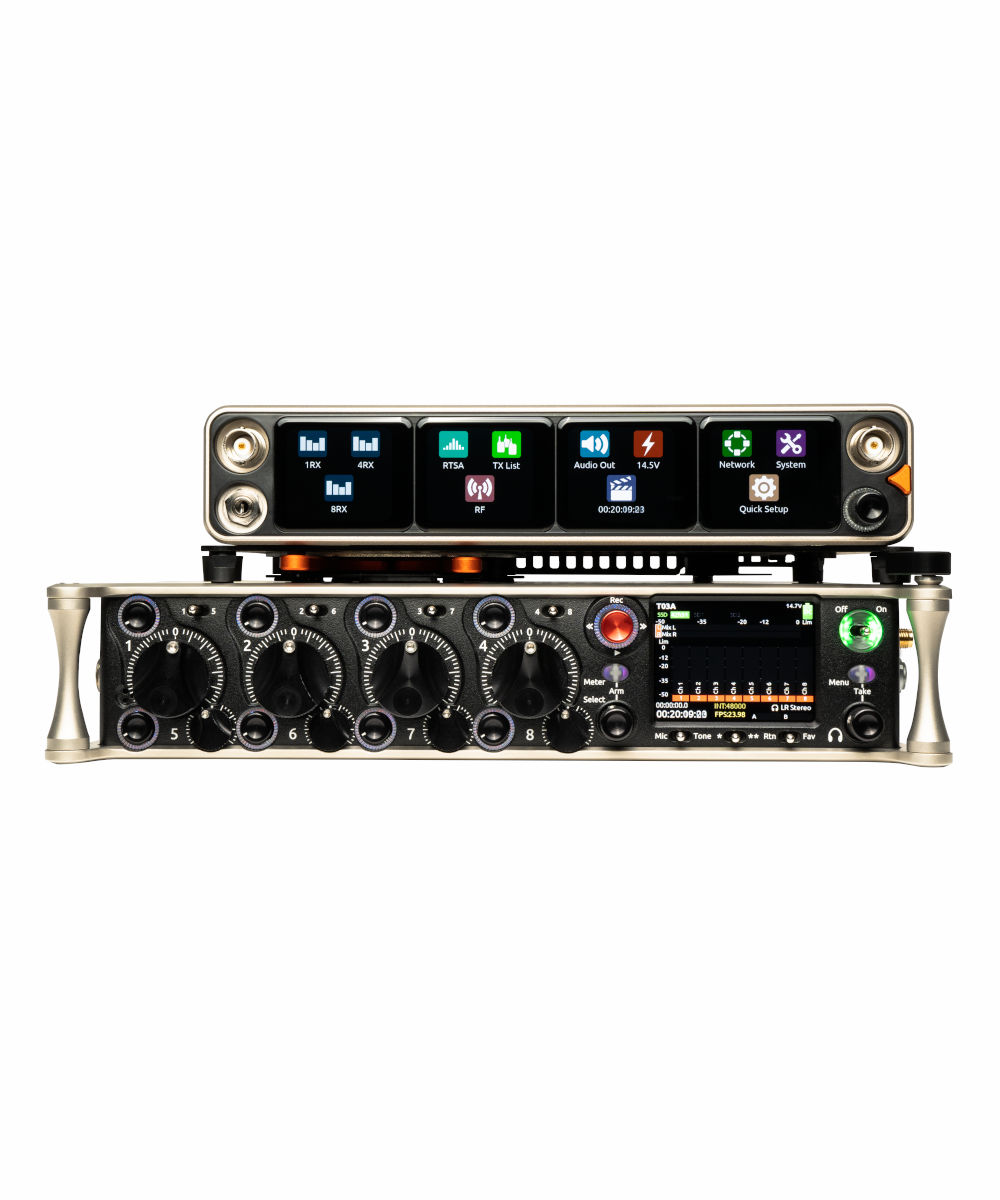

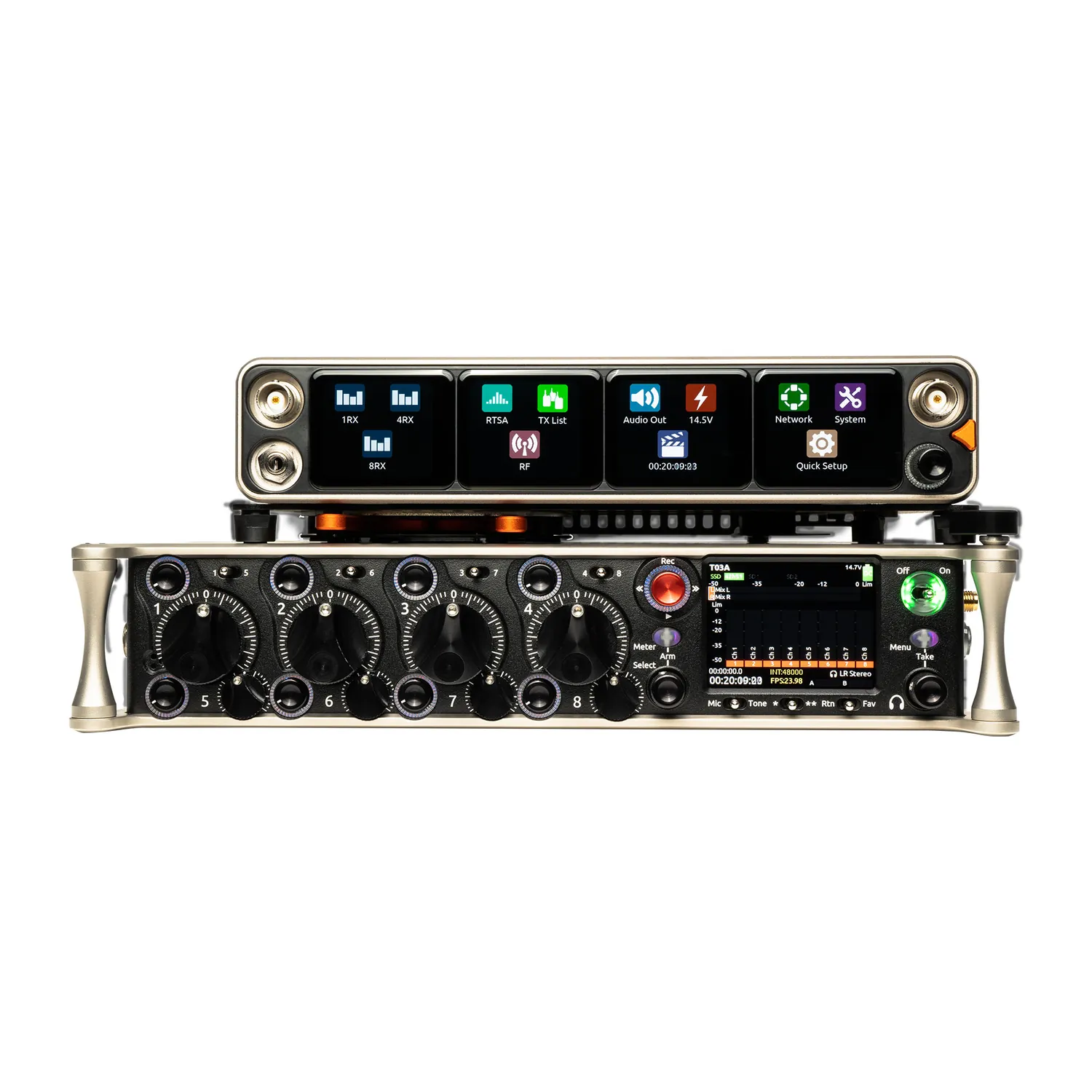

The Sound Devices A20-QuickDock docks an Astral ARX16 or Astral ARX8 receiver on top of an 833, 888, or Scorpio mixer-recorder, with no cables between the two.
A multi-pin port in its bottom panel carries power, audio, and timecode from the mixer-recorder to the receiver. The receiver connects and disconnects in seconds with no tools, so it can come off the mixer for remote mounting.
Good to Know
A docked receiver runs on power from the 8-Series, and its own TA4 and PoE+ power inputs are disabled. Most of its rear panel connectors are disabled as well, apart from the antenna connectors, the USB-A port, and the Ethernet ports. On a docked ARX16, the Ethernet ports carry control only, not Dante.
Features
- Docks an Astral ARX16 or ARX8 on an 833, 888, or Scorpio
- Multi-pin port for power, audio, and timecode with no cables

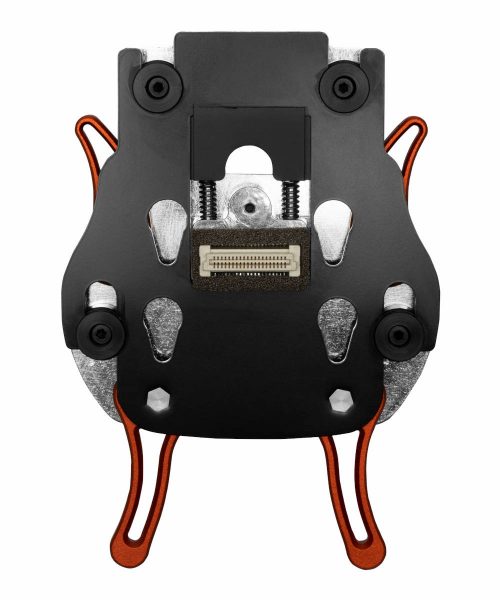

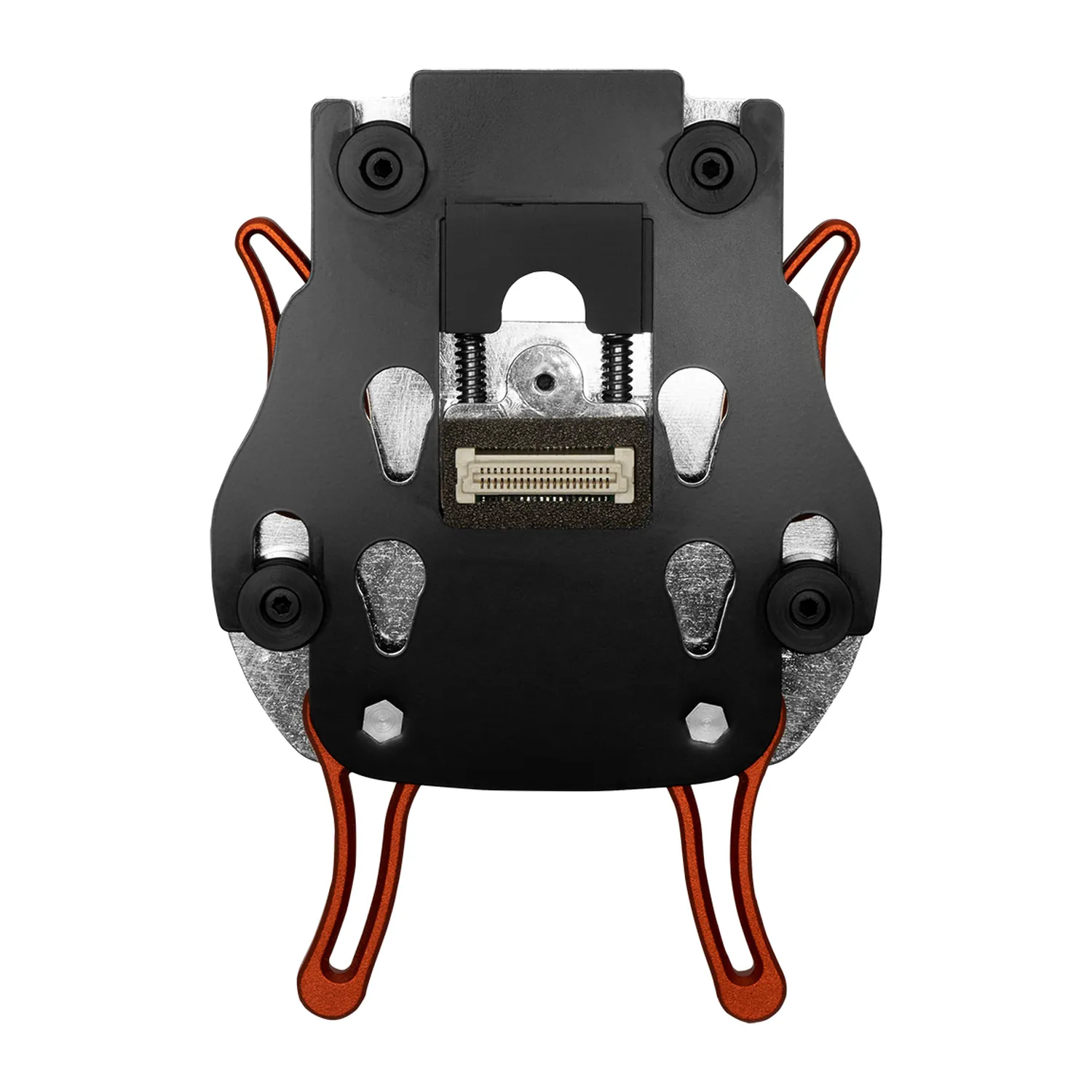

- Quick-release mechanism: on and off in seconds with no tools
- Adds 1.1 cm (0.42 in) to the height of the rig
- Mounting pegs and extra hardware for the Scorpio in the kit
What's Included

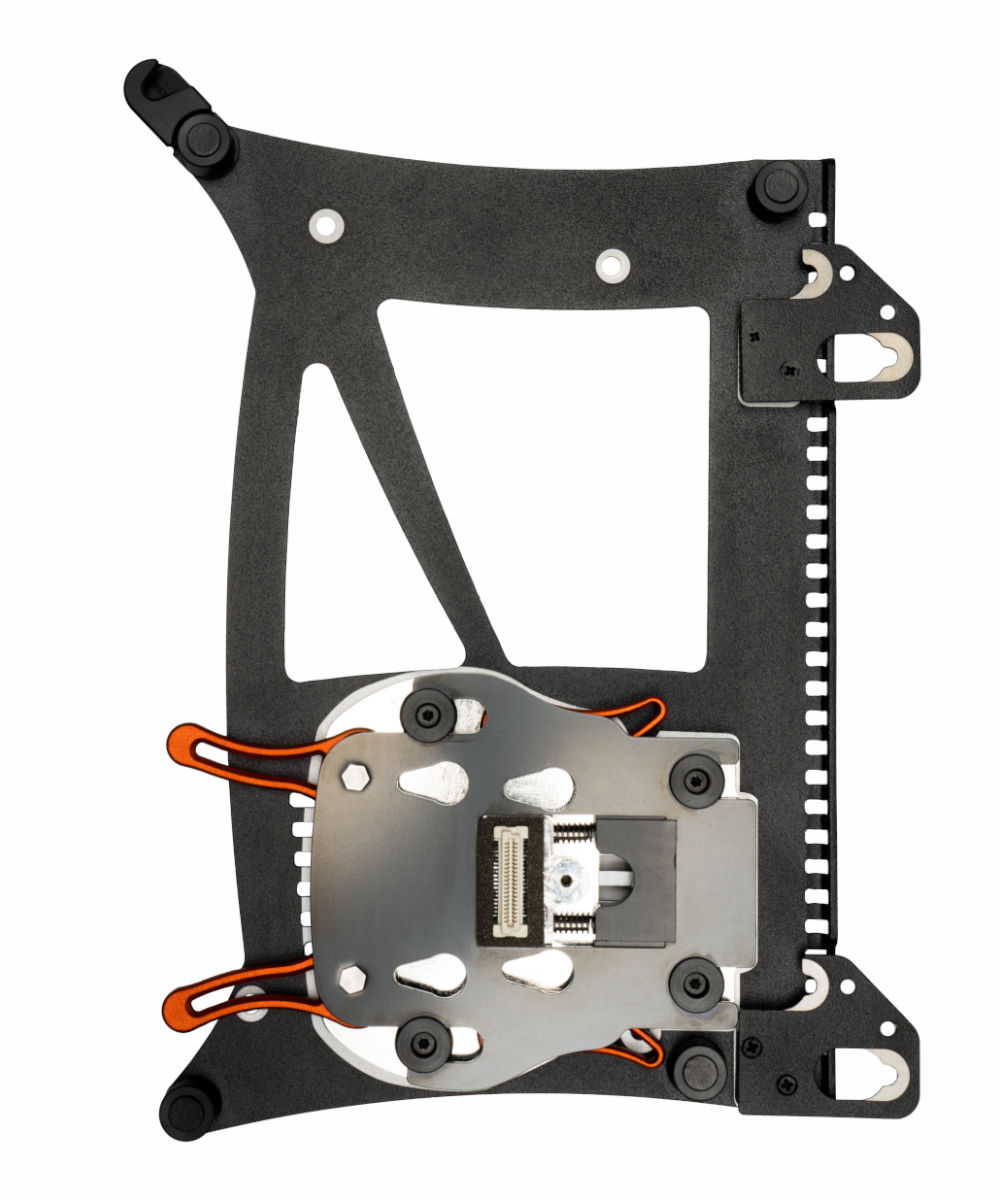

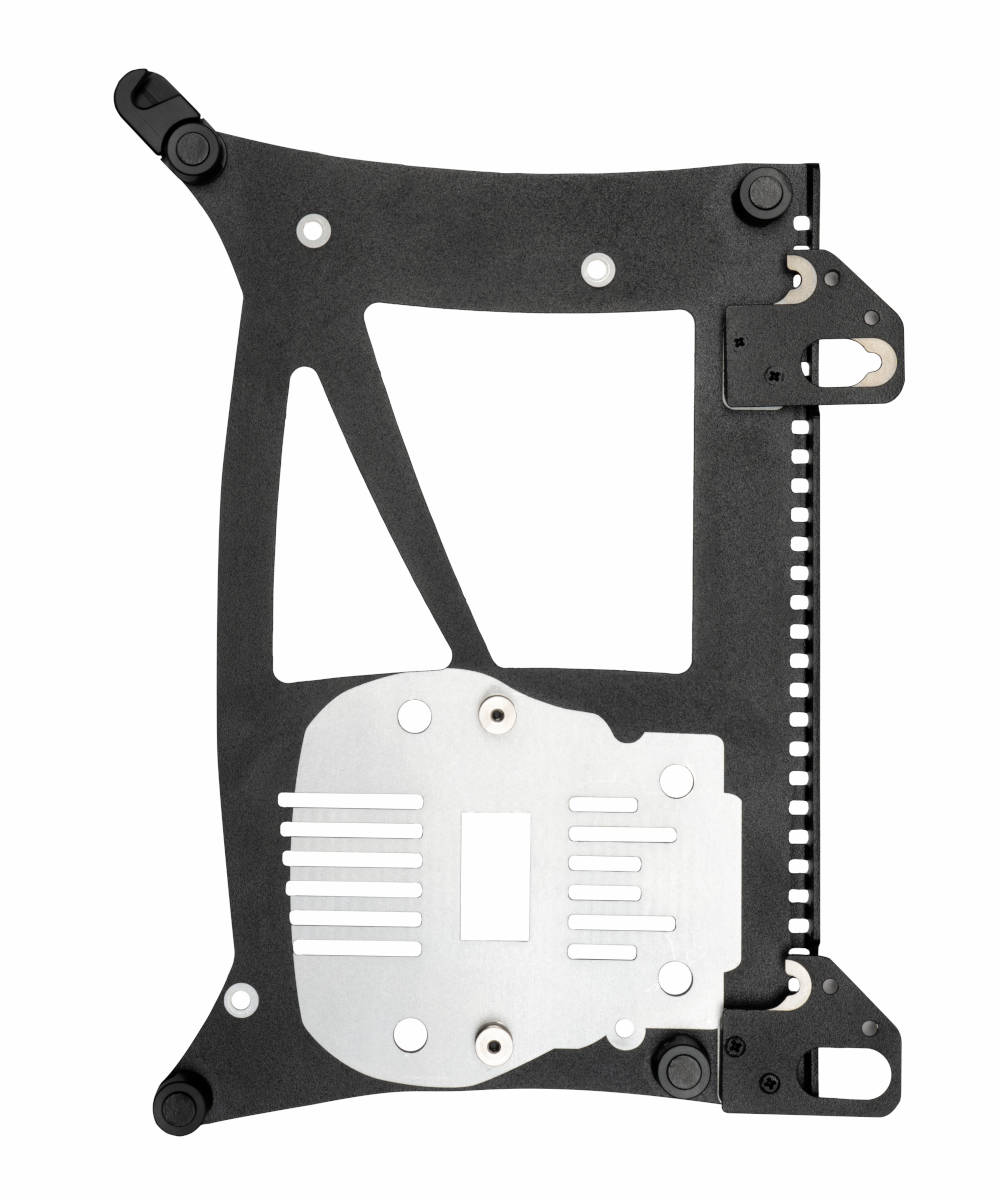

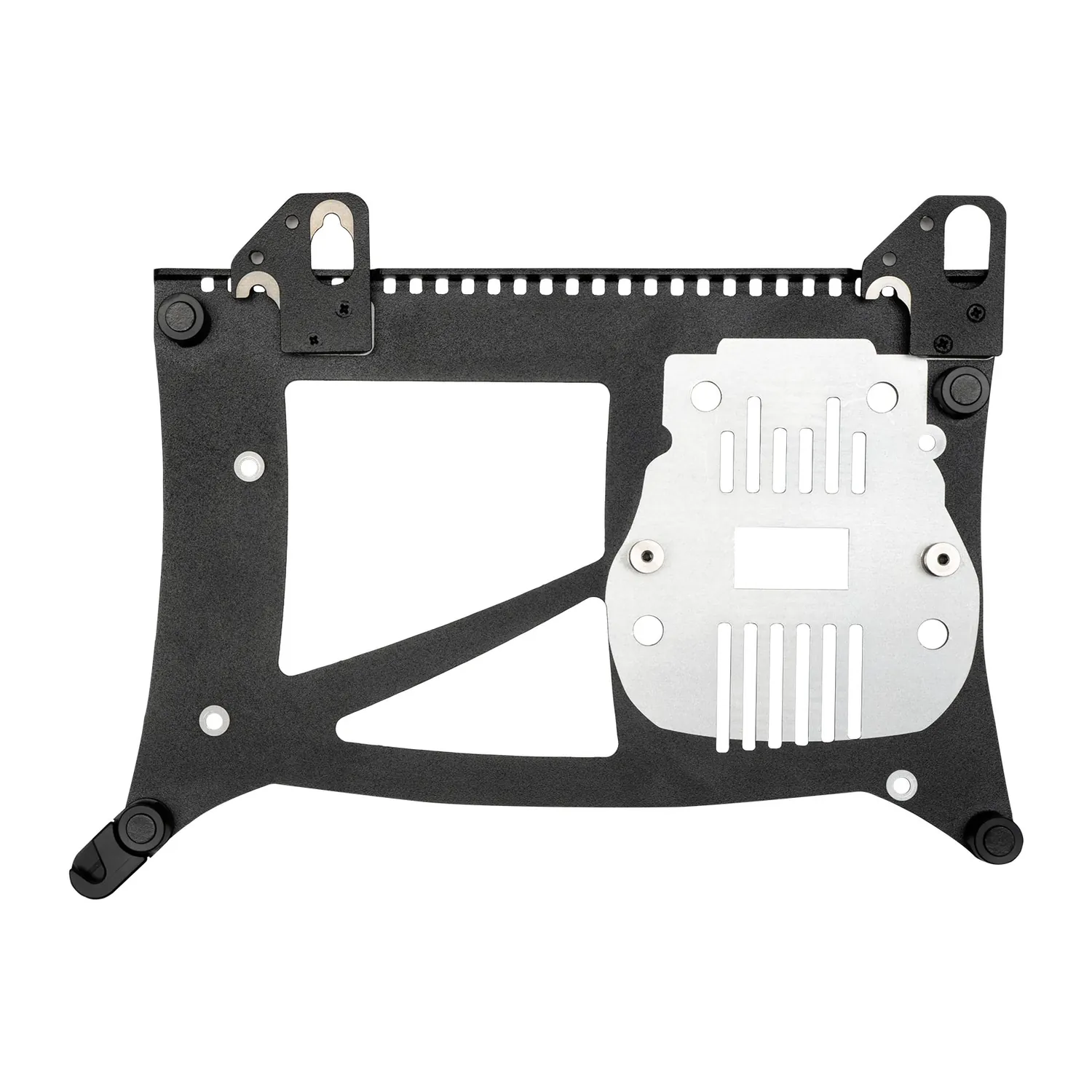

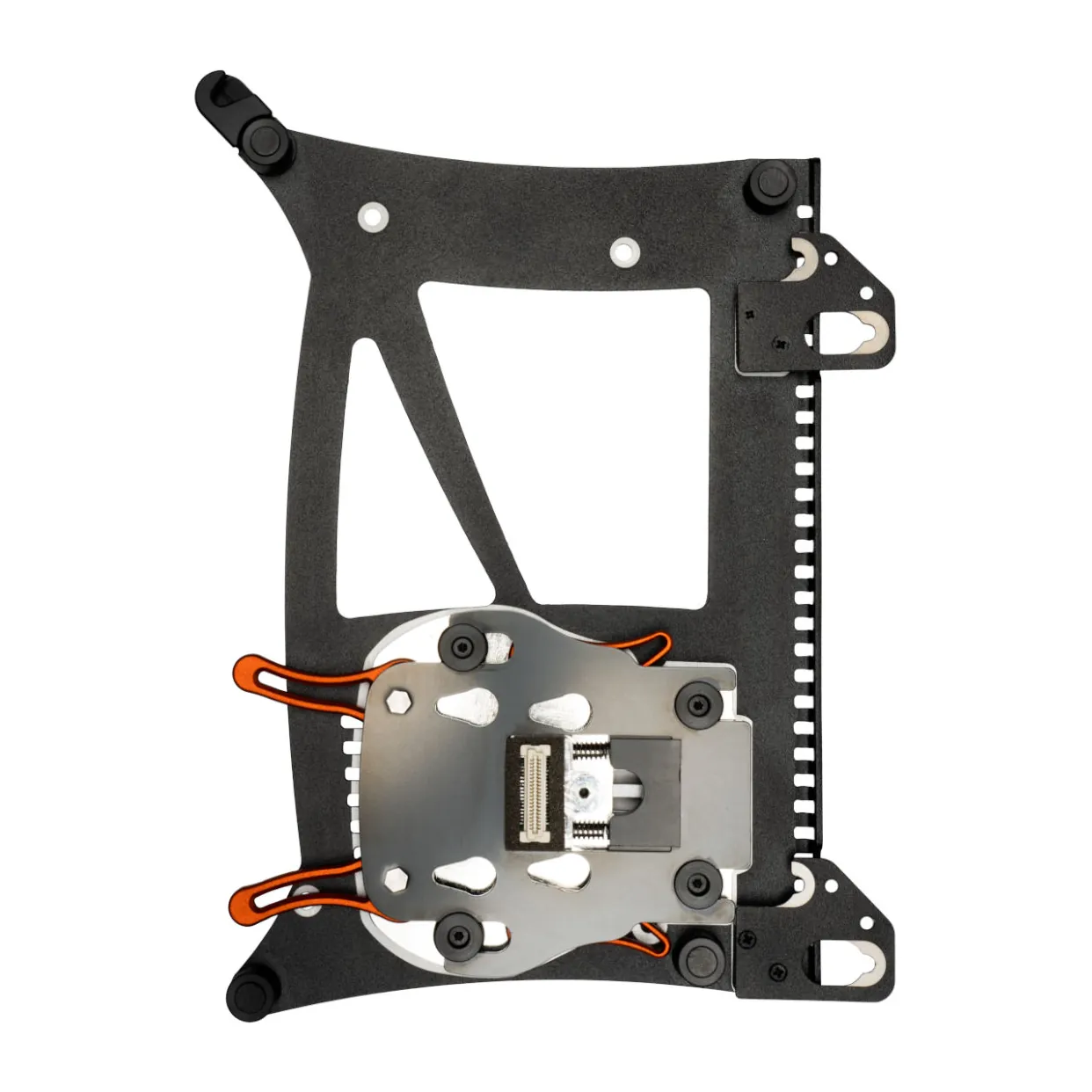

- Mounting plate with detachable quick-release mechanism and multi-pin connector
- 2 mm and 1/16 in Allen keys
- 4 × 1/16 in Allen screws for securing the mounting plate to the receiver
- 3 long and 2 short mounting pegs for securing the receiver to the 8-Series
- Additional mounting hardware for the Scorpio
Specifications
| Physical | |
|---|---|
| Dimensions (H × W × D) | 2.1 × 20.6 × 15.1 cm 0.81 × 8.11 × 5.93 in |
| Height Added to the Rig | 1.1 cm 0.42 in |
| Weight | 0.23 kg (0.50 lb) unpackaged 0.44 kg (0.98 lb) packaged |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit sounddevices.com. |
