Sound Devices SL-2 Dual SuperSlot Wireless Module for 8-Series
- Holds two slot-in wireless receivers on an 8-Series mixer
- Up to eight channels of wireless audio
- Power, audio, and antennas handled with no extra cables
$2,595.00 USD
In Stock
Sound Devices SL-2 Dual SuperSlot Wireless Module for 8-Series

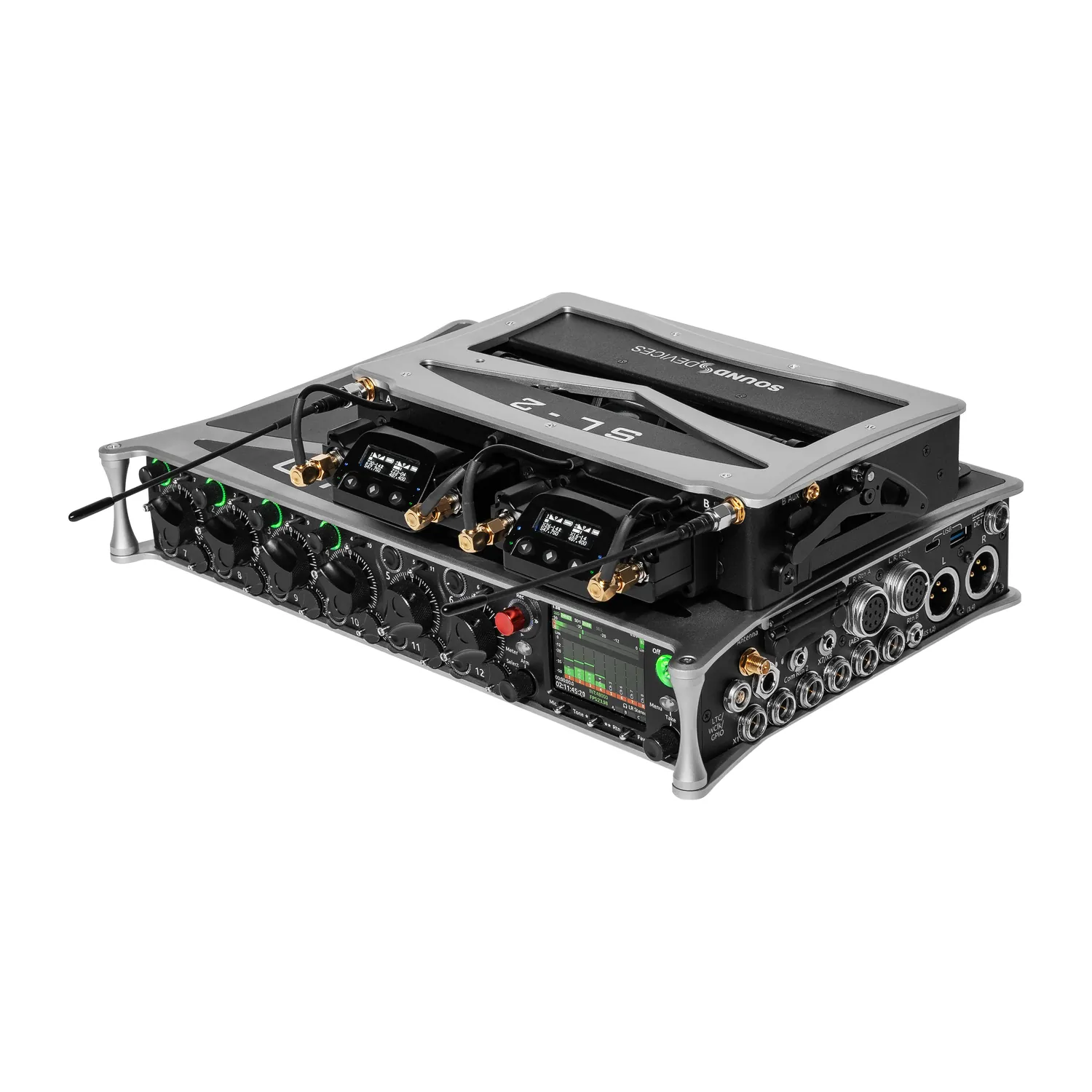

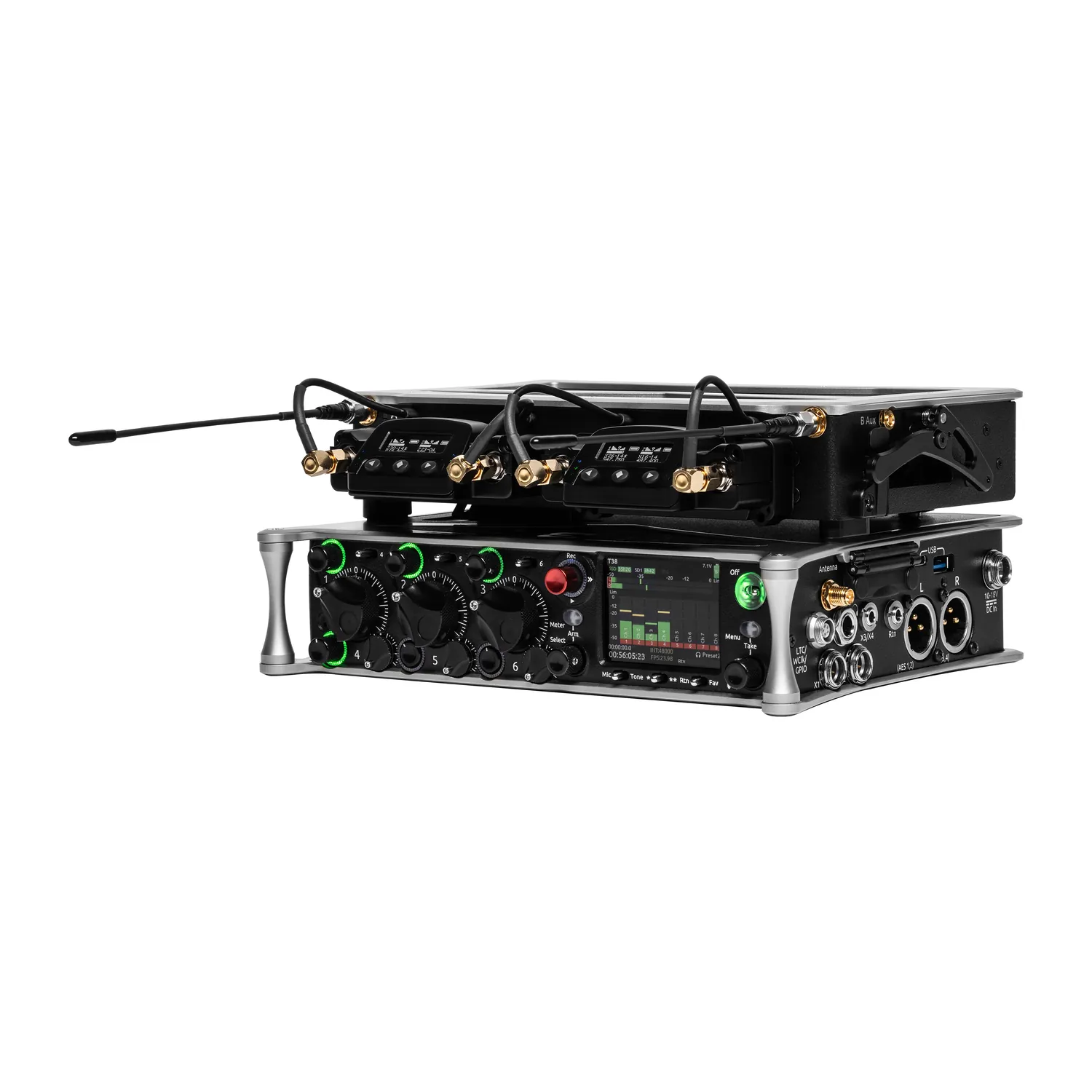

Mounted on top of an 833, 888, or Scorpio, the Sound Devices SL-2 holds two slot-in wireless receivers in a dual SuperSlot setup and passes power and audio straight into the mixer.
It accepts UniSlot and SuperSlot receivers from Sound Devices, Lectrosonics, Sennheiser, and Wisycom, and the SuperSlot protocol carries up to four channels per slot, eight in all. It is the same width as the 833.
Power and Audio
The mixer-recorder powers the SL-2 and its receivers, so no external DC cable is needed, and analog or digital audio reaches the mixer through its expansion port. Built-in antenna distribution feeds both receivers, with 12 V powering for active antennas or boosters and remote control of Wisycom-compatible smart antennas.

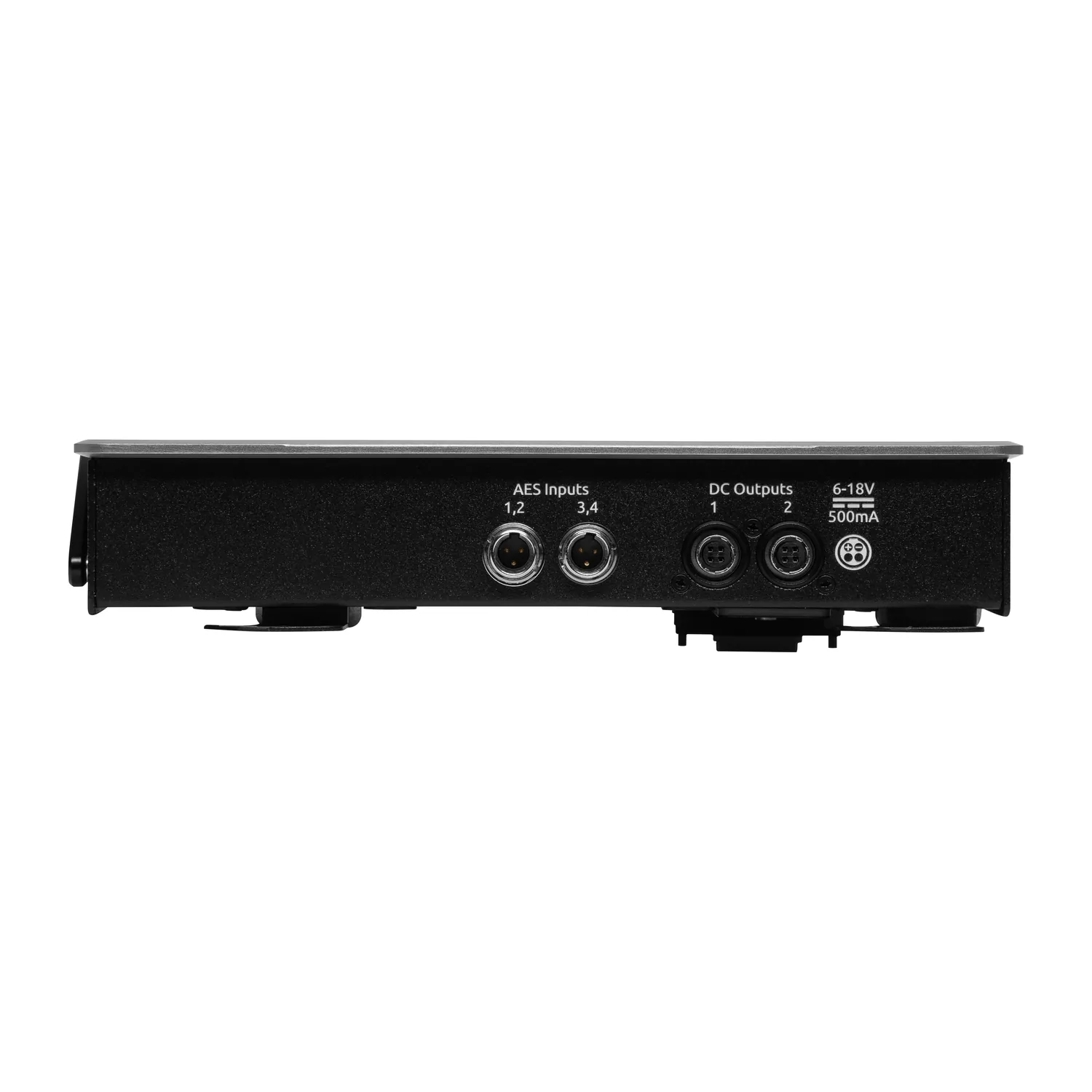

Rear Panel

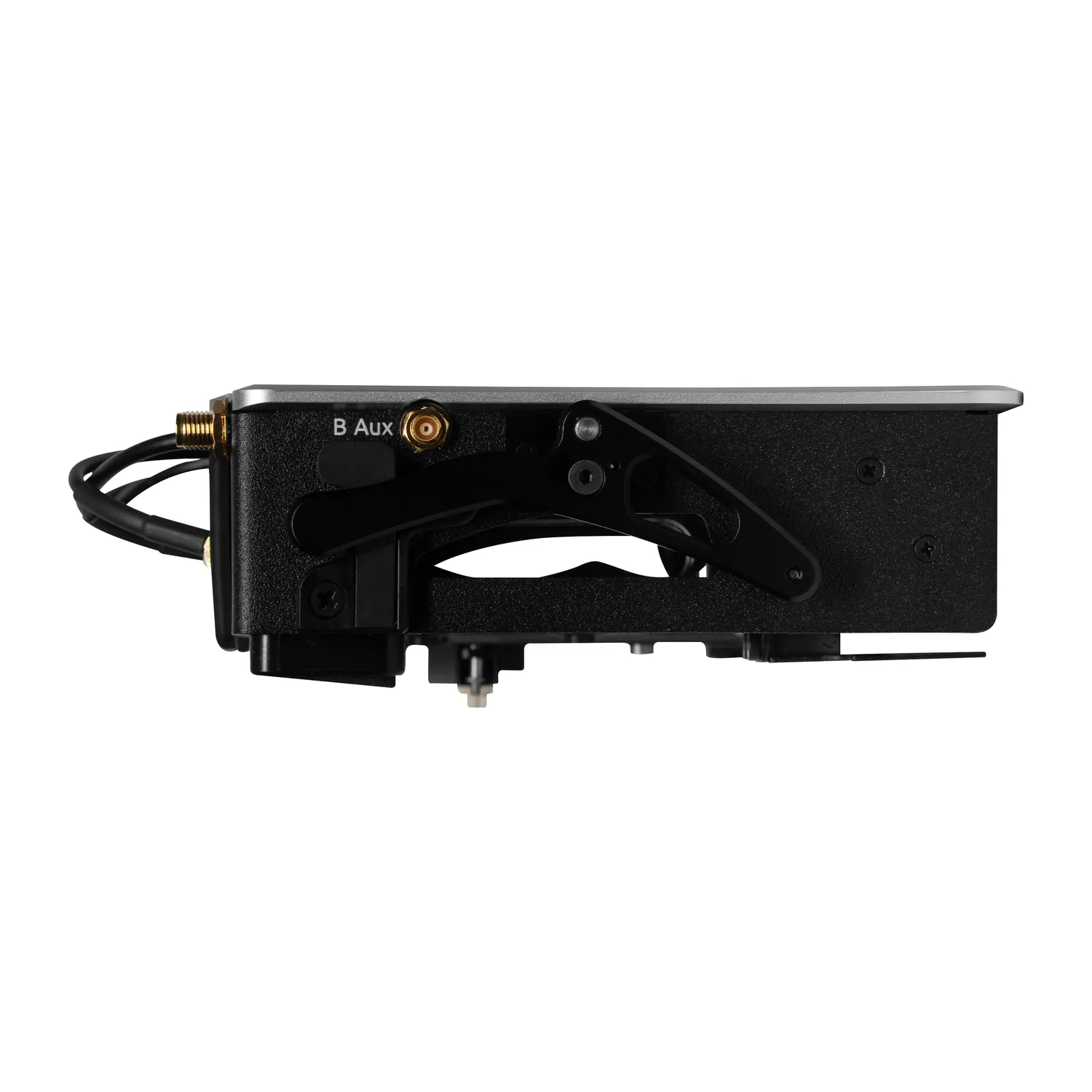

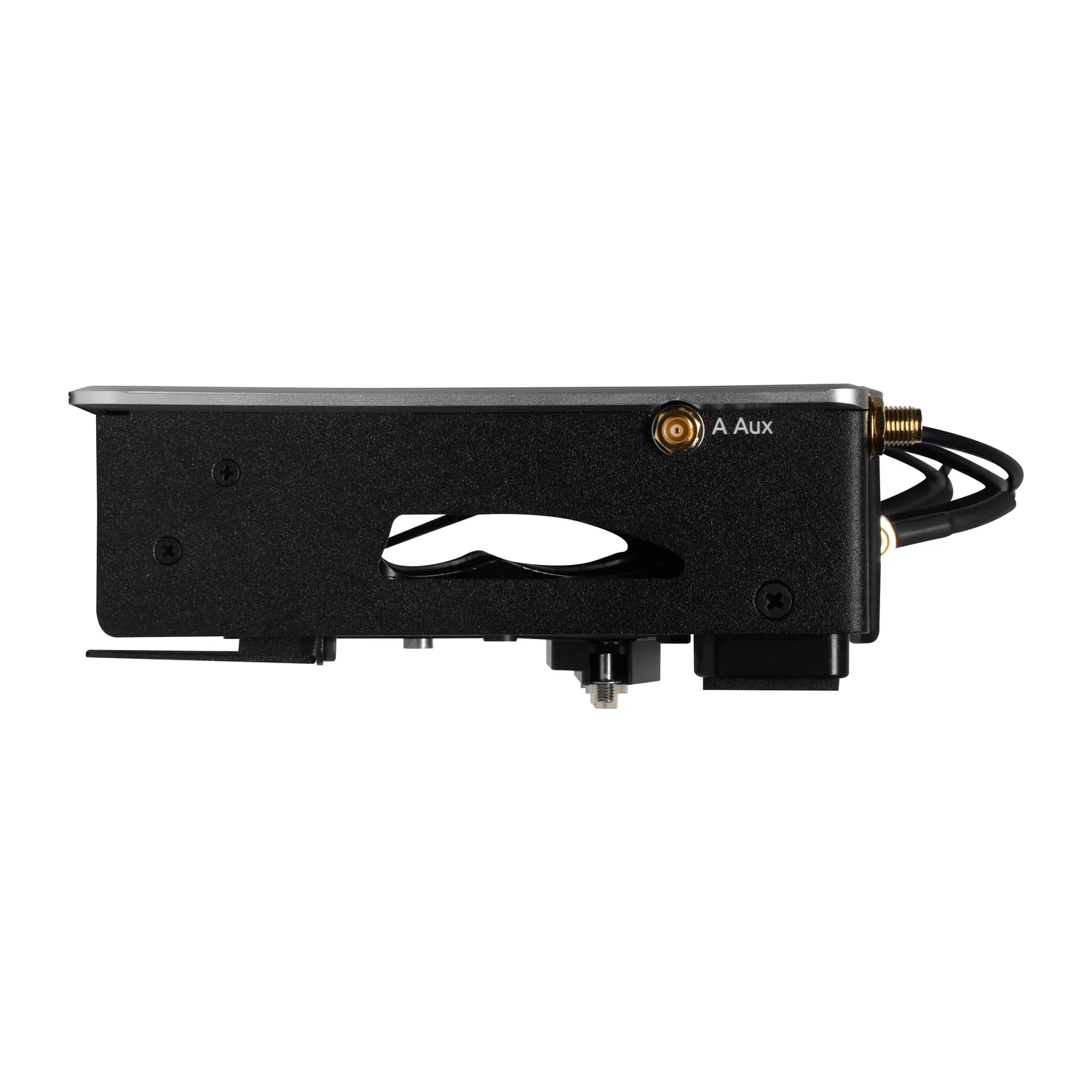

Two TA3 inputs add four channels of AES3 audio, two 4-pin Hirose outputs each supply up to 500 mA to other gear, and two MCX ports pass antenna signal to another receiver.
Receiver Control
From the 8-Series mixer-recorder you can set and monitor SuperSlot receivers, run an RF scan with a view of the spectrum, and watch transmitter battery, audio, and RF levels.
Features
- Holds two UniSlot or SuperSlot wireless receivers
- Up to 8 channels of wireless audio
- Fits the 833, 888, and Scorpio
- Powered by the 8-Series mixer-recorder
- Analog or digital audio from the receivers
- Antenna distribution with 12 V antenna power
- Remote control of Wisycom-compatible smart antennas
- Two TA3 AES3 inputs for four more channels
- Two Hirose DC outputs, 500 mA each
Specifications
| Power and Antenna | |
|---|---|
| Powering | All power supplied by the host 8-Series mixer-recorder 1.3 W idle draw (without receivers or antennas) |
| Antenna Impedance | 50 ohms |
| Antenna Powering | 12 V at 200 mA, menu-selectable on or off |
| Smart Antennas | Serial remote control, Wisycom-compatible, for ADFA and LFA powered antennas |
| Antenna Pre-Select Filters | Wideband or bypass (low-pass filter, 1.7 GHz upper cutoff) 470 – 614 MHz 542 – 694 MHz 606 – 770 MHz 770 – 960 MHz 1240 – 1260 MHz |
| Input RF Attenuators | 0 to −18 dB in 6 dB steps, menu-selectable |
| RF Outputs | Auxiliary antenna outputs for an additional receiver |
| Inputs and Outputs | |
| DC Outputs 1 – 2 | 500 mA max each, 6 – 18 V DC passed through from the host Hirose 4-pin: pin 4 = +, pin 1 = ground |
| AES Inputs | Two pairs, four channels in all AES3 balanced, 110 ohms, TA3 connectors |
| Physical | |
| Dimensions (H × W × D) | 4.5 × 21.3 × 13.1 cm 1.8 × 8.4 × 5.1 in |
| Weight | 0.61 kg (1.35 lb), unpackaged |
