RF Venue FM Antenna – Car Mount

Improve RF reception for drive-in worship and live music performances broadcast over FM

Categories: , , Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

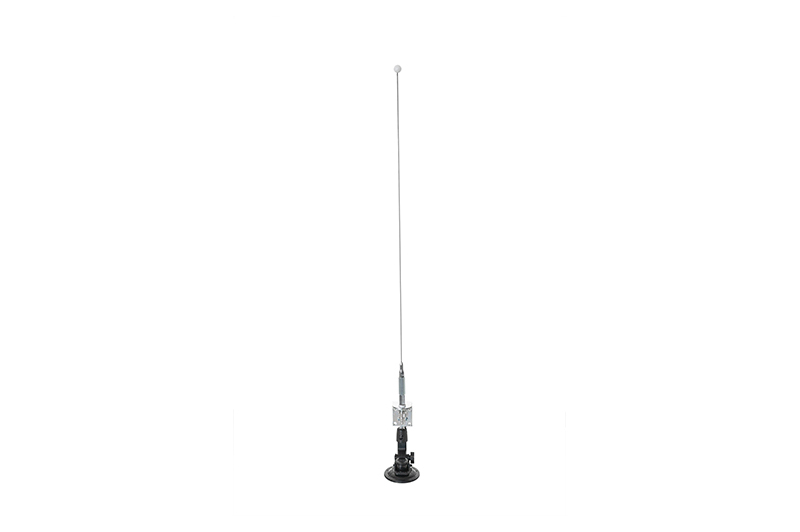

This easy-to-use, car-top mountable antenna, gives you the flexibility to use your own cable and
eliminate the stand. Using a suction-cup mount places the antenna close to the cars receiving the
signal (instead of on the transmitter) allowing you to move it out into the parking lot where it is needed most.
The RF Venue FM Car Mount Antenna features very low SWR over the entire FM band for maximum efficiency and uses the vehicle itself as a ground plane that preserves bandwidth. The antenna is rated for up to 100W continuous operation and is weather resistant but not for permanent outdoor installations.

Radiation pattern omnidirectional
Polarization vertical
Impedance 50-75 Ohms
Frequency Range 88-108 MHz
Typical VSWR 1.5:1 (tunable)
Typical Return Loss -17dB
