Remote Audio USB Power Converter Cables
- 6 to 18 V DC in, regulated 5 V USB out
- 3 A capacity, 2.2 A for Apple devices
- XLR4M, TA4M, Hirose, or BDS input
From $75.00 USD
Remote Audio USB Power Converter Cables
The Remote Audio USB Power Converter Cables charge phones, tablets, and other devices from a 6 to 18 V DC production supply.
Each cable puts out regulated 5 V DC at up to 3 A, enough to charge an iPad. Its circuitry lets Apple devices draw 2.2 A for charging and operation.
The housing is machined from ABS and can be serviced. The cable is 24 in long, and Remote Audio makes custom lengths. Choose the input connector that matches your power source: XLR4M, TA4M, 4-pin Hirose, or the 2.5 mm coaxial plug for a BDS outlet.
Features
- 6 to 18 V DC input
- Regulated 5 V DC USB output, 3 A capacity
- 2.2 A charging for Apple devices
- Idle draw under 10 mA
- Source power on indicator
- Machined ABS housing, serviceable
- 24 in cable
Available Options
| Connector | Item Number | Input Plug |
|---|---|---|

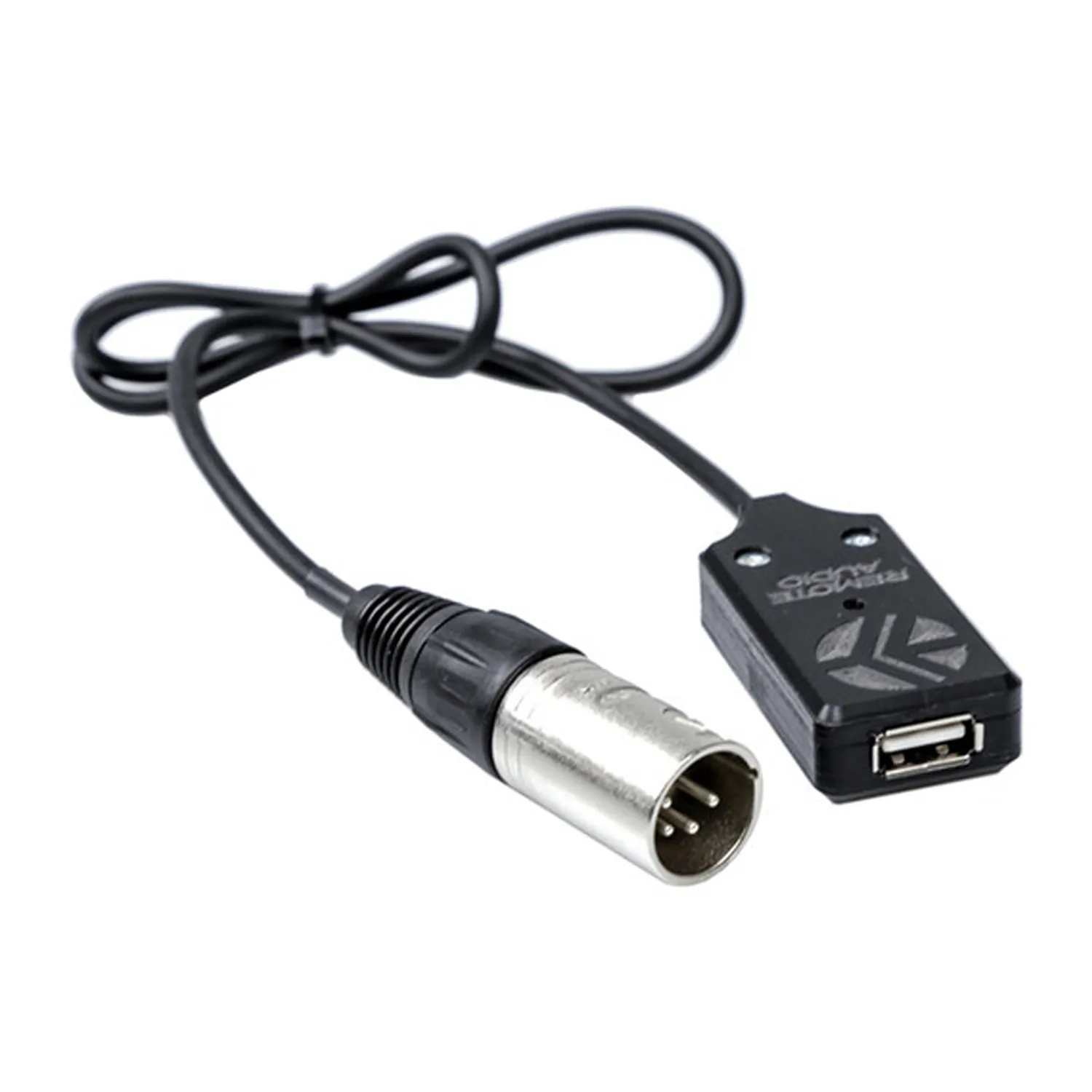

| XLR4M | CAX4MUSB | 4-pin XLR male |

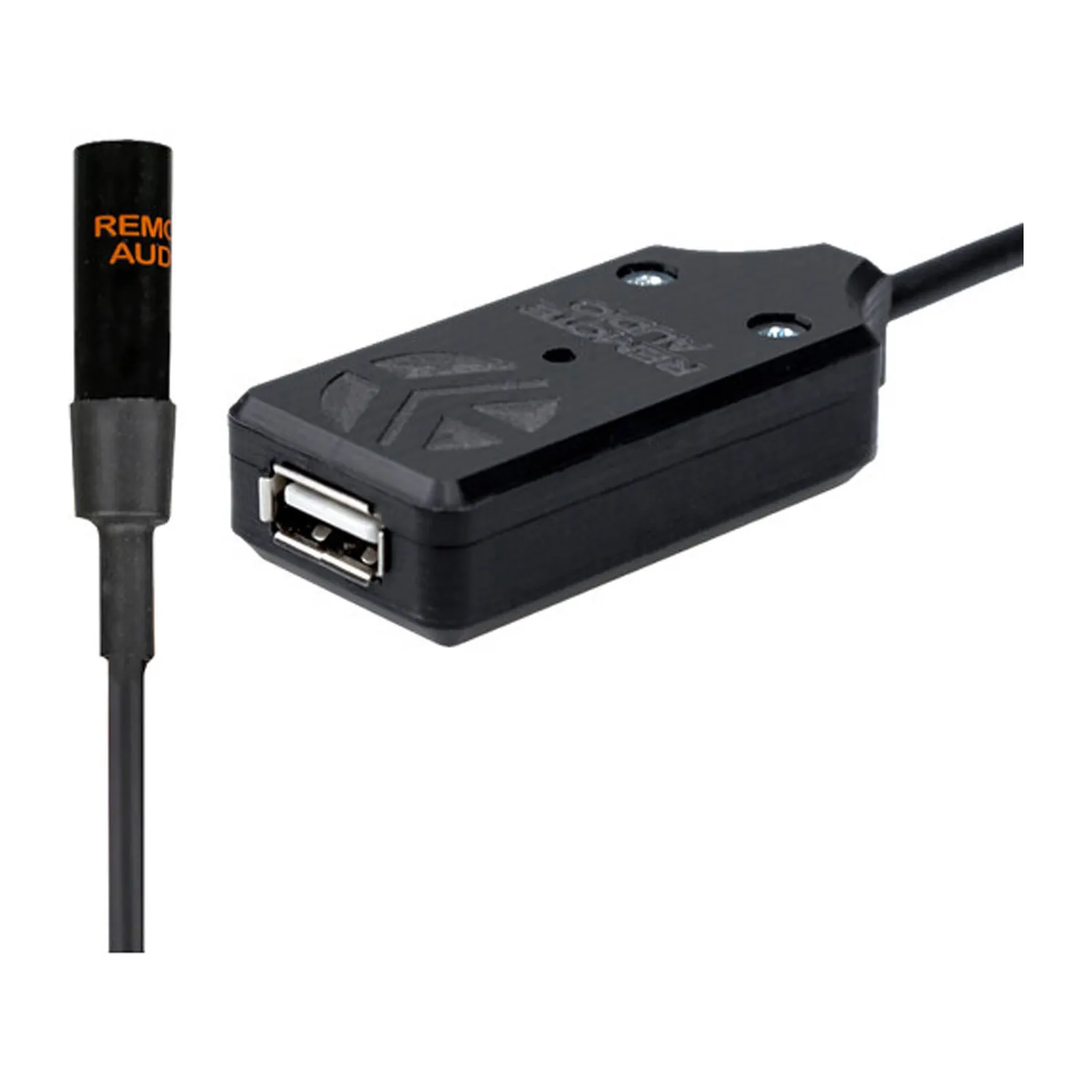

| TA4M | CAT4MUSB | TA4 male |

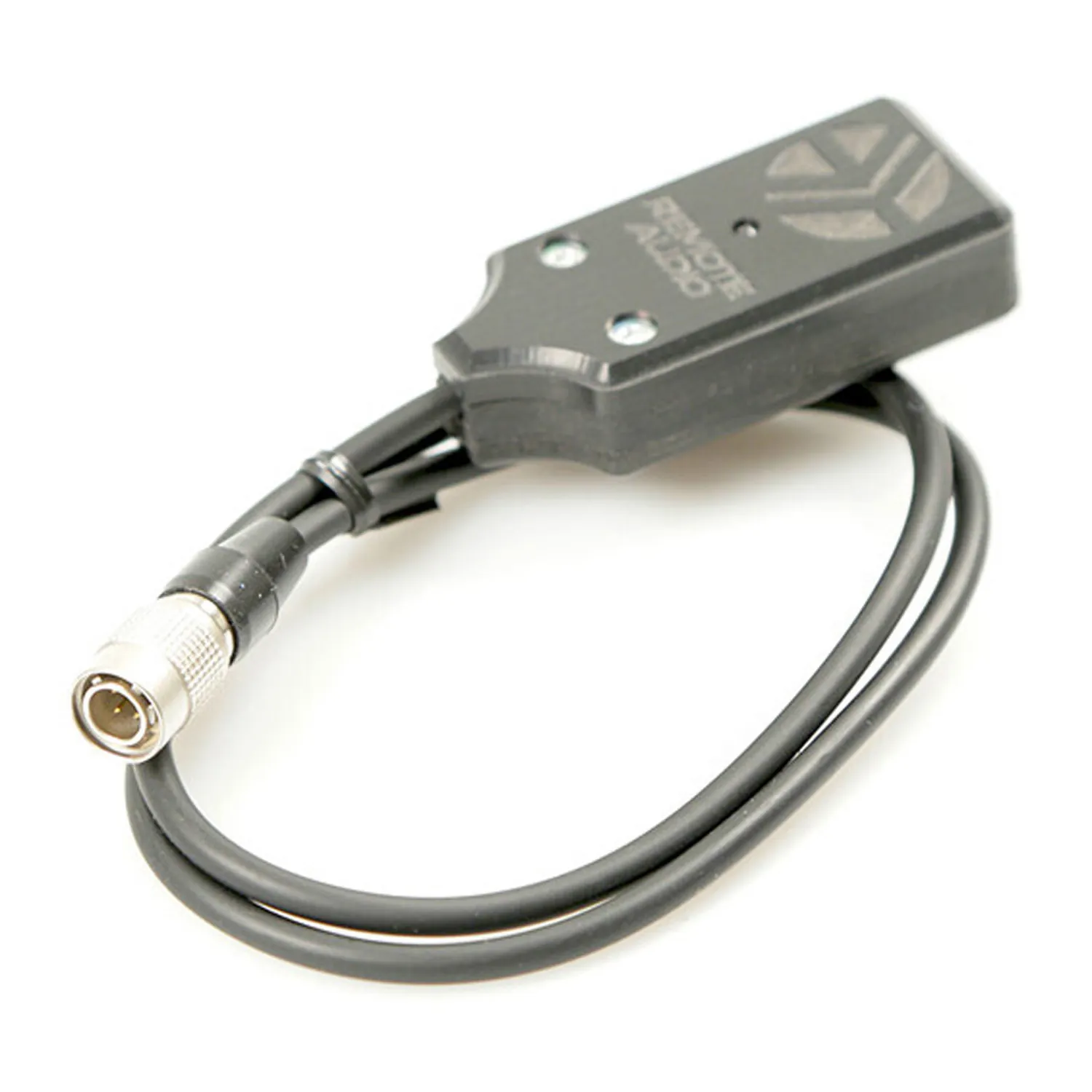

| Hirose | CAHIRUSB | 4-pin Hirose (HRS) |

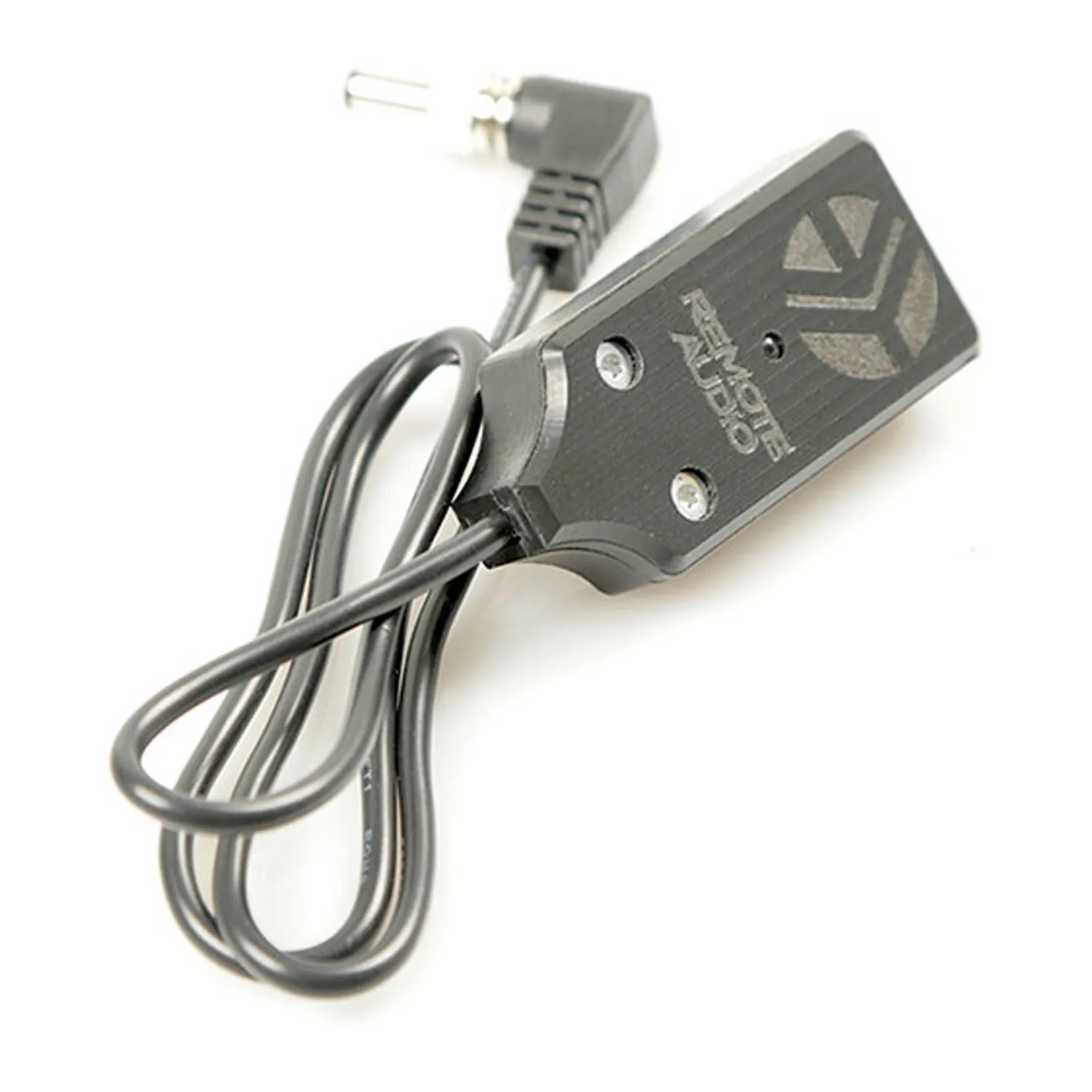

| BDS Output | BDSUSBV2 | 2.5 mm coaxial, for a BDS outlet |
Specifications
| Input voltage | 6 to 18 V DC |
|---|---|
| Output | 5 V DC, regulated |
| Capacity | 3 A |
| Input connector | TA4M, 4-pin Hirose, XLR4M, or 2.5 mm coaxial (BDS outlet) |
| Indicator | Source power on |
| Housing | Machined ABS |
| Cable length | 24 in |
