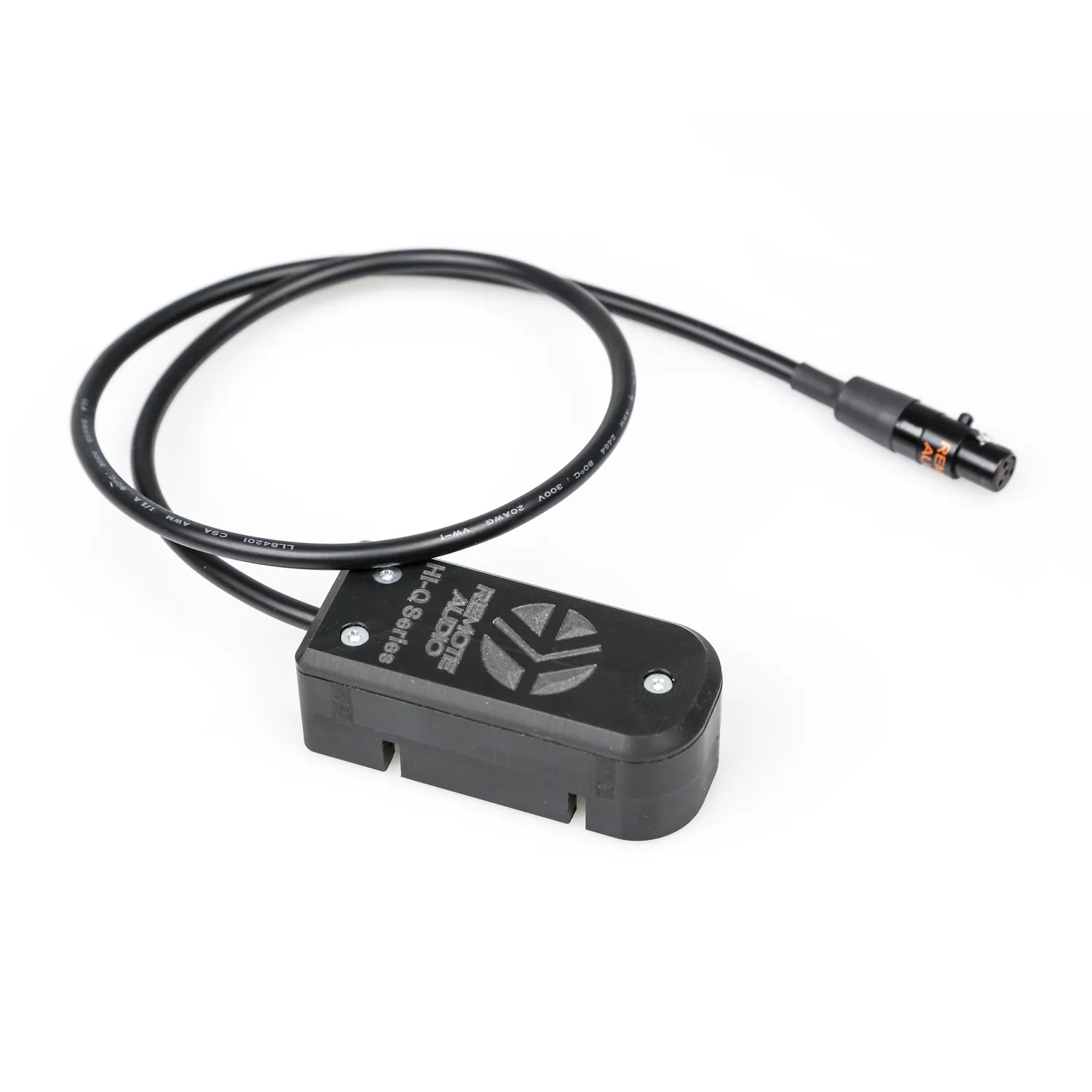

Remote Audio Hi-Q Battery Cup

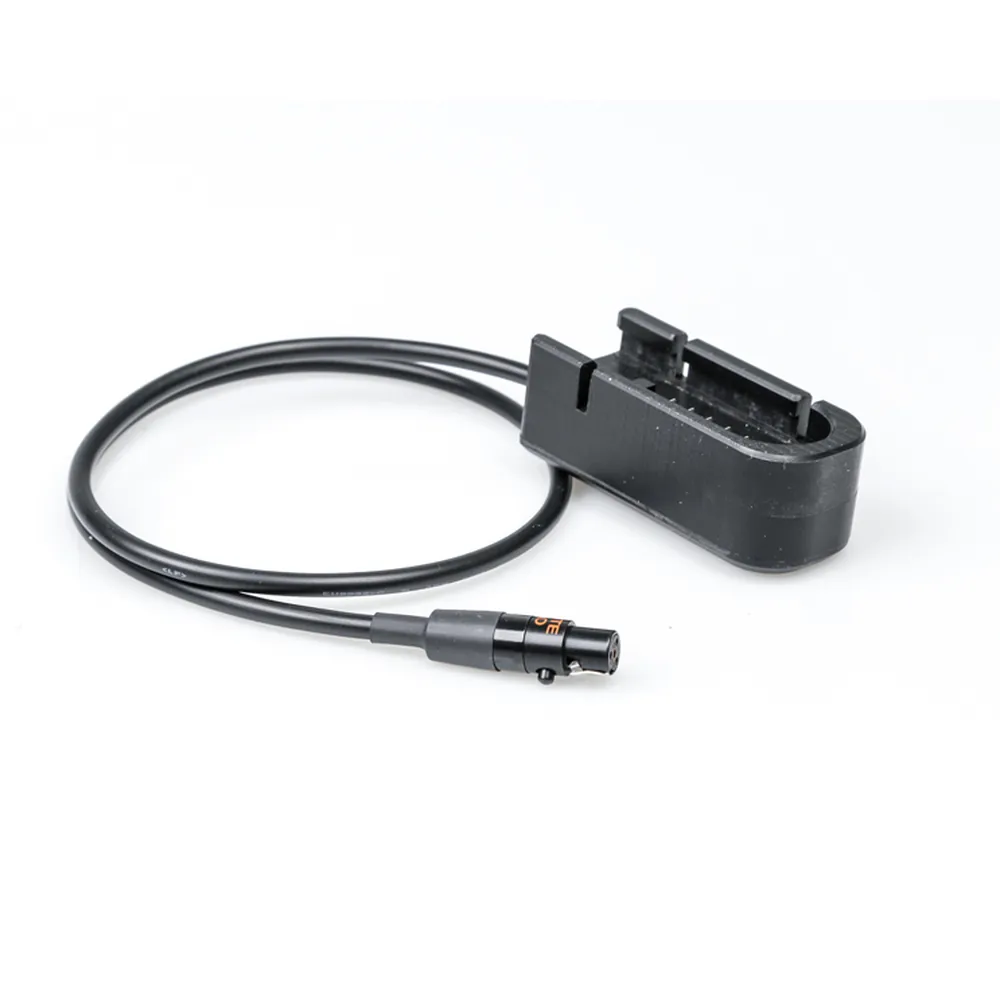

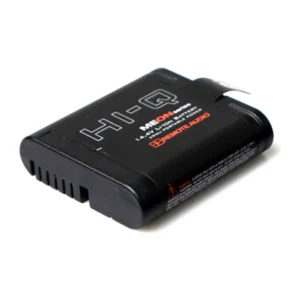

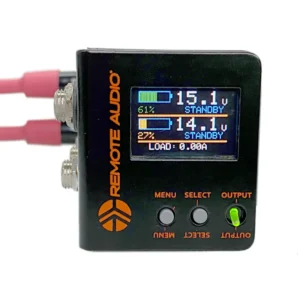

The Remote Audio Hi-Q Battery Cup connects a Hi-Q smart battery to a BDS power distribution system, a recorder, or other gear, with a TA4F, 4-pin Hirose, or tinned-lead cable.

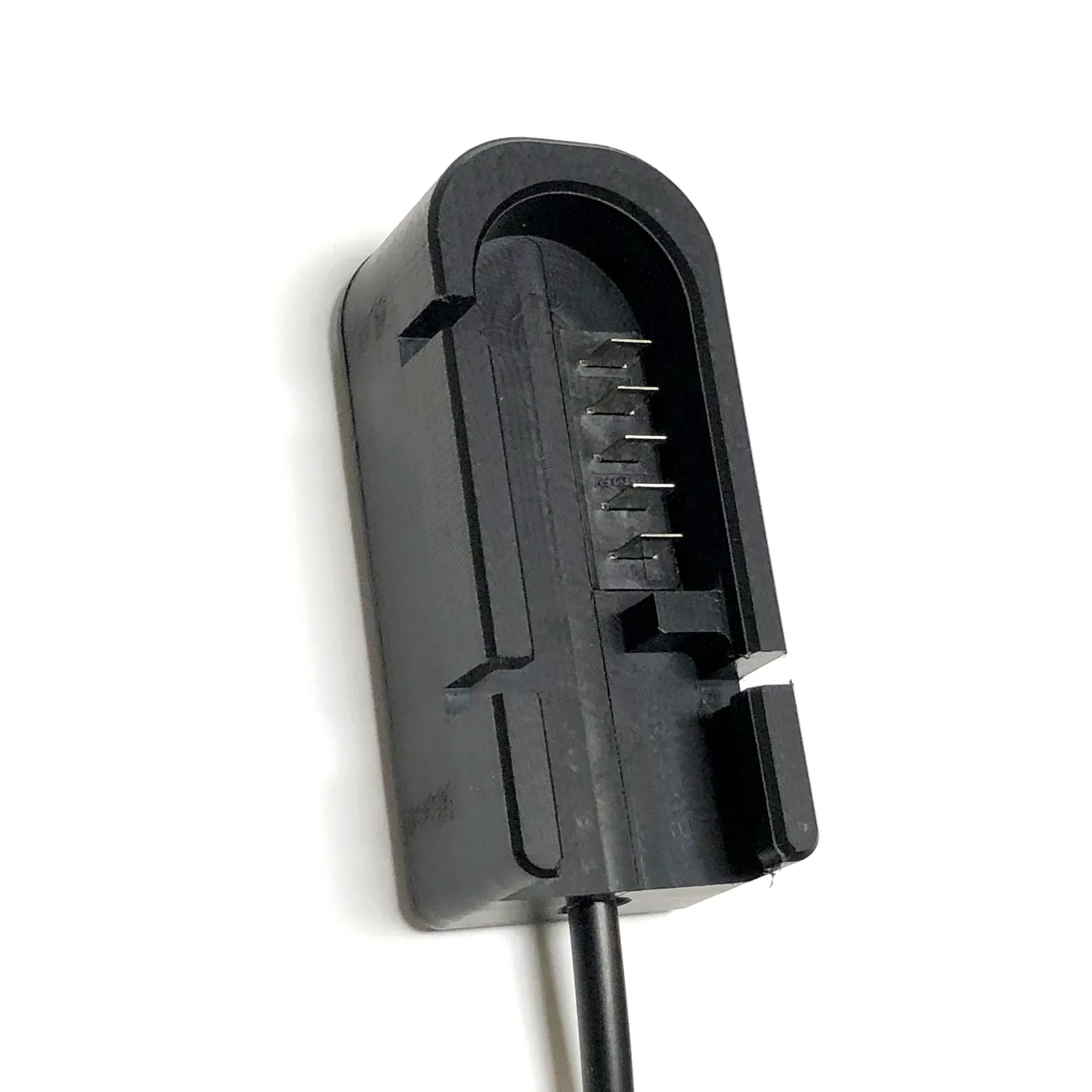

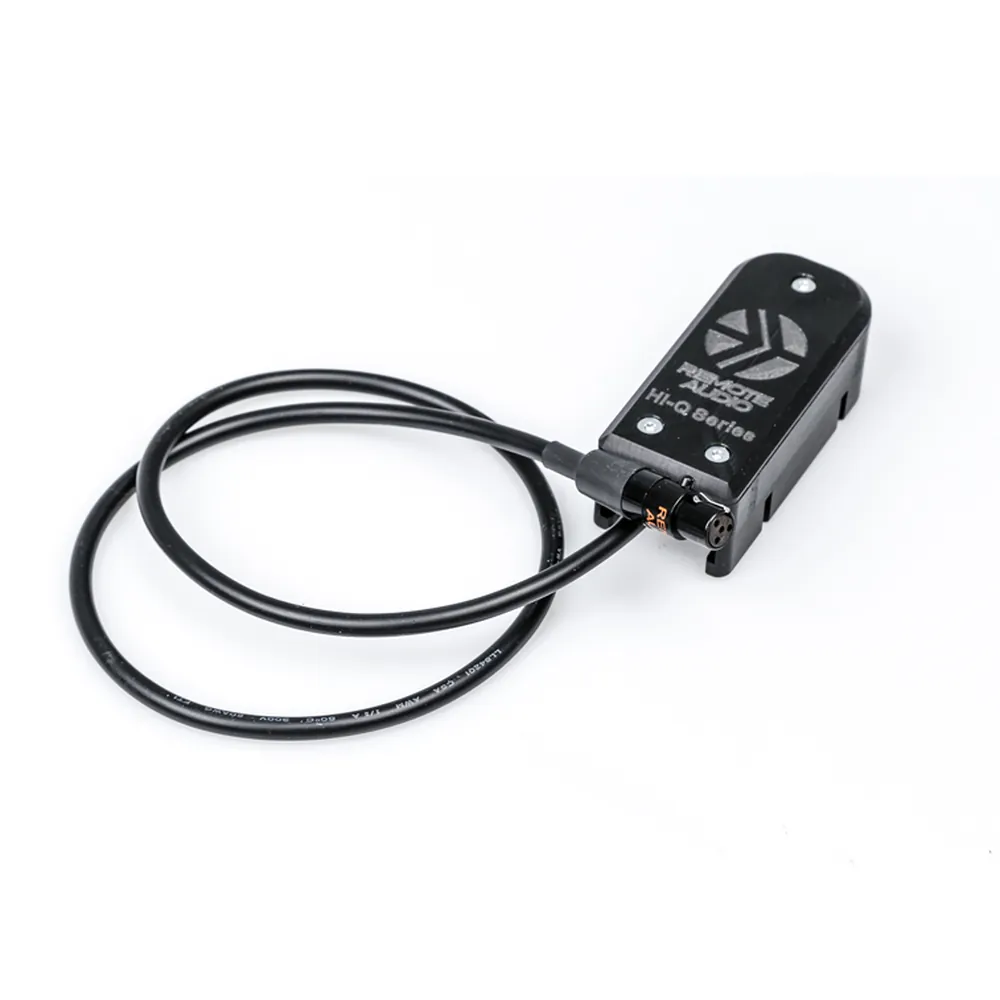

The cup is machined from a solid block of ABS plastic. It holds the battery firmly until you pull it off. The cup is big enough to grip easily and sits low in a bag.

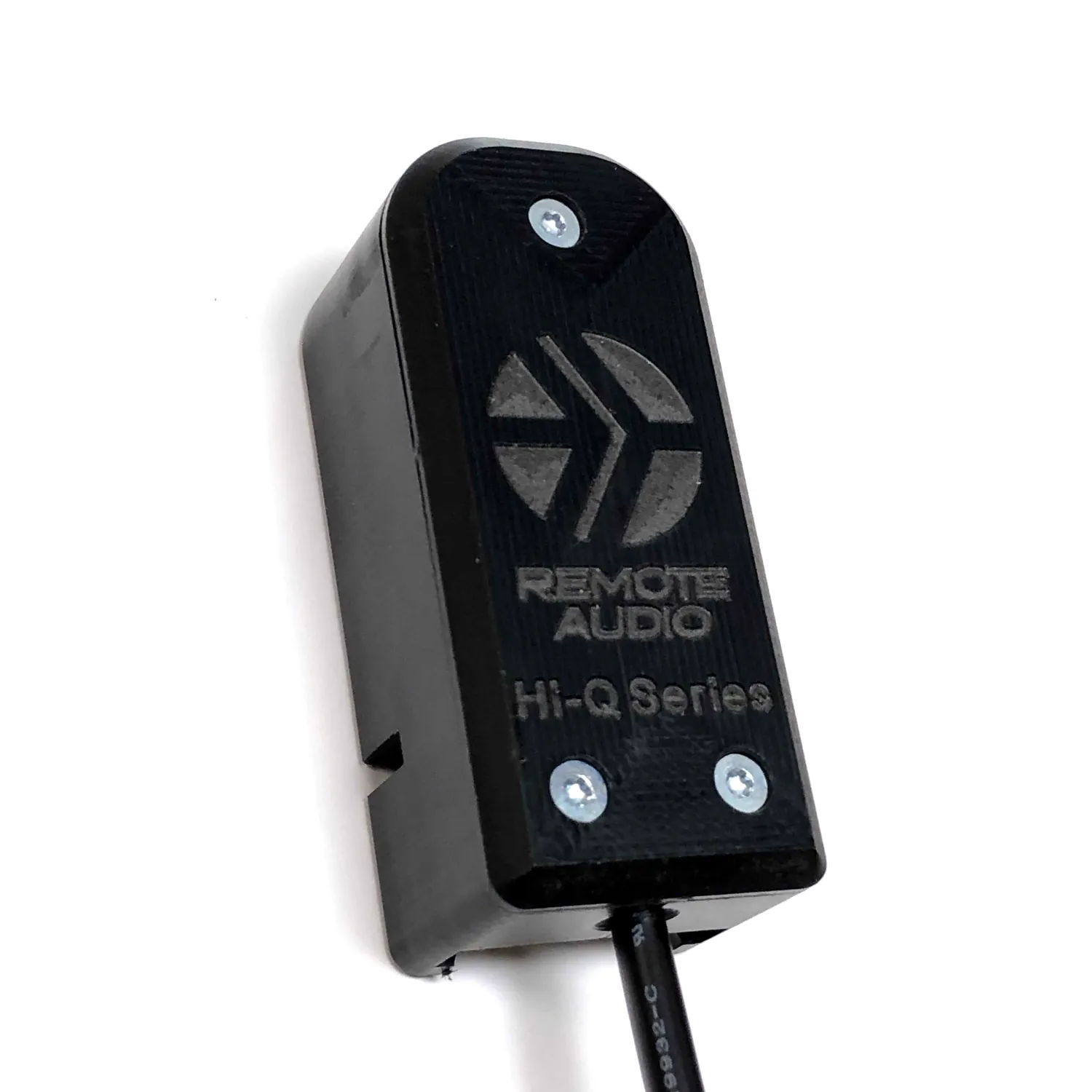

It is serviceable: three screws take off the back cover and expose the circuit board and solder connections, so the cable can be repaired or replaced.

Three Cable Ends

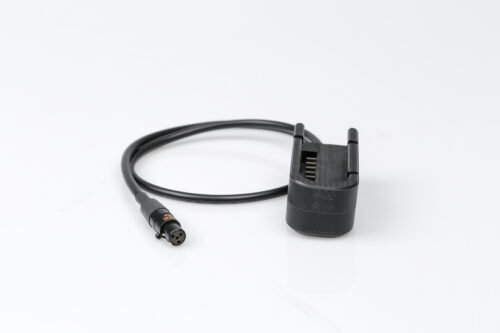

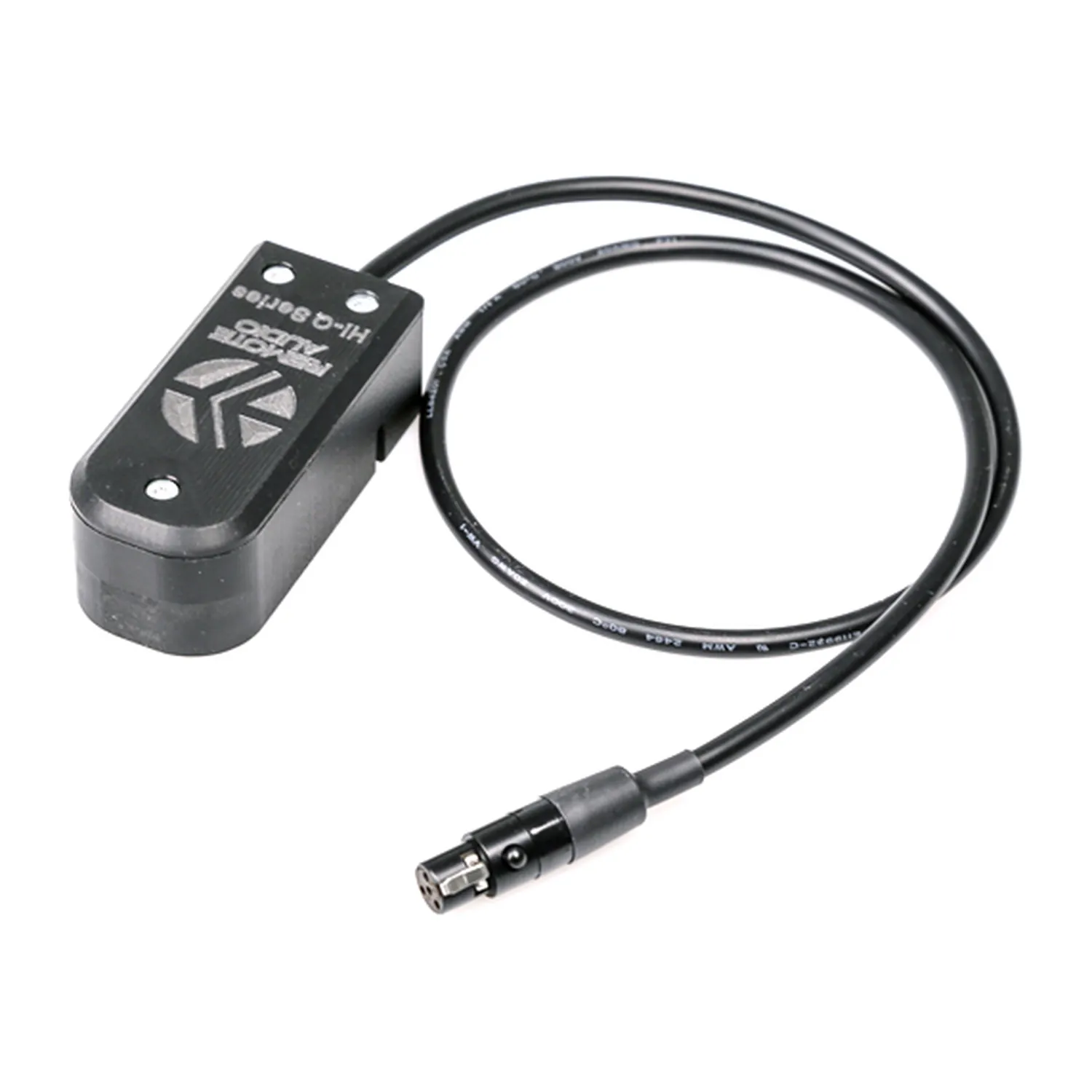

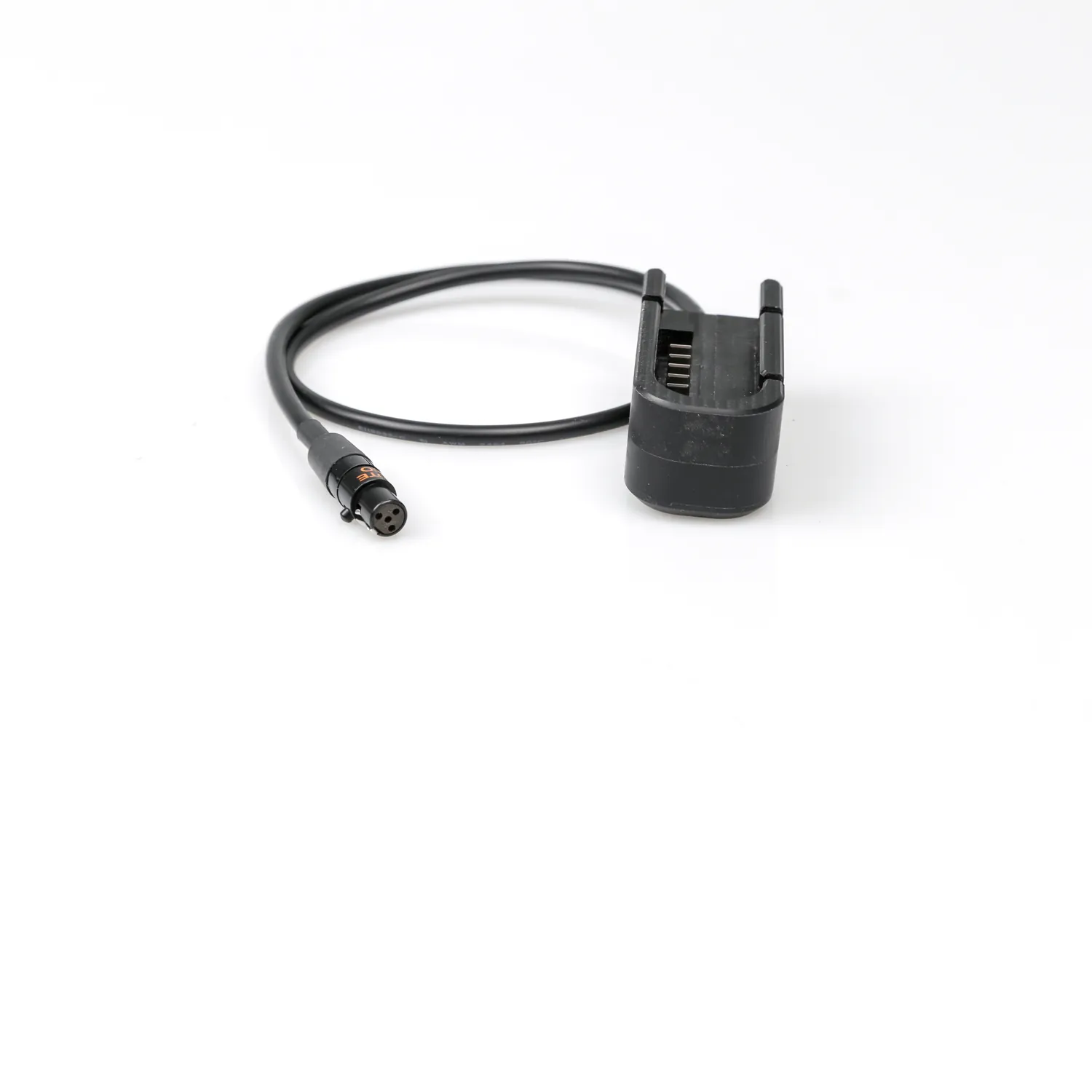

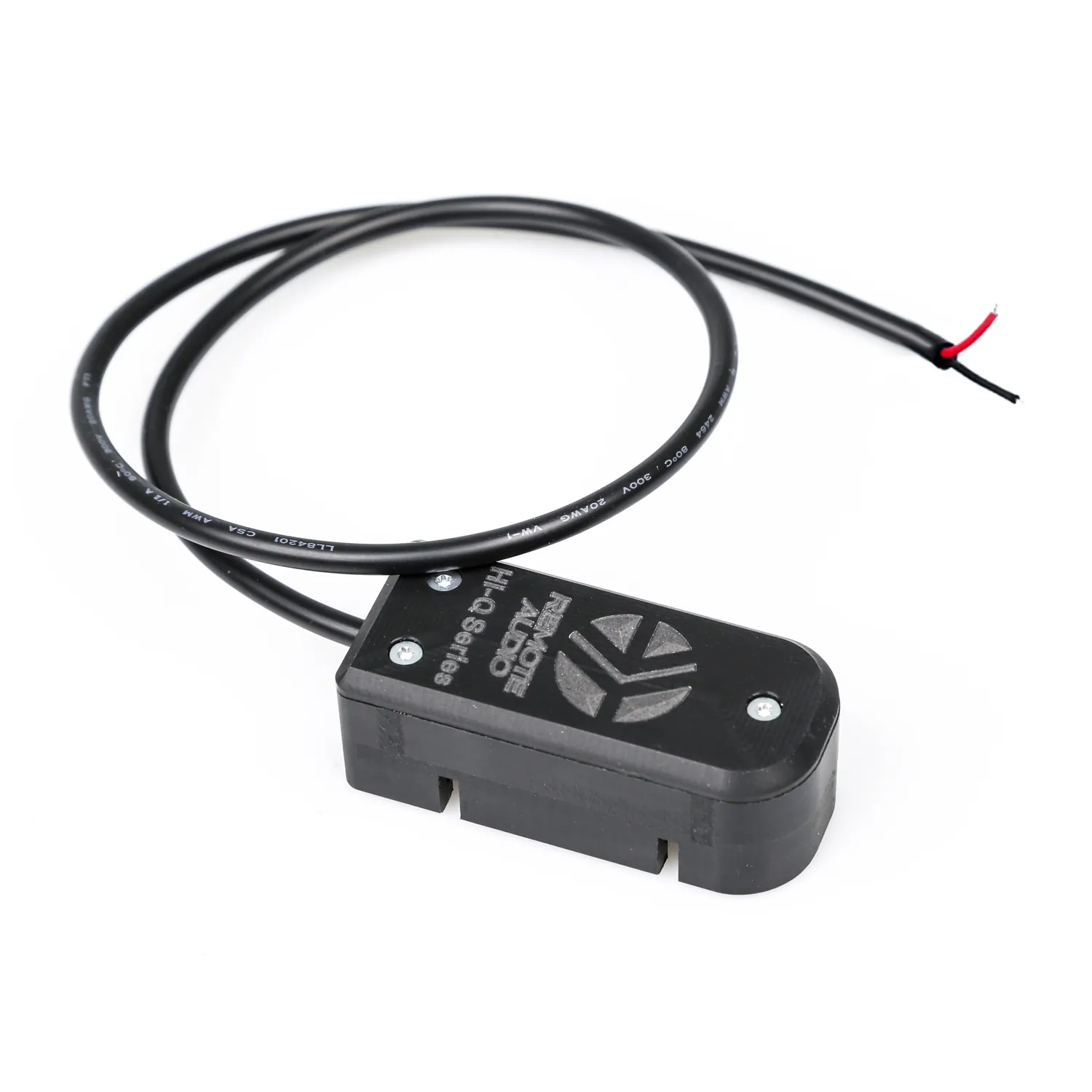

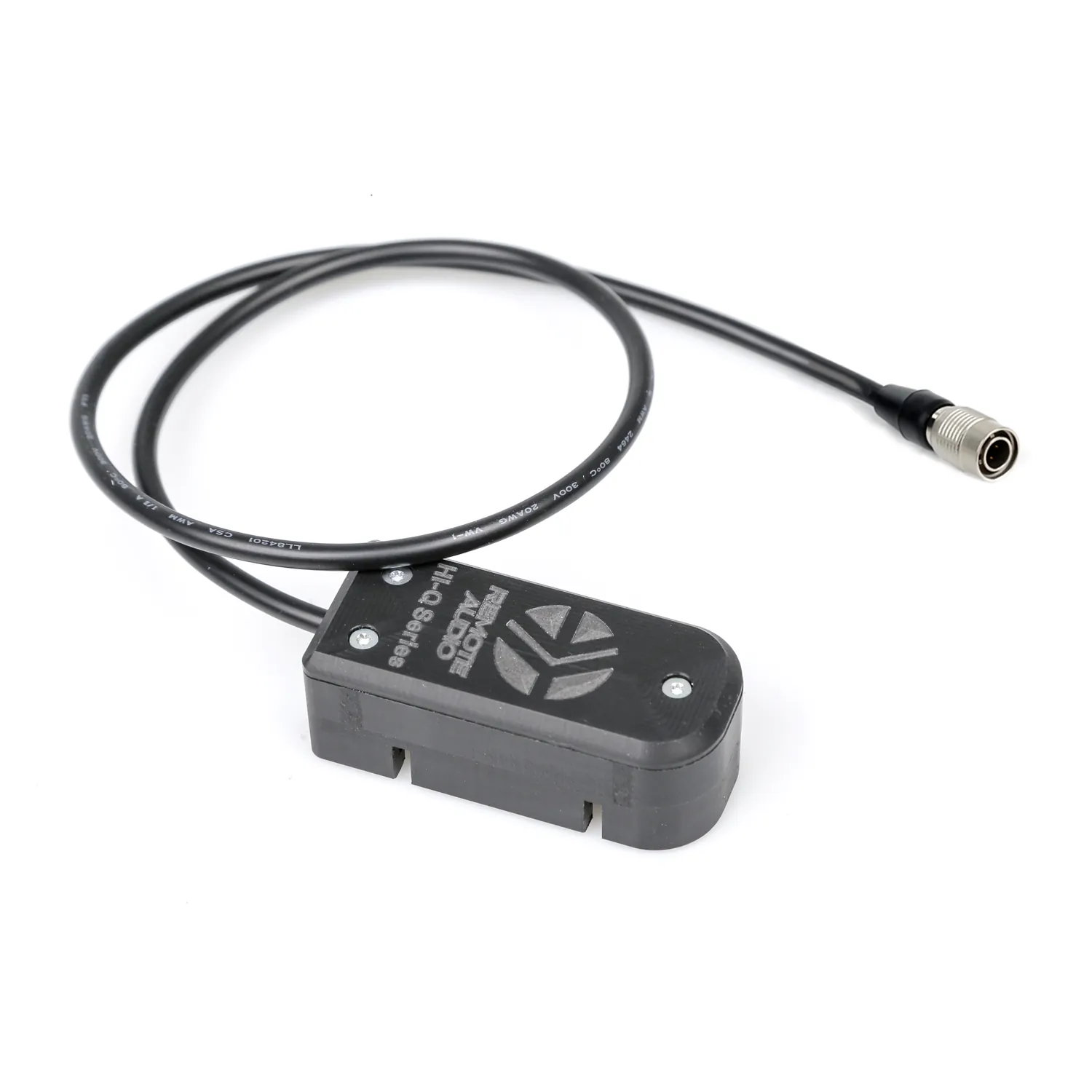

The TA4F version is a 20-inch BDS input cable. The Hirose version is a 4-pin Hirose battery input for recorders, and the pigtail version ends in tinned leads on a 20-inch cable for custom wiring.

Wiring

The TA4 and Hirose pin scheme is pin 4 positive and pin 1 negative, with pins 2 and 3 not connected.

Features

• Battery cup for Hi-Q smart batteries
• Machined from solid ABS plastic
• Holds the battery firmly until removed
• Low profile in a bag
• Serviceable: three screws open the back
• TA4F, 4-pin Hirose, or tinned-lead cable
• 20-inch standard cable
