PSC RF 12 Pack Slot Receiver System
- Power and RF distribution for up to six slot receivers
- Runs and charges a Smart Battery
- Optional Aaton Digital Interface
From $2,628.50 USD
PSC RF 12 Pack Slot Receiver System

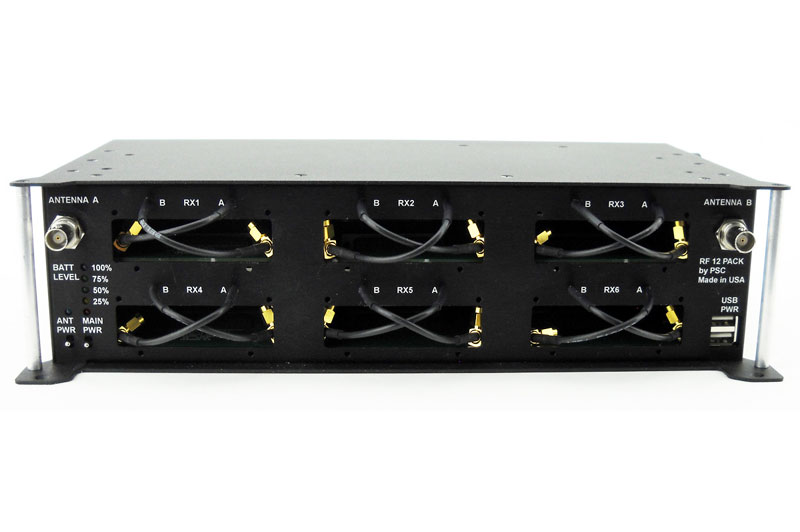

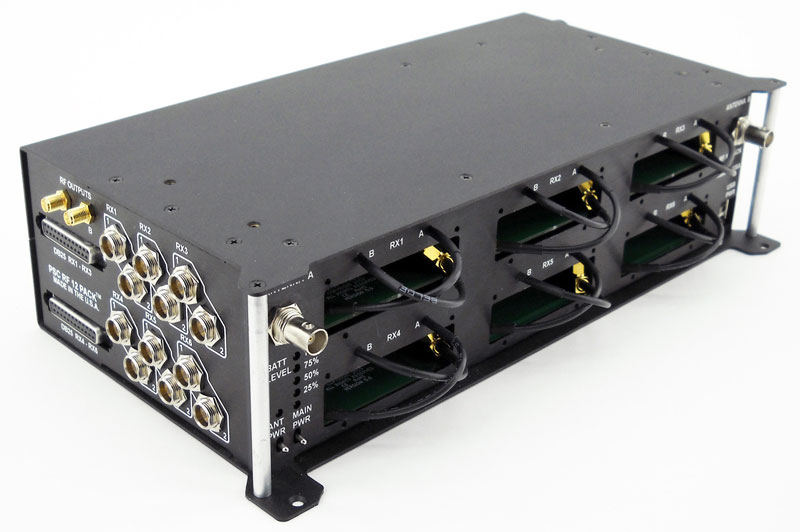

The PSC RF 12 Pack houses up to six slot receivers, for 12 channels of analog audio, and runs them from a rechargeable Smart Battery.
It gives the receivers RF distribution, with a choice of three bandpass filters, and switchable remote antenna power. RF flow-through outputs feed more RF gear. A slot takes a 98 or 99 Wh Smart Battery, which runs the unit and powers other gear through regulated DC outputs. The battery charges inside the unit on the built-in 4 A charger, from the included AC power supply. A multicolor LED fuel gauge shows the battery’s charge, and four USB outputs power accessories.
Audio comes out on twelve TA3M mini XLR connectors and on two DB-25 multipins wired to the ADAT standard. Any version can be ordered with the Aaton Digital Interface for the Aaton Hydra system, which lets the receivers communicate with a Cantar X3 or Cantar Mini.
Features
- Holds up to six slot receivers
- RF distribution with three bandpass filter versions
- Switchable remote antenna power
- Smart Battery slot with a built-in 4 A charger
- Regulated DC power outputs for other gear
- RF flow-through outputs
- Multicolor LED fuel gauge
- Four USB power outputs
- Optional Aaton Digital Interface for the Cantar X3 and Cantar Mini
Available Options
| Band | Frequency Range | Part Number, No Aaton Interface | Part Number, Aaton Interface |
|---|---|---|---|
| Single Band | 470 to 700 MHz | RF12PSBRF | RF12PSBAIRF |
| Dual Band | 470 to 618 MHz and 940 to 960 MHz | RF12PDBRF | RF12PDBAIRF |
| Wide Band | 470 to 960 MHz | RF12PWBRF | RF12PWBAIRF |
What's Included
- RF 12 Pack
- AC power supply
Specifications
| RF | |
|---|---|
| Frequency Range | Single Band 470 to 700 MHz; Dual Band 470 to 618 MHz and 940 to 960 MHz; Wide Band 470 to 960 MHz |
| Inputs | BNC, 50 ohms |
| Outputs | SMA, 50 ohms |
| Audio | |

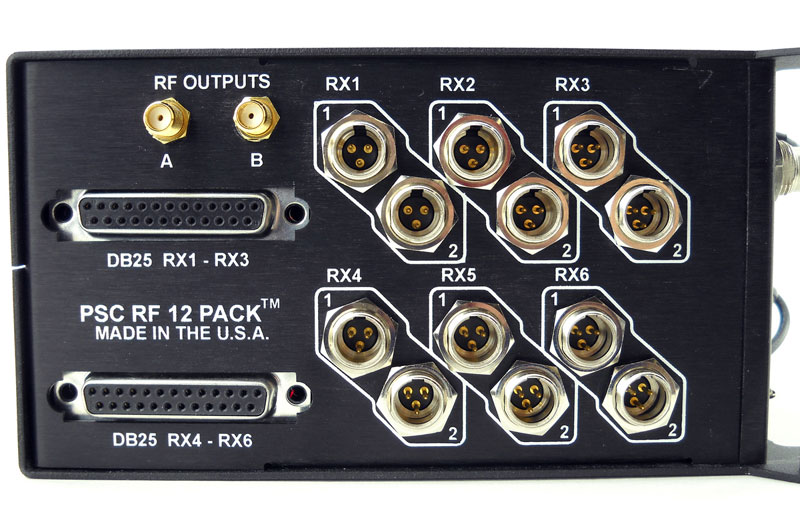

| Audio Outputs | 12 x TA3M mini XLR, balanced; 2 x DB-25 female, balanced, ADAT wiring |
| Power | |
| External DC | 12 to 16 VDC, 1.4 A nominal, 8 A maximum |
| Charging Input | 19 VDC, supply rated 7.9 A minimum |
| Battery | Smart Battery, 98 or 99 Wh (not included); built-in 4 A charger |

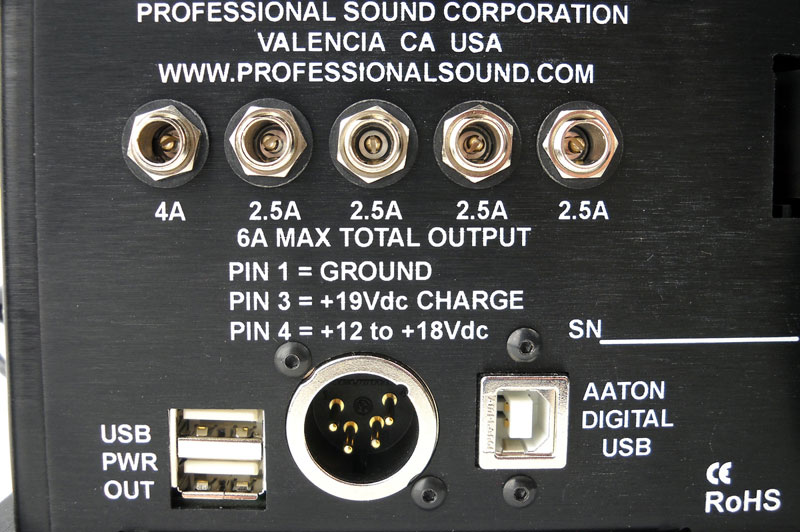

| DC Outputs | Switchcraft 712A coaxial, 1 × 4 A and 4 × 2.5 A, 6 A total |
| General | |
| Size | 13 × 6.5 × 3.3 in (33 × 16.5 × 8.3 cm) |
| Weight | 4 lb (1.8 kg) |
| Housing | Aircraft aluminum, black anodize and black powder coat |
| Warranty | 1 year, limited |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.professionalsound.com. |
