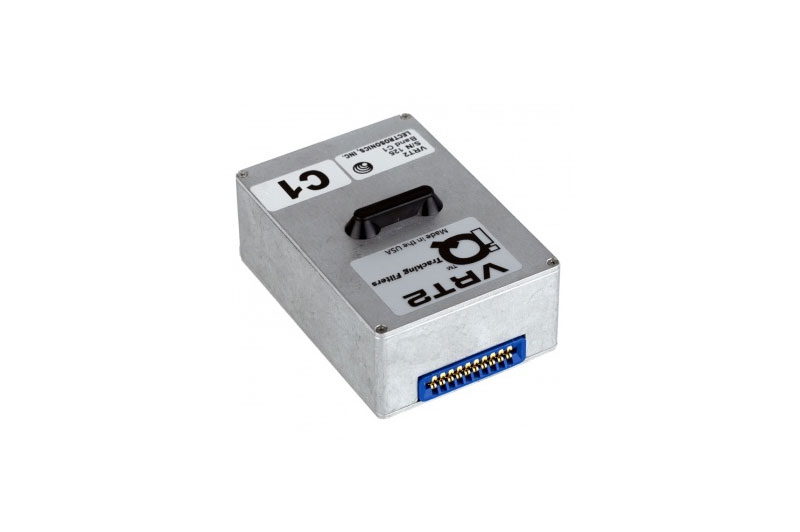

Lectrosonics VRT2 Receiver Module

The Lectrosonics VRT2 is a receiver module for the 1RU Venue 2 frame, which holds up to six of them.

Each module tunes up to 3072 frequencies across 75 MHz, three standard Lectrosonics blocks, matching the tuning range of SSM, LT, and LMb transmitters. Its iQ front-end filter tracks across the spectrum to stay centered on the operating frequency. When the signal is strong, the filter narrows and lowers its gain to suppress intermodulation, which helps on a stage where transmitters sit close to the antennas. When the signal weakens, it widens again for full sensitivity.

A module runs on its own with switched diversity, for six audio channels in a full frame. Two adjacent modules can also run as a pair with ratio diversity, for one audio channel per pair. Both modes can share a frame. Modules install without tools, and a retaining clip holds each one in place. A single module fits any slot; paired modules are the exception.

The A1 module covers 470.100 to 537.575 MHz and the B1 537.600 to 614.375 MHz. The 941 version goes in the VRM2-941 frame, for the 941 to 960 MHz band open to Part 74 licensed operators. VRT2 modules do not fit the older VRM, VRMWB, or VRMWBL Venue frames.

Features

• Receiver module for the Lectrosonics Venue 2
• Up to six modules in one 1RU frame
• 3072 frequencies across 75 MHz
• iQ tracking front-end filter
• Switched diversity, or ratio diversity in pairs
• Tool-free installation
• A1, B1, and 941 MHz versions
