JK Audio RemoteMix x4 Four-Channel Broadcast Field Mixer
- Four-channel field mixer and headphone amplifier
- Four headphone outputs with their own source and level
- 3.5 mm TRRS headset interface for two-way IFB
$1,319.00 USD
In Stock
JK Audio RemoteMix x4 Four-Channel Broadcast Field Mixer

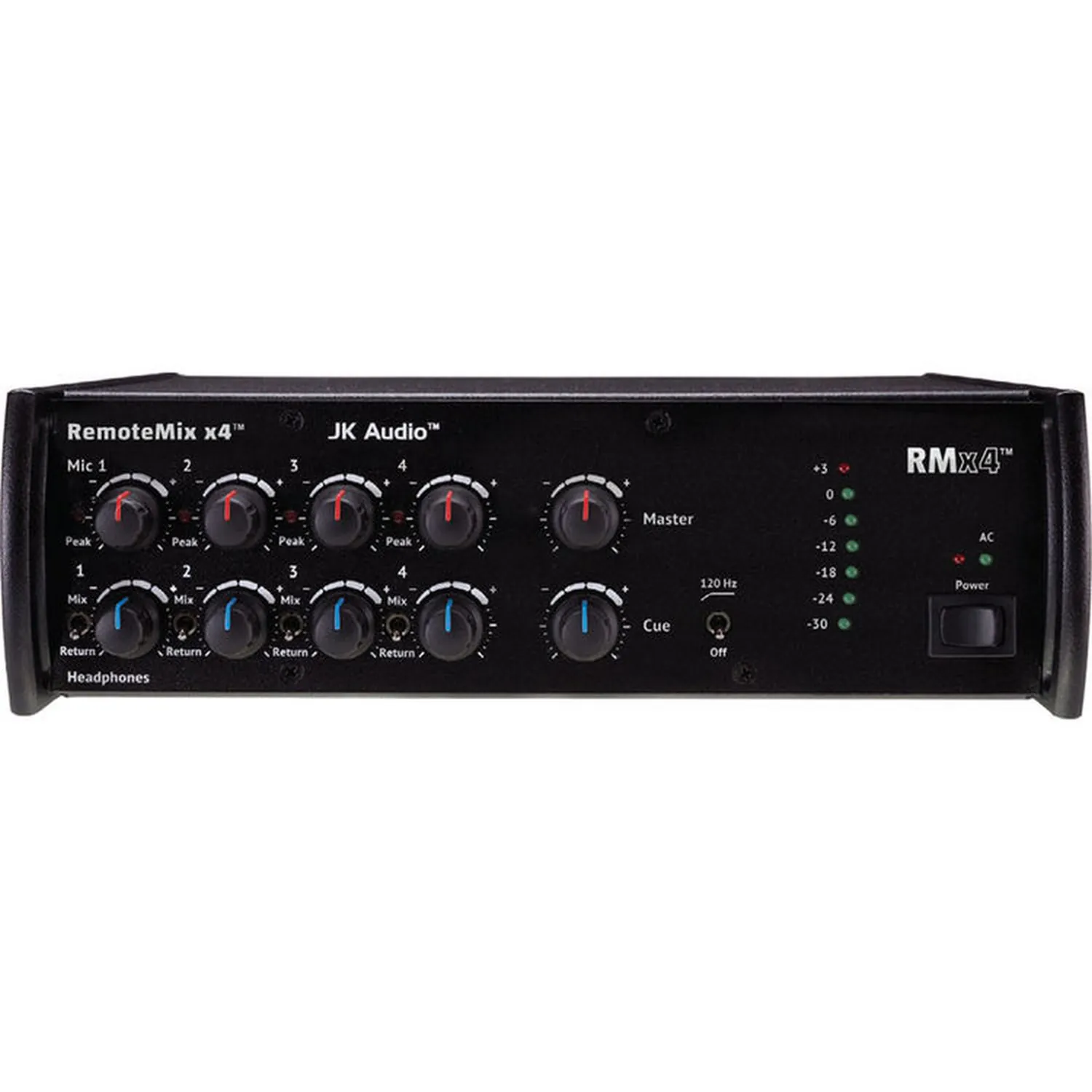

The JK Audio RemoteMix x4 pairs a four-channel field mixer with a four-channel headphone amplifier, so the whole crew monitors from one compact unit.

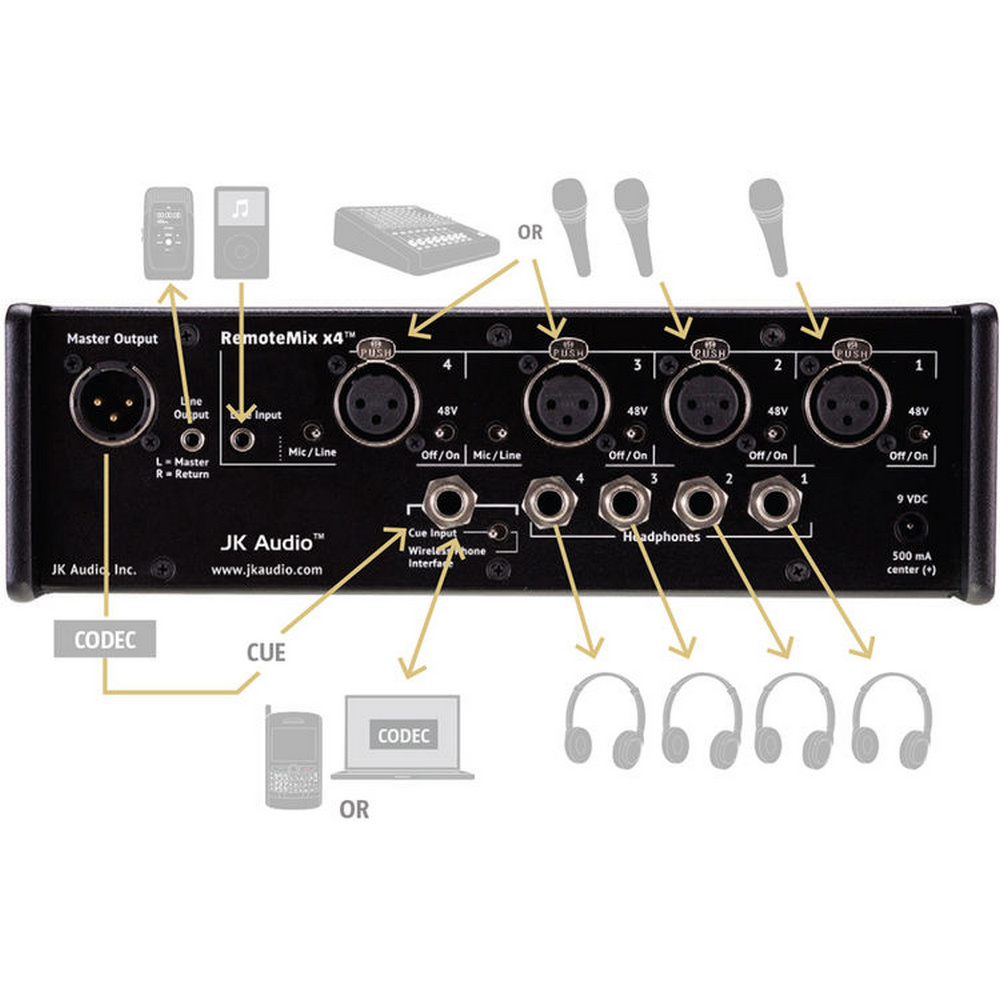

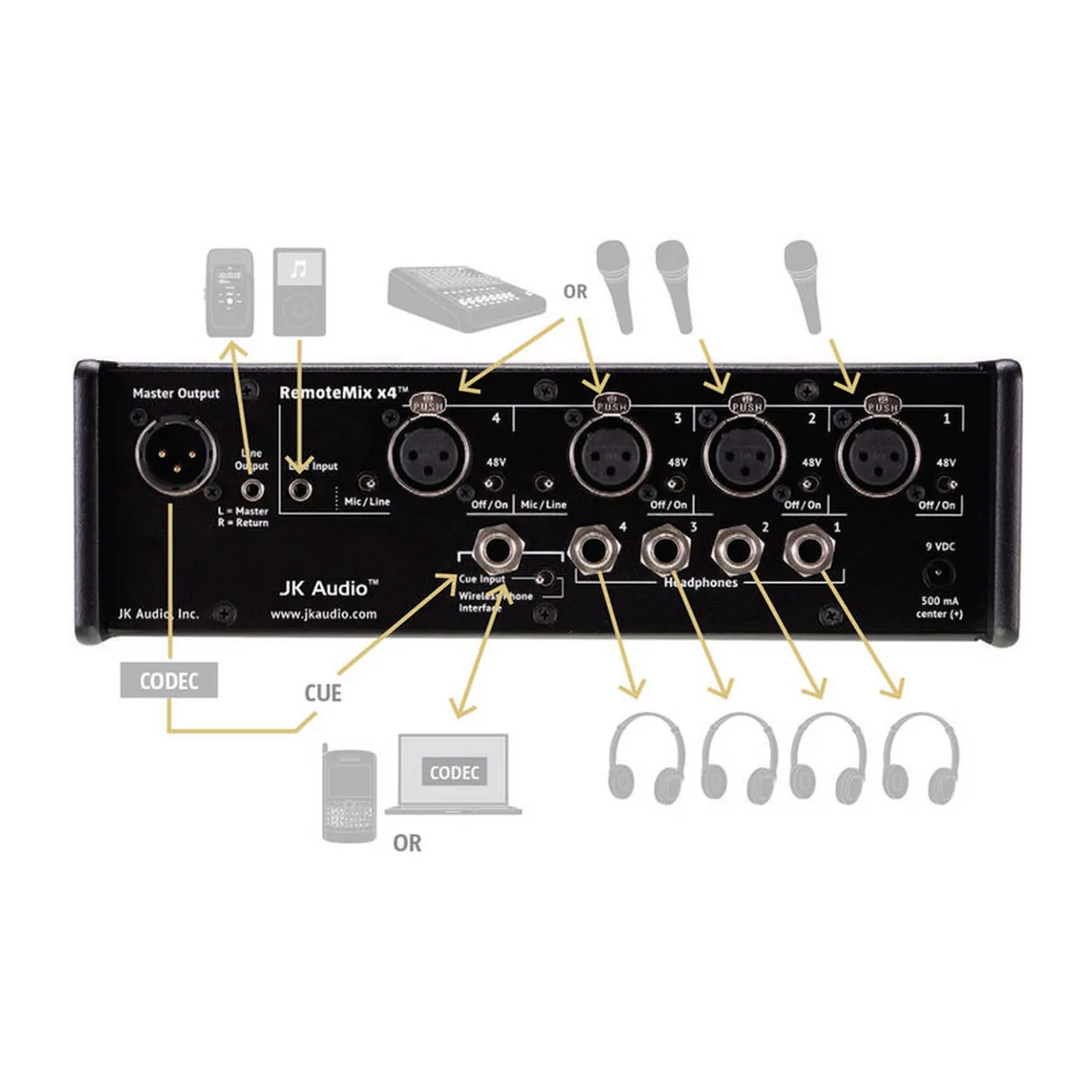

The four XLR mic inputs are low-noise, high-headroom, and active balanced. Their extremely high common mode rejection keeps cable noise out. Each has switchable 48 V phantom power, and channels 3 and 4 have mic/line switches. A switchable 120 Hz low cut filter removes room rumble and mic handling noise. The direct-drive, DC-coupled master XLR output carries 20 Hz to 20 kHz at up to +16 dBu and resists noise on the output cable.
Each of the four 1/4 in headphone outputs has its own level control and source selector, for the clean mix or the cue input plus the mix. The 1/4 in cue input brings a codec’s return to the headphones. 3.5 mm stereo line input and output jacks let you record or play back material.
A phone headset interface with a 3.5 mm TRRS plug connects to a cell phone or notebook for two-way IFB. A soft limiter keeps that interface from overdriving, while the master XLR and 3.5 mm outputs stay pre-limiter. For radio and podcasts, it serves news, sports, and live remotes as the front-end mixer for a POTS, ISDN, IP, or smartphone codec. For TV, it handles ENG, sports, and interviews.
Two 9 V batteries sit in separate compartments for hot swapping, and one or two will run it. The included 100 to 240 VAC desktop supply runs the unit while it is providing power, and the batteries cut in if the power goes out. The phantom generator runs only when a rear panel 48 V switch is on, and low-noise, low-power circuits stretch battery life.
Features
- Four low-noise XLR mic inputs with individually switchable 48 V phantom power
- Mic/line switches on channels 3 and 4
- Switchable 120 Hz low cut filter
- Master XLR output, 20 Hz to 20 kHz
- Four 1/4 in headphone outputs with level controls and source selectors
- 1/4 in headphone cue input
- Phone headset interface with a 3.5 mm TRRS plug
- 3.5 mm stereo line input and output
- LED VU meter
- Hot-swappable dual 9 V batteries or the included AC supply
What's Included
- RemoteMix x4 broadcast field mixer
- 100 to 240 VAC desktop power supply
Specifications
| Inputs | |
|---|---|
| Mic Inputs | Female XLR; mic level 2k ohms, −25 dBu nominal; line level 50k ohms, +20 dBu maximum |
| Mic/Line Pad | −40 dB |
| Phantom Power | 48 VDC with 6.8k ohm supply resistance |
| Line Input | 3.5 mm stereo, 20k ohms, −10 dBu nominal |
| Headphone Cue In | 1/4 in mono, 20k ohms, −10 dBu nominal |
| Outputs | |
| Master Output | Balanced male XLR, 50 ohms, +16 dBu maximum, 20 Hz to 20 kHz ±1 dB |
| THD | 0.04% at +16 dBu |
| Line Output | 3.5 mm stereo, 100 ohms, −10 dBu nominal |
| Headphones | 1/4 in stereo, 8 ohms, 1/3 W per channel |
| Physical | |
| Power | 100 to 240 VAC, 50 to 60 Hz external supply, or two 9 VDC batteries |
| Size | 9.5 × 8 × 3 in (24 × 20 × 8 cm) |
| Weight | 3.6 lb (1.6 kg) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.jkaudio.com. |
