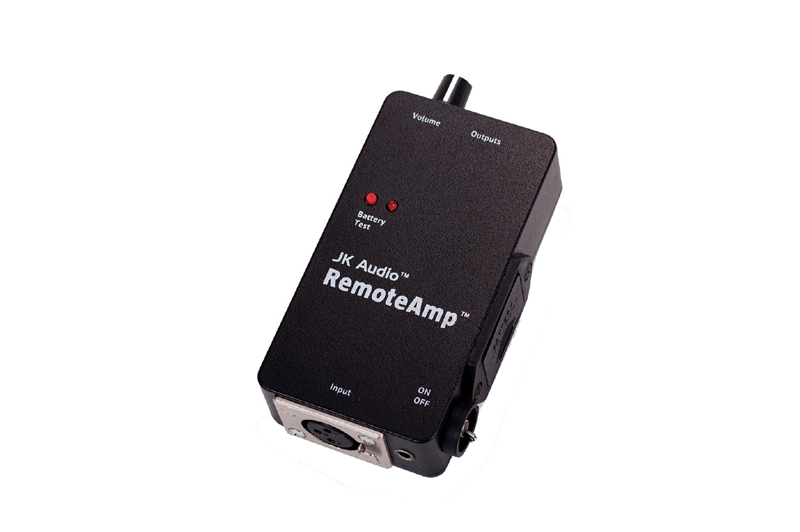

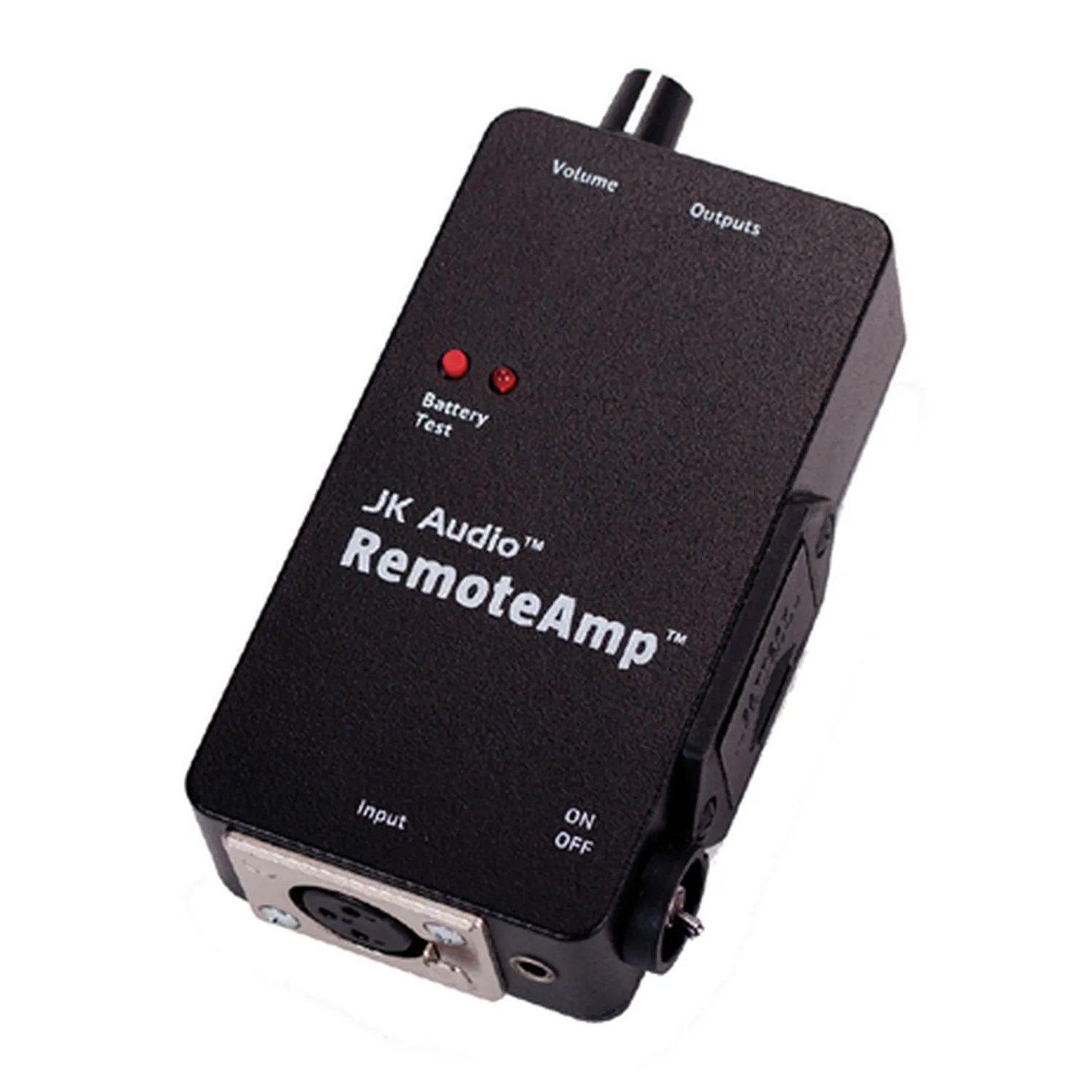

JK Audio RemoteAmp Stereo Headphone / IFB Earpiece Amplifier
- Stereo headphone and IFB earpiece amplifier
- XLR and 3.5 mm stereo line inputs
- Over 20 hours on one 9 V battery
$296.00 USD
Availability: In Stock
JK Audio RemoteAmp Stereo Headphone / IFB Earpiece Amplifier
Clipped to a belt, the JK Audio RemoteAmp drives stereo headphones or an IFB earpiece from a mixer, hybrid, or handset tap, and runs more than 20 hours on one 9 V battery.
Its 3-pin XLR line input takes a feed from a mixer, a distribution amplifier, a telephone line hybrid, or a handset interface such as the JK Audio QuickTap IFB. A low-impedance 3.5 mm stereo line input mixes in the headphone output of any other device and keeps it in stereo all the way to the headphones. Its termination is selectable, Hi-Z or Lo-Z.
One master level control and two independent level controls set the mix. A separate power switch lets you leave the volume where it is. The low-distortion, half-watt amplifier cuts through crowd noise, so it also works as an on-stage monitor headphone amp. The RemoteAmp can also listen in on two-wire party-line intercoms.
Headphones plug into a 1/4 in or a 3.5 mm stereo jack, and a stainless steel belt clip holds the amp in place.
Features
- XLR line-level input
- 3.5 mm stereo line input with Hi-Z or Lo-Z termination
- One master and two independent level controls
- 1/4 in and 3.5 mm stereo headphone jacks
- Separate power switch
- Listen-only use on two-wire party-line intercoms
- Stainless steel belt clip
- Over 20 hours on one 9 V battery
- Made in America
Specifications
| Inputs | |
|---|---|
| XLR Line Input | Female XLR, 4k ohms, 100 mV RMS (−18 dBu nominal, +4 dBu maximum), 46 dB maximum gain |
| 3.5 mm Line Input | Stereo, 50 ohms, −10 dBu (+12 dBu maximum) |
| Headphone Outputs | |
| 1/4 in Stereo | 8 ohms, 500 mW per channel |
| 3.5 mm Stereo | 10 ohms, 430 mW per channel |
| Performance and Physical | |
| Stereo Separation | 46 dB |
| Frequency Response | 50 Hz to 20 kHz, ±1 dB |
| Power | One 9 V alkaline battery |
| Size | 5.1 × 2.7 × 1.3 in (13 × 6.9 × 3.3 cm) |
| Weight | 10 oz (275 g) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.jkaudio.com. |
