Name: DPA 6066 CORE Subminiature Headset Microphone
Brand: DPA Microphones
SKU: DPA6066
Availability: InStock

DPA 6066 CORE Subminiature Headset Microphone

The DPA 6066 CORE, a subminiature omnidirectional headset microphone made to be worn all day, has a capsule only 3 mm (0.12 in) across.

CORE technology, shrunk to fit the 3 mm capsule, gives it a 26 dB(A) noise floor, lower than any other 3 mm capsule and on par with DPA’s 5 mm miniatures. It handles high sound levels without distortion.

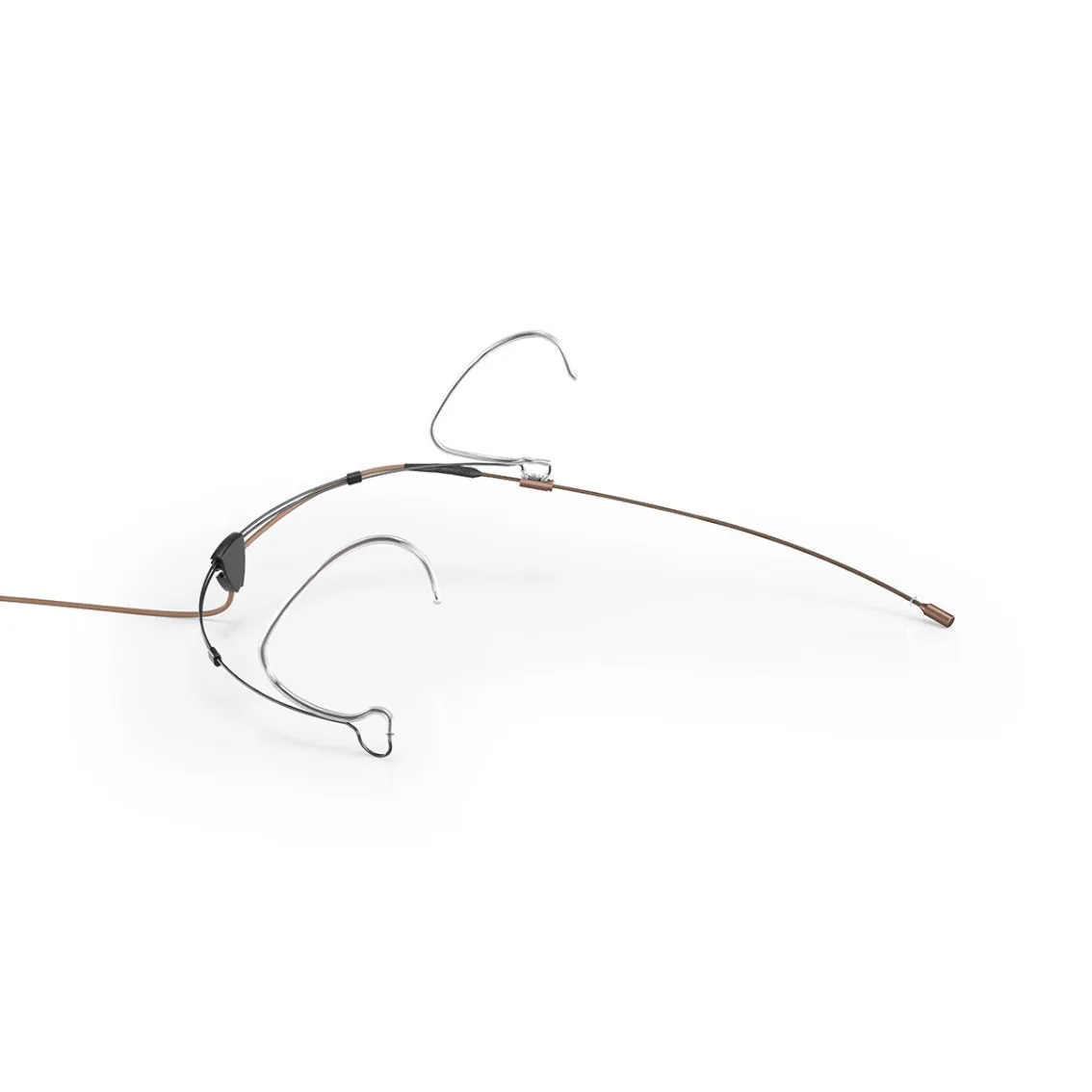

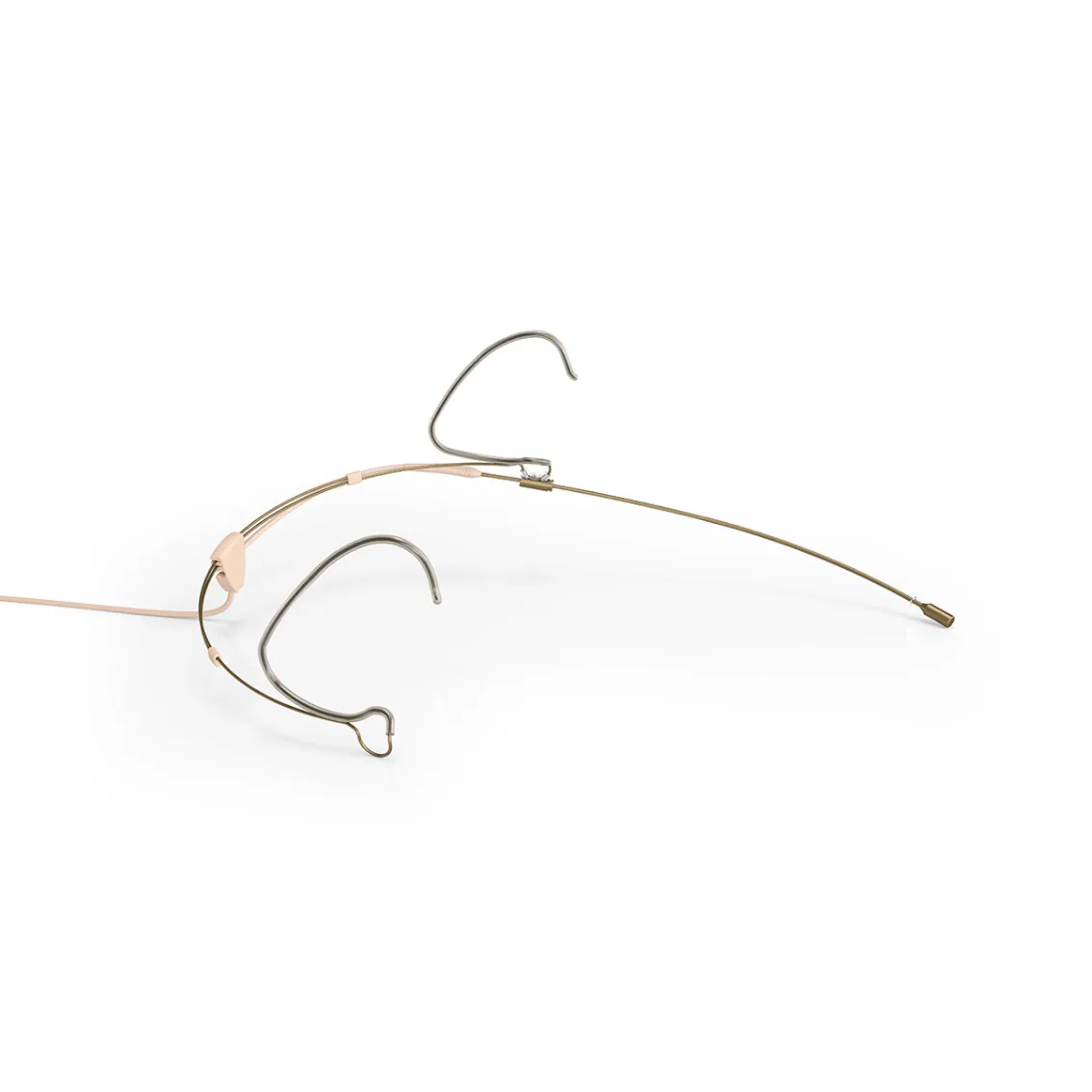

The one-size frame is stainless steel with a PVD coating that resists heat, impact, and abrasion, and it adjusts quickly for size. Spring-loaded ear grips hold above, below, and behind each ear for a secure fit that stays comfortable through long wear.

The 130 mm boom extends, shortens, and pivots at a fixed point below the ear, with an anti-rotation shape and a sliding lock to hold it at the corner of the mouth. It detaches to move to the other side, and a service connector lets the boom and cable be replaced separately.

A cable guide at the back slides out of the camera’s view and keeps the 1.6 mm Kevlar-core cable clear of the boom. The stainless steel grid clicks firmly into place and comes off for cleaning, and the mic is IP58 rated against water and sweat. This page offers the 6066 with a MicroDot connector for DPA’s adapters, or hardwired with 3-pin LEMO.

Features

3 mm CORE capsule with a 26 dB(A) noise floor
One-size stainless steel frame
3-point ear grips above, below, and behind the ear
2-way adjustable boom with a locking system
Service connector for boom and cable
90° cable management
IP58 against water and sweat

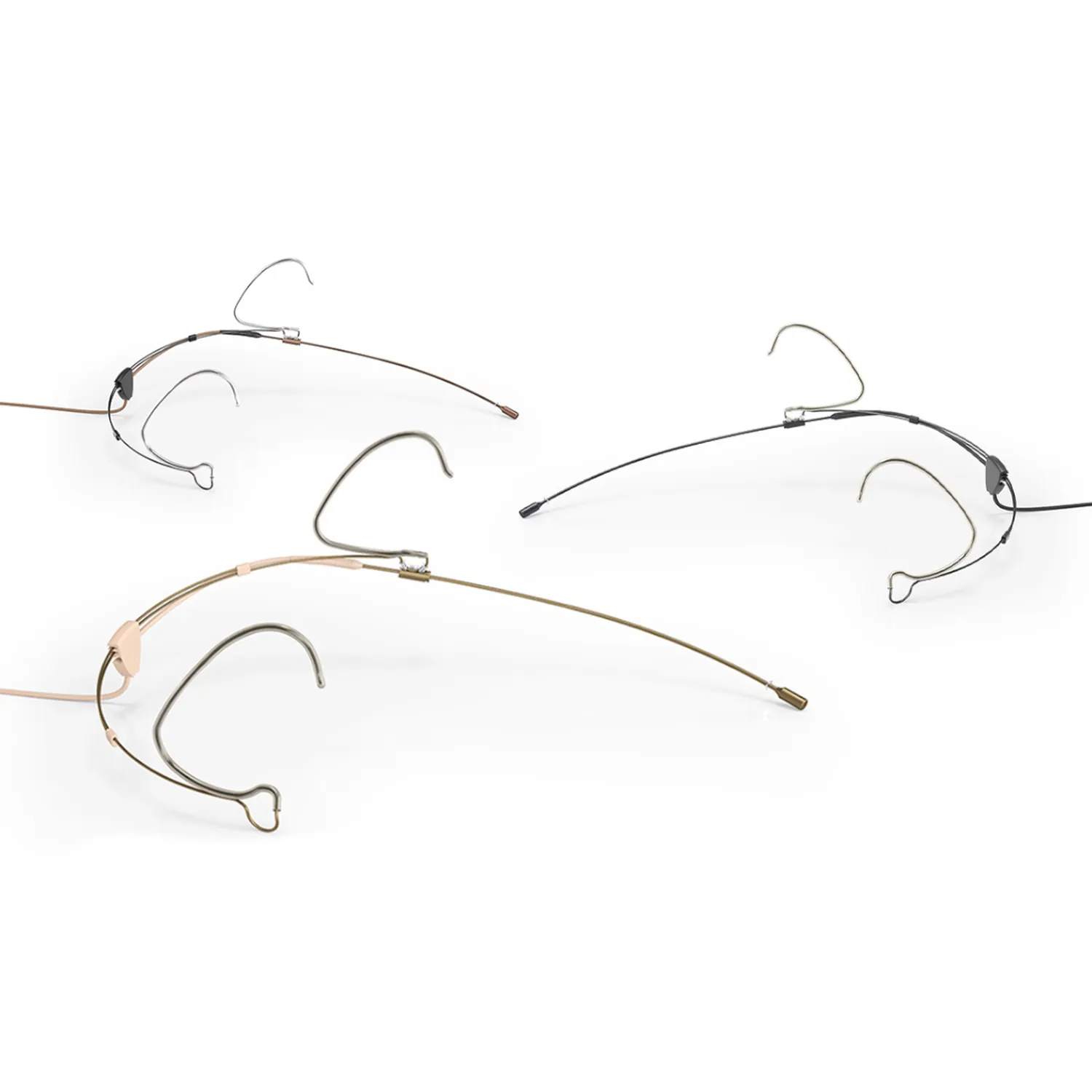

MicroDot or 3-pin LEMO, three colors

Available Options

Connector	Colors	Fits
3-Pin LEMO	Black, Brown, and Beige	Sennheiser, Lectrosonics, Shure, Wisycom, and Trantec transmitters with a 3-pin LEMO input
Microdot	Black, Brown, and Beige	Any wireless system, through a DPA adapter

Specifications

Acoustic
Directional Pattern	Omnidirectional
Principle of Operation	Pressure
Cartridge Type	Pre-polarized condenser
Frequency Response	20 Hz to 20 kHz
Effective Frequency Range (±2 dB)	40 Hz to 20 kHz, 4 dB soft boost at 8 to 20 kHz
Sensitivity (±2.4 dB at 1 kHz)	6 mV/Pa (−44 dB re 1 V/Pa)
Equivalent Noise Level (A-weighted)	26 dB(A) typical (28 dB(A) max)
Distortion, THD below 0.5%	122 dB SPL RMS, 125 dB SPL peak
Distortion, THD below 1%	125 dB SPL RMS, 128 dB SPL peak
Dynamic Range	102 dB typical
Max. SPL (THD 10%)	144 dB SPL peak
Electrical
Power Supply	Wireless systems: 5 to 10 V through a DPA adapter With DAD6001-BC: P48 phantom power (works from 12 V)
Current Consumption	1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter
Cable Drive Capability	Up to 300 m (984 ft) with DAD9001-BC XLR adapter
Physical
Connector	MicroDot or 3-pin LEMO (versions on this page)
Microphone Head Size	3.4 / 8.9 mm (0.13 / 0.35 in)
Capsule Diameter	3 mm (0.12 in)
Cable Length	1.3 m (4.3 ft)
Colors	Black, brown, or beige
Temperature Range	−40°C to 45°C (−40°F to 113°F)
Relative Humidity	Up to 90%
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
