DPA 6060 and 6061 CORE Subminiature Lavalier Microphone
- 3 mm CORE capsule with the sound of DPA’s 5 mm miniatures
- 6060 normal SPL or 6061 loud SPL
- MicroLock or hardwired connectors, in four colors
From $700.00 USD
DPA 6060 and 6061 CORE Subminiature Lavalier Microphone

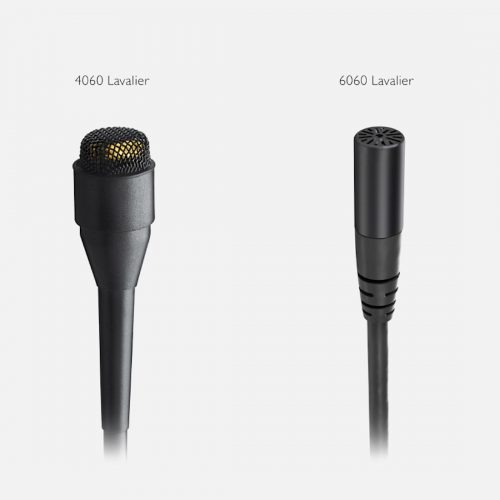

The DPA 6060 and 6061 are subminiature lavalier microphones that fit DPA’s CORE technology into a 3 mm (0.12 in) capsule. They are smaller than DPA’s 5 mm miniature capsules but fully comparable in performance, so they disappear more easily under clothing and costumes without giving up sound quality.
These mics have a lower noise floor than any other 3 mm capsule on the market. CORE lowers distortion and lets the 6060 Series capture high sound pressure levels cleanly, from a whisper to a shout.
Choosing a Model
Choose by the sound pressure level at the mic, which depends on how close it sits to the source. The 6060 has normal sensitivity (20 mV/Pa) and handles up to 134 dB SPL peak, suited to most voices at the chest. The 6061 is less sensitive (6 mV/Pa) and handles up to 144 dB SPL peak, which suits head-mounted placement in theater, where voices reach the mic much louder.
Built for Daily Use
The housing and its removable cap are stainless steel with a matte PVD coating that resists heat, impact, and abrasion. The cap clicks off for cleaning. The 1.6 mm cable has a Kevlar core and the same rugged cable relief as the 5 mm mics, with strain relief built into the housing. The mics are IP58 certified, with a water-repellent nano-coating, a hermetically sealed amplifier, and a dual gold-plated diaphragm.
Connectors
MicroLock is DPA’s locking connector. A MicroLock adapter connects the mic to most professional wireless transmitters, and MicroLock parts also mate with MicroDot parts (the lock works only when both halves are MicroLock). Hardwired versions plug straight into popular transmitters, as the table below shows.
Features
- 3 mm CORE subminiature capsule
- 6060 normal SPL (20 mV/Pa) or 6061 loud SPL (6 mV/Pa)
- Lowest noise floor of any 3 mm capsule on the market
- Stainless steel housing and cap with a matte PVD finish
- Removable cap for cleaning
- 1.6 mm Kevlar-reinforced cable
- IP58 certified
- MicroLock or hardwired connectors

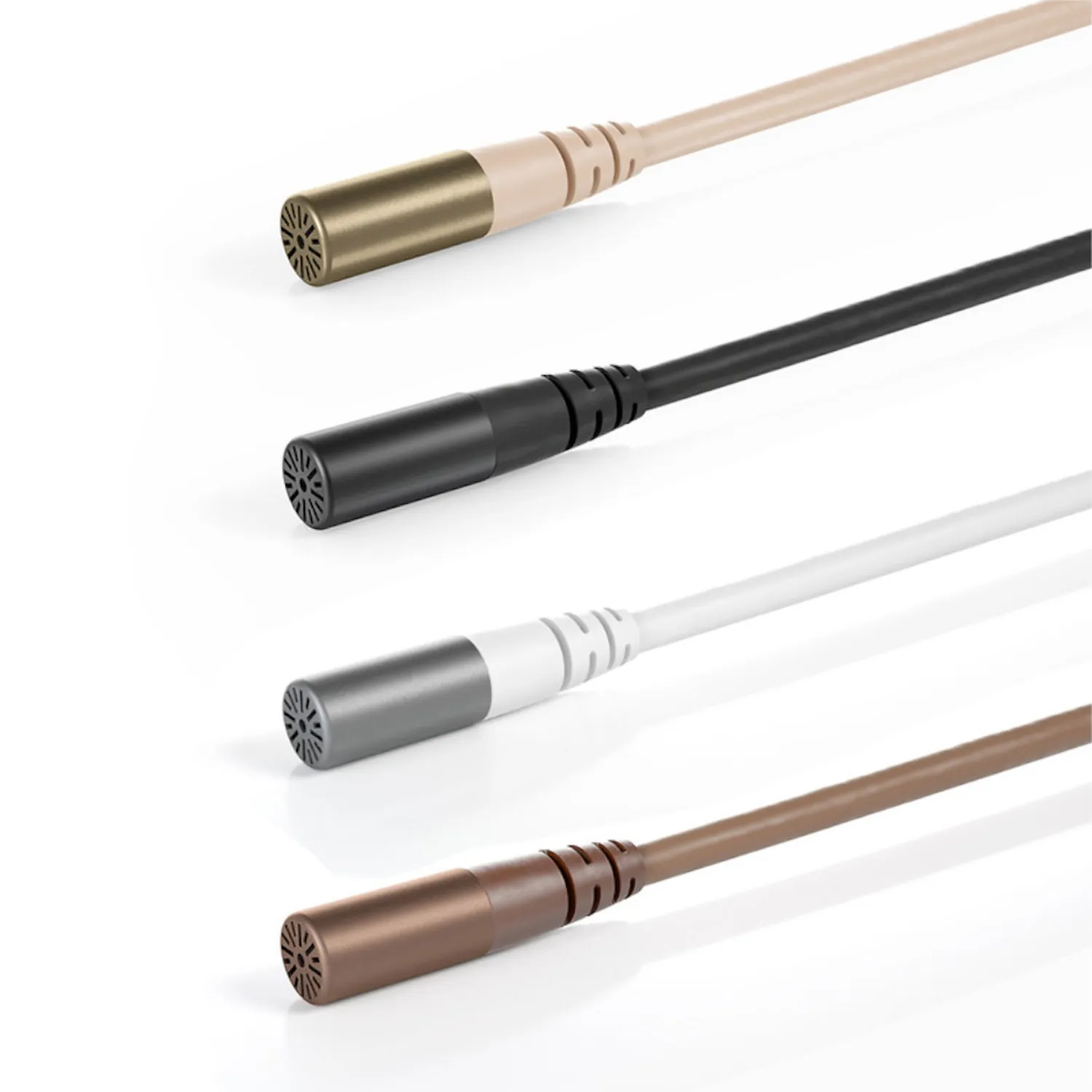

- Black, brown, beige, or white
Available Options
| Connector | Models | Colors | Fits |
|---|---|---|---|
| MicroLock | 6060 and 6061 | Black, Brown, Beige, and White | Any wireless system, through a DPA MicroLock adapter |
| 3 Pin Lemo | 6060 and 6061 | Black, Brown, Beige, and White | Sennheiser, Lectrosonics, Shure, Wisycom, and Trantec transmitters with a 3-pin LEMO input |
| TA5F | 6060 and 6061 | Black, Brown, Beige, and White | Lectrosonics transmitters with a TA5F input |
| Unterminated | 6060 and 6061 | Black, Brown, and Beige | Wiring to a connector of your choice |
| Mini-Jack | 6060 and 6061 | Black, Brown, Beige, and White | Sennheiser Evolution and other transmitters with a threaded mini-jack input |
| TA4F | 6060 and 6061 | Black, Brown, Beige, and White | Shure, TOA, and Line 6 transmitters with a TA4F input |
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB) | 40 Hz to 20 kHz with 4 dB soft boost at 8 to 20 kHz |
| Sensitivity (±2.4 dB at 1 kHz) | 6060: 20 mV/Pa (−34 dB re 1 V/Pa) 6061: 6 mV/Pa (−44 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 6060: 24 dB(A) typical (26 dB(A) max) 6061: 26 dB(A) typical (28 dB(A) max) |
| Distortion, THD below 0.5% | 6060: 120 dB SPL RMS, 123 dB SPL peak 6061: 122 dB SPL RMS, 125 dB SPL peak |
| Distortion, THD below 1% | 6060: 123 dB SPL RMS, 126 dB SPL peak 6061: 125 dB SPL RMS, 128 dB SPL peak |
| Dynamic Range | 102 dB typical |
| Max. SPL (THD 10%) | 6060: 134 dB SPL peak 6061: 144 dB SPL peak |
| Electrical | |
| Rated Output Impedance | MicroLock: 30 to 40 Ω With DAD9001-BC: 100 Ω |
| Power Supply | Wireless systems: 5 to 10 V through a DPA adapter With DAD6001-BC: P48 phantom power (works from 12 V) |
| Current Consumption | 1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter |
| Cable Drive Capability | Up to 300 m (984 ft) with DAD9001-BC XLR adapter |
| Physical | |
| Connector | MicroLock, TA4F Mini-XLR, 3-pin LEMO, or Mini-Jack |
| Capsule Diameter | 3 mm (0.12 in) |
| Microphone Head Size | 3.4 / 14.4 mm (0.13 / 0.57 in) |
| Cable Length | 1.8 m (5.9 ft) |
| Weight | 8 g (0.29 oz) including cable and MicroLock connector |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
