Name: DPA MicroLock Adapters for Wireless Systems
Brand: DPA Microphones
SKU: DPAMLADAP
Availability: InStock

DPA MicroLock Adapters for Wireless Systems

DPA MicroLock adapters for wireless systems connect a DPA lavalier, headset, or instrument mic fitted with MicroLock to the input of a bodypack transmitter, and the XLR versions connect it to P48 phantom power.

Changing the adapter moves the same mic to another wireless system, so a change of transmitter never means a new mic, and the sound does not change. MicroLock locks the connection in place, and MicroLock adapters also accept mics with the older MicroDot connector (the lock works only when both halves are MicroLock).

The DAD9001 and DAD9099 XLR adapters have a solid metal body, a belt clip that repositions easily, and circuitry optimized for CORE+ with better immunity to RF noise from sources such as LED walls. The DAD9099 adds a low-cut filter and is made for the 4099 CORE+ instrument mic.

Features

Connect DPA MicroLock mics to the major wireless systems
Change systems without changing the mic
Locking MicroLock connection
Accept MicroDot mics as well
XLR versions for P48 phantom power, one with a low-cut filter

Available Options

Adapter Type	Model	Connector	Fits
TA5F (Lectrosonics LM/SM/UM)	DAD9056	TA5F	Lectrosonics LM, SM, and UM Series (for low-DC microphones)

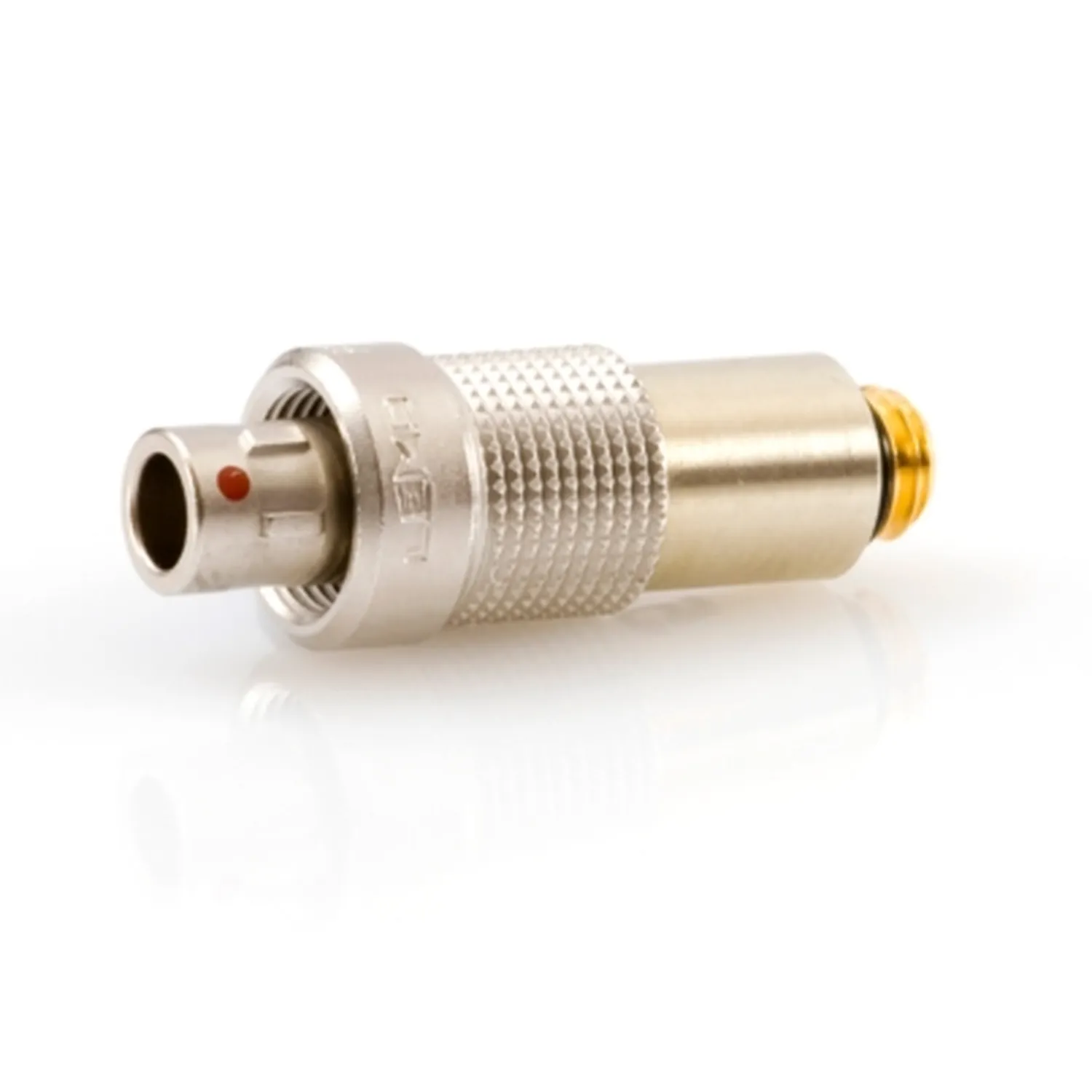

3-pin LEMO (Lectrosonics/Sennheiser/Shure/Wisycom)	DAD9003	3-pin LEMO	Sennheiser, Lectrosonics, Shure, Wisycom, and Trantec

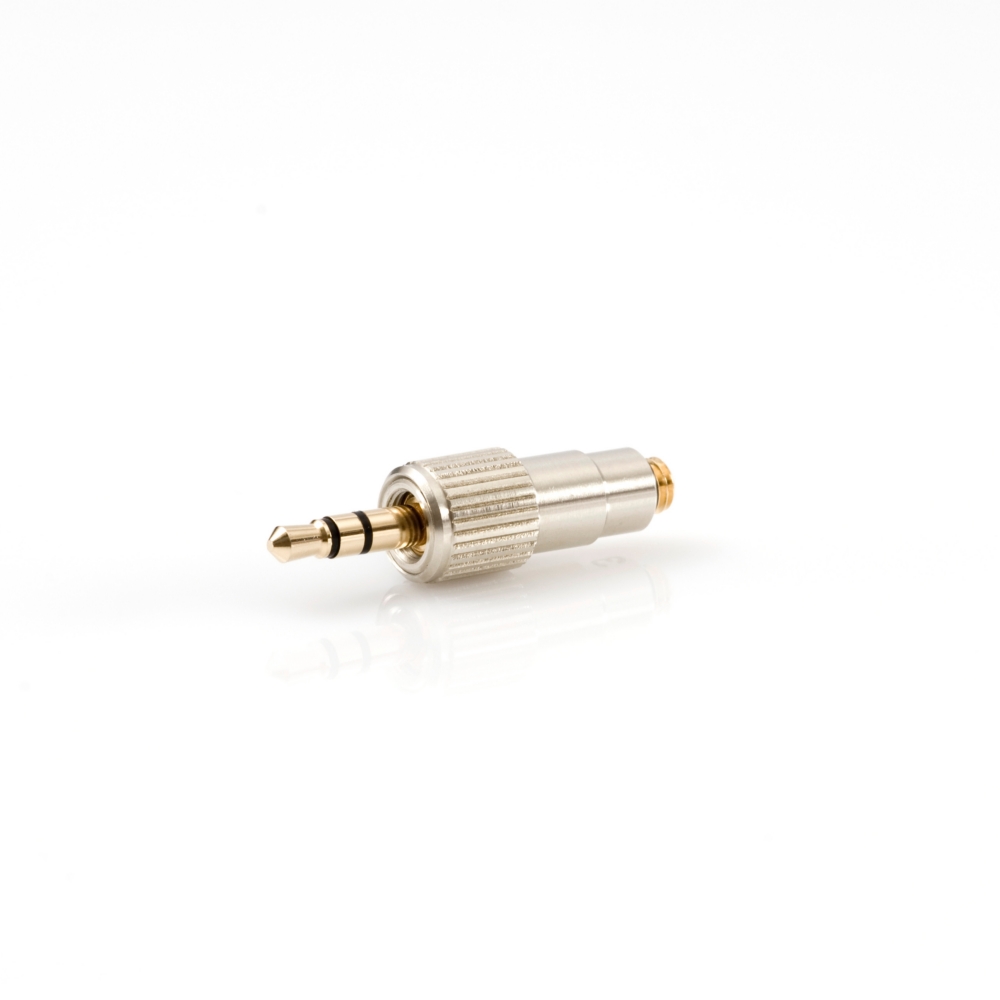

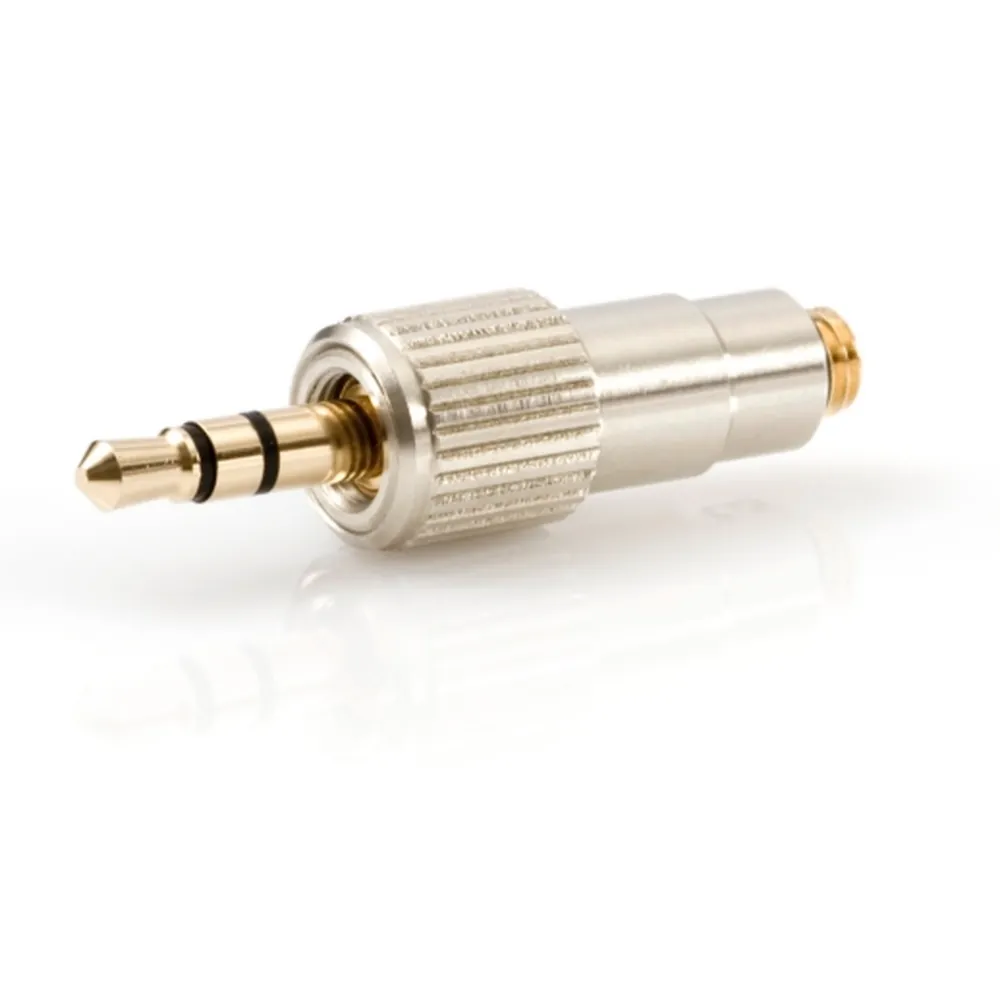

Threaded Mini-Jack (Sennheiser Evolution)	DAD9034	Threaded Mini-Jack	Sennheiser Evolution, G2, G3, and D1; X2 Digital Wireless; Audio Ltd. En2 TX

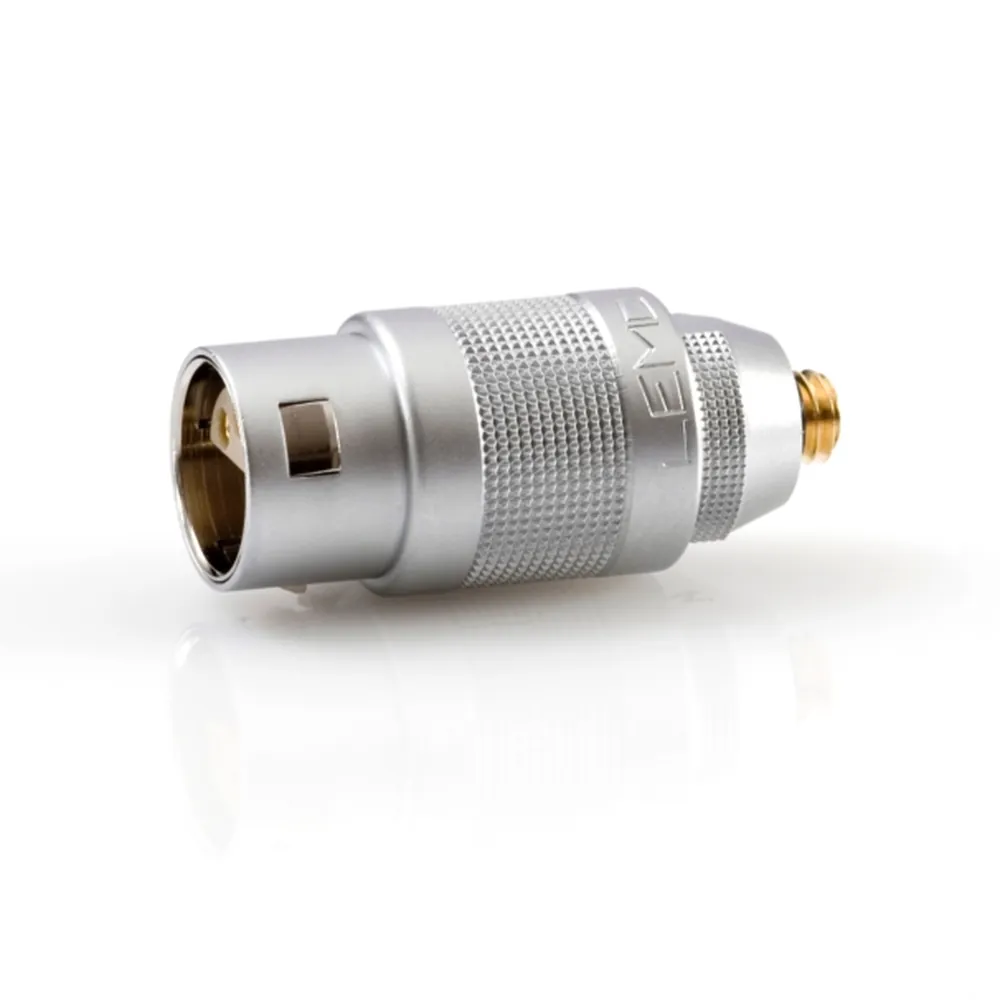

6-pin LEMO (Audio Ltd. TX2000/TX2020/TX2040)	DAD9004	6-pin LEMO	Audio Ltd. TX2000, TX2020, and TX2040

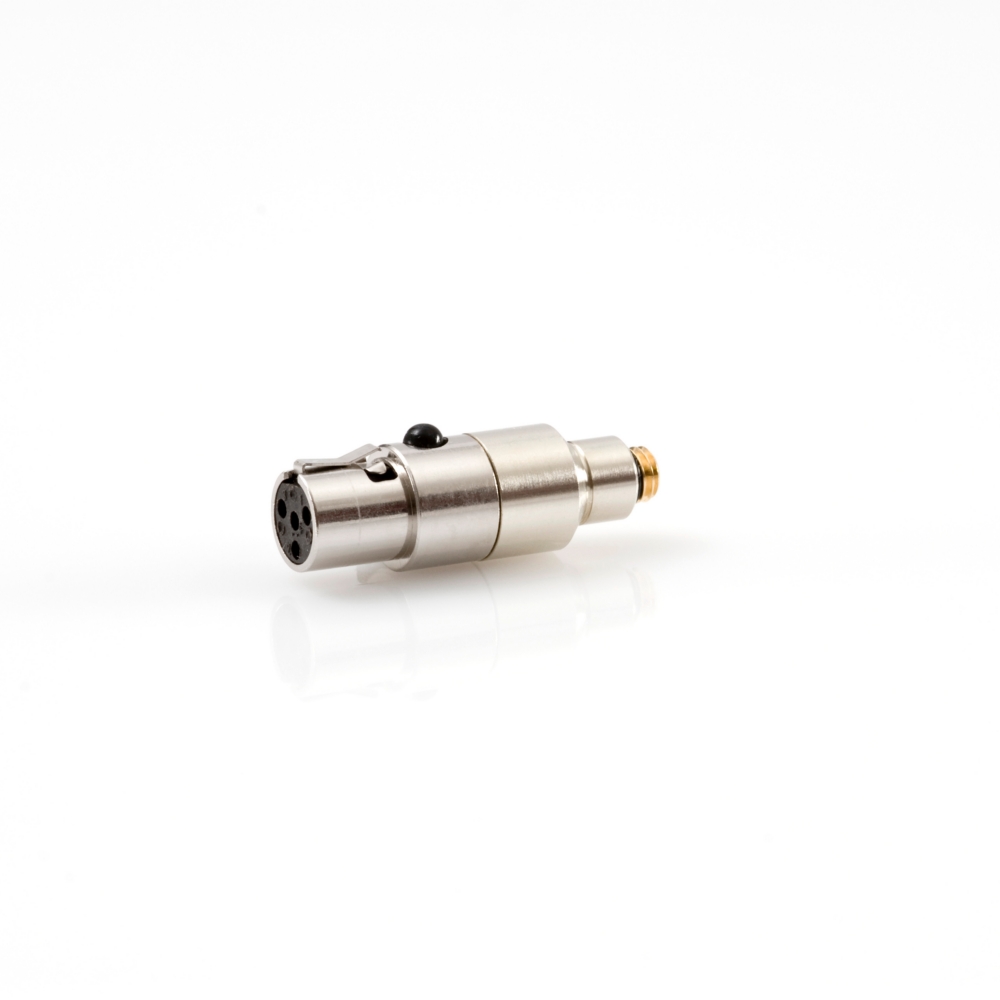

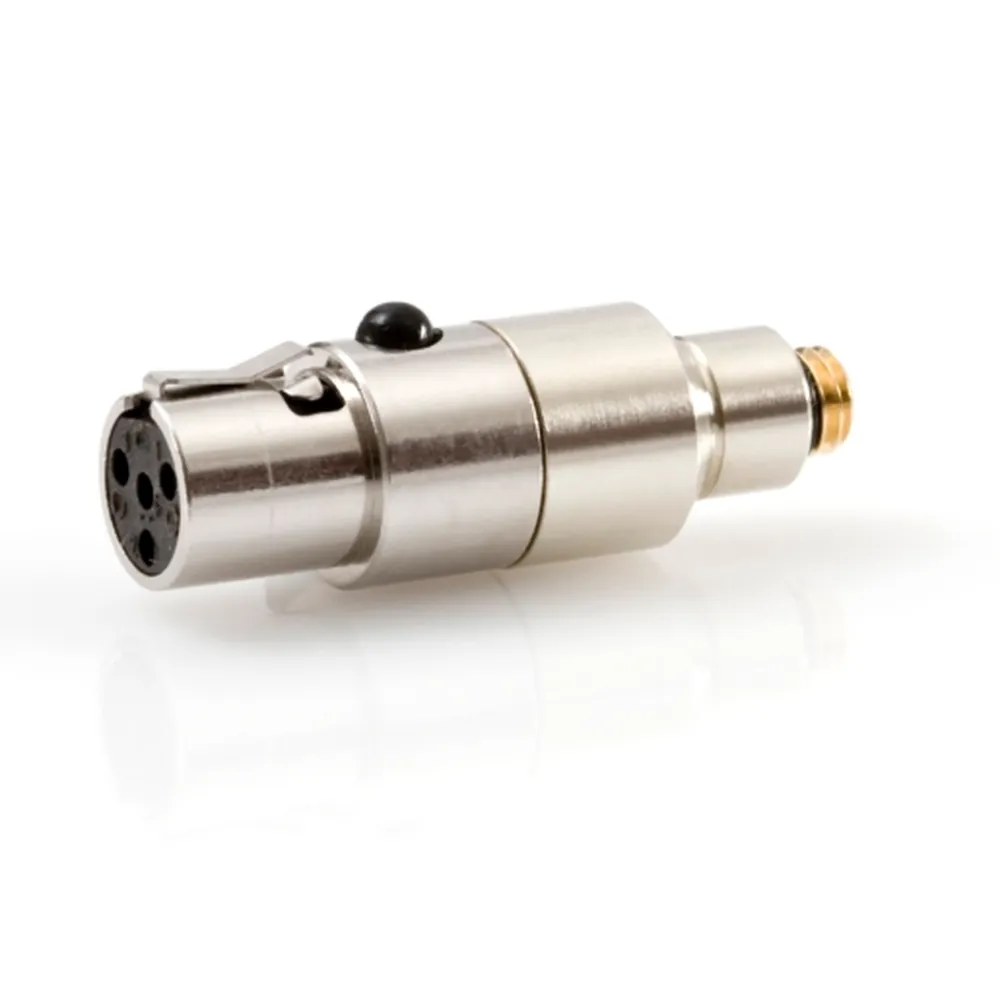

TA4F (Shure/TOA/Line 6)	DAD9010	TA4F Mini-XLR	Shure, TOA, and Line 6

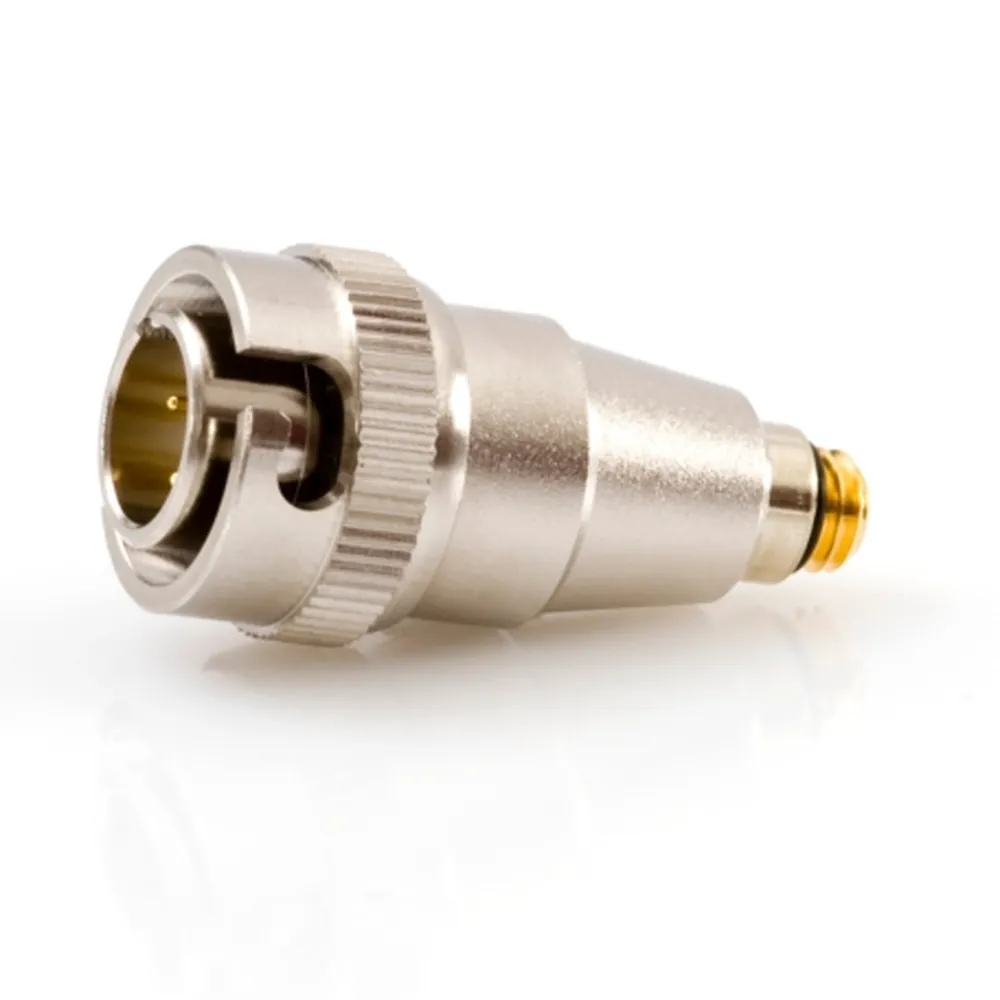

4-pin Hirose (Sony)	DAD9008	4-pin Hirose	Sony DWT-B01, WRT820, WRT860, and WRT8

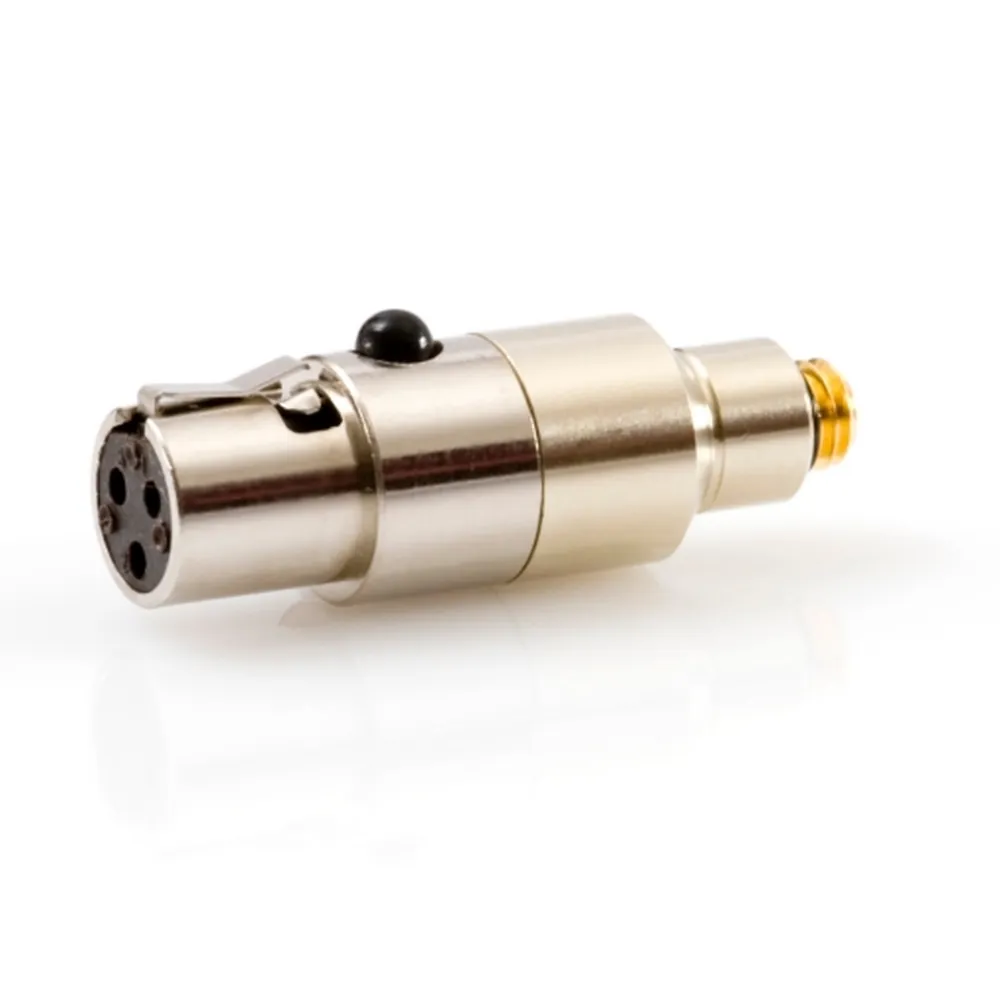

TA3F (AKG/Samson)	DAD9017	TA3F	AKG PT 60, 80, 81, 400, 450, and 4000; Samson UT1L and VT2L

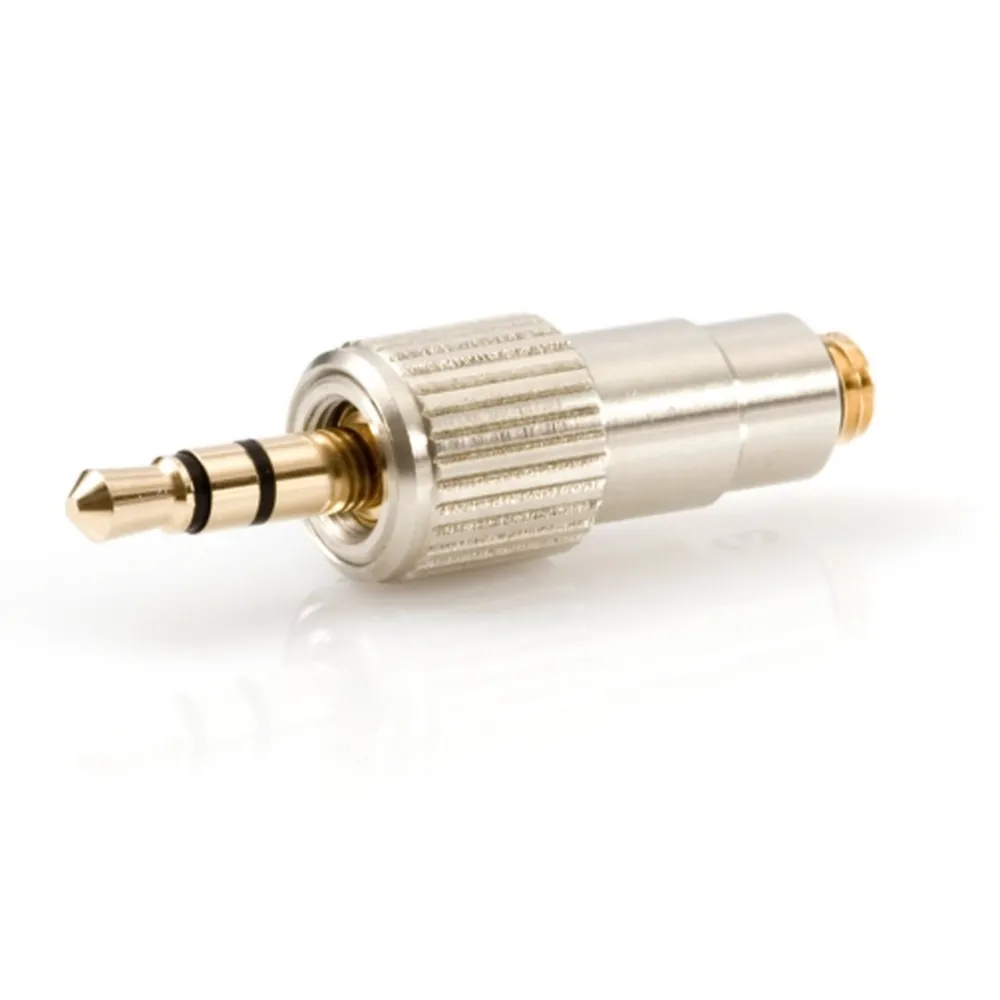

Threaded Mini-Jack (Sony Freedom WRT 805)	DAD9019	Threaded Mini-Jack	Sony Freedom WRT 805

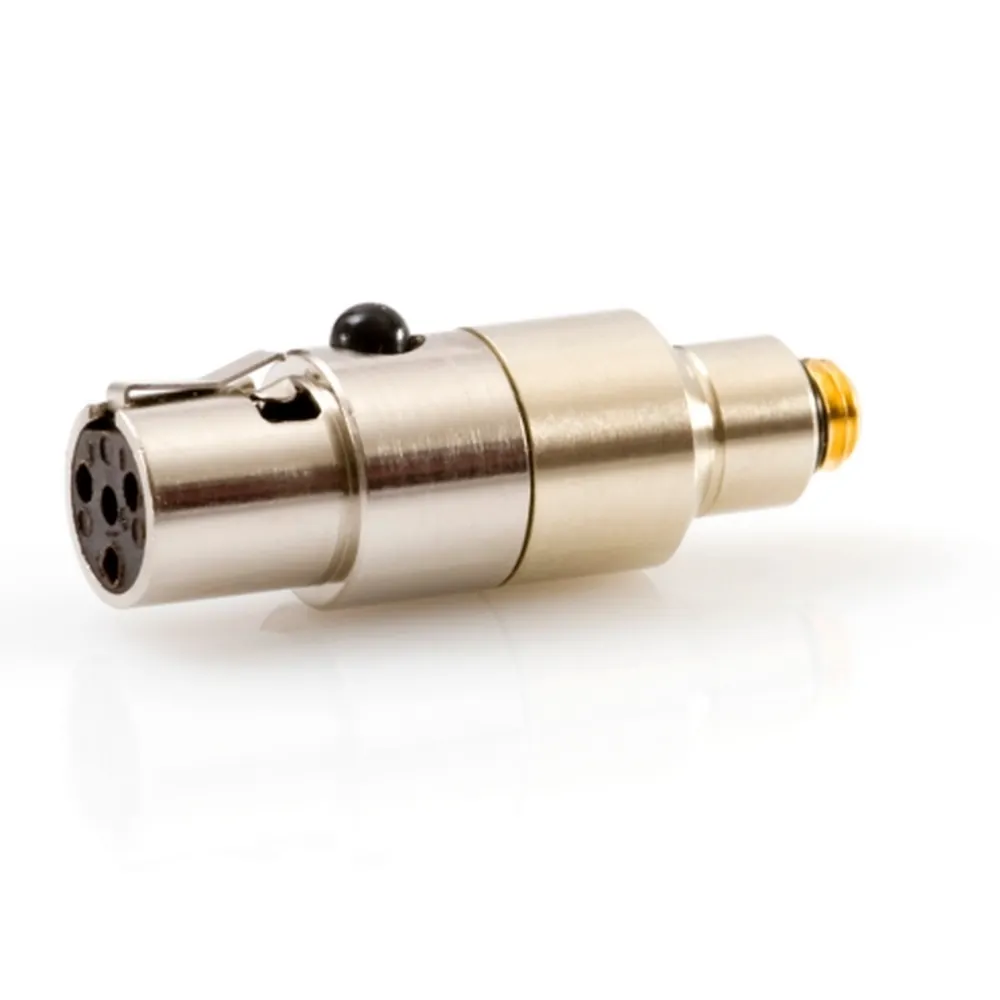

TA4F (Beyerdynamic/Mipro)	DAD9032	TA4F	Beyerdynamic OPUS 300, 500, 800, and 900; Mipro ACT and MT series

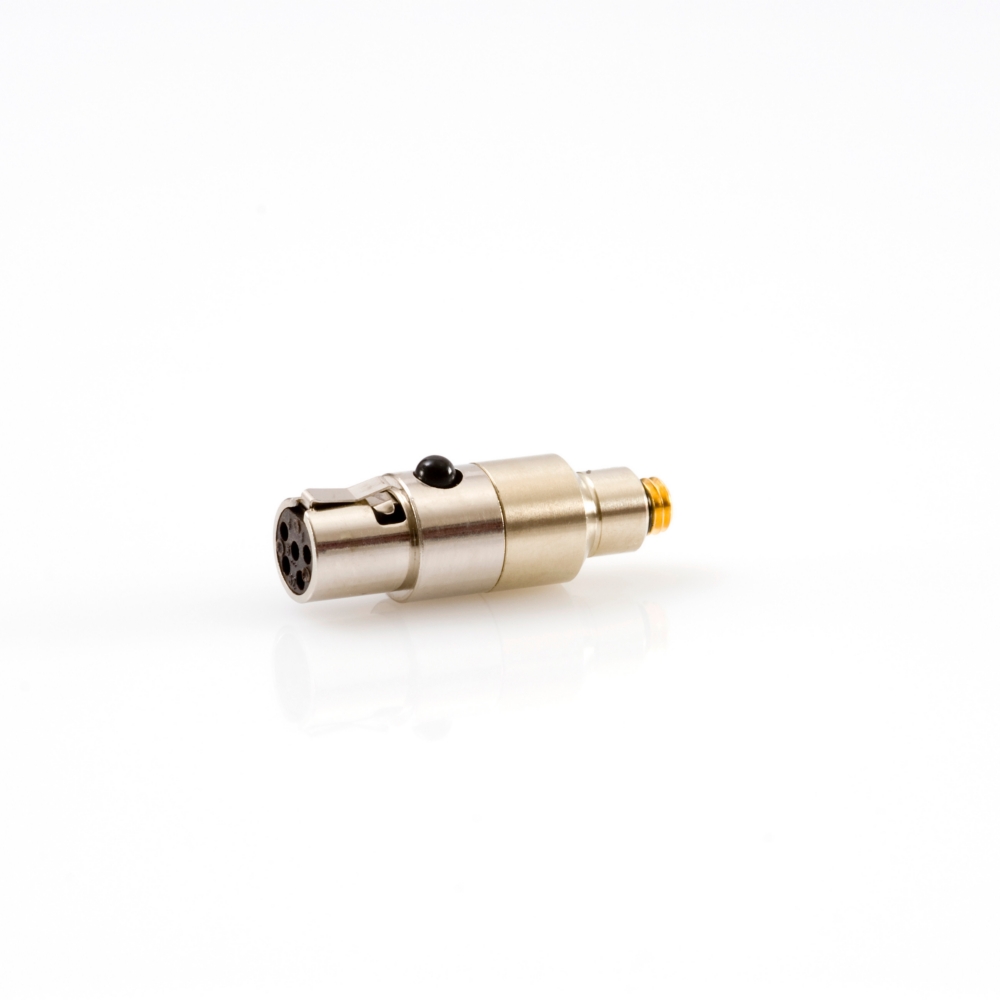

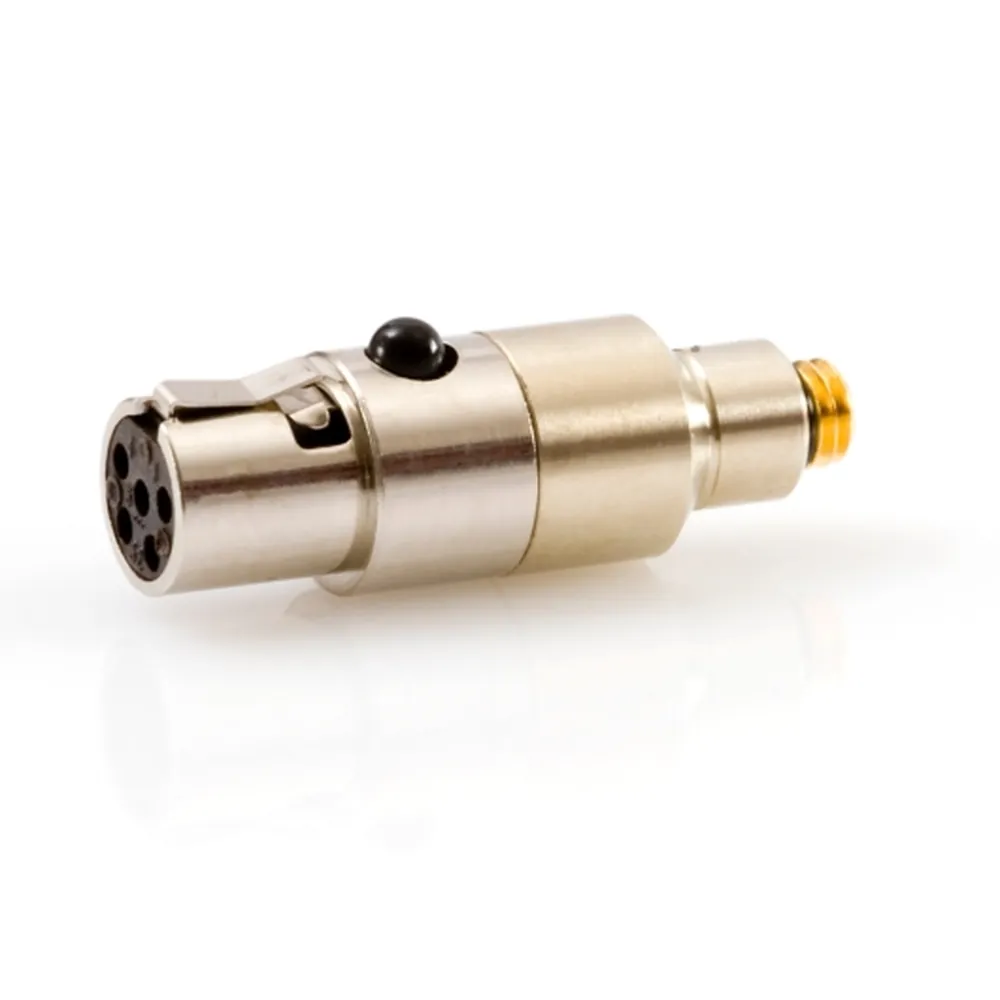

TA5F (Audio-Technica/Lectrosonics UHF)	DAD9021	TA5F	Audio-Technica ATW-T101 (U100) and Lectrosonics UHF systems (low level)

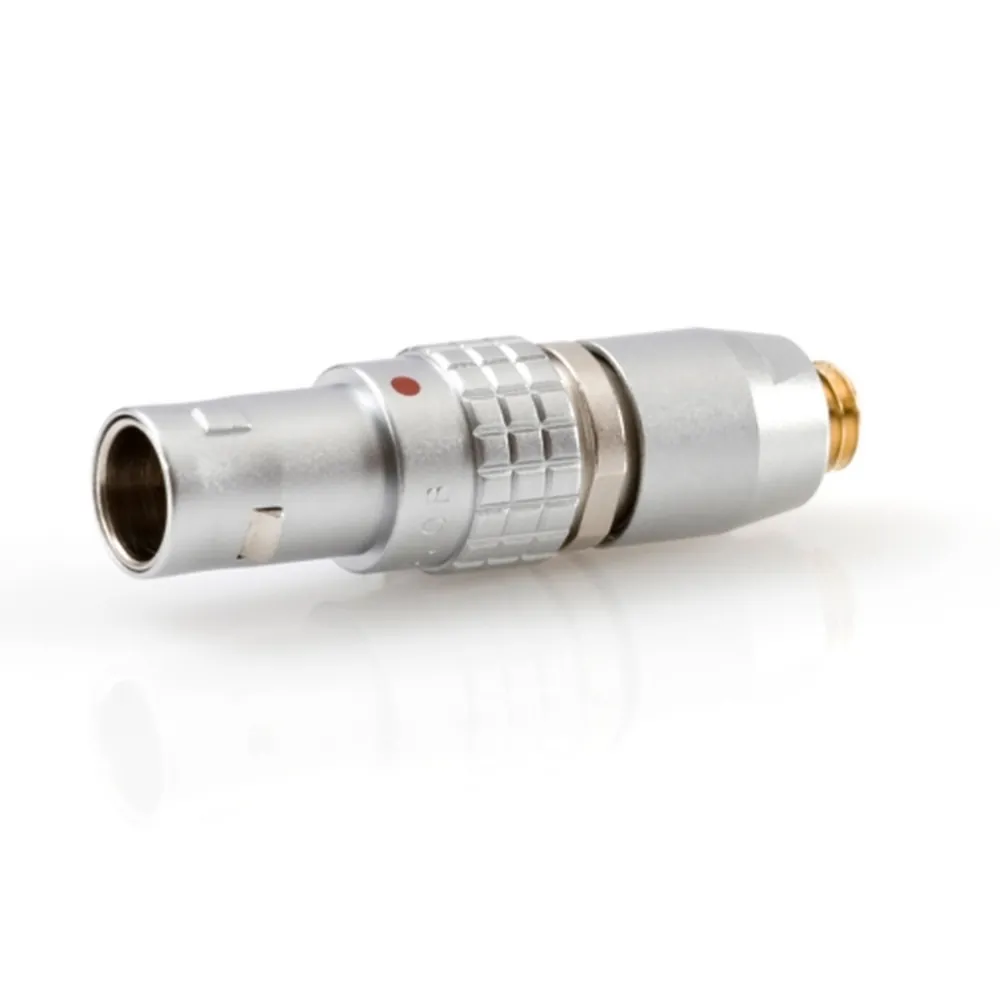

Mini 4-pin LEMO (Audio Ltd. En2 MiniTX)	DAD9035	Mini 4-pin LEMO	Audio Ltd. En2 MiniTX

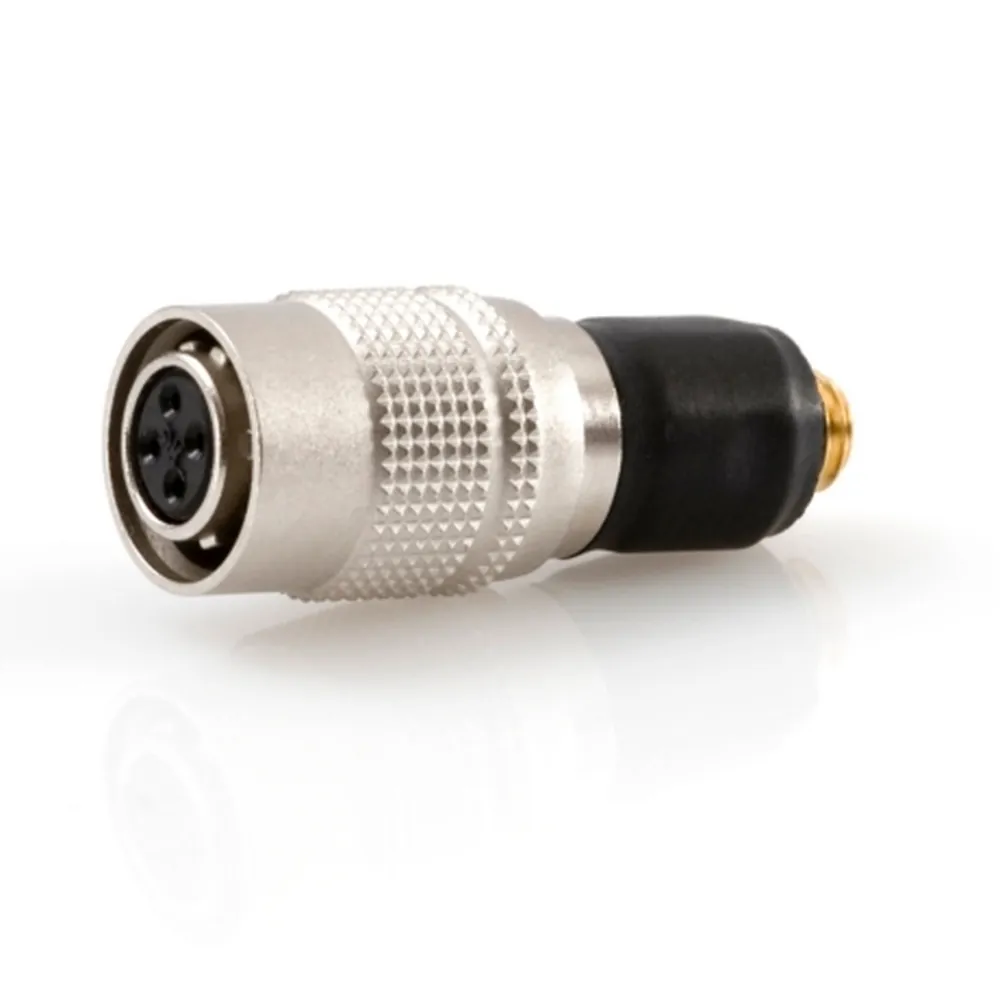

4-pin Hirose (Audio-Technica)	DAD9033	4-pin Hirose	Audio-Technica ATW-T1000 D, ATW-T310, AEW-T1000, and ATW-T701
4-pin cH (Audio-Technica)	DAD9040	4-pin cH	Audio-Technica ATW-T3201, ATW-T5201, and ATW-T6001S

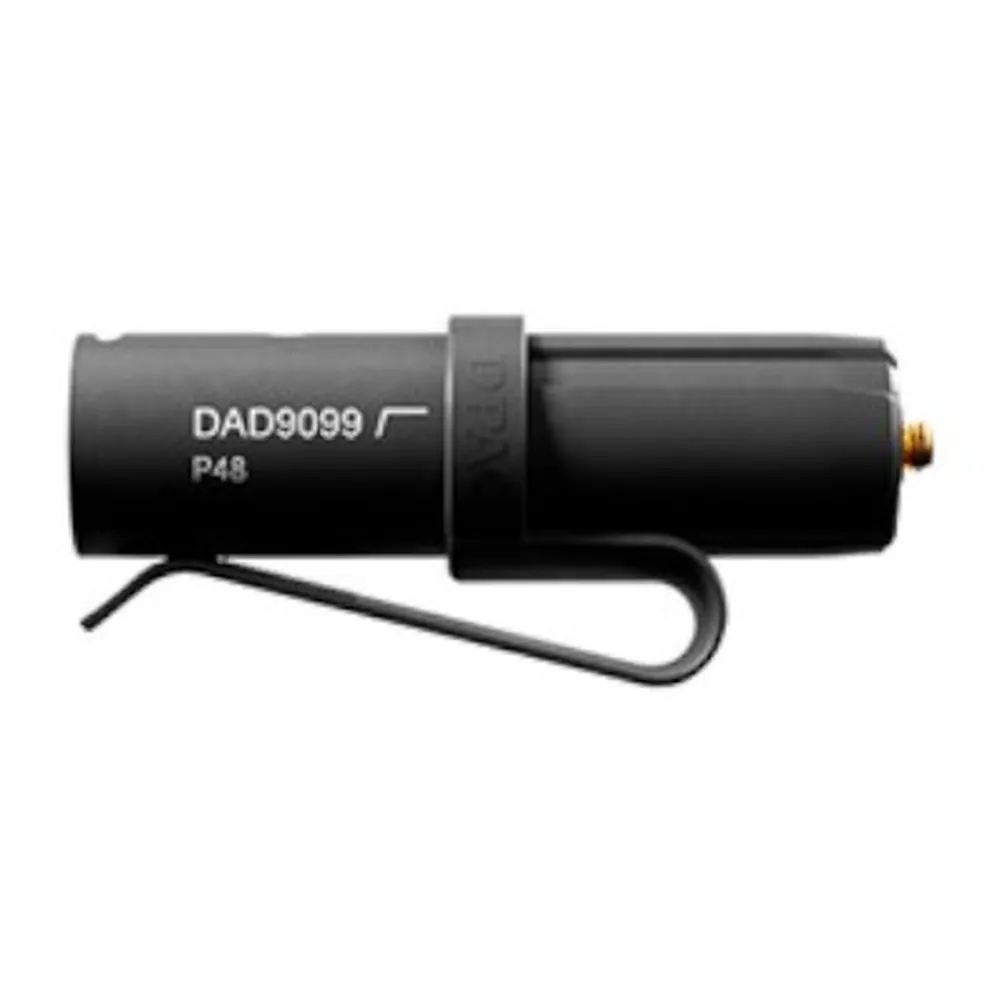

3-pin XLR with Belt Clip and Low Cut	DAD9099	3-pin XLR	P48 phantom power, with a low-cut filter, for the 4099 CORE+

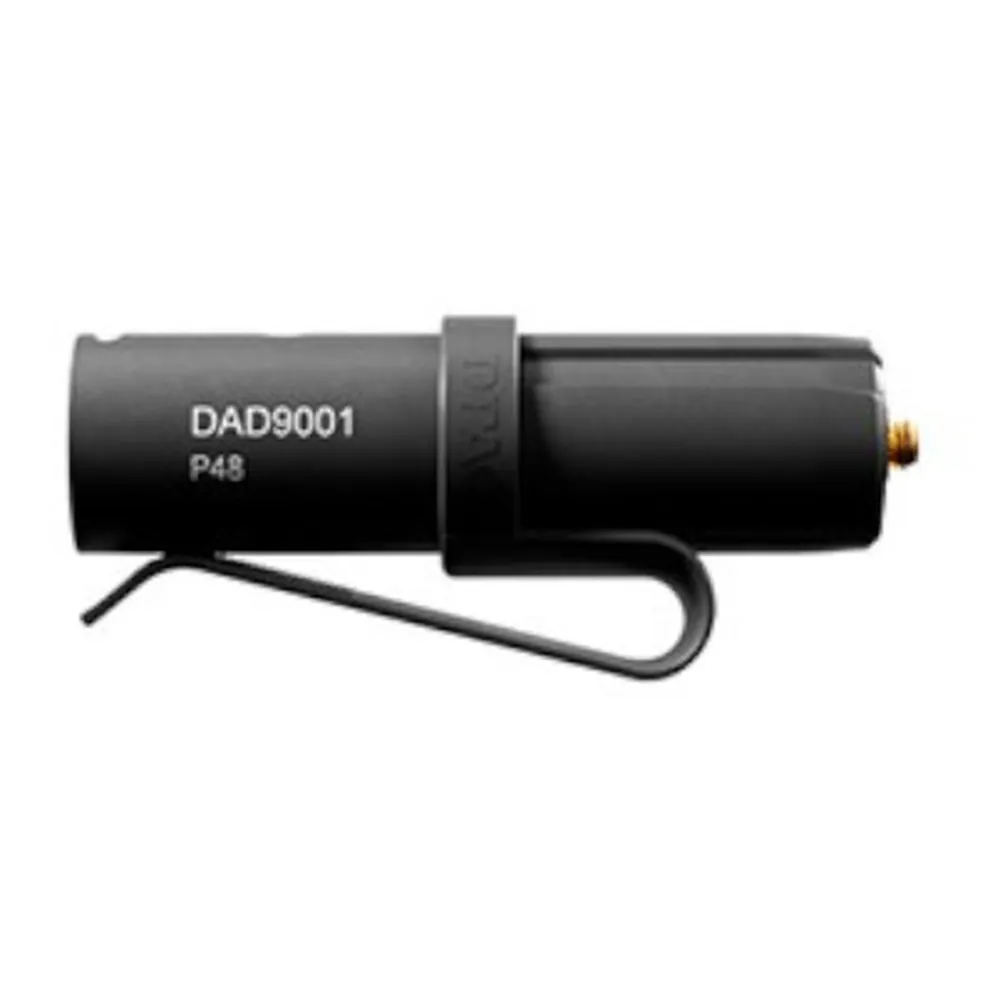

3-pin XLR with Belt Clip	DAD9001	3-pin XLR	P48 phantom power for DPA miniature mics
