Name: DPA 4466 CORE Omnidirectional Headset Microphone
Brand: DPA Microphones
SKU: DPA4466
Price: 875.00 USD
Availability: InStock

Product Discontinued: Limited Quantity Available While Supplies Last

DPA 4466 CORE Omnidirectional Headset Microphone

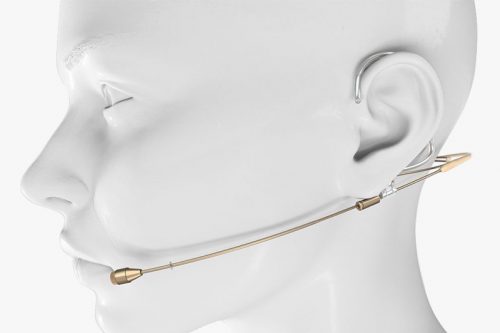

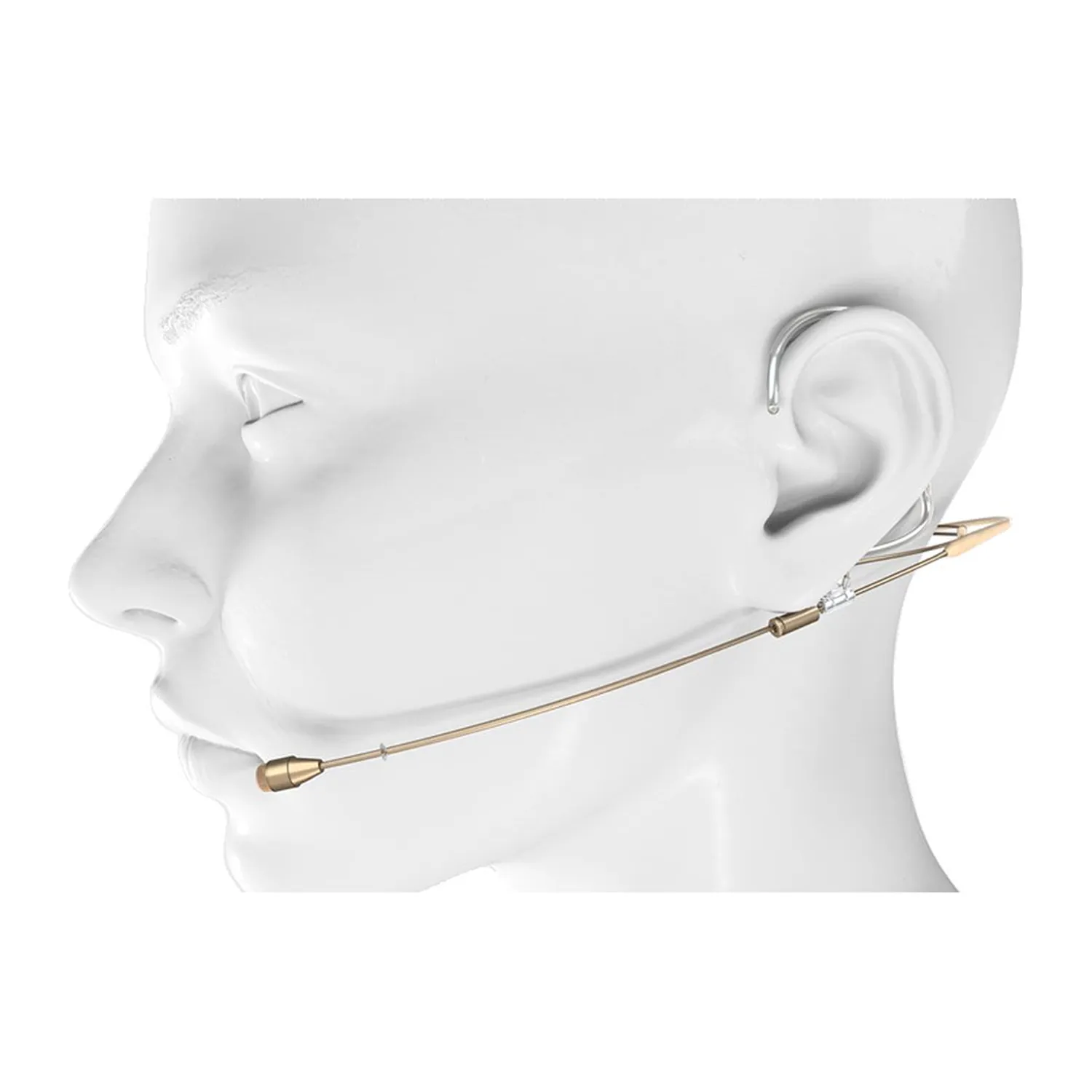

The DPA 4466 CORE is an omnidirectional headset microphone that pairs DPA’s 5 mm capsule and CORE technology with the Red Dot award-winning headset, for theater, broadcast, houses of worship, and conferencing. DPA has since replaced it with the 4466 CORE+.

Its 6 mV/Pa sensitivity matches a voice to the input of most wireless transmitters, and it handles up to 144 dB SPL peak, so users can speak and sing without distortion.

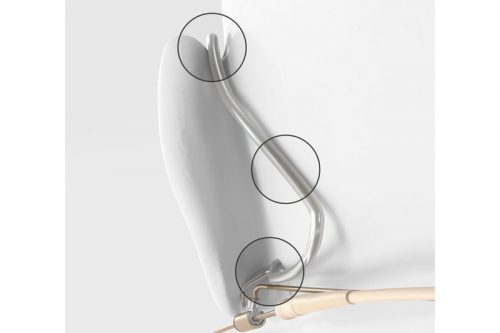

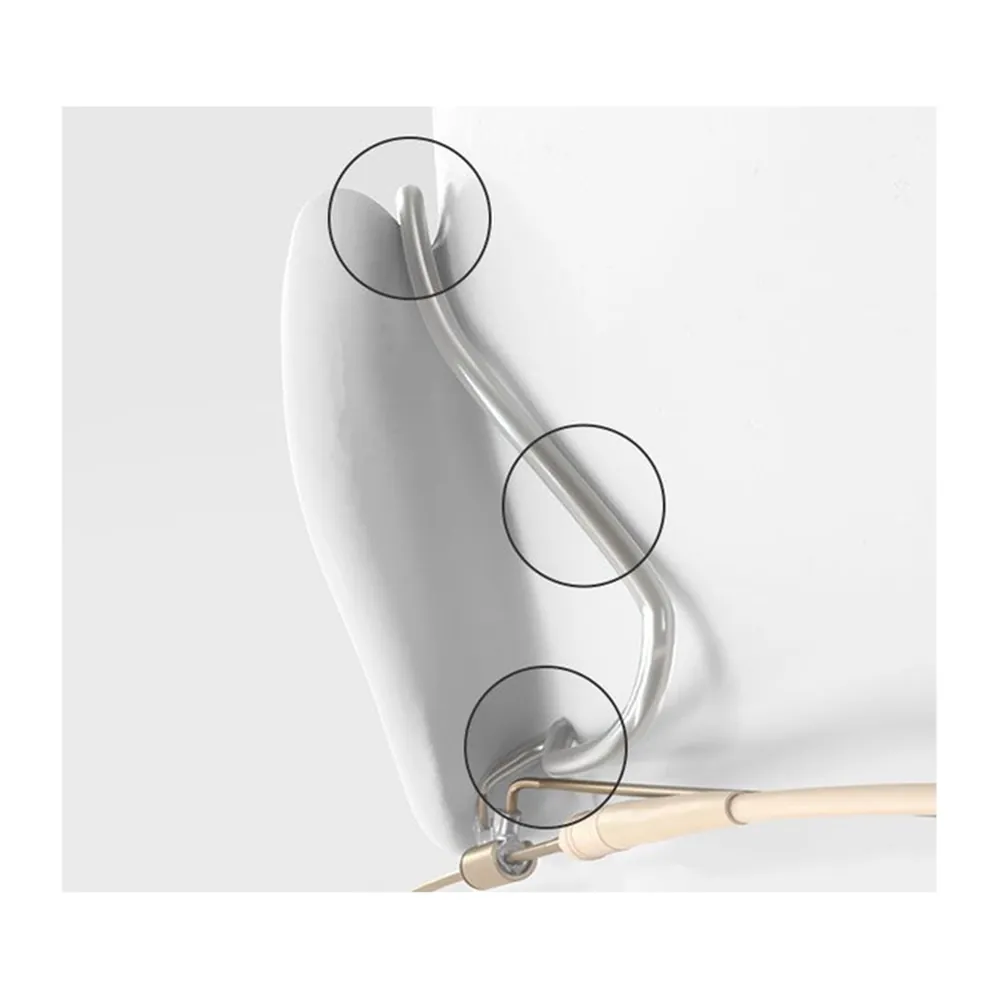

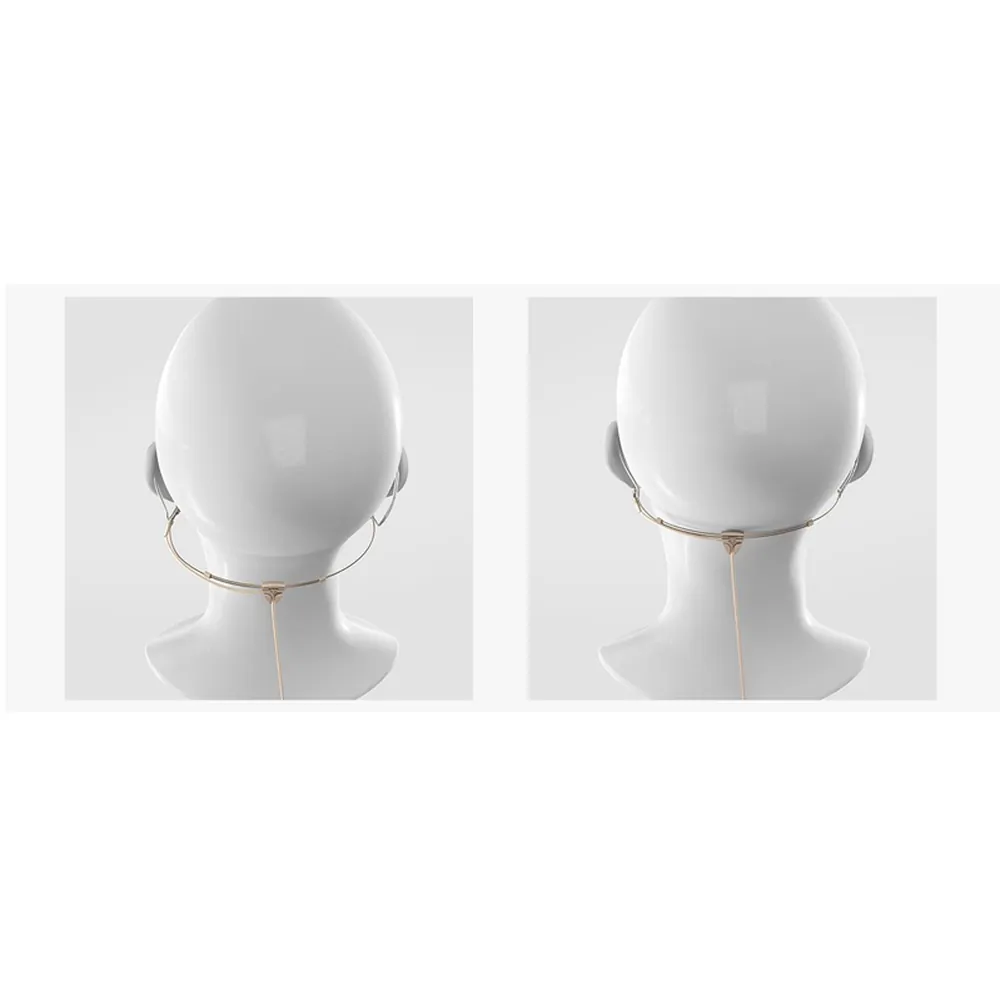

The one-size frame adjusts quickly and is stainless steel with a PVD coating that tolerates heat and resists impact and abrasion. Ear grips hold above, below, and behind each ear, firmly but gently, so the headset stays secure and comfortable through long wear.

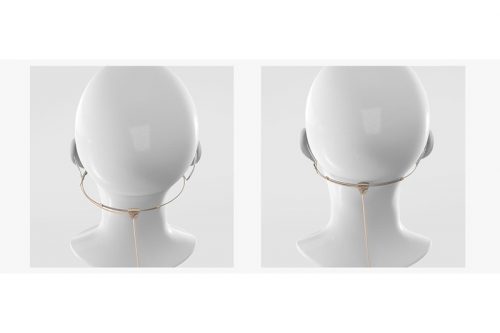

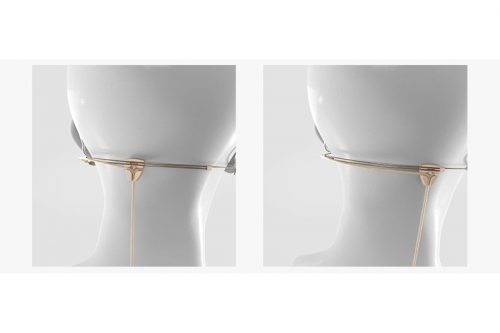

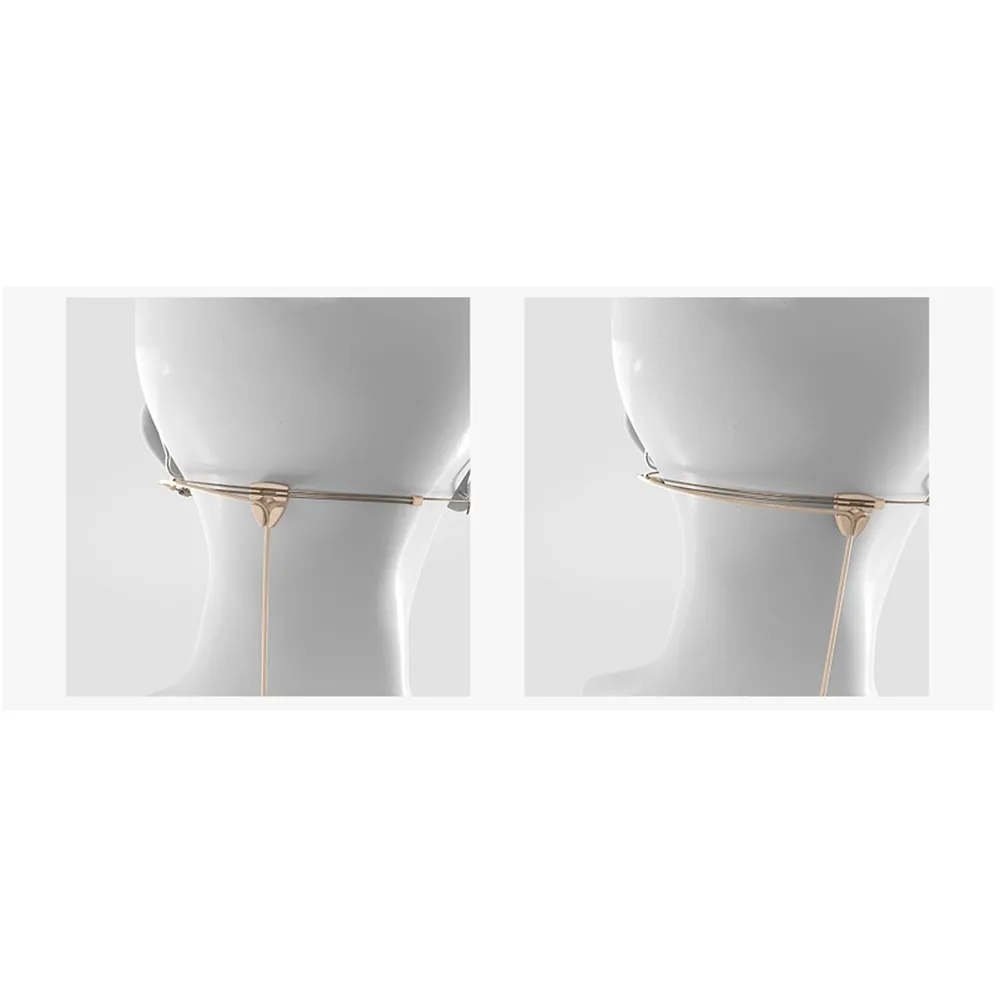

The boom extends, shortens, and pivots at a point below the ear, with an anti-rotation shape and a sliding lock to hold its position at the corner of the mouth. It detaches to move to the other side, and a service connector lets the boom and cable be replaced separately. The cable guide at the back slides out of the camera’s view and keeps the Kevlar-core 1.6 mm cable clear of the boom.

Features

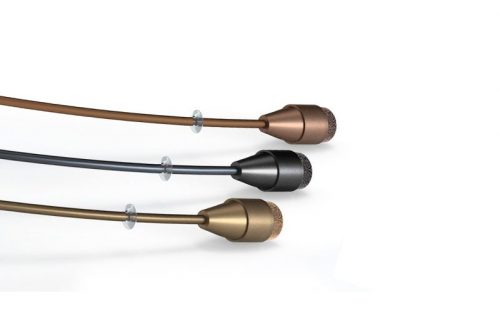

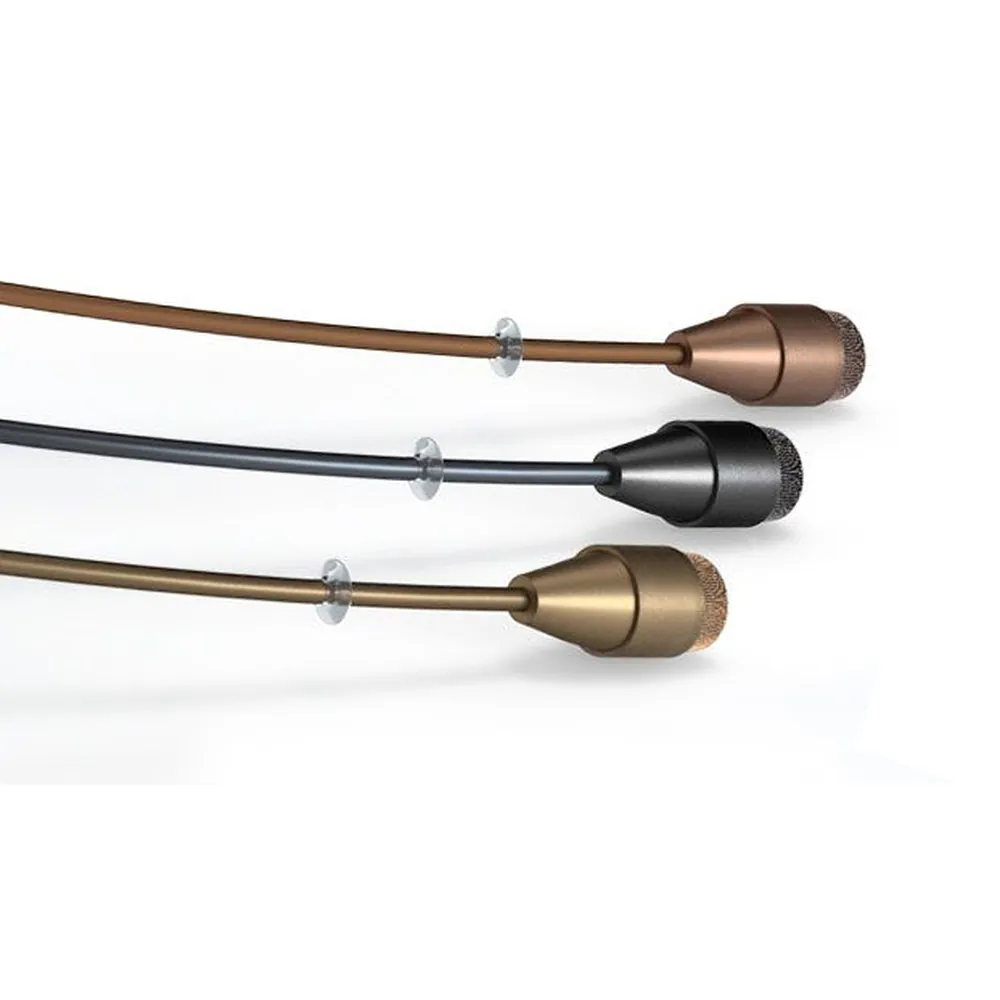

5 mm omni capsule with CORE by DPA
Red Dot award-winning one-size headset
3-point ear grips
2-way adjustable, detachable boom
Replaceable boom and cable
MicroDot connector

Specifications

Acoustic

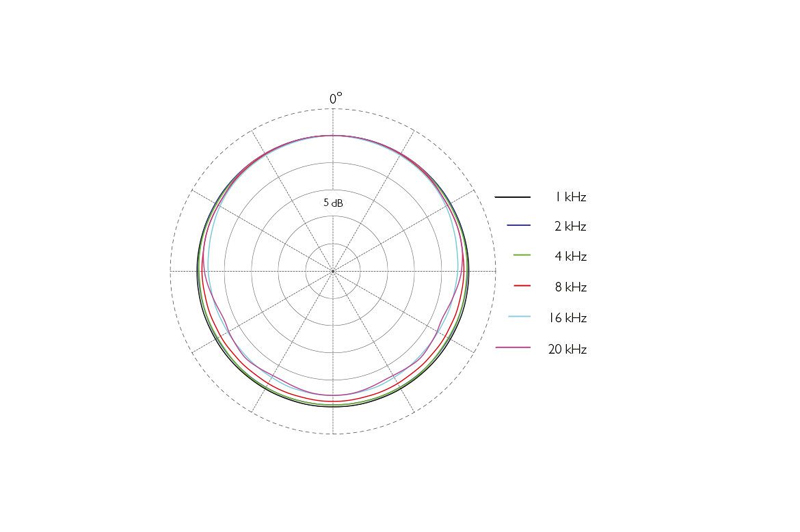

Directional Pattern	Omnidirectional
Principle of Operation	Pressure
Cartridge Type	Pre-polarized condenser

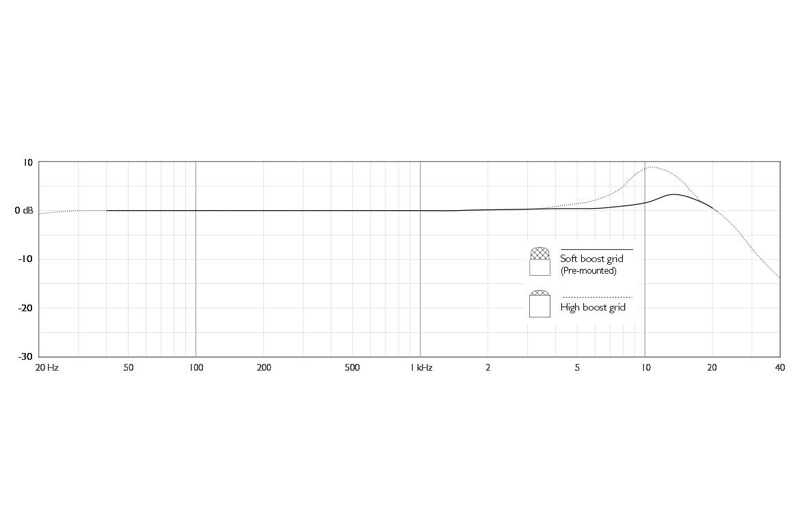

Frequency Response	20 Hz to 20 kHz
Effective Frequency Range (±2 dB)	Soft Boost Grid: 40 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High Boost Grid: 40 Hz to 20 kHz, 10 dB boost at 12 kHz
Sensitivity (±3 dB at 1 kHz)	6 mV/Pa (−44 dB re 1 V/Pa)
Equivalent Noise Level (A-weighted)	26 dB(A) typical (28 dB(A) max)
Equivalent Noise Level (ITU-R BS.468-4)	38 dB typical (40 dB max)
Distortion, THD below 0.5%	127 dB SPL RMS, 130 dB SPL peak
Distortion, THD below 1%	134 dB SPL RMS, 137 dB SPL peak
Dynamic Range	111 dB typical
Max. SPL (THD 10%)	144 dB SPL peak
Electrical
Rated Output Impedance	30 to 40 Ω
Power Supply	Wireless systems: 5 to 10 V through a DPA adapter With DAD6001-BC: P48 phantom power (works from 12 V)
Current Consumption	1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter
Cable Drive Capability	Up to 300 m (984 ft) with DAD9001-BC XLR adapter
Physical
Connector	MicroDot
Microphone Diameter	5.4 mm (0.21 in)
Cable Length	1.3 m (4.3 ft)
Cable Diameter	1.6 mm (0.06 in)
Weight	12 g (0.4 oz) including cable and MicroDot connector
Temperature Range	−40°C to 45°C (−40°F to 113°F)
Relative Humidity	Up to 90%
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
