DPA 4066 CORE+ Omnidirectional Headset Microphone
- Omni headset mic with CORE+
- Boom switches to either side
- Standard or small size, with both boost grids
From $925.00 USD
DPA 4066 CORE+ Omnidirectional Headset Microphone
Chosen for years by broadcasters, Broadway theaters, auditoriums, and lecture halls for its clean sound and durability, the DPA 4066 CORE+ is an omnidirectional headset microphone with a dual-ear frame.
It gives transparent sound with lots of headroom, and its 6 mV/Pa sensitivity matches a voice to the input of most wireless transmitters. CORE+ neutralizes distortion and handles up to 144 dB SPL peak. The pre-fitted Soft Boost Grid adds 3 dB at 8 to 20 kHz, and the included High Boost Grid adds 10 dB around 12 kHz.
The boom detaches from the headset mount to switch to the left or right side. A double-vent protection system, a drop stopper on the boom, and water-resistant materials inside guard against humidity, a common problem in theater. The mic is IP58 certified. The headset comes in standard and small sizes. MicroLock is DPA’s locking connector. A MicroLock adapter connects the mic to most professional wireless transmitters, and MicroLock parts also mate with MicroDot parts (the lock works only when both halves are MicroLock).
Features
- 5.4 mm omni capsule with CORE+
- Dual-ear headset, standard or small
- Boom switches to either side
- Double-vent protection and drop stopper
- Soft Boost and High Boost Grids included
- IP58 certified
- MicroLock or hardwired connectors
Available Options
| Connector | Sizes | Colors | Fits |
|---|---|---|---|

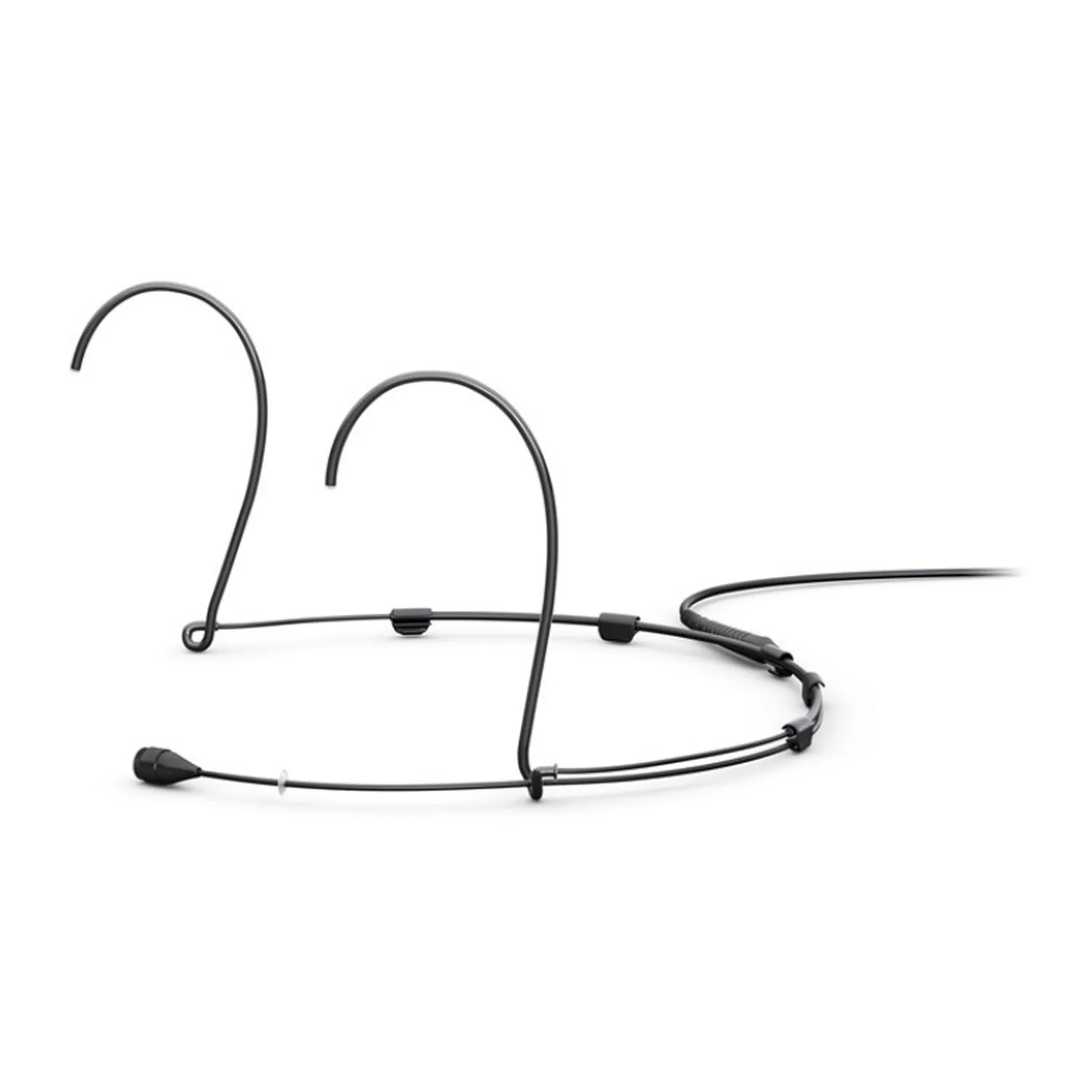

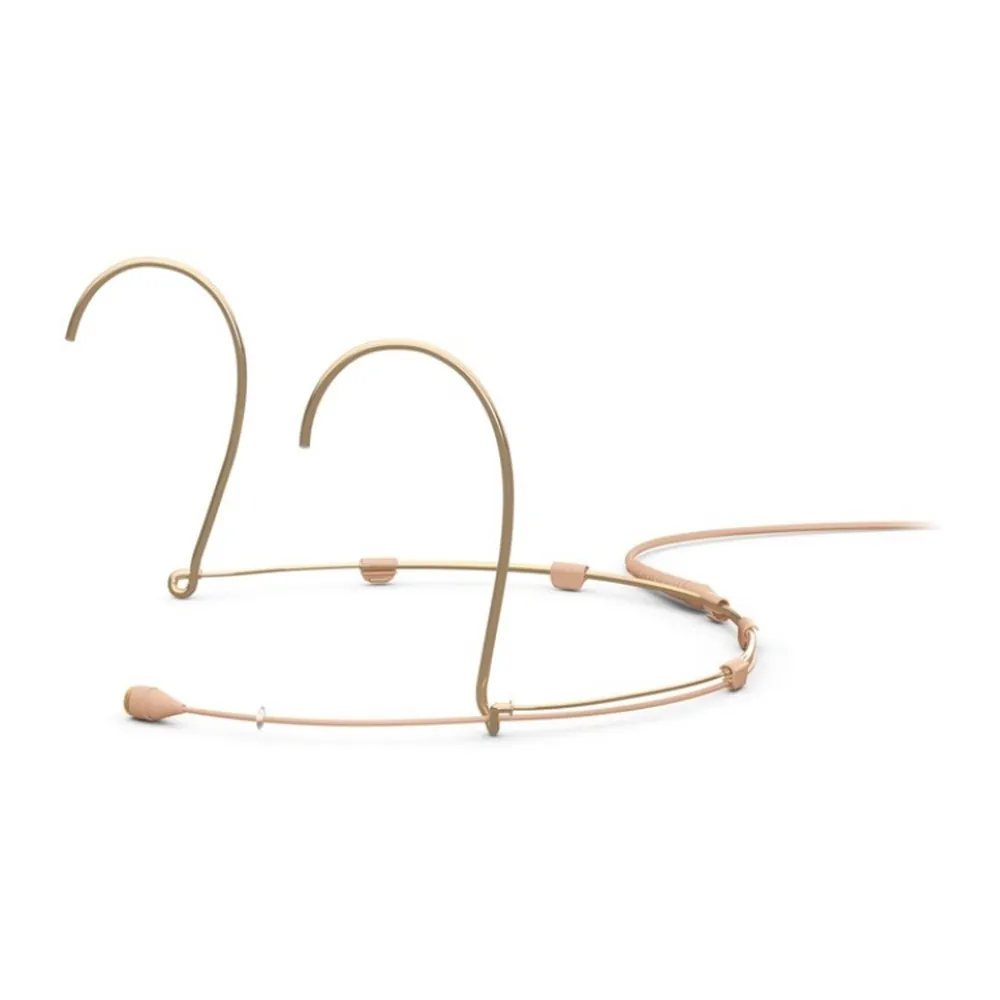

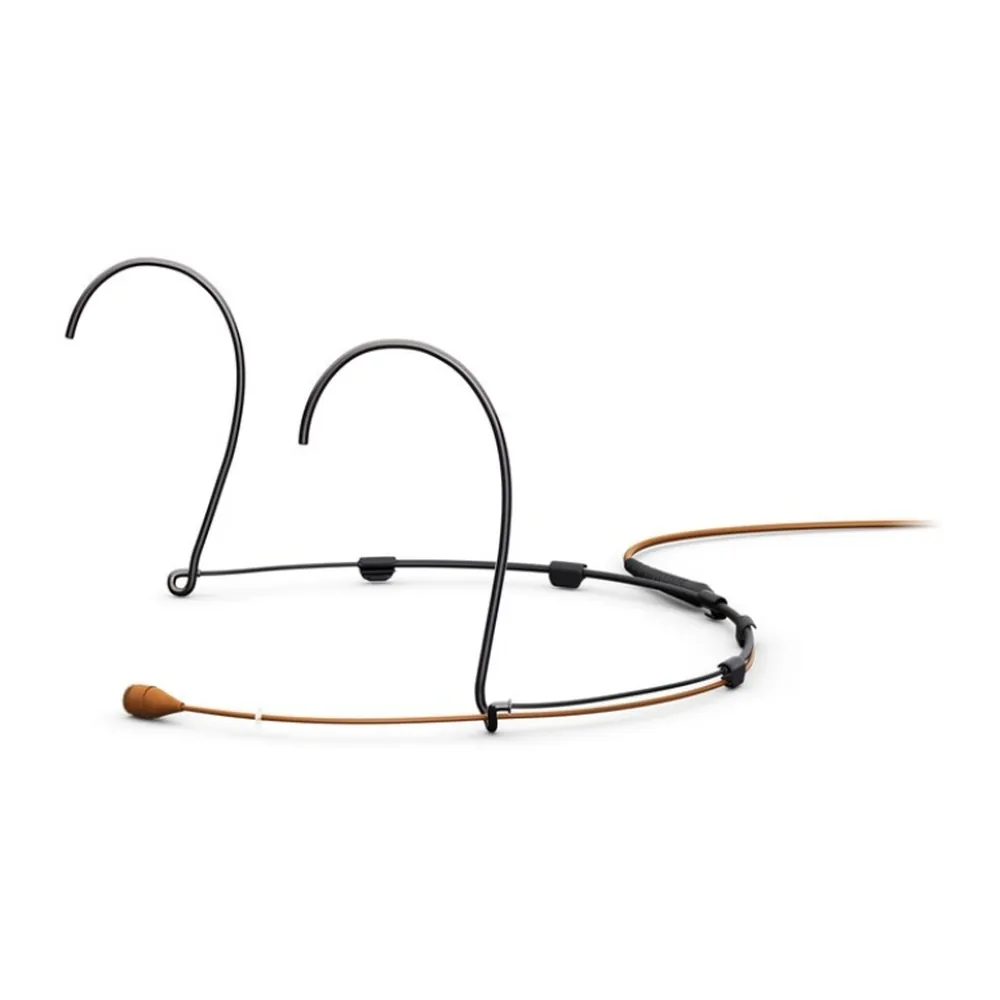

| MicroLock | Small and Standard | Black, Brown, and Beige | Any wireless system, through a DPA MicroLock adapter |
| 3-pin Lemo | Small and Standard | Black, Brown, and Beige | Sennheiser, Lectrosonics, Shure, Wisycom, and Trantec transmitters with a 3-pin LEMO input |
| Mini-Jack | Small and Standard | Black, Brown, and Beige | Sennheiser Evolution and other transmitters with a threaded mini-jack input |
| TA4F Mini-XLR | Small and Standard | Black, Brown, and Beige | Shure, TOA, and Line 6 transmitters with a TA4F input |
What's Included
- Headset microphone with the Soft Boost Grid fitted
- High Boost Grid
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB) | Soft Boost Grid: 40 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High Boost Grid: 40 Hz to 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity (±3 dB at 1 kHz) | 6 mV/Pa (−44 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 26 dB(A) typical (28 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 38 dB typical (40 dB max) |
| Distortion, THD below 0.5% | 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD below 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic Range | 111 dB typical |
| Max. SPL (THD 10%) | 144 dB SPL peak |
| Electrical | |
| Rated Output Impedance | 30 to 40 Ω |
| Power Supply | Wireless systems: 5 to 10 V through a DPA adapter With DAD6001-BC: P48 phantom power (works from 12 V) |
| Current Consumption | 1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter |
| Cable Drive Capability | Up to 300 m (984 ft) with DAD9001-BC XLR adapter |
| Physical | |
| Connector | MicroLock, TA4F Mini-XLR, 3-pin LEMO, or Mini-Jack |
| Microphone Diameter | 5.4 mm (0.21 in) |
| Cable Length | 1.2 m (3.9 ft) |
| Cable Diameter | 1.6 mm (0.06 in) |
| Weight | 14 g (0.5 oz) including cable and MicroLock connector |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
