Name: DPA 4466 CORE+ Omnidirectional Headset Microphone
Brand: DPA Microphones
SKU: DPA4466CP
Availability: InStock

DPA 4466 CORE+ Omnidirectional Headset Microphone

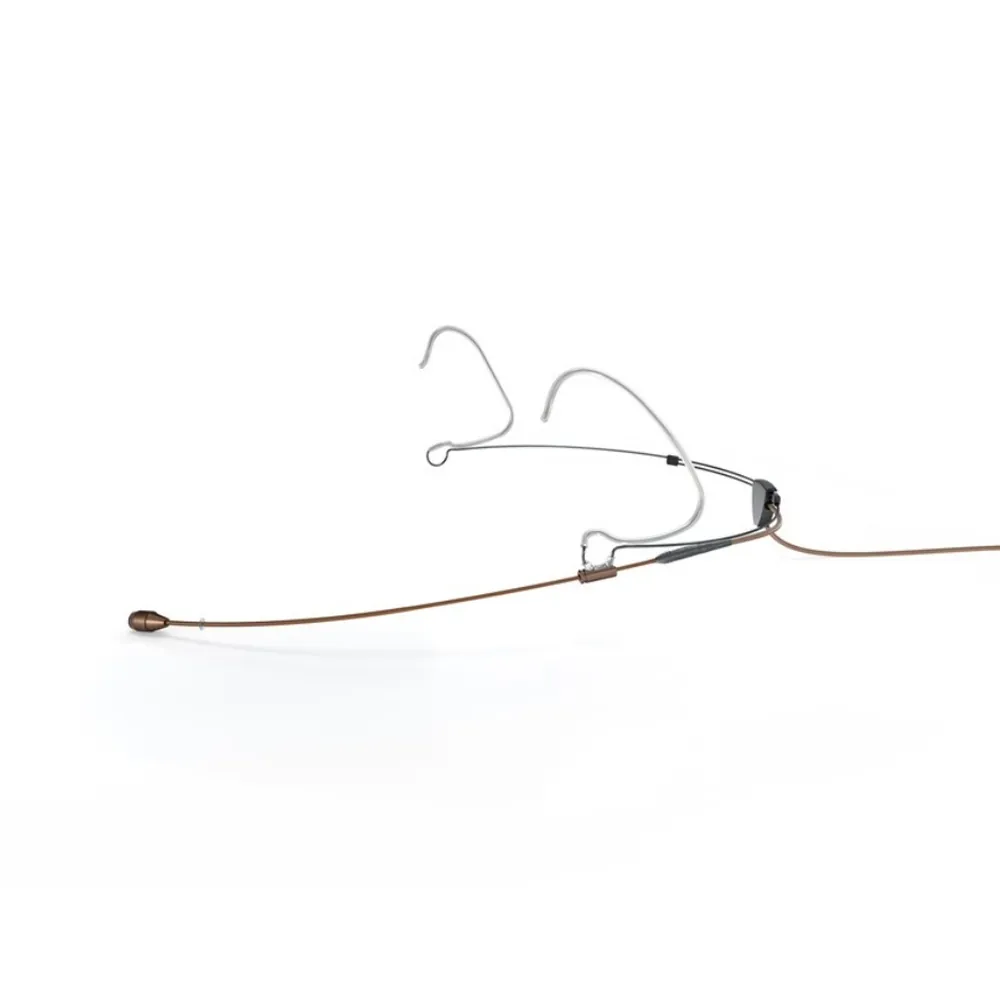

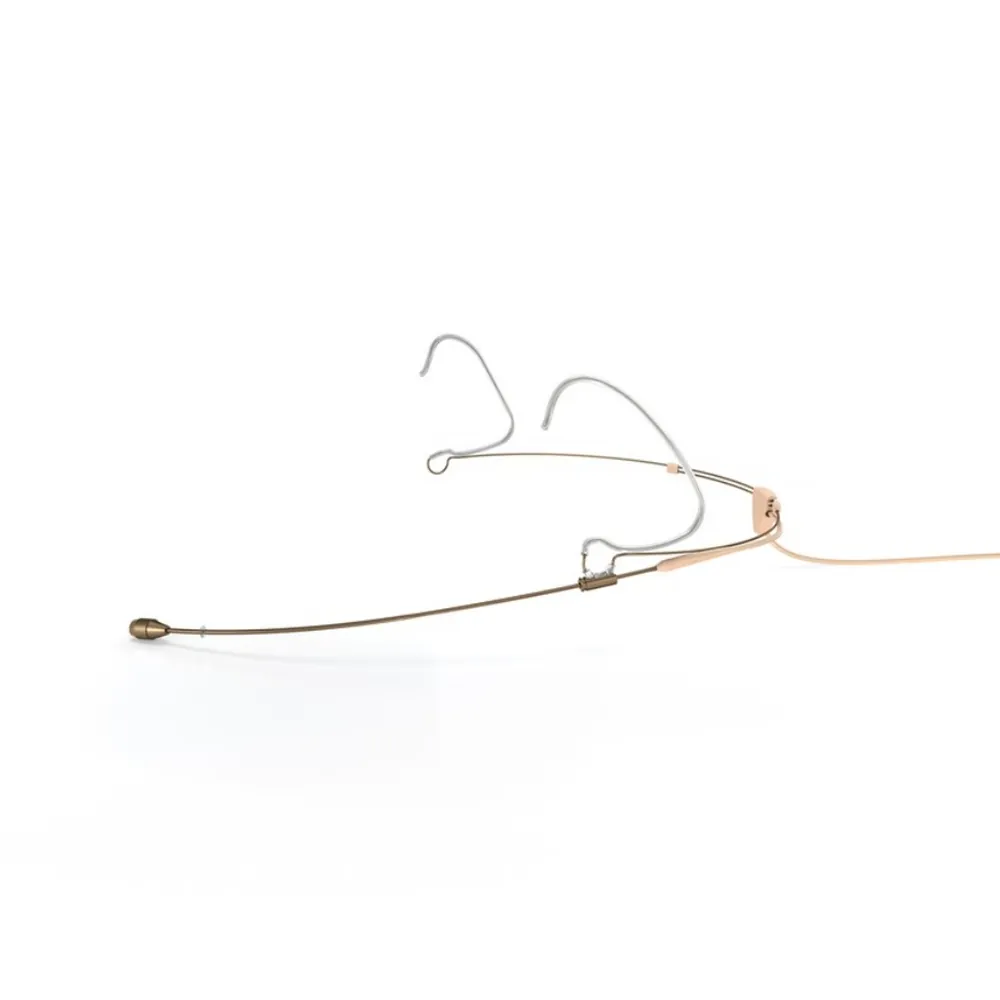

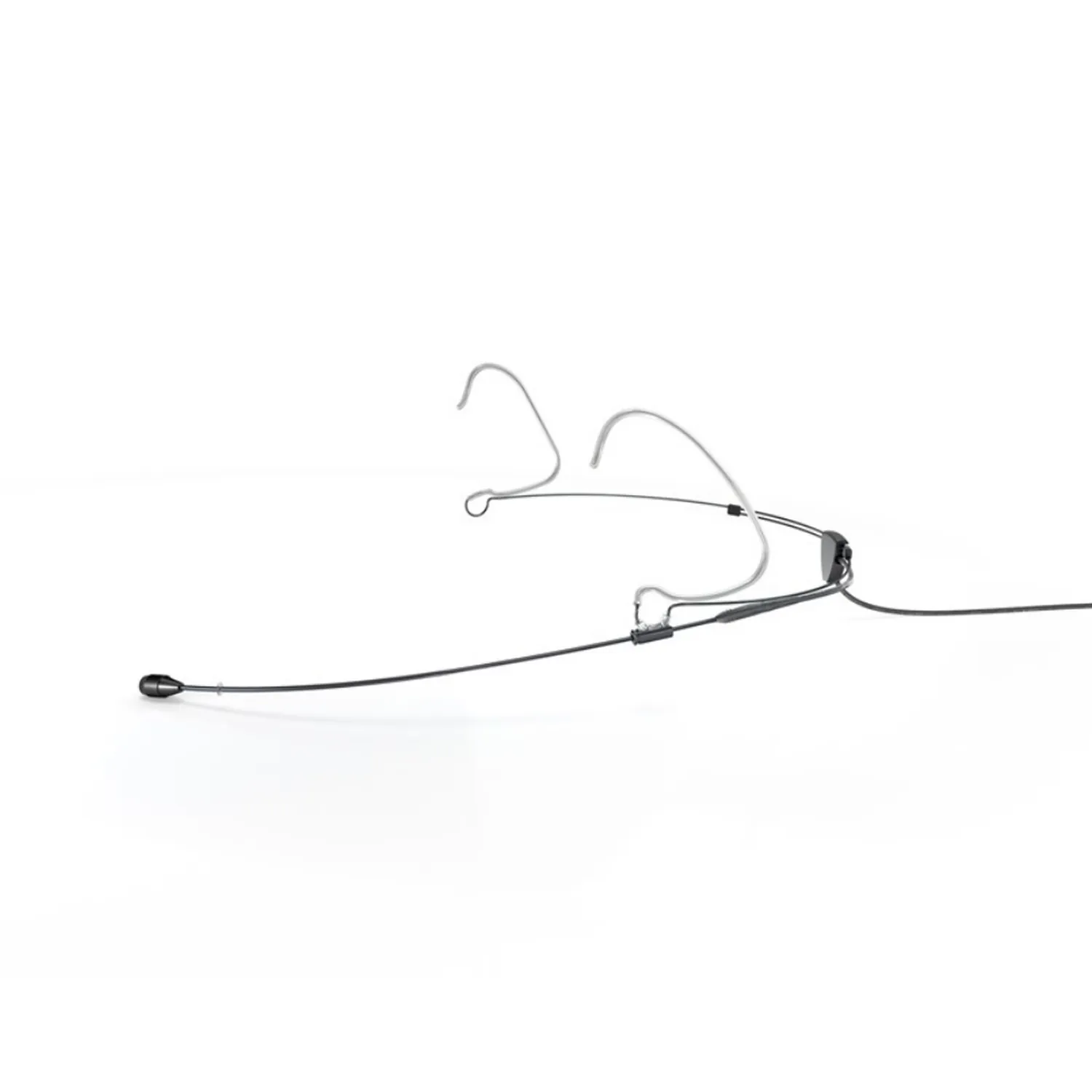

The DPA 4466 CORE+ puts a 5 mm CORE+ omnidirectional capsule on DPA’s Red Dot award-winning adjustable headset.

Its 6 mV/Pa sensitivity matches a voice to the input of most wireless transmitters. CORE+ keeps distortion below 1% up to 134 dB SPL, so presenters and performers can speak and sing at full voice. It suits theater, broadcast, houses of worship, and conferencing. The pre-fitted Soft Boost Grid adds 3 dB at 8 to 20 kHz, and the included High Boost Grid adds 10 dB around 12 kHz.

The one-size frame adjusts quickly and is stainless steel with a PVD coating that tolerates heat and resists impact and abrasion. Ear grips hold above, below, and behind each ear, firmly but gently, so the headset stays secure and comfortable through long wear.

The boom extends, shortens, and pivots at a point below the ear, with an anti-rotation shape and a sliding lock to hold its position at the corner of the mouth. It detaches to move to the other side, and a service connector lets the boom and cable be replaced separately. The cable guide at the back slides out of the camera’s view and keeps the Kevlar-core 1.6 mm cable clear of the boom.

MicroLock is DPA’s locking connector. A MicroLock adapter connects the mic to most professional wireless transmitters, and MicroLock parts also mate with MicroDot parts (the lock works only when both halves are MicroLock).

Features

5 mm omni capsule with CORE+
Red Dot award-winning one-size headset
3-point ear grips
2-way adjustable, detachable boom
Replaceable boom and cable
Soft Boost and High Boost Grids included
IP58 certified
MicroLock or hardwired connectors

Available Options

Connector	Colors	Fits
MicroLock	Black, Brown, and Beige	Any wireless system, through a DPA MicroLock adapter
3-pin Lemo	Black, Brown, and Beige	Sennheiser, Lectrosonics, Shure, Wisycom, and Trantec transmitters with a 3-pin LEMO input
Mini-Jack	Black, Brown, and Beige	Sennheiser Evolution and other transmitters with a threaded mini-jack input
TA4F Mini-XLR	Black, Brown, and Beige	Shure, TOA, and Line 6 transmitters with a TA4F input

What's Included

Headset microphone with the Soft Boost Grid fitted
High Boost Grid

Specifications

Acoustic
Directional Pattern	Omnidirectional
Principle of Operation	Pressure
Cartridge Type	Pre-polarized condenser
Frequency Response	20 Hz to 20 kHz
Effective Frequency Range (±2 dB)	Soft Boost Grid: 40 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High Boost Grid: 40 Hz to 20 kHz, 10 dB boost at 12 kHz
Sensitivity (±3 dB at 1 kHz)	6 mV/Pa (−44 dB re 1 V/Pa)
Equivalent Noise Level (A-weighted)	26 dB(A) typical (28 dB(A) max)
Equivalent Noise Level (ITU-R BS.468-4)	38 dB typical (40 dB max)
Distortion, THD below 0.5%	133 dB SPL RMS, 136 dB SPL peak
Distortion, THD below 1%	136 dB SPL RMS, 139 dB SPL peak
Dynamic Range	111 dB typical
Max. SPL (THD 10%)	144 dB SPL peak
Electrical
Rated Output Impedance	30 to 40 Ω
Power Supply	Wireless systems: 5 to 10 V through a DPA adapter With DAD6001-BC: P48 phantom power (works from 12 V)
Current Consumption	1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter
Cable Drive Capability	Up to 300 m (984 ft) with DAD9001-BC XLR adapter
Physical
Connector	MicroLock, TA4F Mini-XLR, 3-pin LEMO, or Mini-Jack
Microphone Diameter	5.4 mm (0.21 in)
Cable Length	1.3 m (4.3 ft)
Cable Diameter	1.6 mm (0.06 in)
Weight	12 g (0.4 oz) including cable and MicroLock connector
Temperature Range	−40°C to 45°C (−40°F to 113°F)
Relative Humidity	Up to 90%
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
