DPA 4098 CORE Supercardioid Gooseneck Microphone
- Supercardioid gooseneck mic for clear speech
- High rejection of noise and RF interference
- Black or white, MicroDot or XLR
From $775.00 USD
DPA 4098 CORE Supercardioid Gooseneck Microphone
The DPA 4098 CORE supercardioid gooseneck gives high speech intelligibility, with controlled directionality and strong rejection of background noise and RF interference.
It is often used where every word must be understood, such as parliaments where interpreters translate speeches as they are given. Very low noise and high sensitivity give clear, natural sound, and speaking into the side of the mic lowers the level of the voice without making it sound worse.
Lengths and Connectors

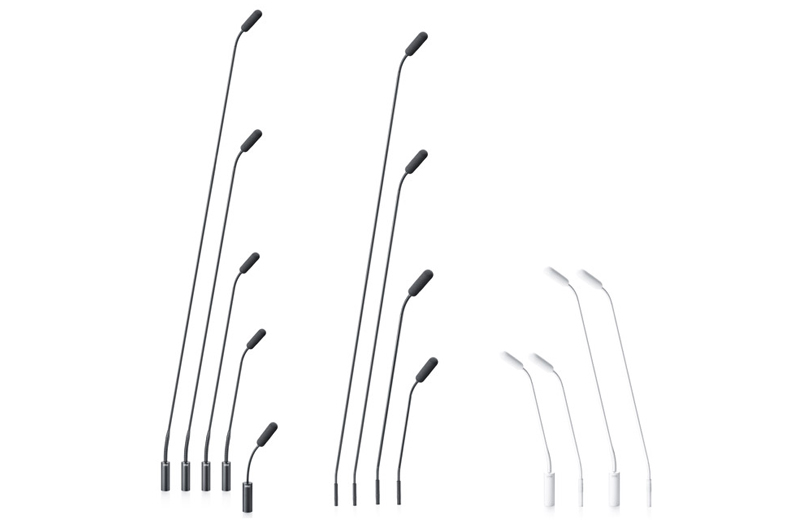

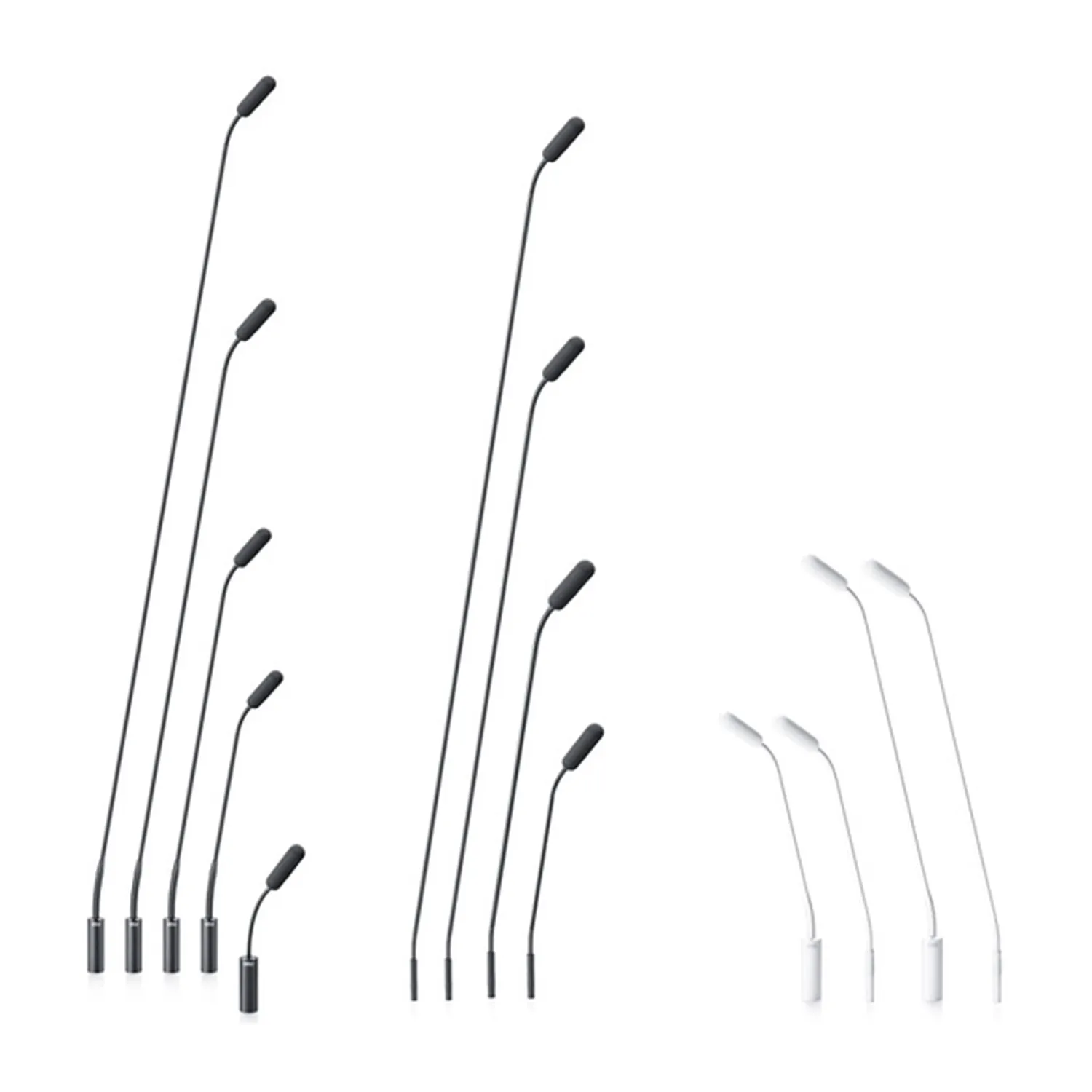

The 4098 comes in black or white, with a MicroDot or XLR connector. MicroDot versions measure 16, 28, 43, 77, or 122 cm (6, 11, 17, 30, or 48 in). XLR versions measure 20, 32, 47, 77, or 122 cm (8, 13, 18, 30, or 48 in). White comes in the three shorter lengths of each. The shortest versions are gooseneck along their full length, while the longer ones bend at the top and bottom.
MicroDot versions run from a wireless transmitter or, with a DPA XLR adapter, from P48 phantom power. XLR versions run on P48 and add a permanent low cut at 80 Hz.
Features
- Supercardioid, highly directional pickup
- High rejection of RF interference
- Very low noise and high sensitivity
- Works as a wireless podium mic
- Black or white
- MicroDot or XLR connector
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Supercardioid |
| Principle of Operation | Pressure gradient |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB at 20 cm) | MicroDot: 80 Hz to 15 kHz with 3 dB soft boost at 8 to 15 kHz XLR: 100 Hz to 15 kHz with 3 dB soft boost at 8 to 15 kHz and permanent second-order low cut at 80 Hz |
| Sensitivity (±3 dB at 1 kHz) | 16 mV/Pa (−36 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 23 dB(A) typical (26 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 35 dB typical (38 dB max) |
| Distortion, THD below 1% | 130 dB SPL RMS, 133 dB SPL peak |
| Dynamic Range | 110 dB typical |
| Max. SPL (THD 10%) | 135 dB SPL peak |
| Electrical | |
| Rated Output Impedance | MicroDot: 30 to 40 Ω XLR or DAD9001-BC adapter: 100 Ω |
| Power Supply | MicroDot: 5 to 10 V through a DPA adapter for wireless systems, or P48 phantom power with DAD6001-BC XLR adapter XLR: P48 phantom power |
| Current Consumption | 1.5 mA typical (microphone) 3.5 mA with DAD9001-BC XLR adapter |
| Cable Drive Capability | MicroDot: up to 300 m (984 ft) with DAD9001-BC XLR adapter XLR: up to 100 m (328 ft) |
| Common Mode Rejection Ratio | Over 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter |
| Physical | |
| Connector | MicroDot or XLR-3M |
| Microphone Diameter | 5.7 mm (0.22 in) |
| Length | MicroDot: 16, 28, 43, 77, or 122 cm (6, 11, 17, 30, or 48 in) XLR: 20, 32, 47, 77, or 122 cm (8, 13, 18, 30, or 48 in) |
| Weight | MicroDot: 12 g (0.4 oz) at 16 cm, 20 g (0.7 oz) at 28 cm, 28 g (1.0 oz) at 43 cm, 55 g (1.9 oz) at 77 cm, 67 g (2.4 oz) at 122 cm XLR: 75 g (2.6 oz) at 20 cm, 80 g (2.8 oz) at 32 cm, 88 g (3.1 oz) at 47 cm, 115 g (4.1 oz) at 77 cm, 127 g (4.5 oz) at 122 cm |
| Colors | Black, white |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
