Deity Mini Distribution Kit with SPD-Mini and SRD-Mini

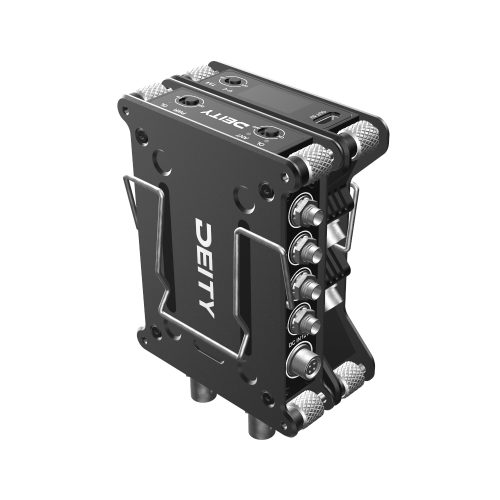

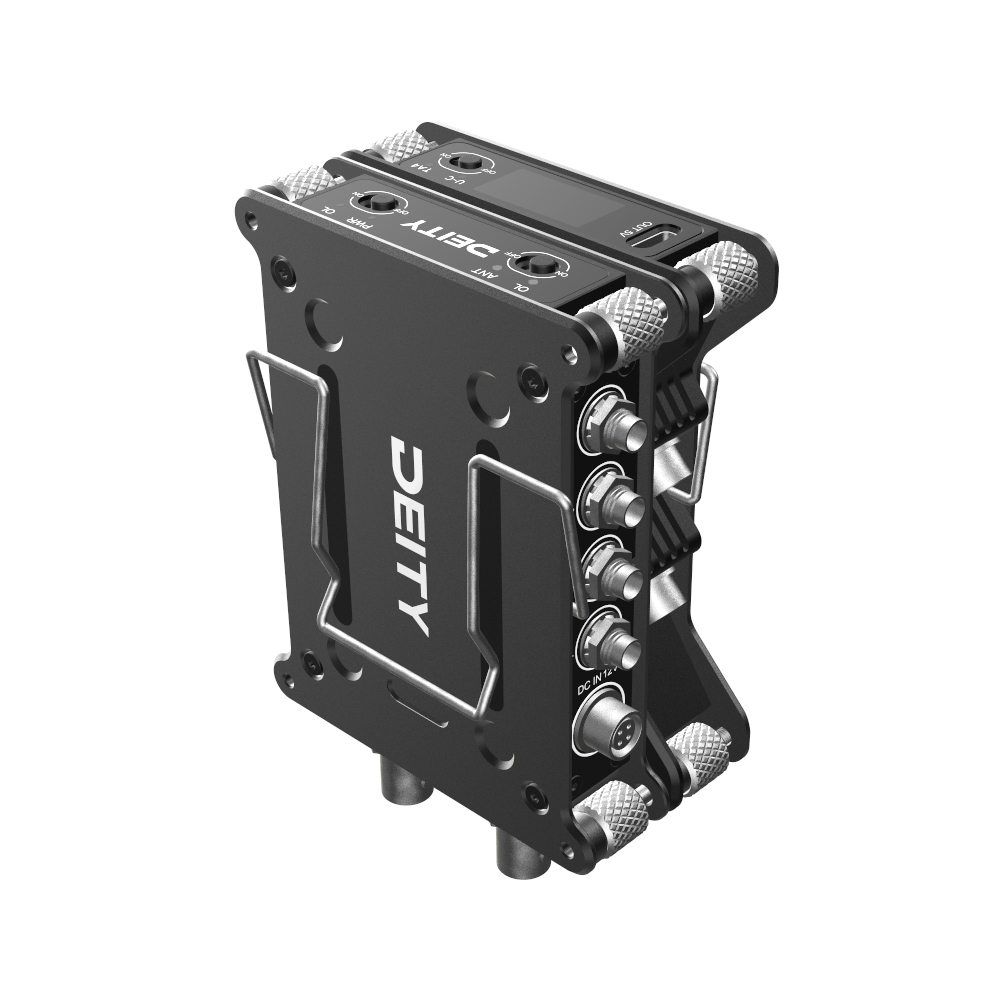

The Deity Mini Distribution Kit pairs the SPD-Mini power distributor with the SRD-Mini antenna distribution system, two units that lock together in a sound bag and share power without a cable.

The SPD-Mini has five 4-pin push-pull power outputs, switched on and off from the top. Its 5 V USB-C output, with 10 W of power delivery, keeps a phone or tablet running the Sidus Audio app topped up. Its color screen shows telemetry from SMBus smart batteries, including the hours left, worked out from the current draw. A switch flips the screen upside down. Two belt clip mounting points let it sit either way in a bag.

Power comes into the SPD-Mini through a TA4 smart battery cup or USB-C, which defaults to 15 V PD and also accepts 12 V PD. Output 1, beside the inputs, passes smart battery data to recorders that read it, such as the Sound Devices 8-Series, and handles the draw of a Sound Devices 888.

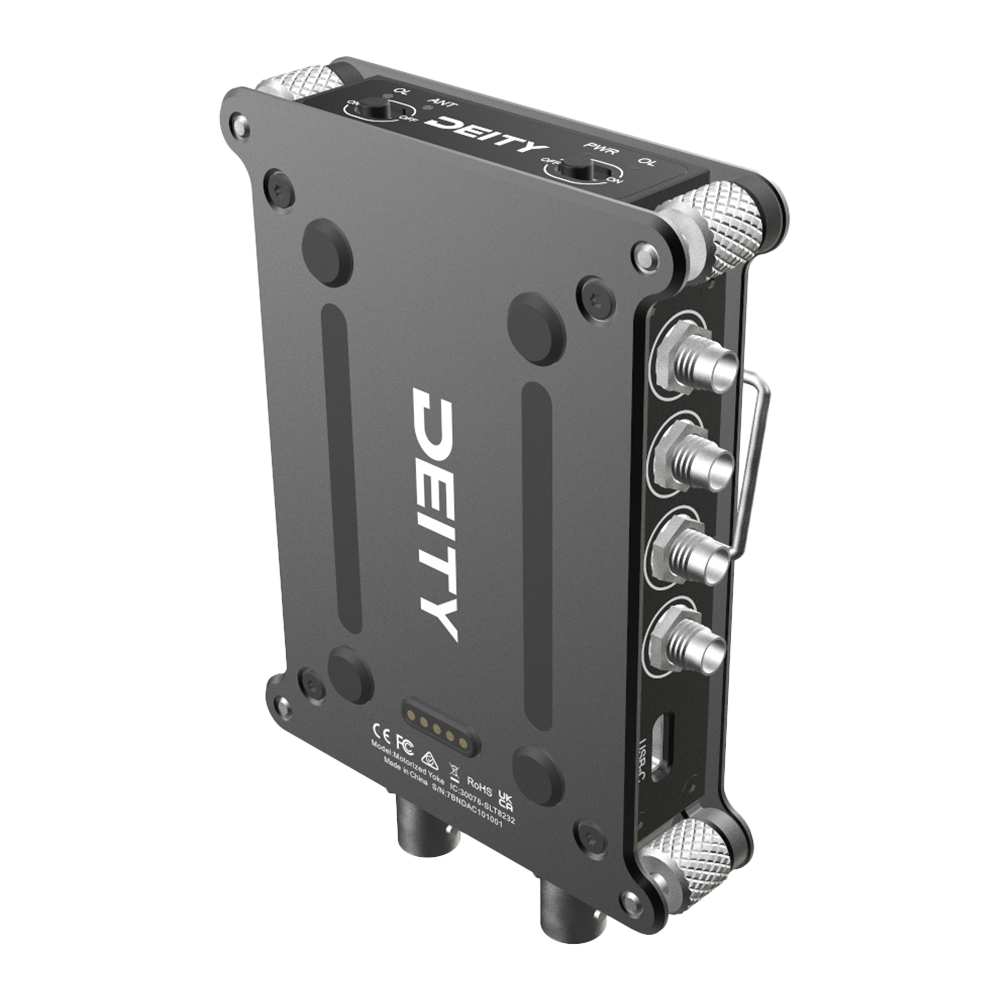

The SRD-Mini splits two antenna inputs, A and B, into four outputs each. Its active splitter makes up for line loss and works with passive and active antennas, and each side can power external antenna circuitry. An LED above each side’s switch lights when the incoming signal overloads the RF amplifier.

The SRD-Mini’s inputs are 50 Ω BNC and its outputs 50 Ω SMA, and it covers 470 MHz to 1 GHz, so it suits nearly any UHF wireless system. The two units join through four threaded mounting points, and the SPD-Mini powers the SRD-Mini through pogo pins. The SRD-Mini also takes power from a 4-pin Hirose-compatible input or USB-C.

Features

• SPD-Mini power distributor and SRD-Mini antenna distribution system
• Five switched 4-pin outputs and 10 W USB-C
• Smart battery telemetry on a color screen
• Two antenna inputs to eight outputs, 470 MHz to 1 GHz
• Overload LEDs and antenna power
• Cable-free power between the two units
