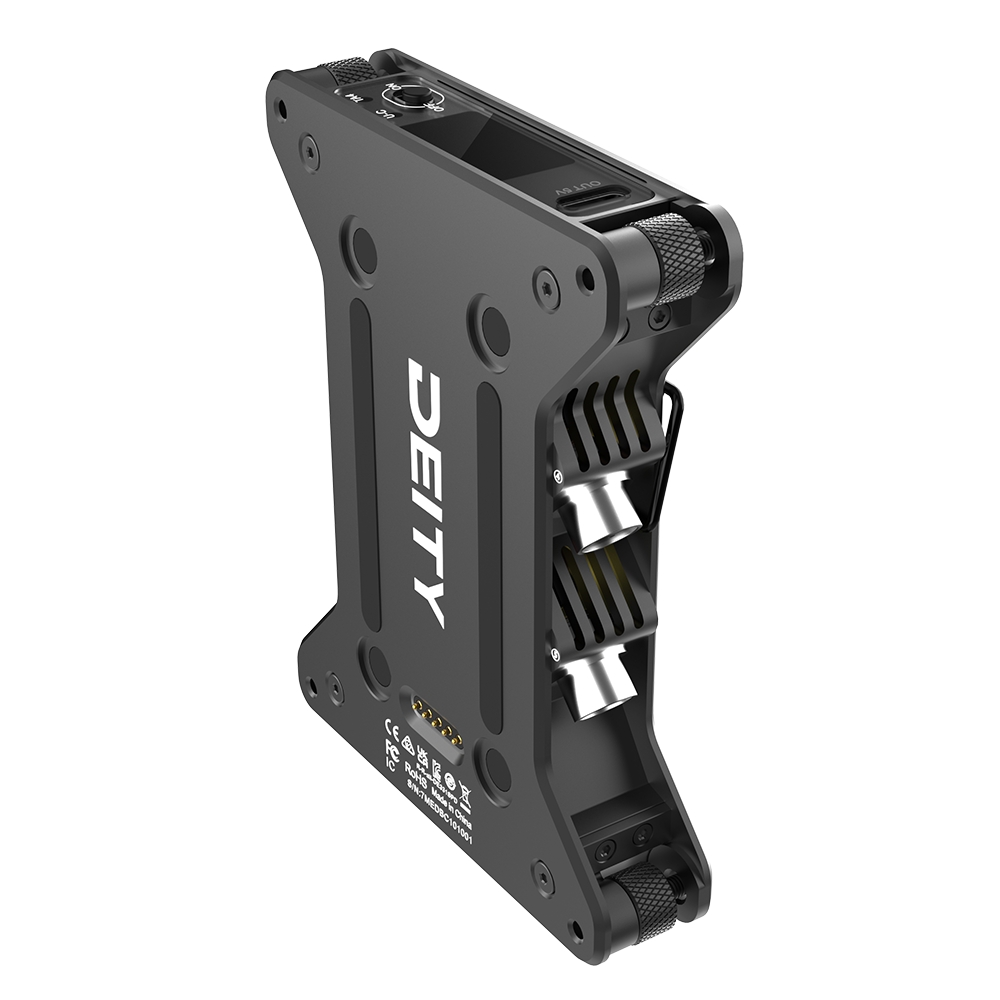

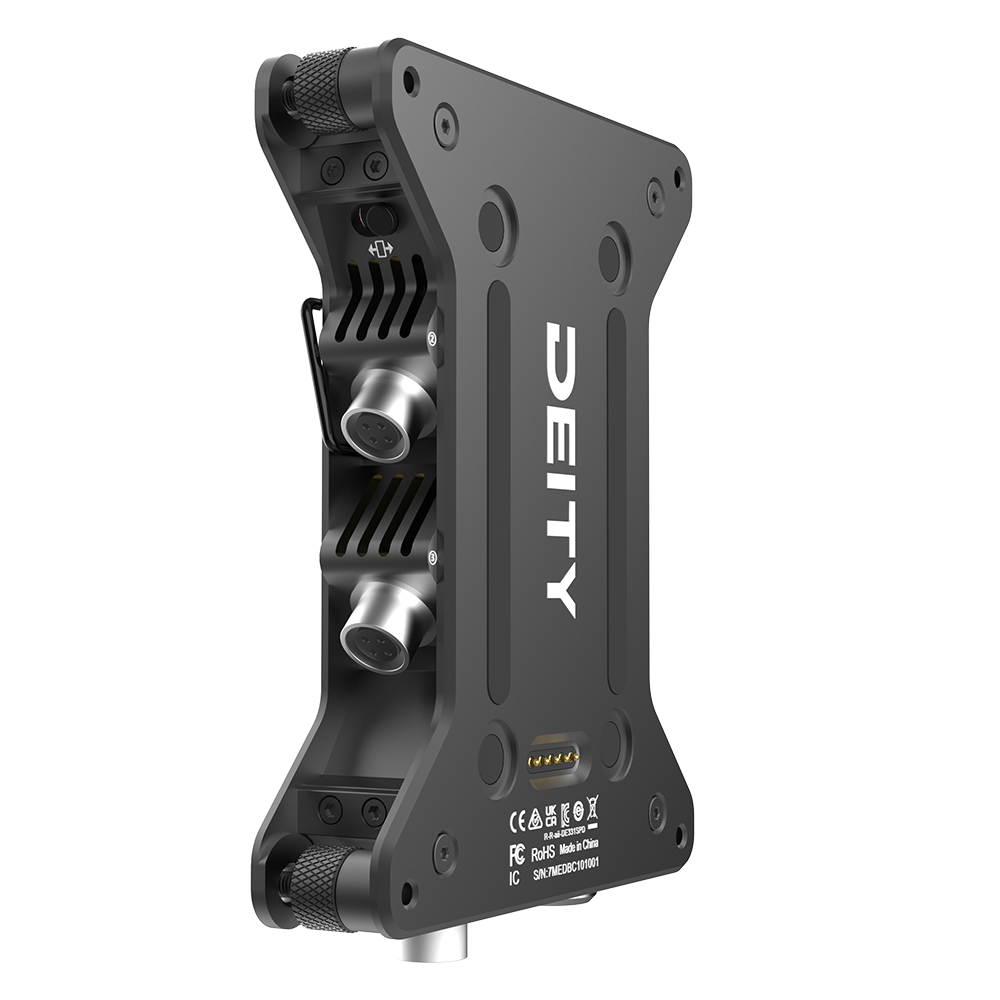

Deity SPD-Mini Compact Power Distributor

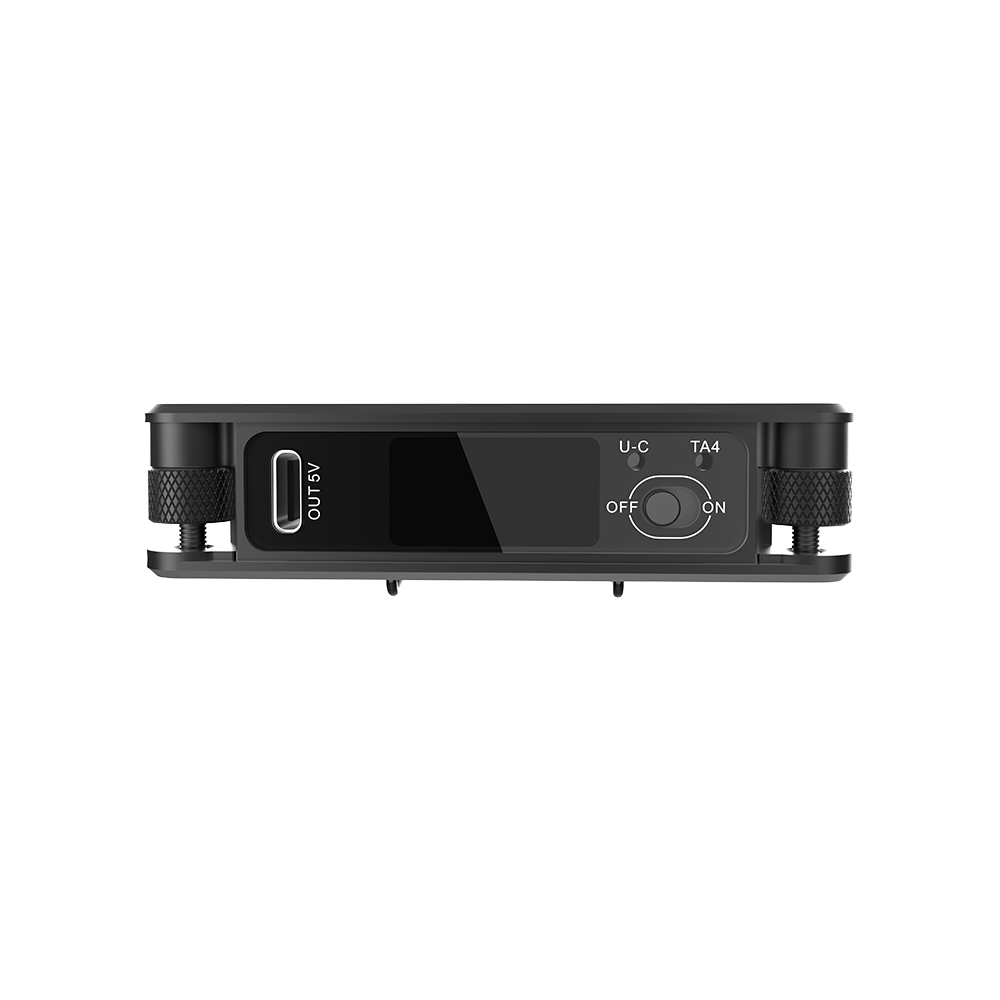

The Deity SPD-Mini is a compact power distributor with five 4-pin push-pull outputs under a top-mounted switch and a 5 V USB-C output for 10 W.

Its color screen shows real-time telemetry from SMBus smart batteries, with the hours left at the current draw. A switch flips the screen, and two belt clip points let the SPD-Mini sit either way up in a sound bag.

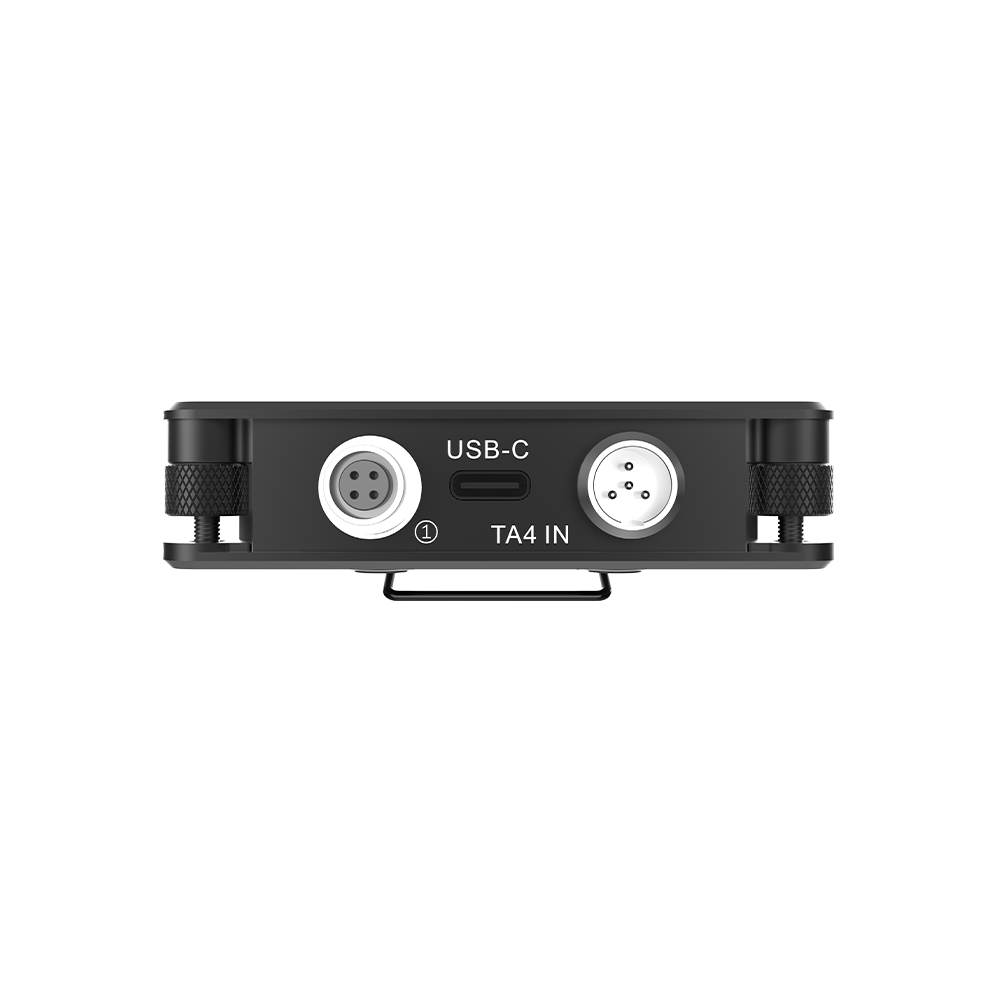

Power comes from TA4 smart battery cups or from USB-C, which defaults to 15 V PD and also accepts 12 V PD. Output 1 passes smart battery data to recorders that read it, such as the Sound Devices 8-series. The SPD-Mini can run a high-draw recorder such as the Sound Devices 888.

Four threaded points mount the SPD-Mini to an SRD-Mini in Deity’s Regional Power System, and the two then share power without a cable.

Features

• Five 4-pin push-pull outputs with a top switch
• 5 V USB-C output for 10 W
• Color screen with smart battery telemetry and hours left
• Flippable screen
• TA4 smart battery cup and USB-C inputs (15 V or 12 V PD)
• Passes battery data to Sound Devices 8-series recorders
• Mounts to the SRD-Mini in Deity’s Regional Power System
