Deity BF1 Wideband Butterfly Antenna Kit
369.00 USD
Deity BF1 Wideband Butterfly Antenna Kit — Pair of bow-tie antennas designed to have a relatively wide bandwidth, operating effectively over a range of frequencies.
Share on:
Description

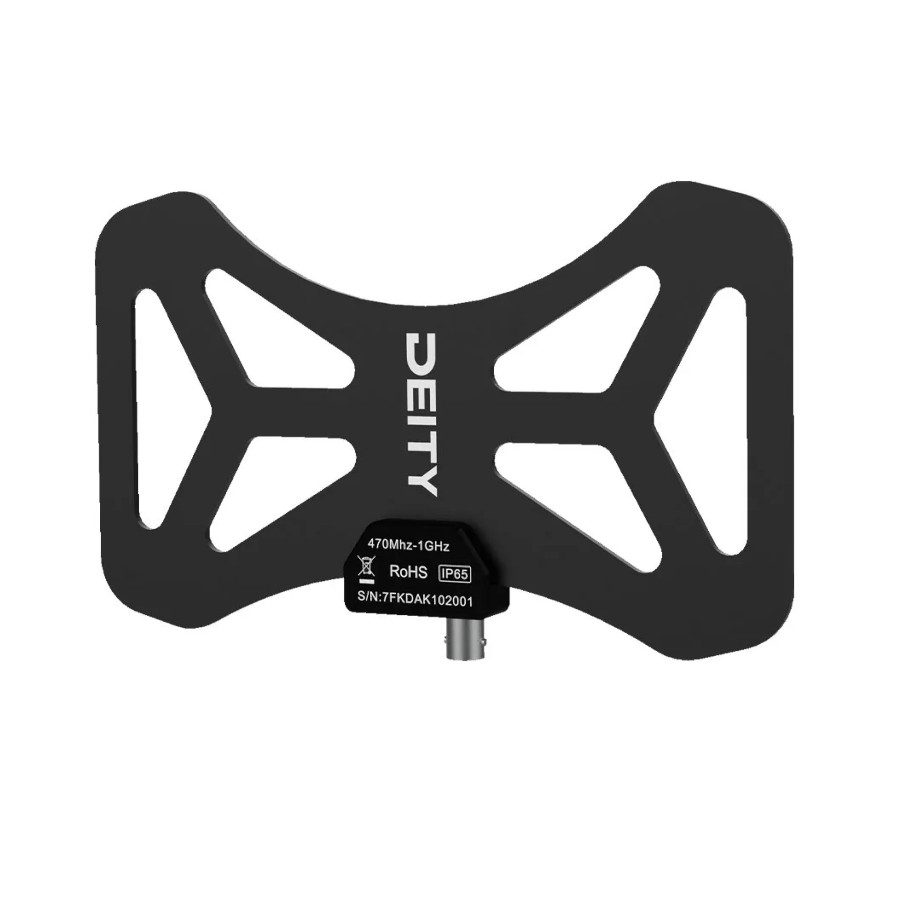

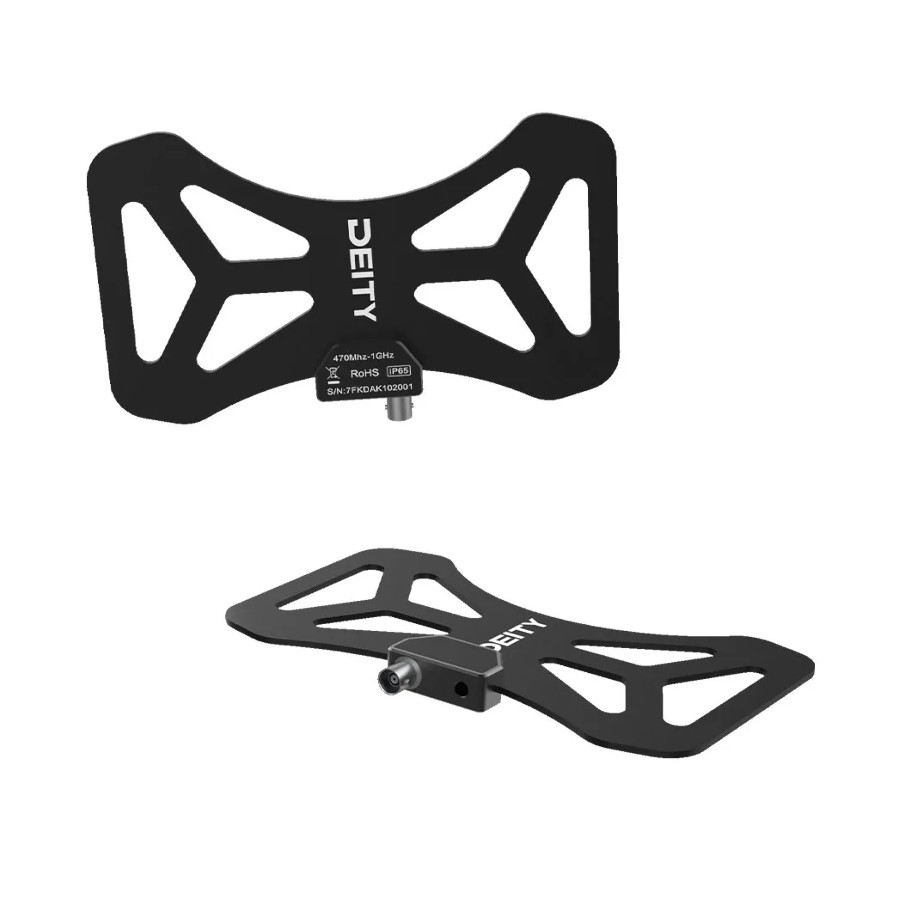

Deity BF1 Wideband Butterfly Antenna Kit
Deity BF1 Wideband Butterfly Antenna Kit — Pair of bow-tie antennas designed to have a relatively wide bandwidth, operating effectively over a range of frequencies.
Features:
- Ultra Wideband Design
- 470MHz-1GHz
- Rugged Build Quality
- CNC Metal Mount
- 50Ohm BNC Connector
- Omnidirectional pickup pattern
- Compact Design
SUPPORTS GLOBAL ONEBAND™ FREQUENCIES
The Deity Butterfly wideband support spans 470MHz-1,000GHz. This means you have plenty of support for the Global OneBand within the THEOS ecosystem, but also plenty of extra frequency bandwidth to support other brands of wireless, as well. Now when you go into an antenna splitter, you can mix and match different blocks/bands.
WEATHER SEALED HOUSING
The BNC mount is IP65 weather sealed for situations where the butterfly antenna is being used for a permanent outdoor install.
METAL MOUNT BRACKETS
Mounting bracket is made out of CNC’d aluminum, providing a rugged and secure block for a 1/4″ 20 threaded mounting hole.
The ball head pivot arms are also made out of 100% metal, making for a durable accessory.

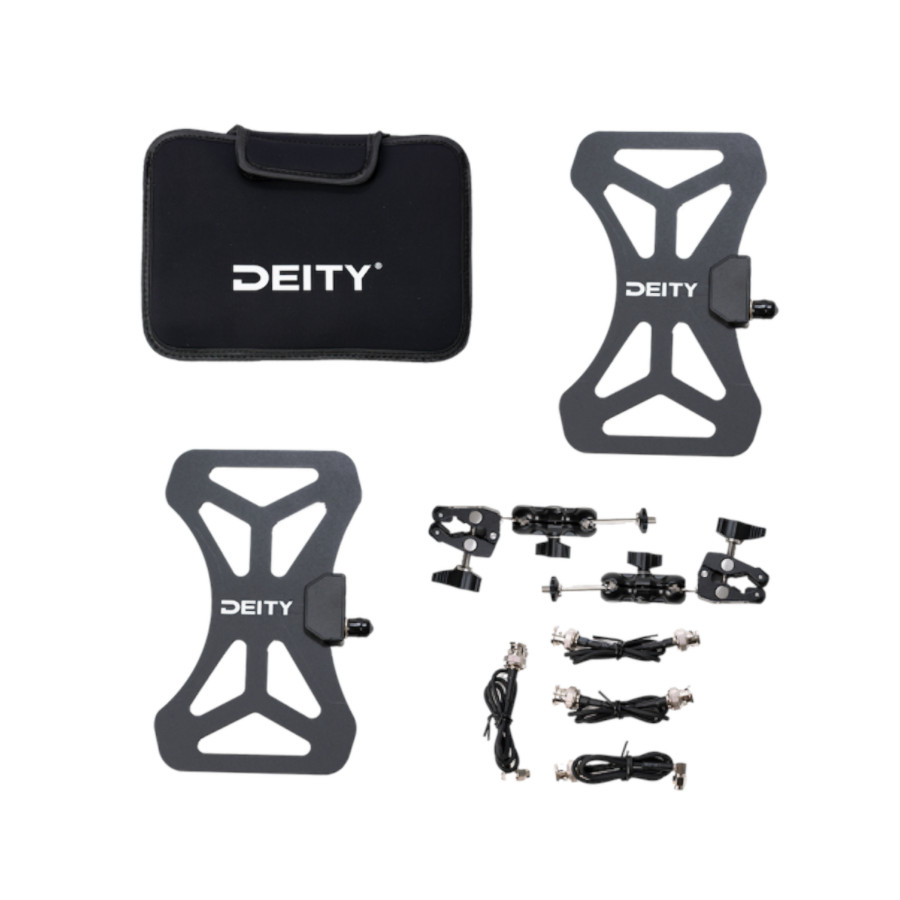

What’s Included:
- 2x BF1 Antenna
- 2x Articulating mounting arm
- 2x BNC to BNC Cables
- 2x BNC to Right Angle SMA Cables
- 1x Carrying Case
Specifications
| Antenna Type | Passive |
| Frequency Range | 470MHz~1GHz |
| Gain | Ave +2.2dBi |
| Impedence | 50 Ohm |
| RF Connector | BNC |
| Standing Wave Ratio | <1.5 (550~750MHz) |
| Built-In Filter | None |
| Pickup Pattern | Omni-Directional |
| Mounting | 1/4″-20 |
| Material | Composite Fiberglass |
| Dimensions (H x W x D) | 19*11.5*15 mm 7.5*4.5*.6 inch |
| Weight | 98 g (Antenna Only) 3.4 oz |
| Included In Kit | 2x BF1 Antenna 2x Articulating mounting arm 2x BNC to BNC Cables 2x BNC to Right Angle SMA Cables 1x Carrying Case |
