Deity SRD-Mini Antenna Distribution System
- Two antenna inputs split to eight outputs
- Active splitter, 470 MHz to 1 GHz
- 4-pin Hirose, USB-C, or SPD-Mini power
$549.00 USD
Availability: In Stock
Deity SRD-Mini Antenna Distribution System
The Deity SRD-Mini is a slim antenna distribution system for a sound bag, splitting two antenna inputs, A and B, into four outputs each.

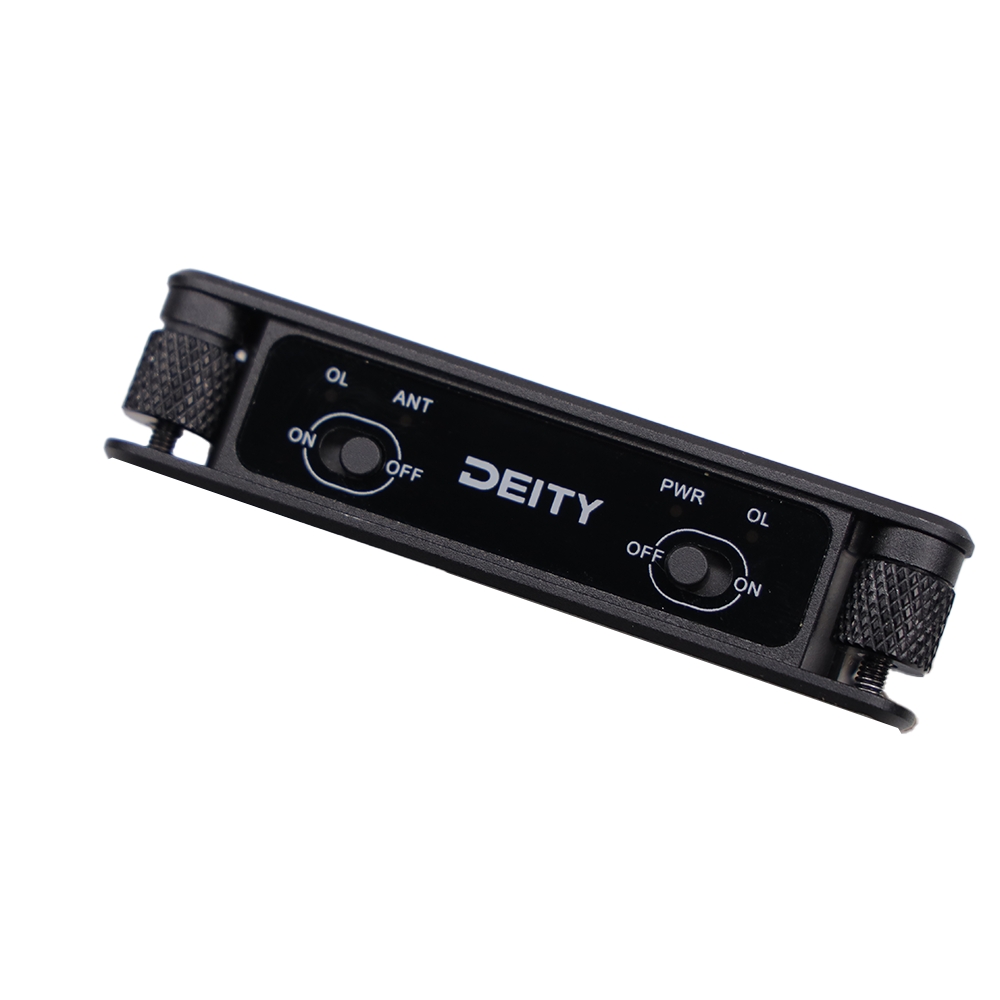

An active splitter makes up for the gain lost in splitting, and it works with passive and active antennas. Each side can power external antenna circuitry and has its own on/off switch. An LED above each switch lights when the incoming signal overloads the RF amplifier.

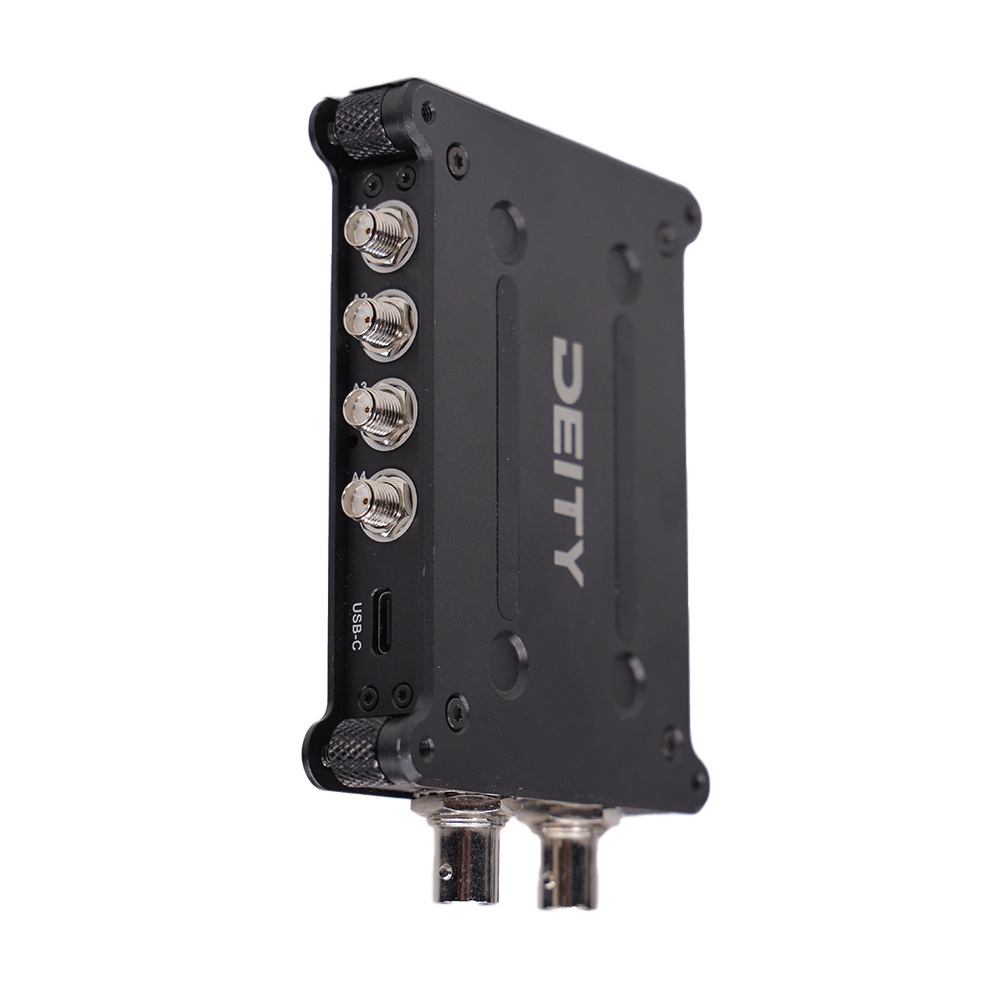

The inputs are 50 Ω BNC and the outputs 50 Ω SMA. The SRD-Mini covers 470 MHz to 1 GHz, so it works with nearly any UHF wireless system, anywhere in the world.

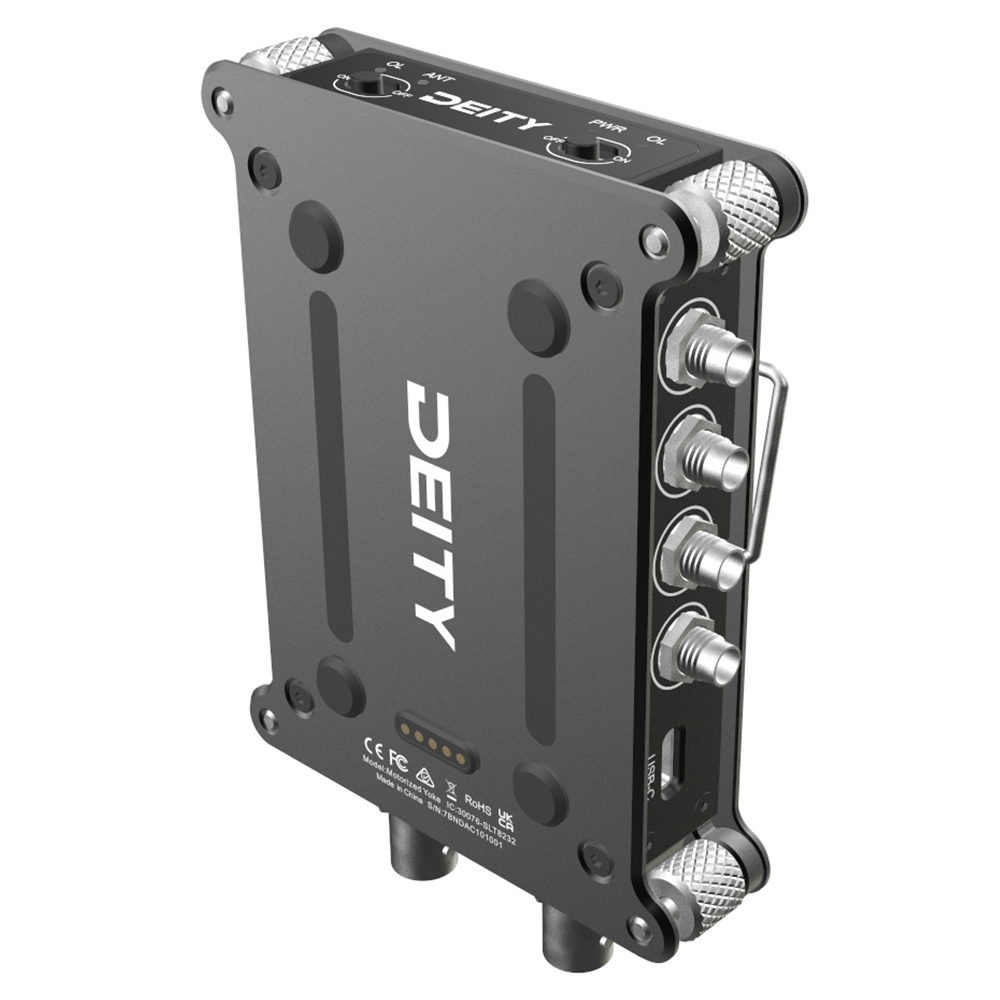

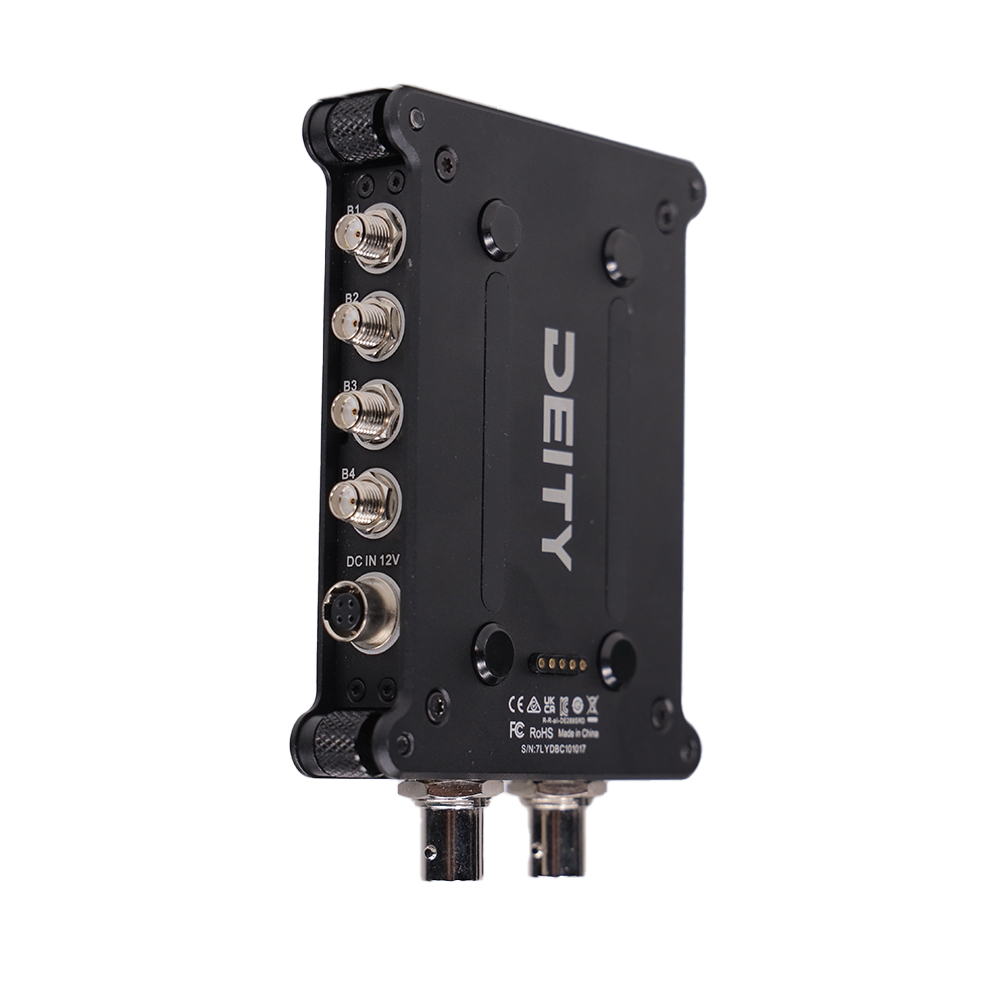

Power comes from a 12 to 16.8 V 4-pin Hirose-compatible input or 5 V USB-C. In Deity’s Regional Power System, the SPD-Mini power distributor (sold separately) powers it without a cable through its pogo pins. The CNC-machined aluminum body is light and slim enough to place anywhere in a bag.
Features
- Two BNC inputs, eight SMA outputs
- Active splitter for passive and active antennas
- Switchable antenna power on each side
- Overload LEDs
- 470 MHz to 1 GHz
- 4-pin Hirose, USB-C, or SPD-Mini pogo pin power
- CNC-machined aluminum, 185.5 g
Specifications
| SRD-Mini | |
|---|---|
| Frequency Range | 470 MHz to 1 GHz |
| Gain | +3 to +9 dB |
| Port Isolation | >20 dB |
| Input Impedance | 50 Ω |
| Output Impedance | 50 Ω |
| Front-End Max Input Signal | +13 dBm |
| Overload Indication | 0 dBm |
| Noise Figure | <1.5 dB |
| Working Voltage | USB-C: 5 V DC 4-pin Hirose: 12 to 16.8 V |
| Current Consumption | <160 mA (4-pin input) |
| RF Inputs | 2 x BNC |
| RF Outputs | 8 x SMA |
| Material | Aluminum alloy |
| Dimensions | 115.5 × 78 × 20.8 mm |
| Weight | 185.5 g (6.5 oz) |
