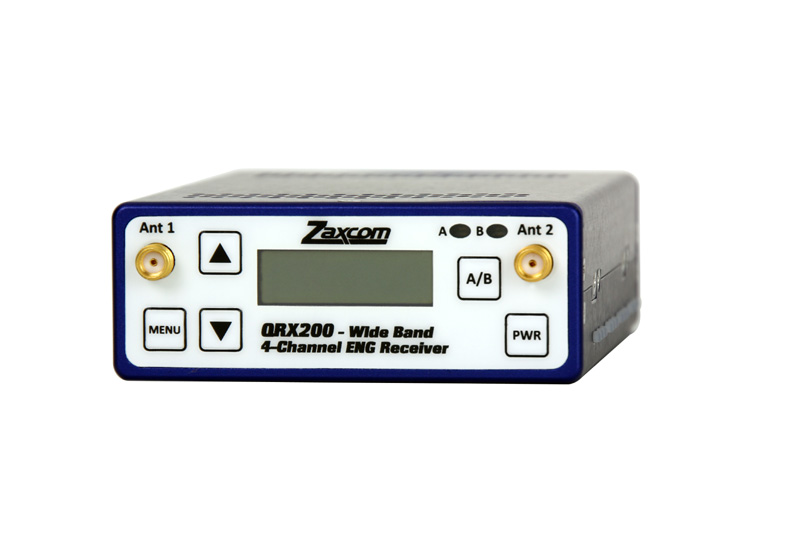

Zaxcom QRX200 200 MHz Digital Wideband Receiver

Tuning across 200 MHz, from 512 to 698 MHz, the Zaxcom QRX200 is an ENG receiver that takes four channels of audio from two transmitters.

Anywhere in blocks 20 through 26, its tracking front-end filter opens a 35 MHz window around the frequencies in use and blocks strong signals outside it, such as walkie-talkies and wireless follow-focus units. It accepts any mix of Zaxcom mono and stereo UHF transmitters.

Outputs and Control

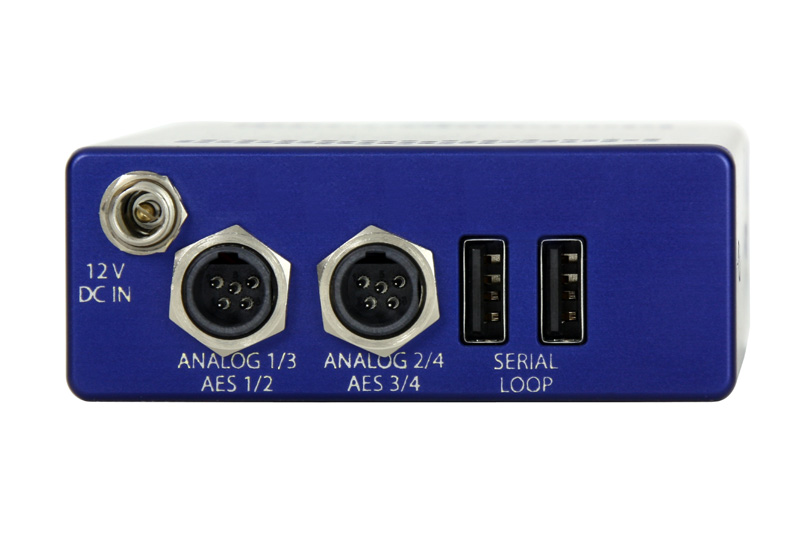

Two TA5 connectors carry AES digital audio or analog audio at mic (−35 dB), consumer (−10 dB), or line (0 dB) level. Two serial loop USB connectors link it to another QRX200 or a QRX235 to share the QRX235’s remote control.

Power

The QRX200 runs from any external 9 to 18 V source through a single Switchcraft 760K connector and draws 300 mA at 12 V DC.

Features

• Wideband ENG receiver, 512 to 698 MHz
• Four channels from two transmitters
• Tracking front-end filter with a 35 MHz window
• Works with Zaxcom mono and stereo transmitters
• AES digital or analog outputs on 2 TA5 connectors
• Serial loop to a QRX200 or QRX235
• 9 to 18 V DC power
