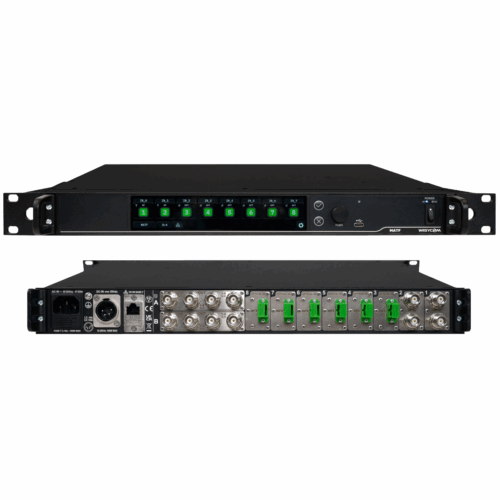

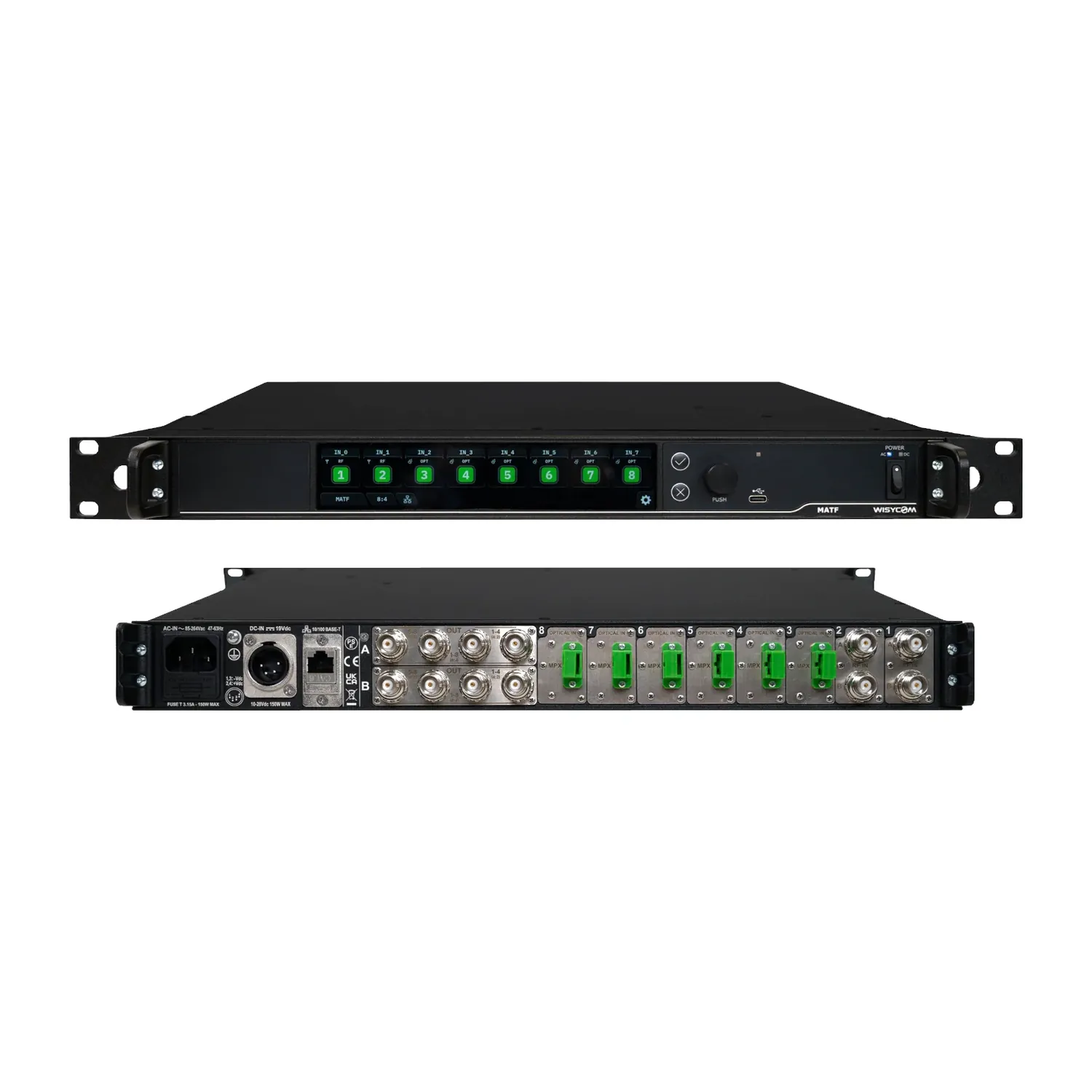

Wisycom MATF Antenna Matrix/Combiner

For centralized RF distribution, the Wisycom MATF is an RF over fiber antenna matrix/combiner that brings fiber and coax antenna feeds together in one compact frame.

Made for theater, corporate, broadcast, and OB work, it covers 170 to 1260 MHz and combines up to 8 zones in diversity. In software you set it up as 8 zones into 4 outputs, or as two sets of 4 zones into 2 outputs.

A built-in spectrum analyzer checks each input before the MATF switches it into the combined signals, and the analyzer monitors the combined signal too. Over the coax, the MATF controls the gain and filters of Wisycom’s LFA and ADFA smart antennas and BFA modules. You configure it on a large color touchscreen or remotely over Ethernet.

Its input modules are coax or optical. An optical module comes without a multiplexer (No Mux in the options, with two LC/APC connectors) or with one (Mux, with one SC/APC connector). The MATF takes up to 6 optical modules in all, on single-mode fiber. It runs on AC or DC power.

Features

170 to 1260 MHz
Combines up to 8 zones in diversity
8 zones into 4 outputs, or dual 4 zones into 2 outputs
Built-in spectrum analyzer
Remote control of LFA, ADFA, and BFA gain and filters over the coax
Color touchscreen and Ethernet control
Coax and optical input modules, up to 6 optical
AC and DC power inputs

Available Options

Configuration	Part Number
4 Coax + 4 Fiber, No Mux	MATFCCFFCCFF
2 Coax + 6 Fiber, No Mux	MATFCCFFFFFF
4 Coax + 4 Fiber with Mux	MATFCCMMCCMM
2 Coax + 6 Fiber with Mux	MATFCCMMMMMM

Specifications

RF Specifications
Frequency Range	170 MHz – 1260 MHz
Input Gain	−25 dB to +3 dB in 0.5 dB steps Set independently for each input module, A and B separately
OIP3	+22 dBm typical, coaxial module (3 dB gain) +18 dBm typical, optical module (3 dB gain)
Amplifier Linearity	±1 dB typical, coaxial module
Noise Figure	6 dB typical, coaxial module (3 dB gain) 15 dB typical, optical module (3 dB gain)
Outputs
Connectors	4 diversity outputs (4A and 4B), BNC female, 50 Ω
Coaxial Inputs
Connectors	2 × BNC female (A and B), 50 Ω
Max RF Input Level	−10 dBm, with overload alarm
Antenna Booster Power	+12 V DC, 220 mA +12 V DC, 400 mA High Boost, for up to 2 coaxial modules (software configurable)
Optical Inputs
Connectors	2 × LC/APC, optical module without MUX (“F” version) 1 × SC/APC, optical module with MUX, 1510 nm and 1550 nm (“M” version) Note: All fiber links require single-mode fiber. A maximum of 6 optical modules is supported.
Input Level	−6 dBm to +6 dBm (0.25 mW to 4 mW)
Absolute Max Optical Power	10 mW Do not exceed the maximum optical input power.
Wavelength	1300 nm – 1650 nm, “F” module 1510 nm and 1550 nm, “M” module
Spectrum Scanner
Frequency Range	170 MHz – 260 MHz 460 MHz – 1260 MHz
Input Channels	Software selectable: any 1 of the 8 input modules, or the combined signals
Frequency Resolution	50 kHz
Input Attenuator	0 dB, 10 dB, or 20 dB (software selectable)
Timebase Accuracy	±2.5 ppm maximum from 0 °C to 50 °C (32 °F to 122 °F)
Displayed Average Noise Level	−112 dBm typical
Displayed Amplitude Range	−117 dBm to −17 dBm
Max Input Level	−7 dBm (20 dB input attenuation)
Amplitude Accuracy	±1.5 dB typical
Input IIP3	+15 dBm typical (0 dB input attenuation)
Sweep Speed	70 MHz/s with diversity inputs
Full-Range Sweep Time	13 seconds
General
USB Port	Reserved for future use
Control Interface	Touchscreen menu, 2 buttons, and encoder Remote control via 10/100BASE-T Ethernet
Power Supply	AC: 85 V – 264 V, 47 Hz – 63 Hz, 150 W max, T3.15A fuse DC: 10 V – 28 V, 150 W max
Power Consumption	80 W typical (2 High Boost coaxial modules and 6 optical modules)
Display	1424 × 280 px color touchscreen, 16.7 million colors
Temperature Range	−10 °C to +50 °C 14 °F to 122 °F
Dimensions (W × H × D)	48.3 × 4.38 × 34.9 cm 19.02 × 1.72 × 13.74 in
Weight	Approx. 4.5 kg (9.92 lb)
Latest Specifications	Specifications are subject to change without notice. For current information, visit wisycom.com.
