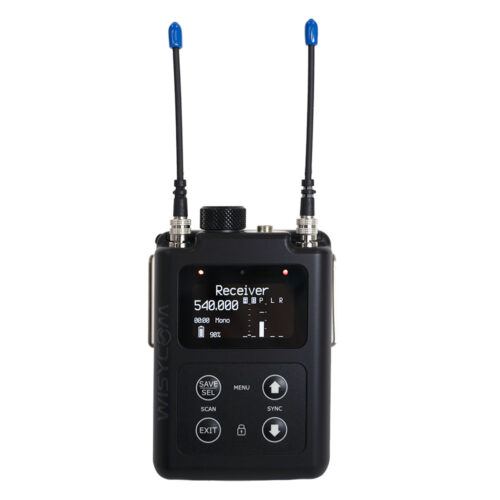

Wisycom MPR60 Wideband IEM Receiver

Made for live events, theater, houses of worship, broadcast, and location sound, the Wisycom MPR60 is a wideband true diversity IEM and IFB receiver. One unit tunes 470 to 800 MHz plus 823 to 832, 940 to 960, and 1240 to 1260 MHz.

The MPR60 has four working modes: stereo IEM, wideband IFB, narrowband IFB, and 3-channel IFB. In IEM mode it holds channels as close as 400 kHz apart, and stereo separation is better than 60 dB. In IFB mode it pairs with Wisycom’s MTP60, MTP61, and MTH610 transmitters and offers noise squelch, tone squelch, and the ENS, ENR, and ENC companders. In stereo and 3-channel IFB modes it works with the MTK982 transmitter.

Automatic audio power limitation measures the impedance of the earphones and adjusts the output to suit. The locking 3.5 mm headphone jack delivers 2 × 125 mW into 16 Ω.

A high resolution display stays readable in sunlight, and four buttons and an automatic scan make setup quick. The housing is rated IP65, and the RF connectors can be replaced with a special tool. The receiver is ready for remote control over Bluetooth and LoRa. Two AA batteries run it for about 3.5 hours on alkalines or 6.5 hours on LBPXL lithium cells.

Features

• True diversity reception from 470 to 1260 MHz in four bands
• Stereo IEM, wideband IFB, narrowband IFB, and 3-channel IFB modes
• IEM channels as close as 400 kHz apart
• Stereo separation better than 60 dB
• Automatic audio power limitation for in-ear headphones
• Locking 3.5 mm headphone output, 2 × 125 mW
• Display readable in sunlight
• IP65 rated housing with replaceable RF connectors
• Prepared for remote control over Bluetooth and LoRa
• Runs on two AA batteries
