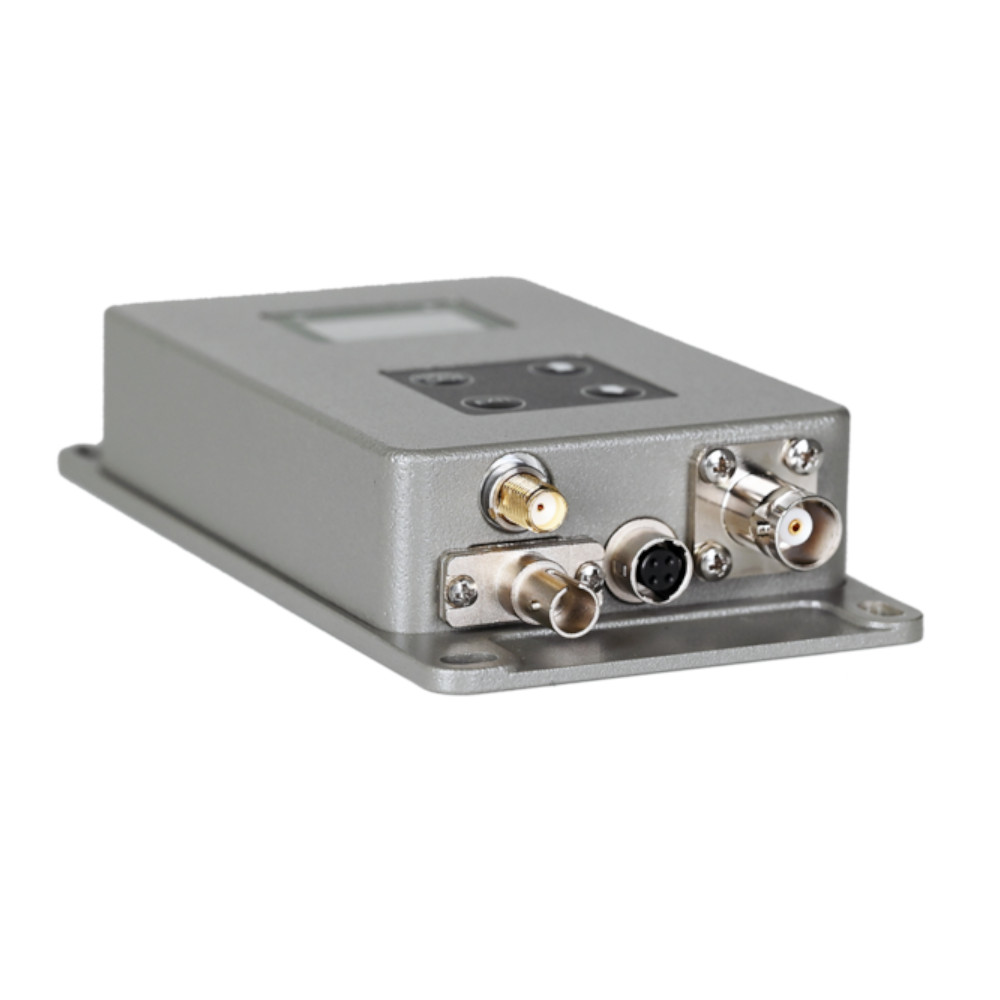

Wisycom BFL-T1 RF Over Fiber Transmitter Module

The Wisycom BFL-T1 sends RF over fiber: its 4 mW (6 dBm) laser turns an RF signal into light and carries it miles to a BFL-R1 receiver module.

In ANT mode it sits in a remote area with the antennas and sends their signal back to your receivers with minimal loss. In IFB mode it works with an MTK982 transmitter to send a low power IFB or IEM channel out to a remote area, where a PAW booster brings it up to working level.

Twenty band-pass filter options and a software tunable filter, set in 1 MHz steps, make the RF link more reliable. The F1 filter version sold here covers 170 to 1260 MHz. A 12 V, 150 mA output powers active antennas.

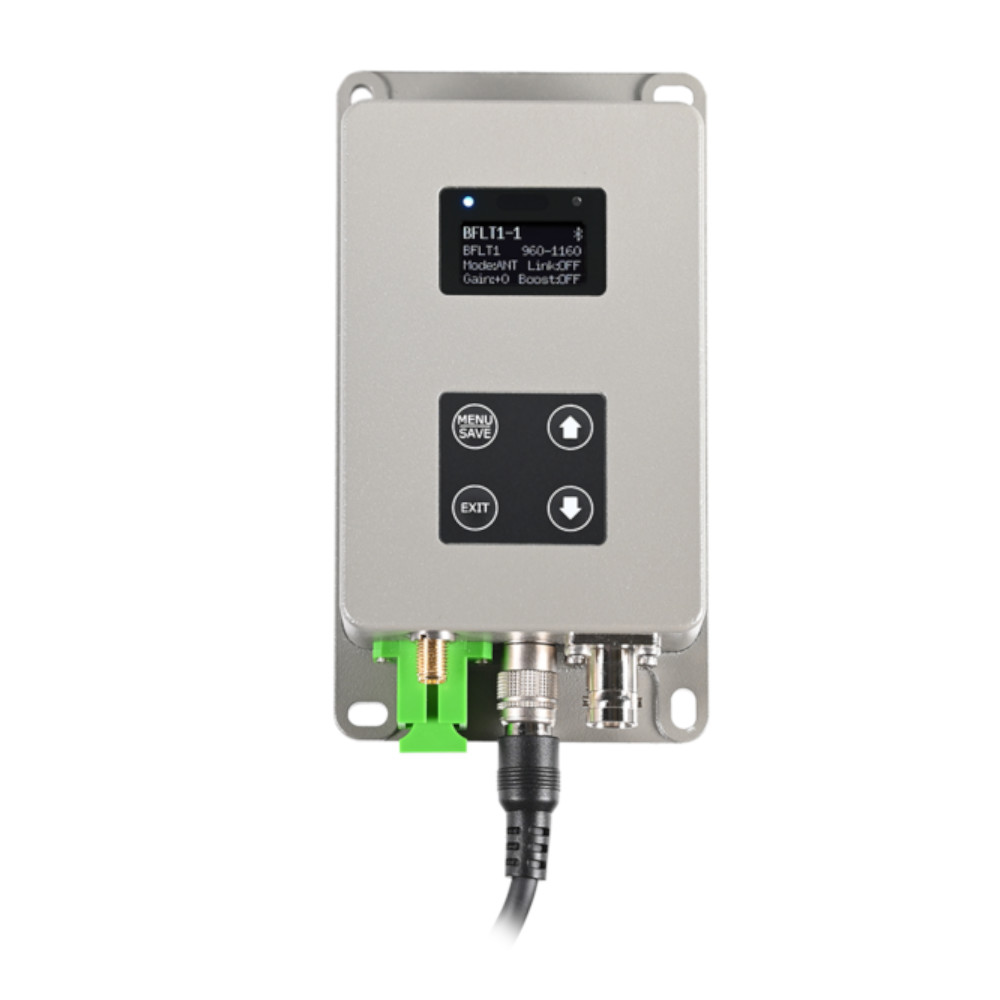

You control it with the Wisycom BT app or with its buttons and OLED display. It runs on 9 to 18 V DC, has SC/APC optical and BNC RF connectors, and accepts the EXP2 and EXP3 expansion boards. The power supply and a Bluetooth antenna come with it.

Features

• Turns RF into light with a 4 mW (6 dBm) laser
• 170 to 1260 MHz (F1 filter version)
• ANT mode for remote antennas, IFB mode with the MTK982
• 20 band-pass filter options and a tunable filter in 1 MHz steps
• 12 V, 150 mA output for active antennas
• Bluetooth control with the Wisycom BT app
• SC/APC optical and BNC RF connectors
• Takes the EXP2 and EXP3 expansion boards
