Tentacle Sync TRACK E Pocket Audio Recorder with Lavalier (US Version)
- Pocket audio recorder with timecode and 32-bit float recording
- Includes an omnidirectional lavalier with clip and windjammer
- Control and wireless monitoring from the Tentacle Setup App
$359.00 USD
Availability: In Stock
Tentacle Sync TRACK E Pocket Audio Recorder with Lavalier (US Version)

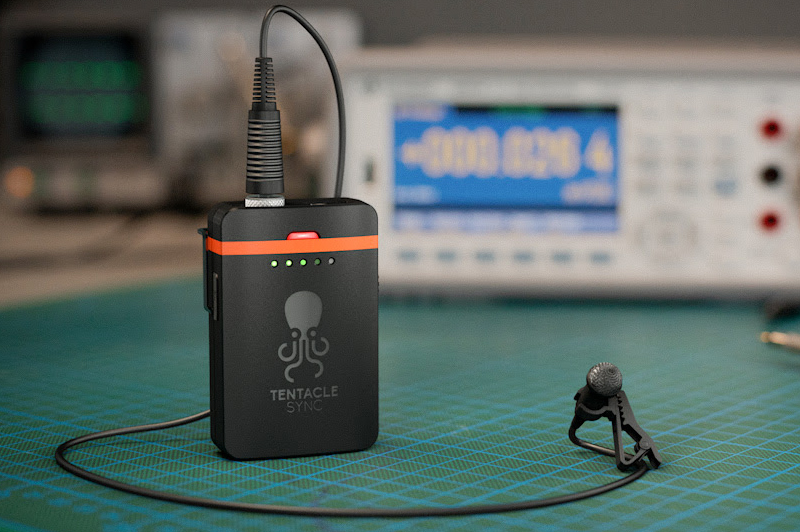

The Tentacle Sync TRACK E is a pocket audio recorder with timecode, and this set includes Tentacle’s omnidirectional lavalier microphone with its clip and windjammer.
Small enough to sit in a pocket or on a belt, it records the lav at the talent instead of sending it over a wireless link. It records mono at 48 kHz in 32-bit float or 24-bit to a microSD card, and the set includes a 16 GB card. The lockable 3.5 mm input supplies 5 V plug-in power, so other lavaliers work with it too.
32-Bit Float Recording
In 32-bit float mode the recording has no gain to get wrong: a quiet track can be raised in post without raising the noise floor, and loud peaks do not clip. A 24-bit mode with a limiter is there for workflows that need it, and a low-cut filter takes out rumble.
Timecode and Control
The TRACK E syncs to other Tentacle devices over Bluetooth or by cable jam-sync, and it can also run alone. The Tentacle Setup App starts and stops recording, sets levels, and monitors the audio wirelessly on iOS and Android, for one recorder or many. Several TRACK E units record individual mono tracks that line up into a multitrack recording in post, and every recorder includes a Tentacle Sync Studio license for macOS.
Features
- Mono pocket recorder at 48 kHz, 32-bit float or 24-bit
- Records to a microSD card up to 64 GB
- Lockable 3.5 mm microphone input with 5 V plug-in power
- Timecode in and out, with sync over Bluetooth or by cable
- Control and wireless monitoring from the Tentacle Setup App
- Low-cut filter, and a limiter at 24-bit
- Up to 12 hours per charge over USB-C
- Black powder-coated stainless steel belt clip
- Tentacle Sync Studio license for macOS included
What's Included
- TRACK E pocket audio recorder
- Omnidirectional lavalier microphone with clip and windjammer
- 16 GB microSD card
- USB-A to USB-C cable
- USB-C to USB-C cable
- Belt clip
- Zipper bag
- Colored silicone bands
- Tentacle Sync Studio license (macOS)
Specifications
| Recording | |
|---|---|
| Tracks | 1 (mono) |
| Sample Rate | 48 kHz |
| Bit Depth | 32-bit float or 24-bit |
| File Format | WAV (BWF) |
| Storage | microSDHC card up to 64 GB (Class 10 recommended) |
| Recording Time | About 30 hours at 24-bit or 23 hours at 32-bit float on a 16 GB card |
| Processing | Low-cut filter; limiter at 24-bit |
| Audio | |
| Microphone Input | 3.5 mm jack, lockable |
| Plug-In Power | 5 V |
| Gain Range | +6 to +46 dB |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | 110 dB typical |
| THD+N | −85 dB or lower (0.05%) |
| Headphone Output | 3.5 mm jack, dual mono |
| Timecode and Control | |
| Timecode In | LTC through the microphone input |
| Timecode Out | LTC through the headphone output (firmware 2.4.1 and later) |
| Frame Rates | 23.98, 24, 25 (50), 29.97, 29.97 DF, and 30 (60) fps |
| Bluetooth | Bluetooth 5.2, Low Energy |
| Remote Control | Tentacle Setup App for iOS and Android, and Apple Watch |
| USB | USB-C (USB 2.0): charging, card reader, firmware update, MIDI timecode |
| Power and Physical | |
| Battery | Built-in 900 mAh lithium polymer |
| Runtime | Up to 12 hours |
| Charging Time | 2 hours maximum |
| Dimensions | 47 × 68 × 19 mm (1.85 × 2.67 × 0.74 in) |
| Weight | 58 g (2.0 oz) |
| Mounting | Belt clip |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit tentaclesync.com. |
