Sound Devices XL-AES

245.00 USD

Quantity:

SKU: SND.XLAES Categories: , , Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

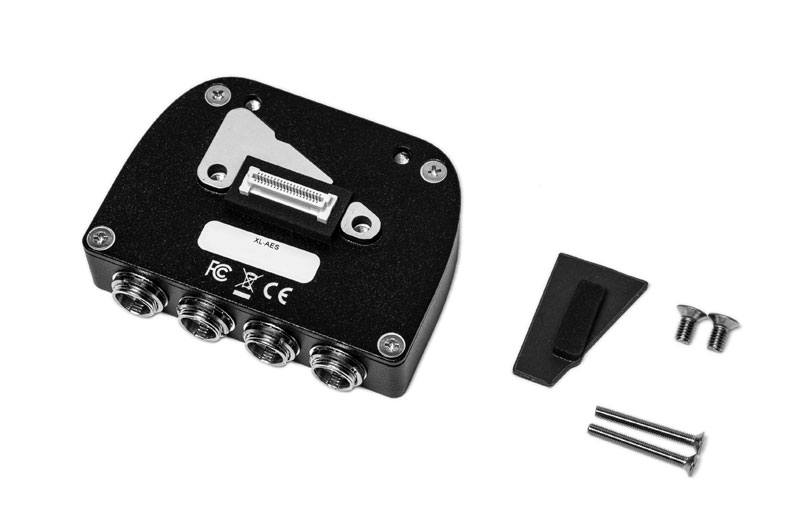

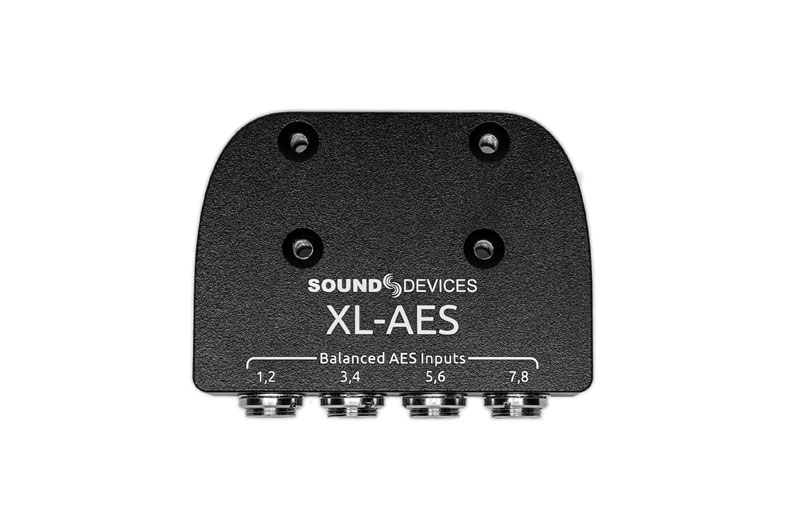

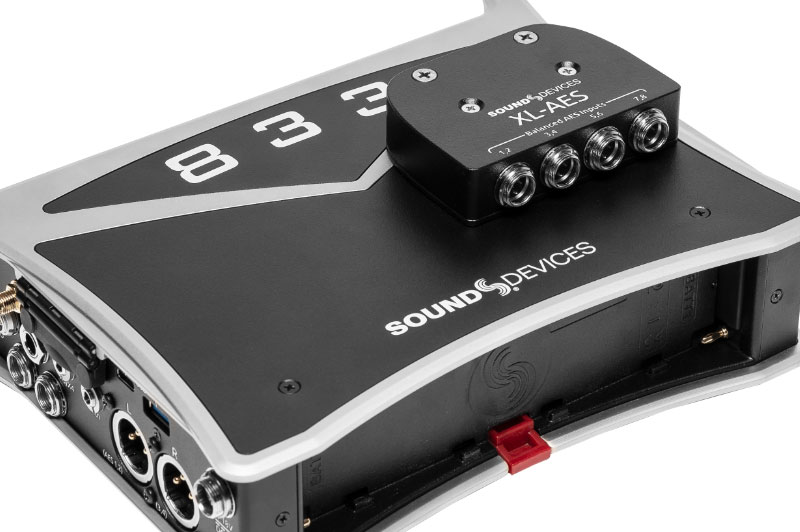

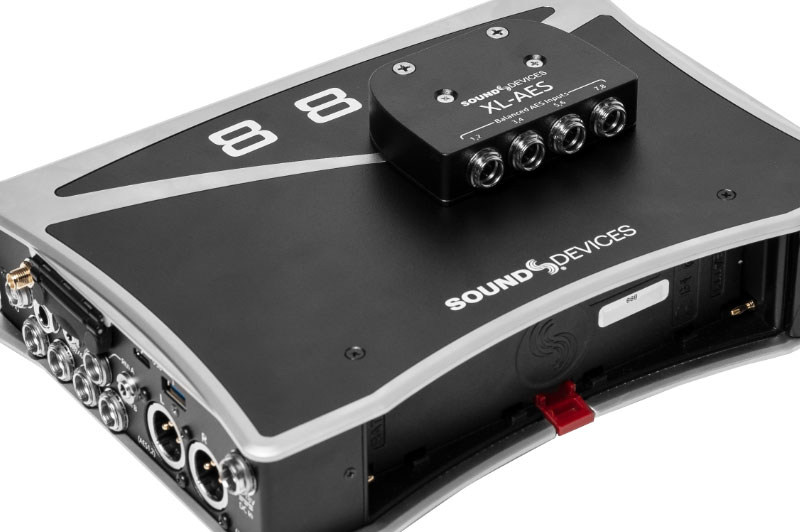

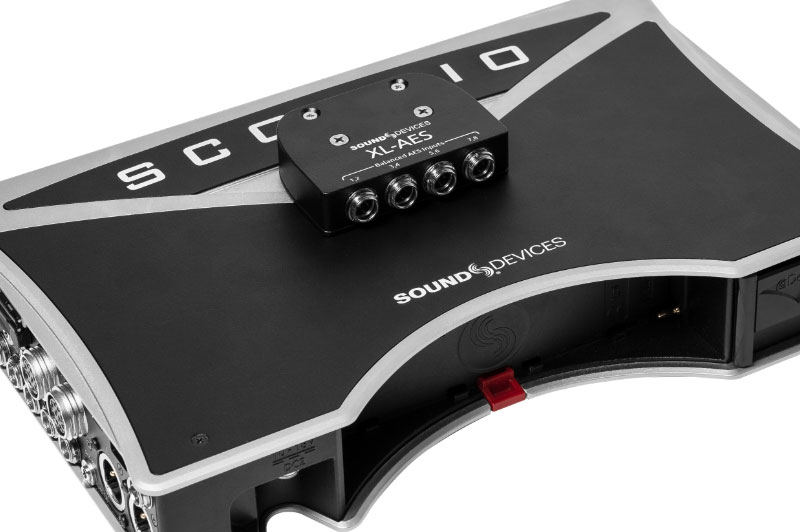

The XL-AES is an optional accessory for the Scorpio, 888, and 833 that provides 8 channels of AES3 audio connectivity through four heavy-duty TA3F input jacks. The accessory mounts directly to the expansion port on the mixer-recorder’s top panel and features a rugged milled aluminum enclosure for years of reliable use.

The XL-AES appears in the Channel Input Source menu with all other possible input sources. Any of the 8 audio channels from the XL-AES may be routed to any channel on the mixer-recorder.

Specifications

  • Powering: the XL-AES receives power from the host mixer-recorder
  • Input type: AES3, balanced, TA3F connectors

  • Impedance: 110 ohms

  • Sensitivity: 200 mV or higher accepted

  • Wiring: pin 1 = ground; pin 2 = +; pin 3 = –
