Sound Devices A20-Monarch Wideband Omnidirectional Antenna
- Wideband omnidirectional antenna for Astral wireless
- Rated from 470 to 1600 MHz at 2.2 dBi
- Clamp, articulating arm, and two cables included
$210.00 USD
Availability: In Stock

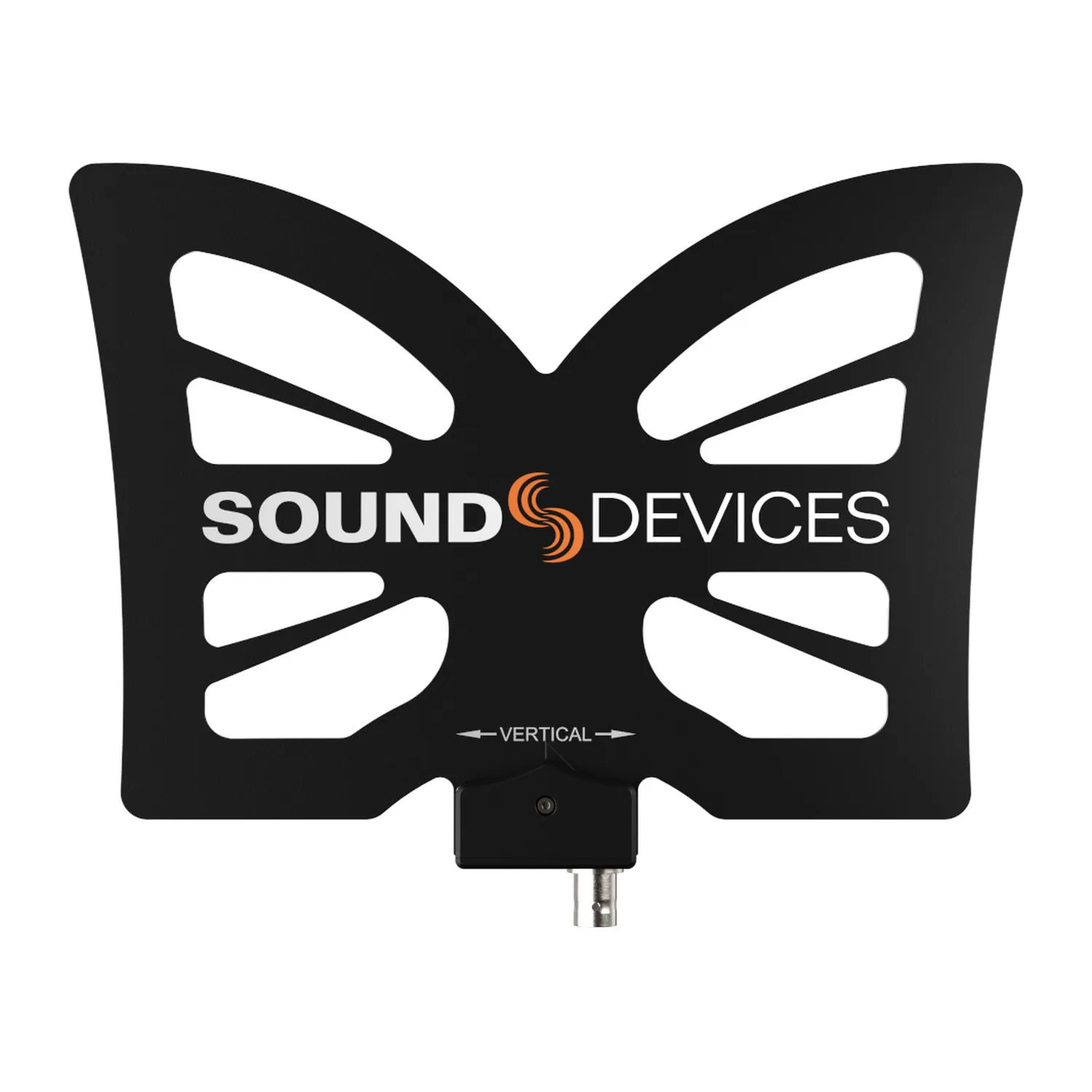

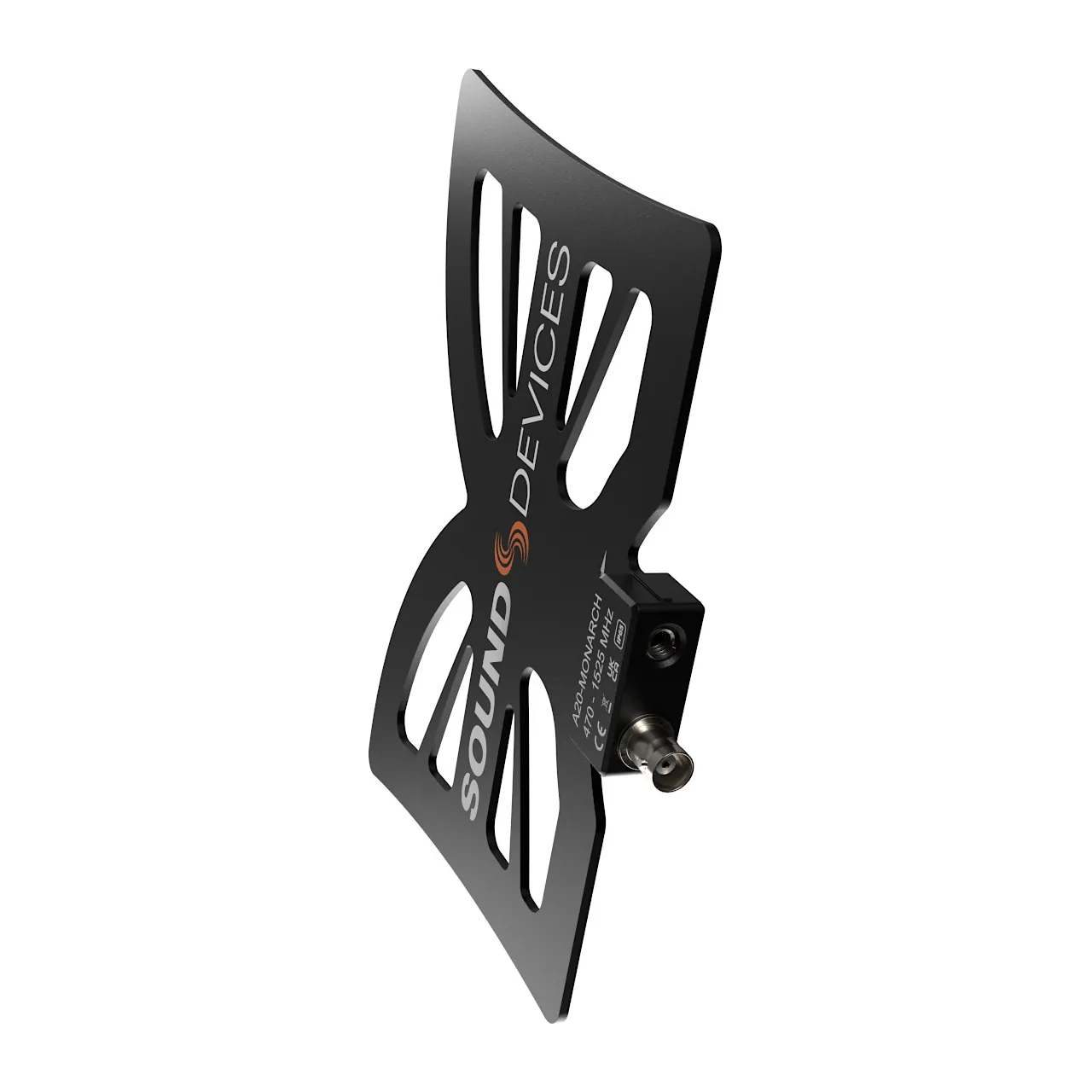

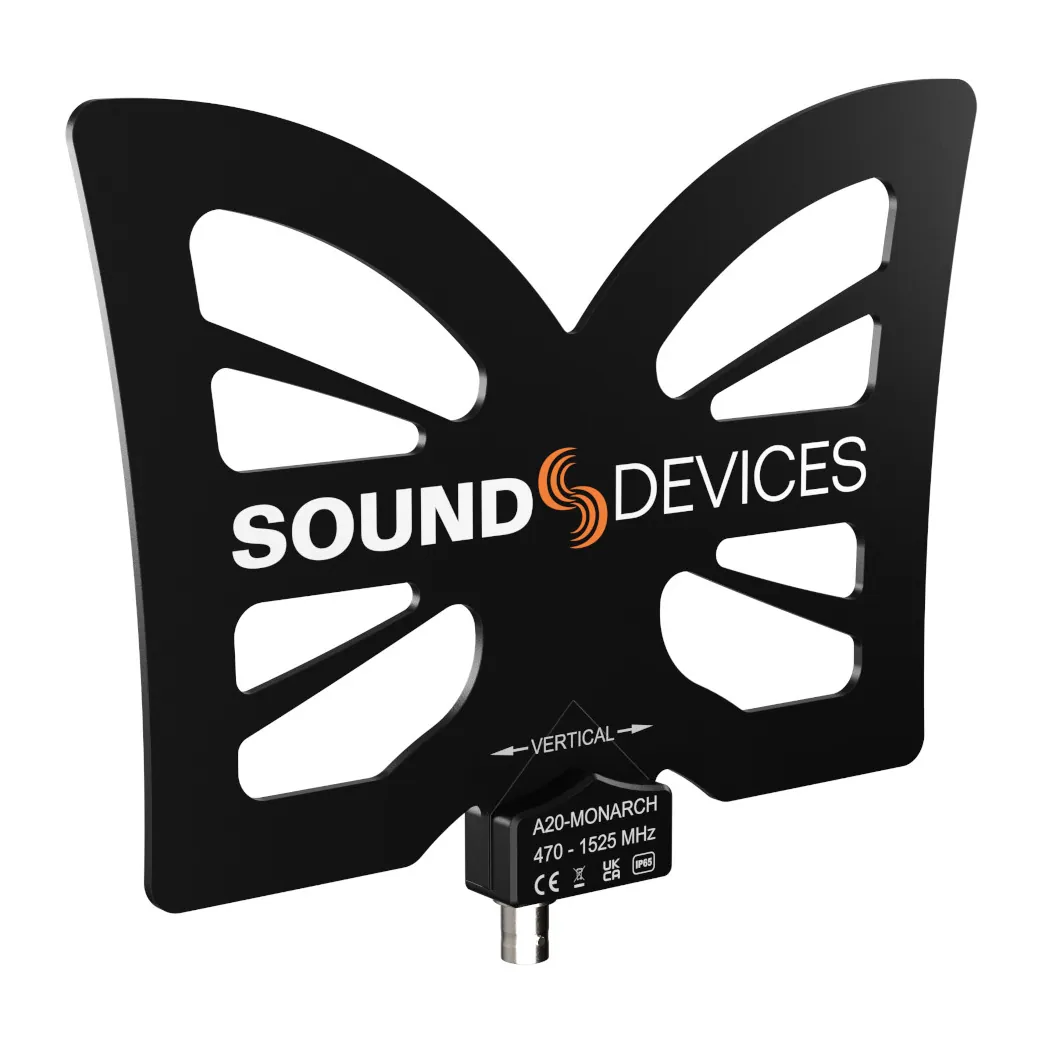

Sound Devices A20-Monarch Wideband Omnidirectional Antenna
The Sound Devices A20-Monarch, a wideband omnidirectional antenna, gives uniform coverage and gain across the SpectraBand tuning range of Astral wireless.
It comes with a multifunction clamp and articulating arm for mounting, plus two cables: one BNC to BNC and one BNC to SMA.
Features
- Wideband omnidirectional antenna for Astral wireless
- Rated from 470 to 1600 MHz at 2.2 dBi
- Clamp, articulating arm, and two cables included
About Sound Devices Astral Wireless
Based in Reedsburg, Wisconsin, Sound Devices designs and builds professional audio gear for film and television. They have served sound professionals for more than 20 years. Their Astral digital wireless line covers transmitters, receivers, and the accessories that keep them working on set. Sound Devices supports their products with their own in-house technicians, and their accessories carry a 90-day warranty against defects in materials and workmanship.
What's Included
- A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount

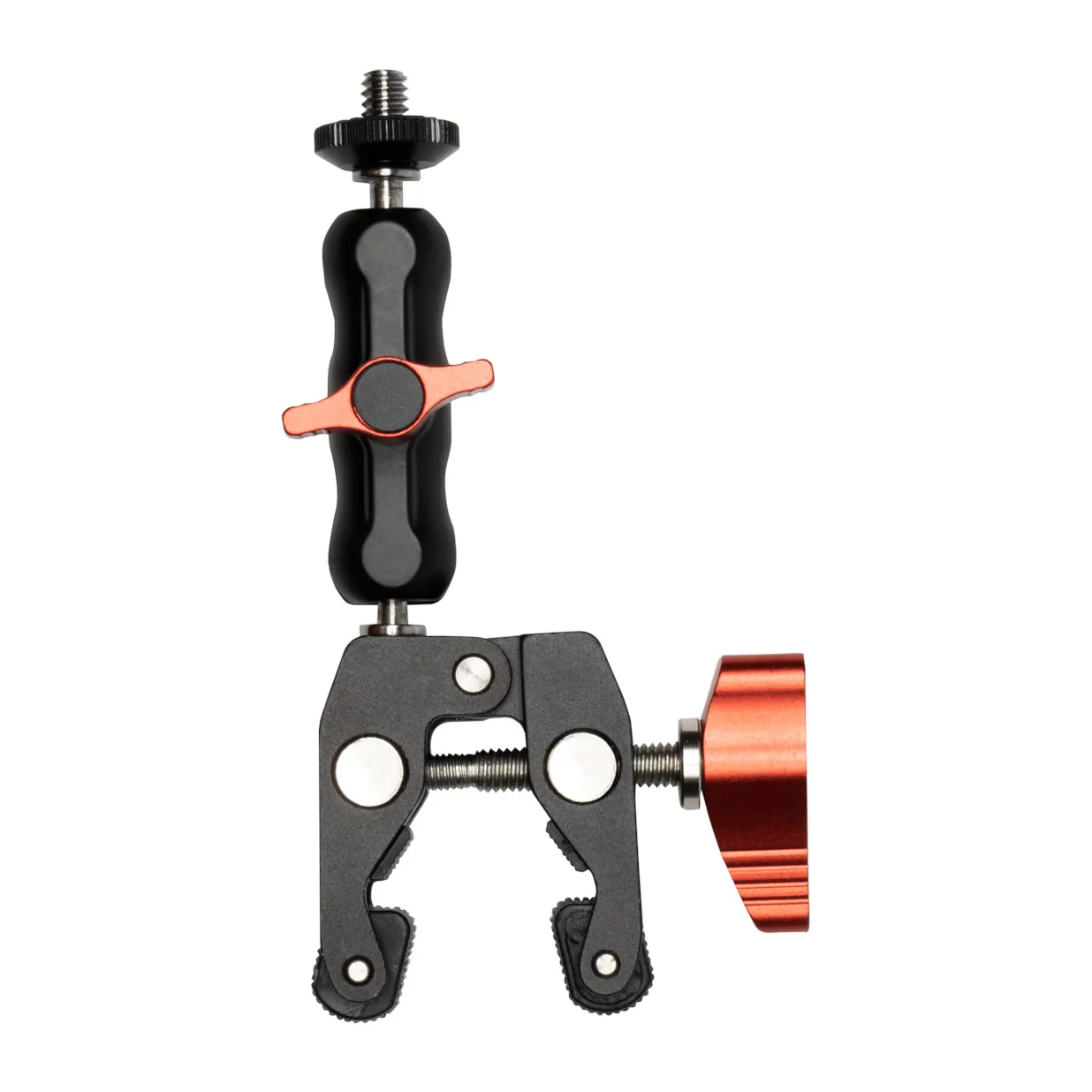

- Adjustable clamp and articulating arm with 1/4″-20 male threaded mount
- 30 in (75 cm) BNC-M to BNC-M cable
- 18 in (45 cm) BNC-M to SMA-M cable
Specifications
| Antenna | |
|---|---|
| Frequency Range | 470 to 1600 MHz |
| Gain | 2.2 dBi |
| Pattern | Omnidirectional |
| Return Loss | Better than 15 dB across the entire 470 to 1600 MHz range |
| Mounting Thread | 1/4″-20 |
| Dimensions (H × W × D) | 17.0 × 21.0 × 1.7 cm 6.68 × 8.26 × 0.67 in |
| Weight | 0.12 kg (0.26 lb) unpackaged |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit sounddevices.com. |
