Sonosax SX-RX8+ 8-Channel Extension Module

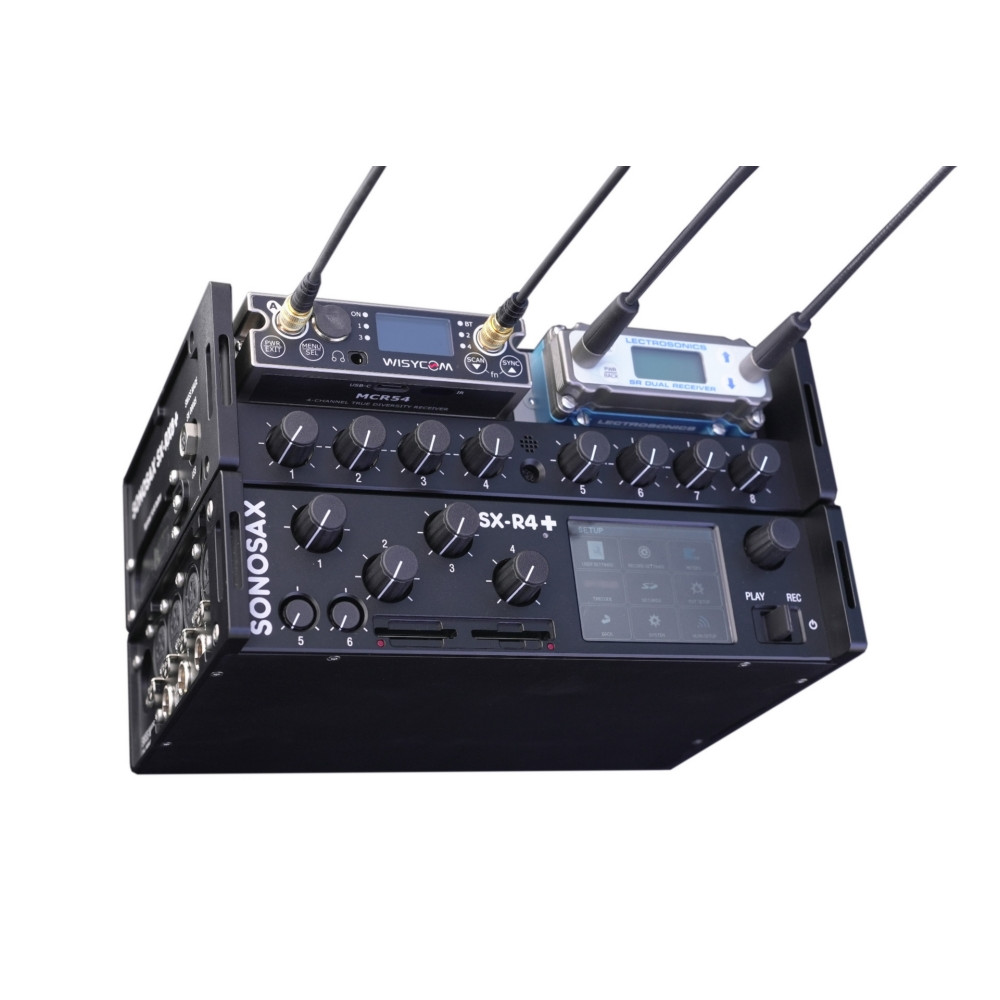

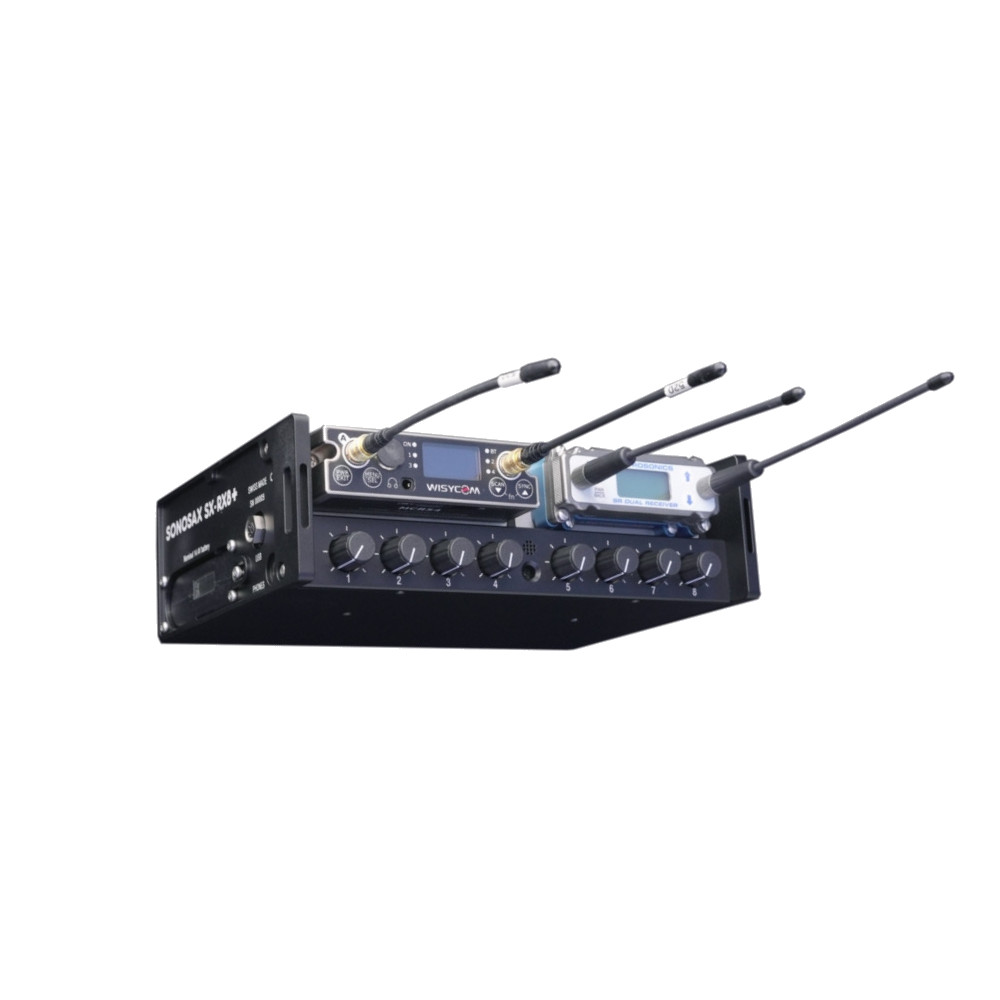

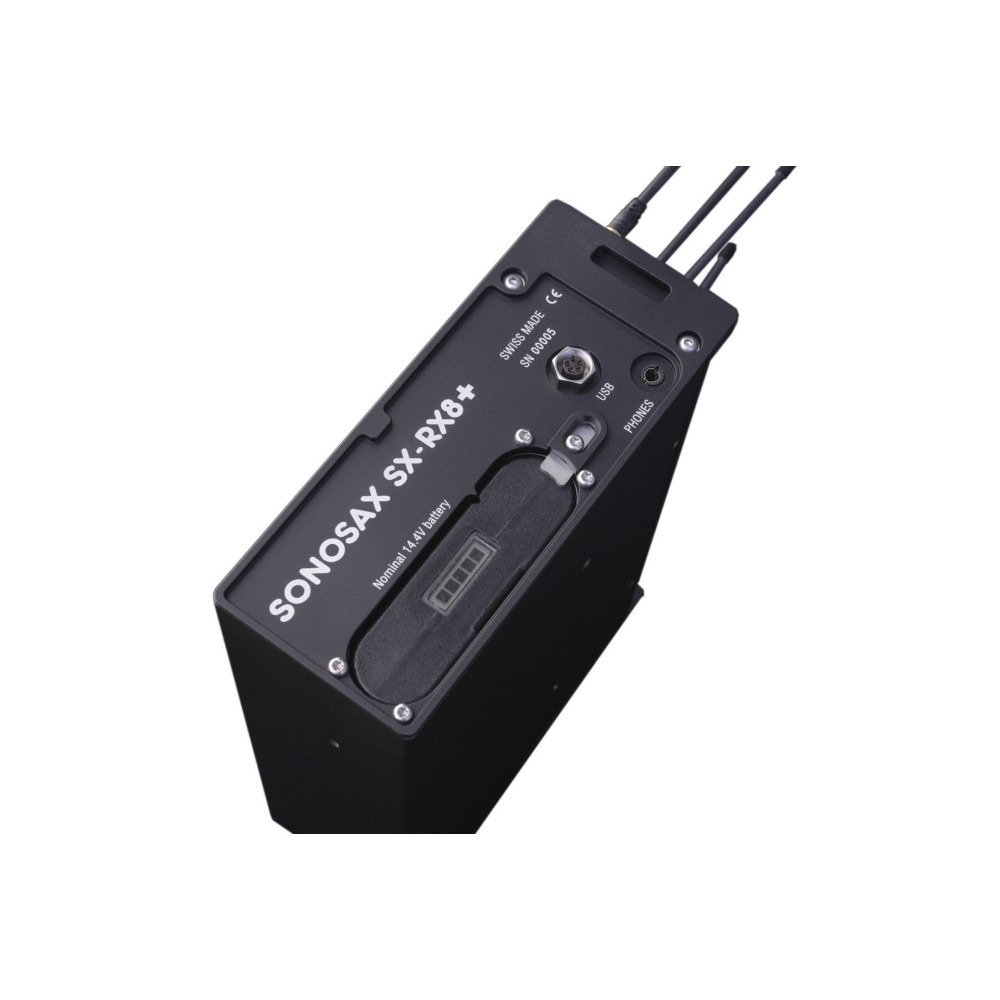

The Sonosax SX-RX8+ carries wireless receivers in a compact 8-channel minislot extension, with a slot for a 98 Wh battery that powers the receivers, the SX-RX8+, and a recorder such as the SX-R4+.

The minislot design is smaller and lighter than a Superslot or Unislot, with minimal mechanical parts. The SX-RX8+ has no antenna splitter and does not control receivers over a serial bus.

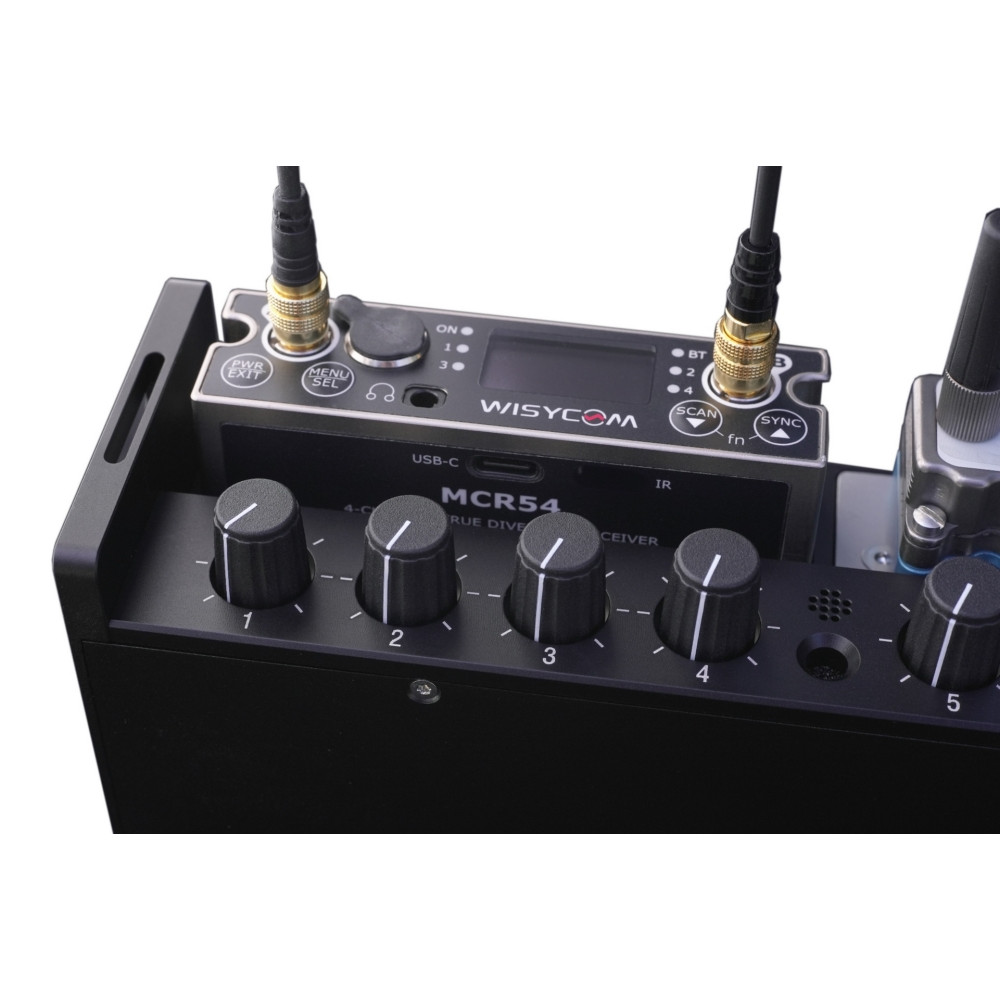

Receivers mount with minislot sets, a mounting plate and cable set for each receiver type: Wisycom MCR42 and MCR54, Lectrosonics SRc, Audio Limited A10-RX, Sennheiser EK6042, Sony DWR-S03D, and Shure ADX5D.

The SX-RX8+’s eight encoders and push buttons are assignable, and USB MIDI connects it to equipment from other brands, including Sound Devices. The SX-RX8+ can send the slate microphone out on a separate connector.

Choose two Combi sets or two Lectrosonics SRc sets. The cables to the SX-R4+, the USB MIDI cable, and the battery are sold separately.

Features

• Compact 8-channel minislot receiver extension
• 98 Wh battery slot powers the receivers, the SX-RX8+, and a recorder
• Minislot sets for Wisycom, Lectrosonics, Audio Limited, Sennheiser, Sony, and Shure receivers
• Slate mic assignable or on a separate connector
• Eight assignable encoders and push buttons
• USB MIDI connection to other brands, including Sound Devices
• Two minislot sets included
