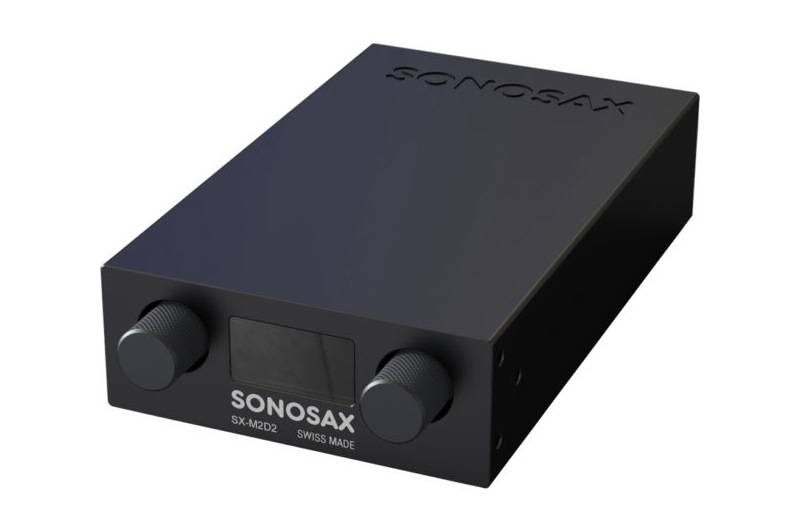

Sonosax SX-M2D2

The Sonosax SX-M2D2 is a lightweight 2 channels high resolution dual-domain microphones preamplifier with integrated USB audio Class 2.

Categories: , Tag:

Description

The Sonosax SX-M2D2 is a lightweight 2 channels high resolution dual-domain microphones preamplifier with integrated USB audio Class 2. Compact, low power, battery powered, the SX-M2D2 embeds similar high performance dual A/D converters than the SX-R4+. This product is the ideal companion for various mobile environments. Its ergonomic has been carefully designed for convenience and easy of operation

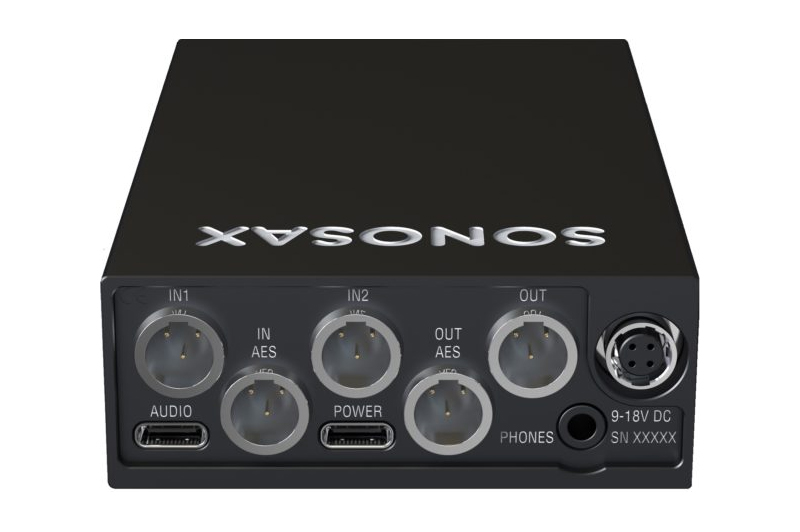

Inputs / Outputs

  • 2x mic/line inputs on TA3, electronically balanced, with phase reversal, 48V phantom, LF cut and level control on the front panel
  • 1x AES3/AES42 on TA3, transformer balanced input with phase reversal, 48V phantom, LF cut and level control on the front panel
  • 1x line output on TA3, 2 channels analog unbalanced
  • 1x AES3 output on TA3, 2 channels transformer balanced with ASRC (48/96/192k)
  • 1x USB audio 2 channels input/output on micro USB type B connector
  • independent line/headphones stereo output on mini-jack

Performance

  • 135 dB (A-weighted) overall dynamic range
  • THD < 0.001%
  • 90 kHz overall frequency response @192kHz
  • 24-bit 48/96/192kHz

Power

  • external DC 9-18V on Hirose 4-pin
  • external DC 5V on micro USB

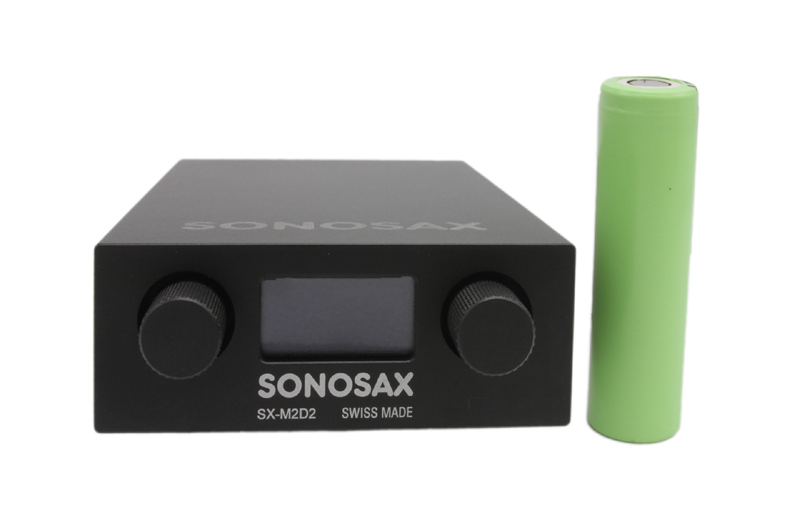

  • removable lithium-ion battery, charged with external DC input
  • intelligent energy management

User interface

  • 128×64 monochrome OLED display
  • two rotary encoder for gain control
  • intuitive menu navigation

Mechanical

  • Machined aluminum housing
  • overall dimension: 74 x 28 x 130 mm (2.9’’ x 1.1’’ x 5.1’’)
  • weight 300g (0.44lbs) with battery
  • mounting holes on both sides
  • optional mounting bracket for still camera
