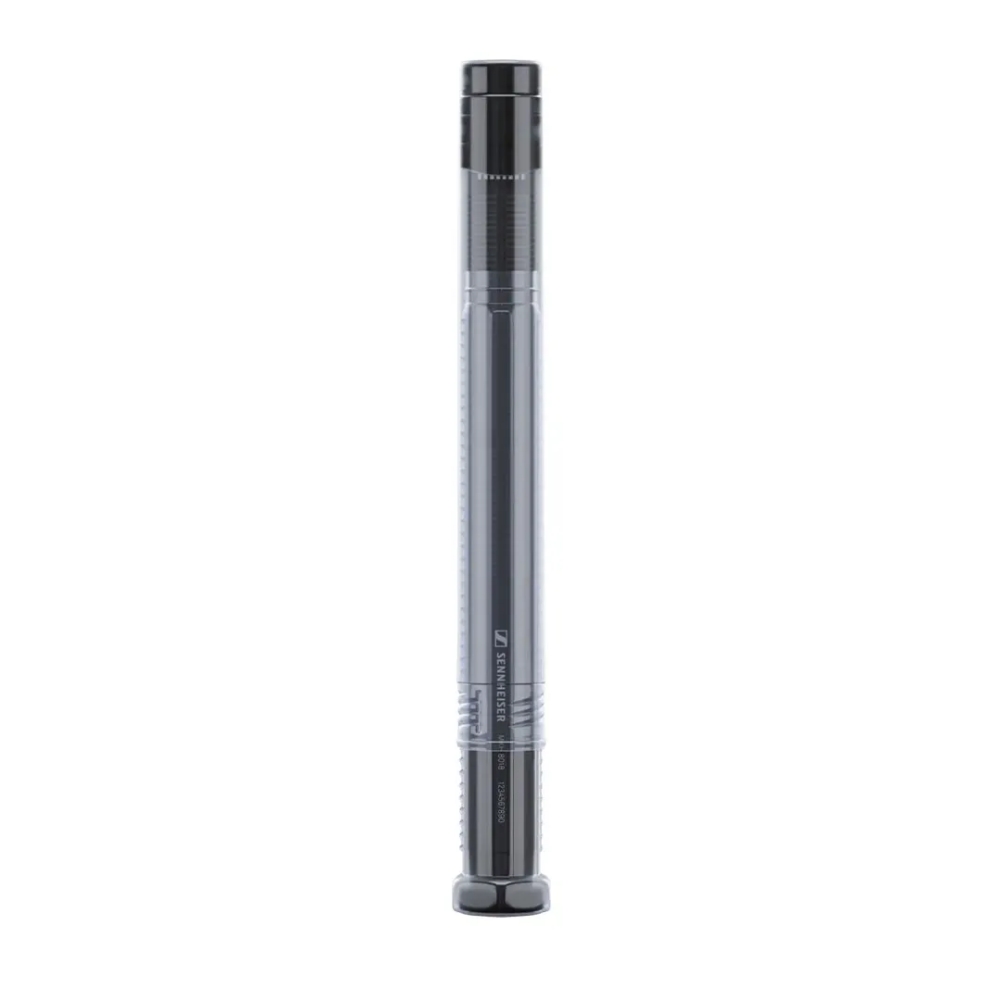

Sennheiser MKH 8018 Stereo Shotgun Condenser Microphone
- Stereo shotgun with M-S, XY-narrow, and XY-wide modes
- Low-cut filter and −10 dB pad
- XLR-5M output, P48 powered
$2,099.00 USD
In Stock
Sennheiser MKH 8018 Stereo Shotgun Condenser Microphone
The Sennheiser MKH 8018 is a stereo shotgun with three switchable stereo modes, M-S, narrow XY, and wide XY, all in one camera-friendly RF condenser body.
In M-S mode it sends separate mid and side signals, so you set the width of the image later on a mixer or in post. The two XY modes are matrixed inside the mic and give left and right stereo with no external matrix. Narrow XY favors the mid signal for more directionality, and wide XY lifts the side signal for more ambience.
Built for the Field
A switchable low-cut filter (−3 dB at 70 Hz) tames wind and handling noise, and a −10 dB pad guards against overload. The mic shares the sound of the other MKH 8000 models, so it cuts well with them. Its metal housing resists moisture in hot, cold, and humid conditions, and its Nextel finish does not reflect light.
Connection
Unlike the modular MKH 8000 mics, the 8018 has a fixed XLR-5M output and runs on P48 phantom power. It ships with an MZQ 100 clip, an MZW 8018 foam windshield, an MZR 8000 adapter ring for clips and camera mounts, and a threaded transport tube.
Features
- Stereo shotgun with M-S, XY-narrow, and XY-wide modes
- Switchable low-cut filter, −3 dB at 70 Hz
- Switchable −10 dB pad
- Compact for camera mounting
- Same sound as the other MKH 8000 mics
- Fully floating balanced output
- Moisture-resistant metal housing
- Fixed XLR-5M output, P48 powered
What's Included
- MKH 8018 microphone
- MZQ 100 microphone clip
- MZW 8018 foam windshield
- MZR 8000 adapter ring
- Threaded transport tube
- Quick guide
- Safety guide
Specifications
| Acoustic | |
|---|---|
| Microphone Type | RF condenser, stereo shotgun |
| Frequency Response | 40 Hz – 20 kHz |
| Sensitivity | M: 56 mV/Pa S: 25 mV/Pa XY narrow: 50 mV/Pa XY wide: 32 mV/Pa |
| Equivalent Noise Level | M: 12 dB(A), 24 dB (CCIR) S: 14.5 dB(A), 25 dB (CCIR) XY narrow: 12 dB(A), 24 dB (CCIR) XY wide: 13 dB(A), 25 dB (CCIR) |
| Max. Sound Pressure Level | Over 126 dB |
| Low-Cut Filter | −3 dB at 70 Hz (switchable) |
| Pad | −10 dB (switchable) |
| Electrical and Physical | |
| Nominal Impedance | 430 Ω at 1 kHz |
| Min. Load Impedance | 4.7 kΩ |
| Power Supply | P48 phantom (IEC 61938), 2 × 3.4 mA |
| Connector | XLR-5M |
| Operating Temperature | −10 to +60 °C (14 to 140 °F) |
| Dimensions | Ø 22 mm, about 230 mm long (Ø 0.87 × 9.06 in) |
| Weight | 115 g (4.06 oz) |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
