Sennheiser MKH 8030 Figure-8 Condenser Microphone
- Figure-8 condenser for M-S and Blumlein stereo
- 30 Hz to 50 kHz response, low self-noise
- Two Rycote back-to-back clips included
$1,599.00 USD
Availability: In Stock
Sennheiser MKH 8030 Figure-8 Condenser Microphone

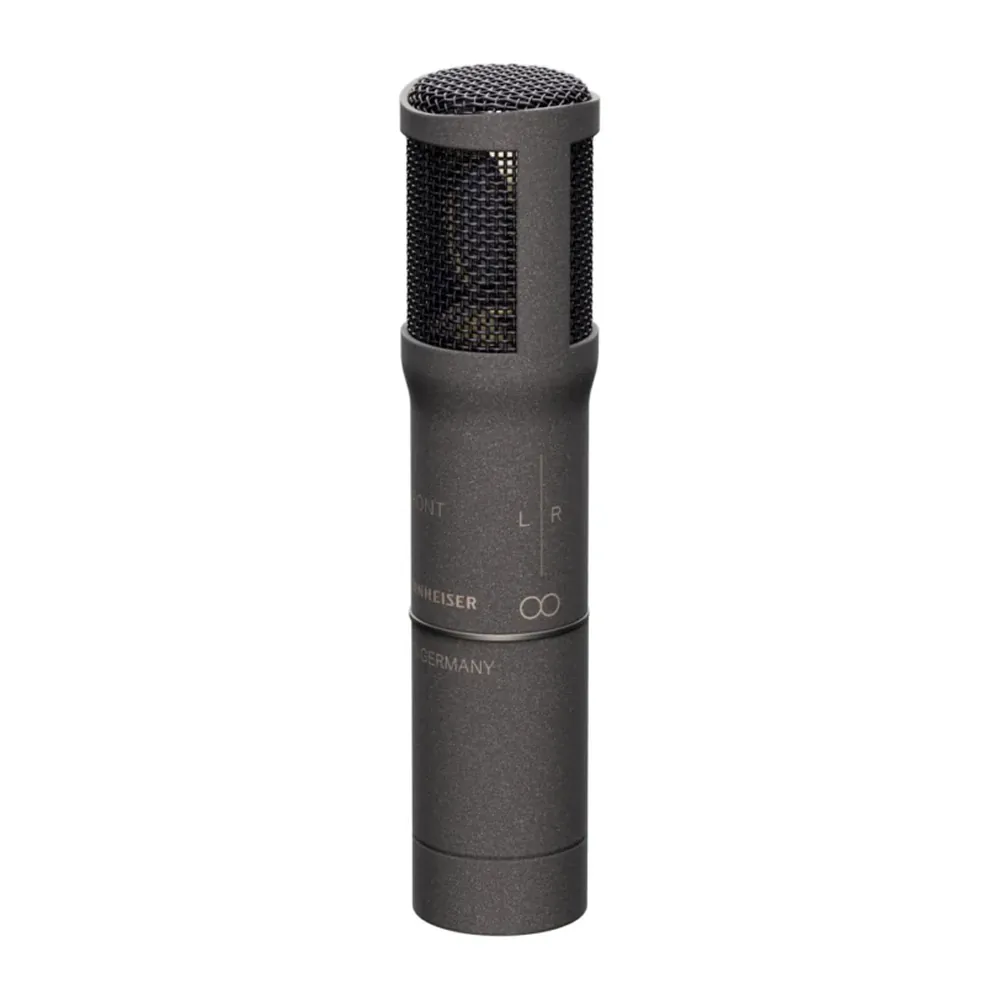

With its figure-8 pattern, the Sennheiser MKH 8030 picks up sound equally from front and rear and rejects the sides, which makes it the partner for M-S, double M-S, and Blumlein stereo recording.
Paired with a cardioid or super-cardioid mic, it gives an M-S setup whose width you set later. It also works wherever a neighboring source needs strong rejection. A low-tension diaphragm in an acoustically open push-pull transducer keeps the pattern precise, with little off-axis coloration.

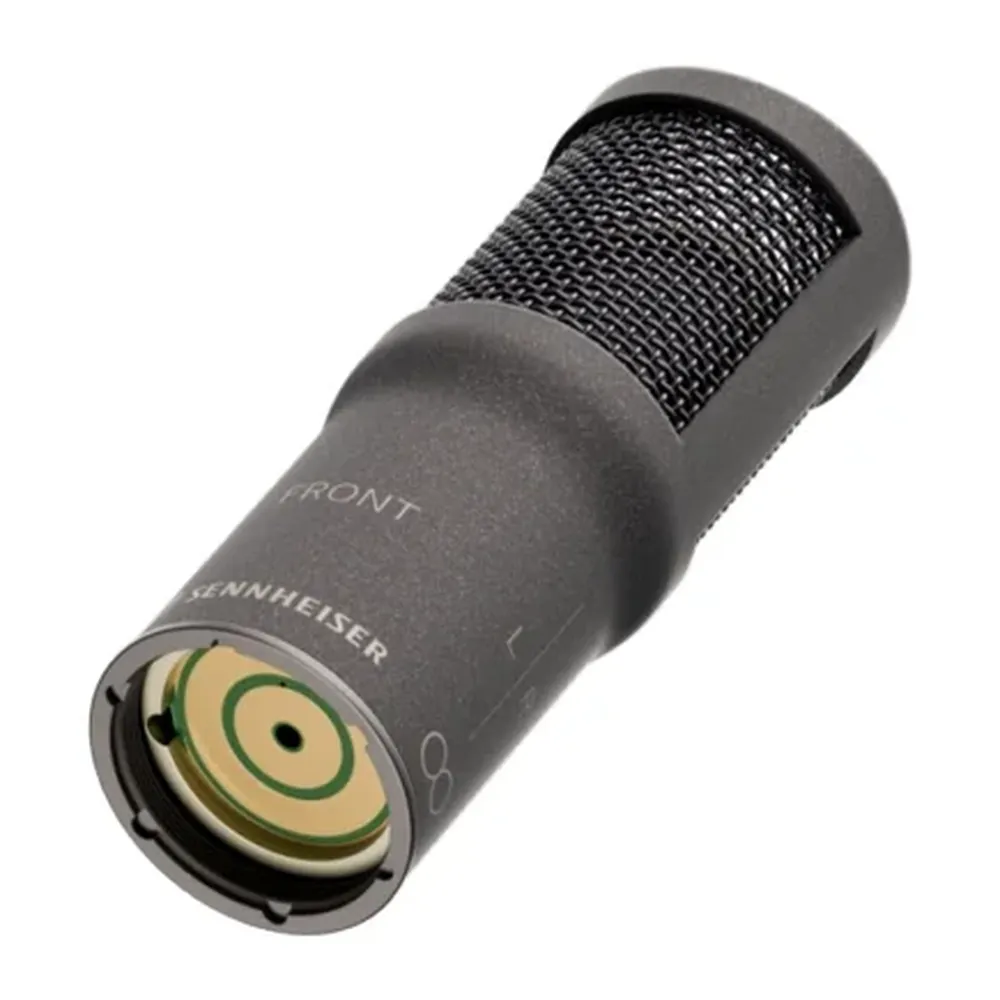

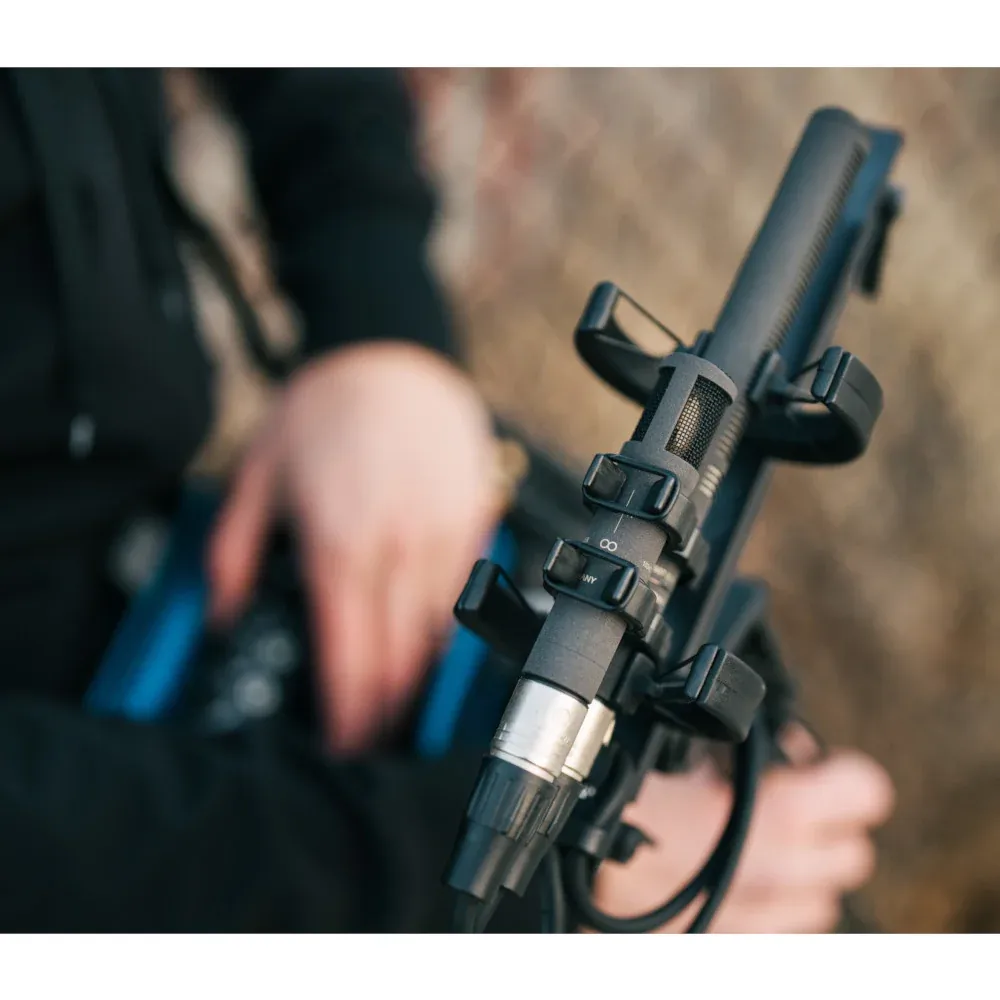

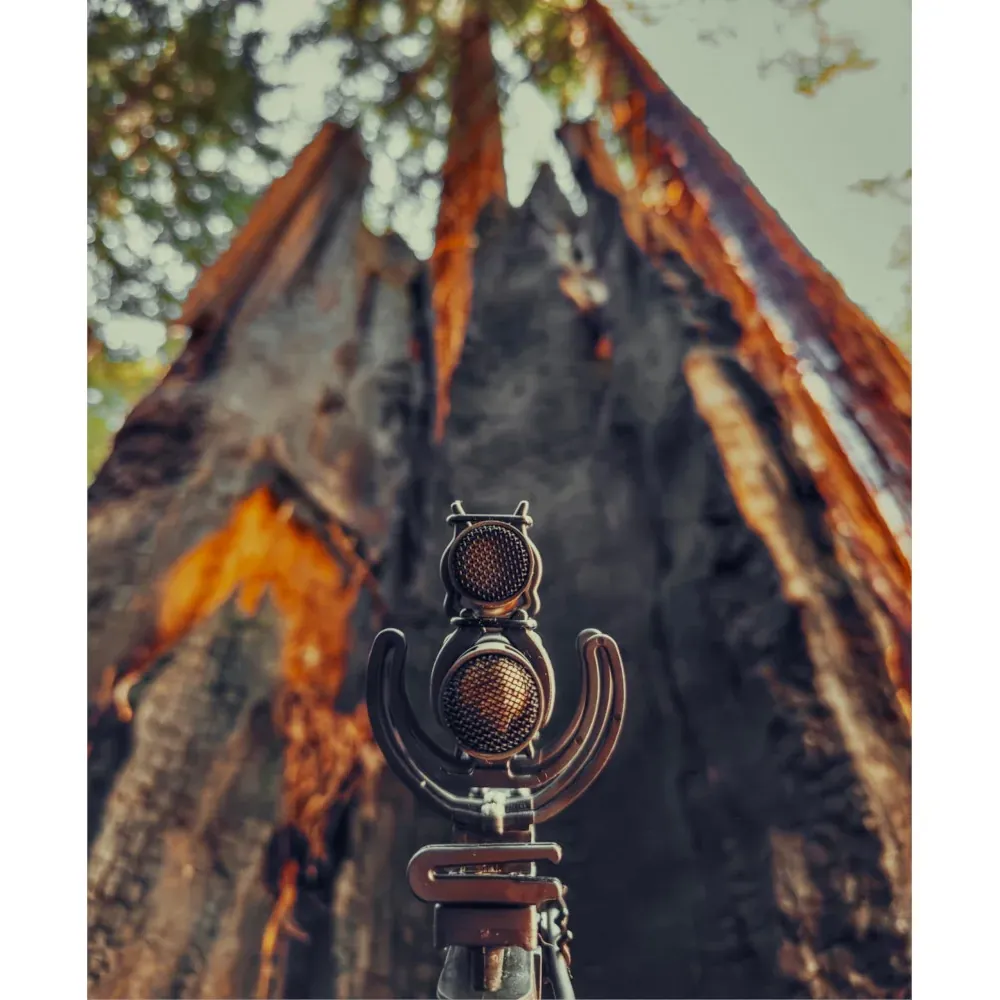

The response reaches from deep bass up to 50 kHz, and self-noise and distortion stay low. The metal MKH 8000 housing resists moisture, and its Nextel finish does not reflect stage lights. The modular design takes other MKH 8000 accessories. Two Rycote back-to-back clips come with the mic for stereo rigs.
Features
- Figure-8 pickup pattern, strong side rejection
- For M-S, double M-S, and Blumlein stereo
- Symmetrical, open push-pull transducer
- Frequency response up to 50 kHz
- Low self-noise and low distortion
- Moisture-resistant metal housing
- Non-reflective Nextel finish
- Modular MKH 8000 design
What's Included
- MKH 8030 microphone
- MZW 8030 windscreen
- MZQ 8000 microphone clip

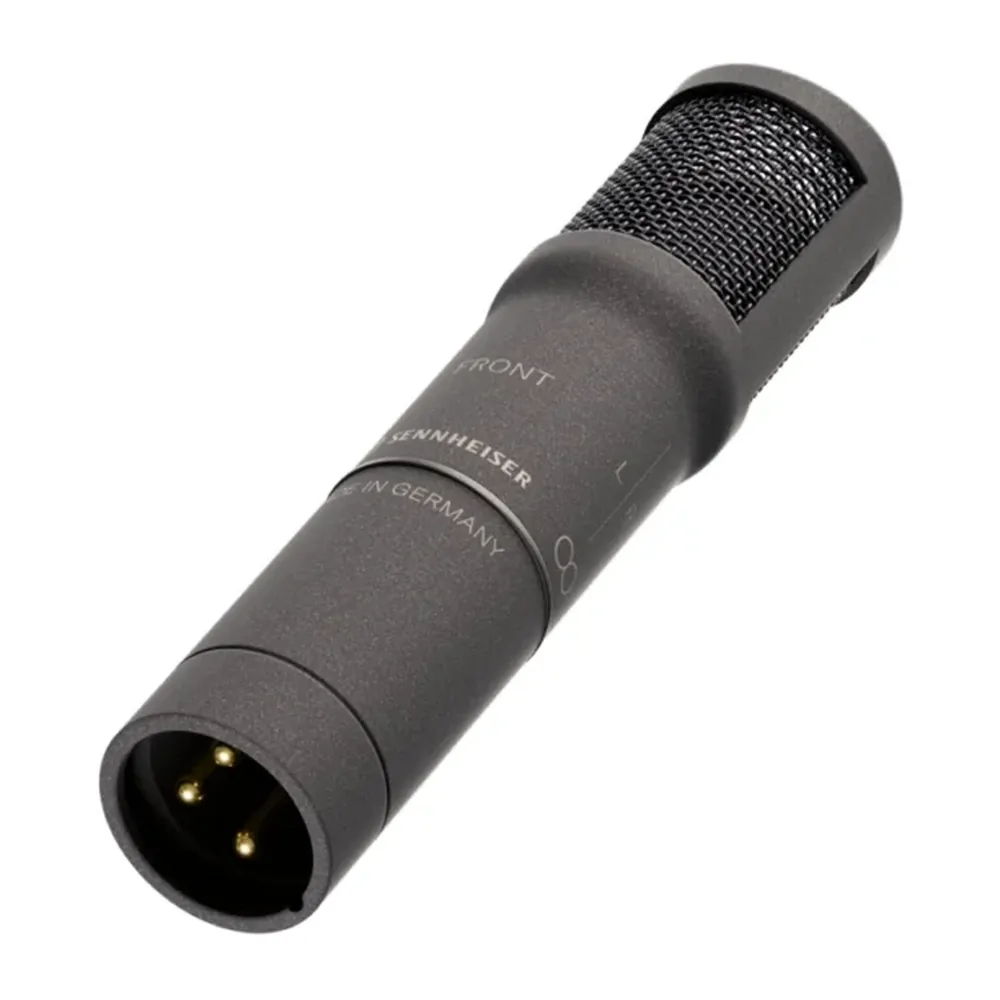

- MZX 8000 XLR module
- 2 x Rycote back-to-back clips
- Quick guide
- Safety guide
Specifications
| Acoustic | |
|---|---|
| Pickup Pattern | Figure-8 |
| Frequency Response | 30 Hz – 50 kHz |
| Sensitivity | −31 dBV/Pa (28 mV/Pa) |
| Equivalent Noise Level | 13 dB(A), 21 dB (CCIR) |
| Max. Sound Pressure Level | 139 dB |
| Electrical and Physical | |
| Phantom Power | P48 (48 V) |
| Current Consumption | 3.3 mA |
| Operating Temperature | −10 to +60 °C (14 to 140 °F) |
| Operating Humidity | 5 – 95% (non-condensing) |
| Dimensions | Ø 19 × 59 mm (93 mm with MZX 8000) |
| Weight | 38 g (1.34 oz) (70 g with MZX 8000) |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
