Schoeps CCM 41 Supercardioid Compact Microphone

  • Compact supercardioid for music, speech, and film
  • Off-axis sound without coloration
  • K 5 LU cable and SGC stand mount included

From $2,394.00 USD

Brand: Categories: , Trew SKU: SCHCCM41

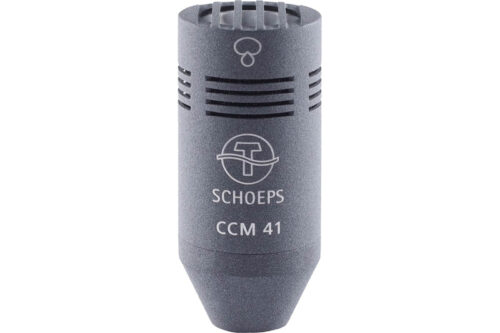

Schoeps CCM 41 Supercardioid Compact Microphone

The Schoeps CCM 41 is a compact supercardioid with directivity like a short shotgun’s through the midrange, for music, speech, and film sound.

It attenuates off-axis sound more strongly than a cardioid, for a drier pickup. It is less prone to feedback than any other Schoeps type, as long as no loudspeaker sits directly on its rear axis. Its directivity hardly changes with frequency, so off-axis and reverberant sound is picked up without coloration, even from a distance. An interference-tube shotgun, by contrast, changes its sound with its position among a room’s reflections.

Being small, it can often go closer to the source than a shotgun, and as the mid microphone of an M/S pair it lets the array sit farther away. It is a common choice for film sound and as a spot microphone in the orchestra. Schoeps recommends the MINIX CCM LU RF suspension, the B 5 D windscreen, and the RL extension tube for it.

The Lemo version comes with a 5 m K 5 LU cable to XLR-3M and an SGC miniature stand mount with swivel, and it runs on P48 or P12 phantom power. Schoeps also builds the CCM 41 with a fixed 5 m cable to XLR-3M for installations.

Features

  • Supercardioid with shotgun-like midrange directivity
  • Off-axis sound without coloration
  • Least prone to feedback of any Schoeps type
  • For film sound, speech, and orchestral spot miking
  • Mid microphone for distant M/S
  • Lemo output with K 5 LU cable to XLR-3M
  • SGC stand mount included

What's Included

  • CCM 41 compact microphone
  • K 5 LU cable, 5 m, Lemo to XLR-3M (with the Lemo version)
  • SGC miniature stand mount with swivel

Specifications

CCM 41
Pickup Pattern Supercardioid
Maximum SPL (THD < 0.5%) 136 dB SPL (P48), 128 dB SPL (P12)
Maximum Output Voltage 2.6 V (8.3 dBV) into 2 kΩ
Low-Cut Filter 20 Hz, 12 dB/oct
Output Impedance 90 Ω at 1 kHz
Minimum Load Impedance 2 kΩ
Common Mode Rejection (1 kHz) Over 55 dB
Maximum Cable Length Over 400 m
RFI Shield No
Phantom Power P48 (over 40 V), P12 (over 10 V)
Current Consumption 4 mA (P48), 3.6 mA (P12)
Output Lemo (CCM L) or fixed cable to XLR-3M (CCM K), analog, 1 channel
Length 46 mm (CCM L)
Diameter 20 mm
Weight 45 g (CCM L)
Finish Matte gray
