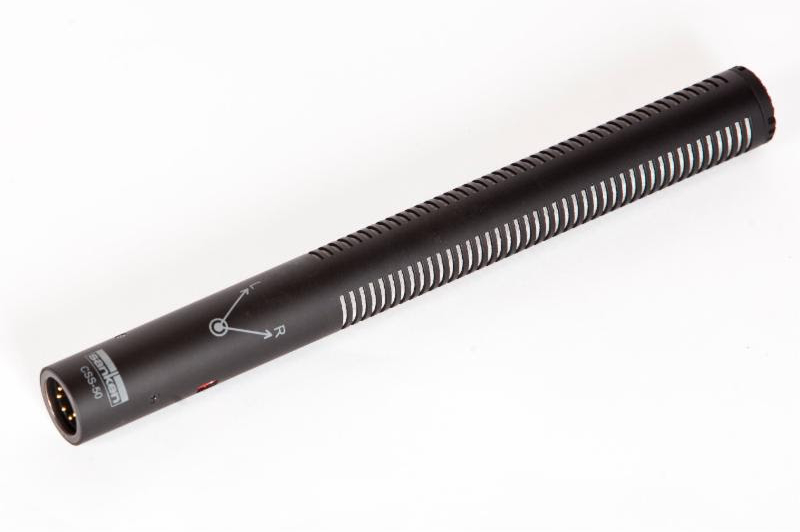

css50

Sanken CSS-50 Three Mode Short Shotgun Microphone

$1,795.00 USD

Quantity:

SKU: SAN CSS-50 Categories: , , , Tag:

Product Description

The Sanken CSS-50 Overview

The Sanken CSS-50 is Sanken’s new and more affordable, easy to operate and flexible stereo shotgun for use in broadcasting and film. The CSS-50’s 3-diaphragm electret condenser mic offers innovative technology in a short, practical form factor.

The selectable CSS-50 clearly captures stereo center-targeted sound with moderate ambience. To achieve this, Sanken developed the three-capsule CSS-50 to capture the center sound like a normal shotgun with the addition of two mic capsules for variable stereo imaging.

The Sanken CSS-50 offers three distinct operation modes. Mono mode offers sharp shotgun directivity, normal (stereo) mode provides precise stereo localization, and wide (stereo) mode allows for expanded 140° stereo, ideal for cinematic ambience and sound effects. Unlike conventional approaches, the CSS-50 is especially effective in the 400Hz to 3 kHz range for optimum stereophonic perception.

Thanks to Sanken’s original thin square capsule design, the capsules can be stacked in the short sound tube, providing performance equivalent to the CSS-5 in a more compact body. The high-performance electret condenser capsules are equivalent in response to DC-biased capsules.

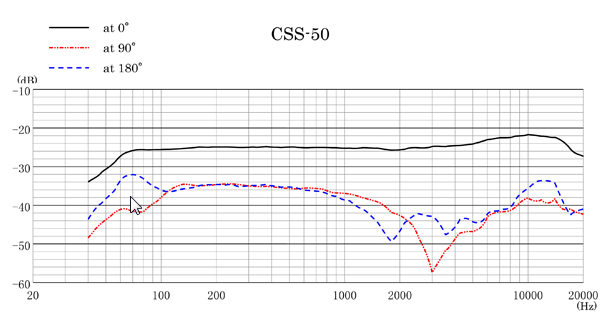

Sanken CSS-50 Frequency Response

css-50_freqresponse

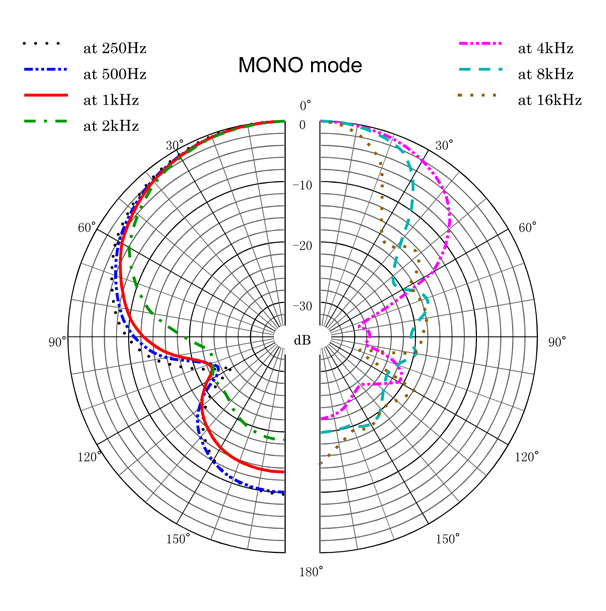

Sanken CSS-50 Polar Pattern (Mono Mode)

css-50_polarmono

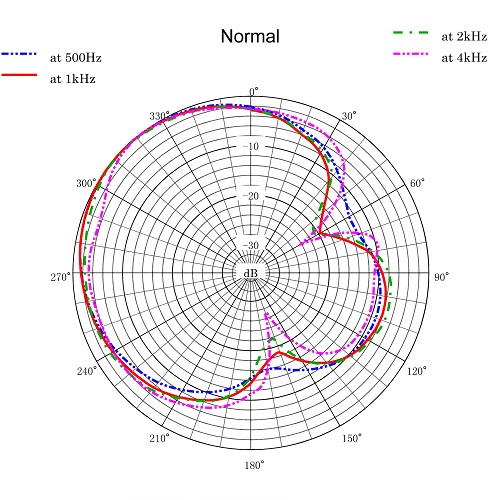

Sanken CSS-50 Polar Pattern (Normal Stereo Mode)

css-50_polarstereonormal

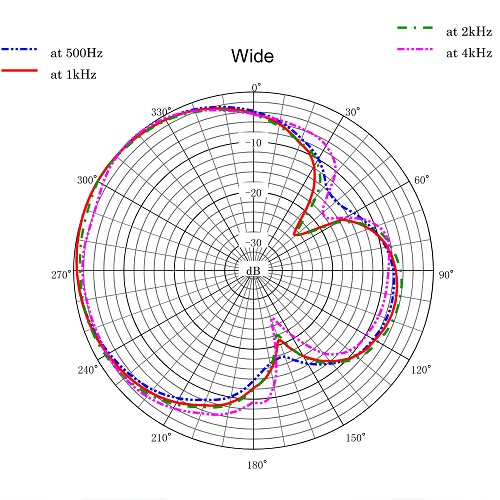

Sanken CSS-50 Polar Pattern (Stereo Wide Mode)

css-50_polarstereowide

Specifications

Directivity Super Cardioid/lobar and 2ch STEREO
Transducer Back electret condenser x 3
Frequency range 70Hz – 18kHz
Sensitivity
(nominal at 1kHz)
MONO: 56mV/Pa (-25dB) [0dB=1V/Pa]
NORMAL: 100mV/Pa (-20dB)
WIDE: 141mV/Pa (-17dB)
Equivalent noise level
(A-weighted)
MONO: 16dB SPL
NORMAL,WIDE: 17dB SPL
Max SPL (1% THD) 120dB SPL

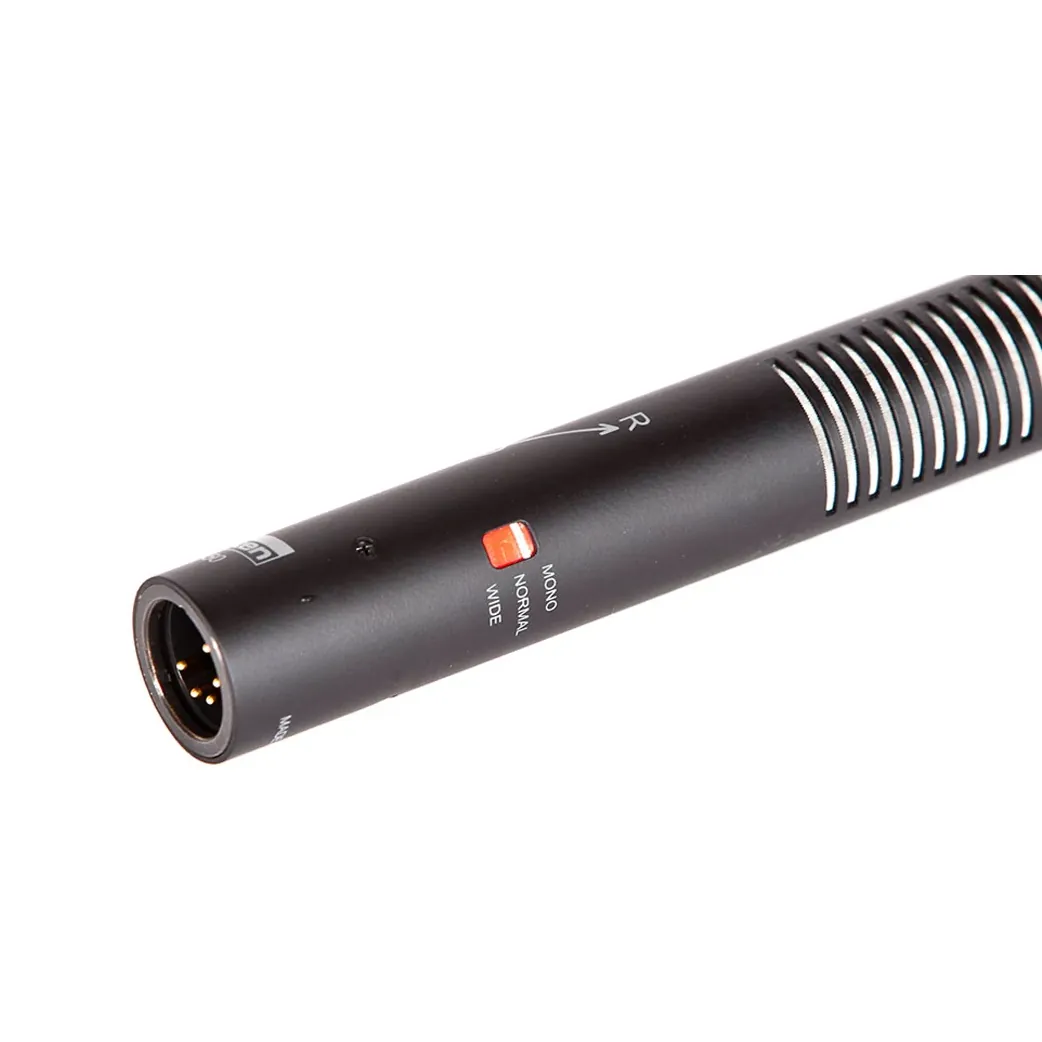

Switch MONO,NORMAL,WIDE
Output impedance
at 1KHz
140 ohms
Powering +48±4V phantom
Current consumption 4mA
Weight 160g
Dimensions 215mm x 22mm (diameter)
Surface finish matte black
Connector XLR-5M
1: GND、2: Lch Hot、3: Lch Cold、4: Rch Hot、5: Rch Cold
