Rycote BD-10 Bidirectional Pencil Condenser Microphone
- Figure-8 pencil condenser for M/S stereo
- Pairs with Rycote’s SC-08, CA-08, HC-15, and HC-22
- 18 dB(A) self-noise, high lateral rejection
$709.95 USD
In Stock
Rycote BD-10 Bidirectional Pencil Condenser Microphone
Designed mainly for M/S stereo, ambient recording, and dual dialogue, the Rycote BD-10 is a bidirectional (figure-8) pencil condenser. Paired with the Rycote SC-08, CA-08, HC-15, or HC-22, it forms a complete M/S or Double M/S stereo setup for documentary and corporate work.

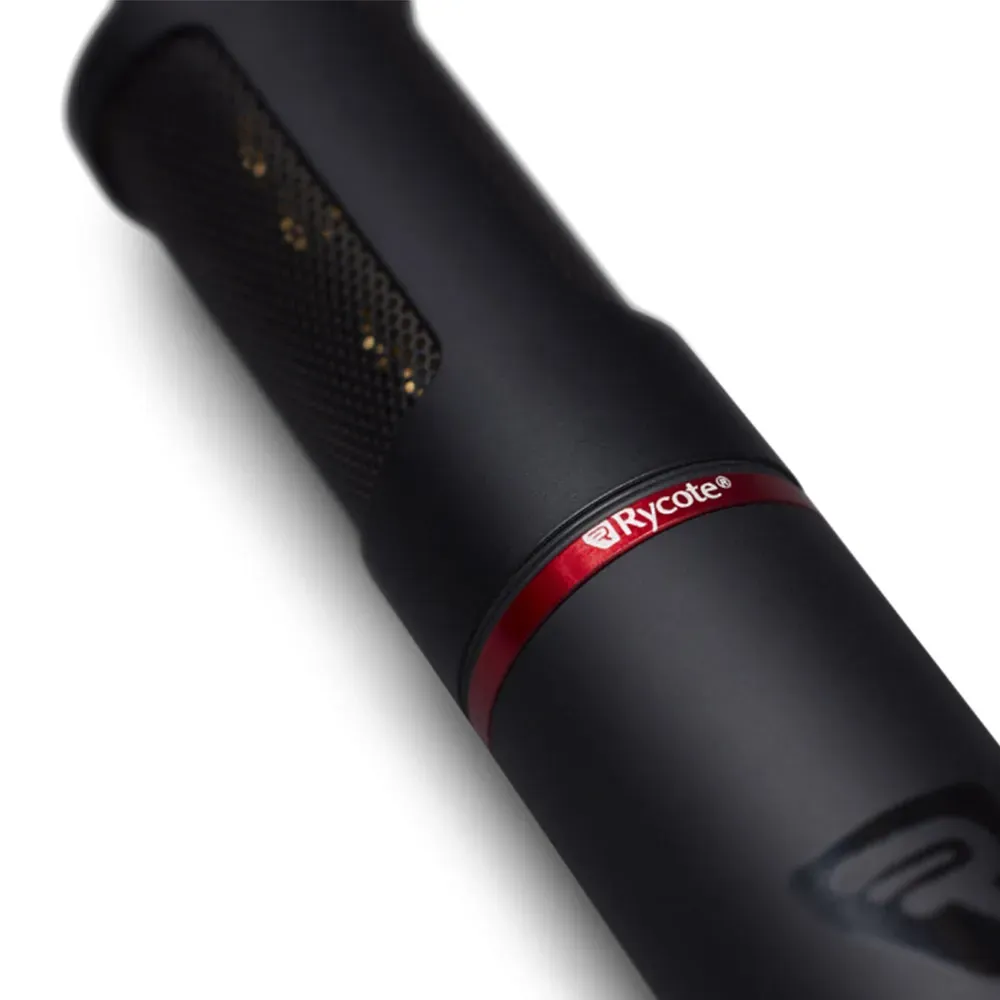

The BD-10 uses Rycote’s low self-noise capsule in a compact 10 cm pencil body, and its figure-8 pattern strongly rejects sound from the sides.
Features
- Bidirectional (figure-8) pickup
- For M/S and Double M/S stereo recording
- Pairs with the Rycote SC-08, CA-08, or HC-15
- Ambient recording and dual dialogue
- Signature low self-noise capsule
- Strong rejection of sound from the sides
- Compact 10 cm pencil body
About Rycote
Rycote has made windshields, shock mounts, and accessories for sound recordists for over 50 years, and its manufacturing has been based in the UK since 1969. It develops and tests its designs in its own wind tunnel. Professionals around the world use Rycote gear, and their feedback from real-world use guides its ongoing improvements.
Specifications
| Polar Pattern | Bidirectional (figure-8) |
|---|---|
| Capsule Type | Back electret condenser |
| Frequency Range | 40 Hz to 18 kHz |
| Output Sensitivity | 14.2 mV/Pa (−36.9 dBV) |
| Self-Noise | 18.0 dB(A) |
| Signal-to-Noise Ratio | 76 dB typical (1 kHz/Pa, A-weighted) |
| Max SPL | 135 dB SPL (1 kHz, 1.0% THD); 129 dB SPL (1 kHz, 0.5% THD) |
| Max Output Voltage | 4 Vp (load under 2 kΩ) |
| Output Impedance | 100 Ω |
| Min Load Impedance | 1 kΩ |
| CMRR (1 kHz) | Over 60 dB |
| Max Cable Length | 100 m (328 ft) |
| Powering | +48 V phantom (24 to 48 V; max SPL reduced at 24 V) |
| Current Consumption | 3.0 mA |
| RFI Shield | Yes |
| Connector | XLR-3M |
| Diameter | 1.9 cm (0.75 in) |
| Length | 10.05 cm (3.96 in) |
| Weight | 86 g (3.03 oz) |
| Color | Matte black |
