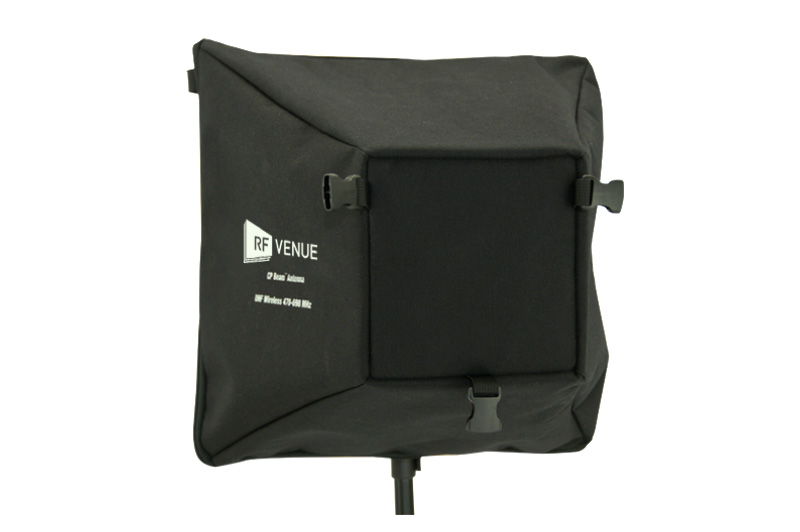

RF Venue CP Beam Antenna

869.00 USD

The RF Venue CP Beam is the industry’s only high gain helical antenna that folds down flat for easy transportation and storage. It provides an impressive 9 dBd of directional gain.

Quantity:

SKU: RFV.CPB Categories: , Tag:

Description

Special considerations may apply if this item is received outside of North America. Please read for details.

The RF Venue CP Beam is the industry’s only high gain helical antenna that folds down flat for easy transportation and storage. It provides an impressive 9 dBd of directional gain to improve reception on wireless microphones, production intercoms, and IEM equipment, yet weighs only 2.5 lbs, collapses, and is durable.

Key Features:

  • Frequency Range 470 – 698 MHz, + 950 MHz
  • Designed for in-ear monitor (IEM) systems and long range wireless mic applications
  • Folds from 12” Extended to 3” collapsed, 14” L x 14” W
  • 9 dBd Gain, 63° Beamwidth
  • N-Type Connector with N to BNC Adapter Provided
  • Mounting Block for 5/8-27, 1/4-20, and 3/8-16 Stands
  • Custom Colors and Logo Printing Available

Reviews

There are no reviews yet.

Be the first to review “RF Venue CP Beam Antenna”

Operating frequency 468-740 MHz, + 950 MHz
Bandwidth 272 MHz
Average return loss 13.15 dBm
Impedance 50Ω
Pattern type Beam
Polarization RHCP
Gain 9 dB
Transmit Power (max.) 50 W
Azimuth X ----------
Beam width 63ᄎ
F/B Ratio 15 dB
F/S Ratio 12 dB
Squint < 2 dB
Azimuth Y ----------
Beam width 70ᄎ
F/B Ratio 15 dB
F/S Ratio 12 dB
Squint < 2 dB
Physical Characteristics ----------
Length 355mm/ 14 in
Height 355mm/ 14 in
Weight 100 g / 2.5 lbs
Mounting 1/4-20, 3/18-16, and 5/8-27
Operating Temperature -23 to 54C/10-130 F
Color Black
Connector female (BNC adapter supplied)
