RF Venue COMBINE6 HDR IEM Transmitter Combiner
- Combines up to six in-ear monitor transmitters
- High Dynamic Range design
- Half-rack width
$1,499.00 USD
In Stock
RF Venue COMBINE6 HDR IEM Transmitter Combiner
The RF Venue COMBINE6 HDR fits six in-ear monitor transmitters onto one antenna in half a rack width, clearing away the cluster of antennas that crowds a band’s rack.
Its active circuitry uses RF Venue’s High Dynamic Range approach, which lowers intermodulation distortion. That improves monitor signal quality and helps any wireless microphones sharing the same spectrum, with a lower noise floor and more open channels.
A built-in passive expansion circuit lets a second unit join for 12 channels on one antenna in a single rack space. Rack ears and a joining plate come with it, so you can mount it alone or beside another half-rack RF Venue unit. It suits churches and band flypacks alike.
Features
- Combines up to six in-ear monitor transmitters
- High Dynamic Range design
- Half-rack width
- Expands to 12 channels on one antenna with a second unit

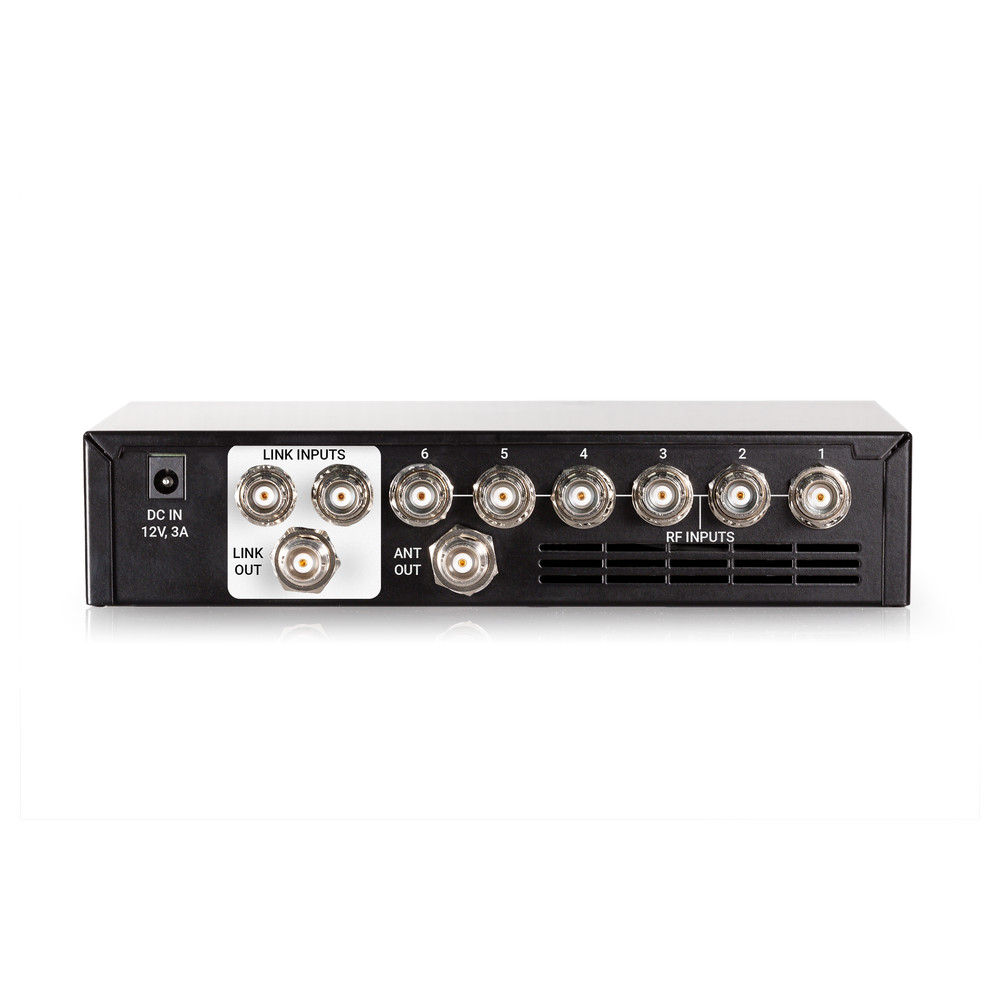

- Six BNC inputs
- Rack ears and joining plate included
What's Included
- COMBINE6 HDR
- 12 V, 40 W power supply
- IEC power cable
- Rack ears, short and long
- Half-rack connecting plate and mounting hardware
Specifications
| Frequency Range, USA and Canada | 470 to 608 MHz |
|---|---|
| Frequency Range, International | 470 to 698 MHz |
| RF Inputs | 6 × BNC |
| Maximum Input Power | 60 mW (+18 dBm) per port |
| Input Port Isolation | 50 dB, typical |
| Signal Overload Threshold | 17 dBm, typical |
| Passive Circuit Loss | 4 dB, typical |
| DC Power In | +12 V, 3 A |
| Dimensions (D x W x H) | 223.5 × 210 × 44.5 mm / 8.8 × 8.25 × 1.75 in |
