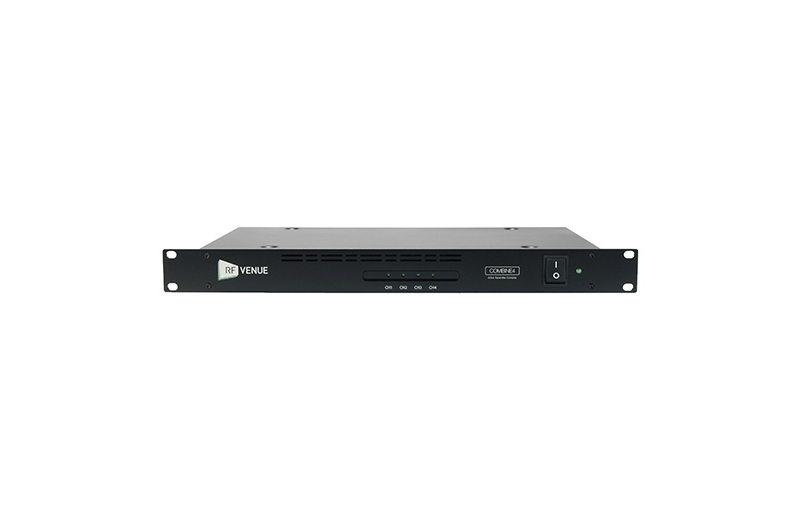

RF Venue COMBINE4 IEM Transmitter Combiner
- Combines up to four in-ear monitor transmitters
- One antenna output
- DC power for four transmitters
$849.00 USD
RF Venue COMBINE4 IEM Transmitter Combiner

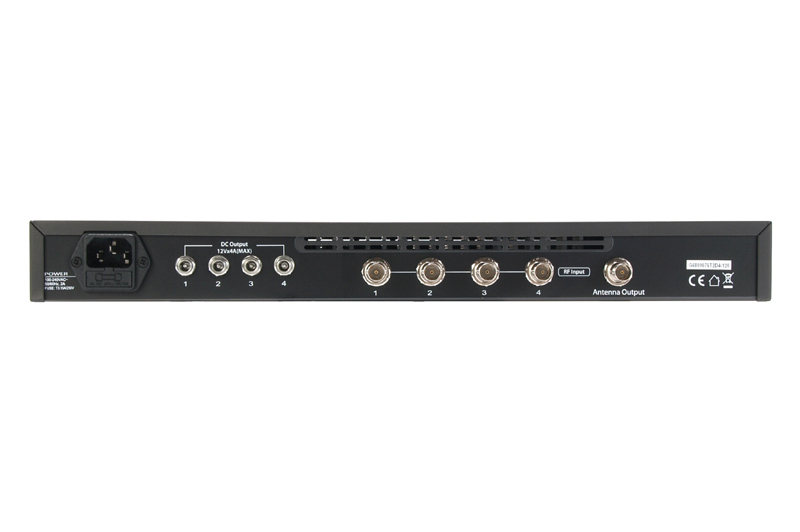

The RF Venue COMBINE4 merges the signals from up to four IEM transmitters into one rear-mounted antenna connector, so one directional antenna outside the rack replaces four whips.
Active combining keeps adjacent transmitters from interfering with one another, lowering intermodulation in a multi-channel system. Any brand of in-ear monitor transmitter works, and so does any type of directional antenna; the CP Beam and CP Stage are both natural choices.
It also powers up to four transmitters over the included DC jumpers, which clears away cable clutter and wall warts. Each input takes up to 100 mW, so a 250 mW Part 74 transmitter must not run at full or half power with it.
Features
- Combines up to four in-ear monitor transmitters
- One antenna output
- DC power for four transmitters
- Works with any brand
- Maximum 100 mW per input
- 1RU, full rack width
What's Included
- COMBINE4 Antenna Combiner
- 4 × 14-inch BNC jumpers
- 4 × 2-foot DC jumpers
- AC power cord
Specifications
| Frequency Range | 470 to 960 MHz |
|---|---|
| Input Connectors | 4 × BNC |
| Full System Gain | 0 dB (±2 dB) |
| Maximum RF Input Power | +20 dBm (100 mW) |
| LED Indicator Threshold | More than +5 dBm |
| Power Consumption | 60 W |
| Input AC Voltage | 100 to 240 V AC, 50/60 Hz, 2 A max |
| Output DC Voltage | +12 V, 1 A max (4 outputs, 48 W total) |
| Output DC Connectors | 5.5 mm OD, 2.1 mm ID |
| Dimensions | 480 × 45 × 250 mm / 19 × 2 × 10 in |
| Weight | 2.3 kg / 5 lb |
